EI lower frequency power supply  transformer for air-condition  :



Specifications for EI lower frequency power supply  transformer for air-condition  :







1 The input voltage: 120 v-220V
2 Frequency: 60 hz
3 Output: AC 3.0 24.0 V, 1.65-10.0 VA
4 Energy efficiency: > 65%.
5 Standard power: 0.5 W

Equipment for  EI lower frequency power supply  transformer for air-condition:



Features for EI lower frequency power supply  transformer for air-condition   :





1 Working temperature: - 10 °C to 60 °C
2 Storage temperature: - 10 °C to 80 °C
3 Humidity: 5-95%, no condensation phenomenon
4 Compression strength (V RMS) : P - S, 2500 VRMS
5 Insulation level: level A



Applications for EI lower frequency power supply  transformer for air-condition  :



 Is widely used in program-controlled switches, air conditioner, microwave oven, electric rice cooker, TV set-top boxes, audio systems, lighting systems, network devices, DVD and other products. Is widely used in program-controlled switches, air conditioner, microwave oven, electric rice cooker, TV set-top boxes, audio systems, lighting systems, network devices, DVD and other products.

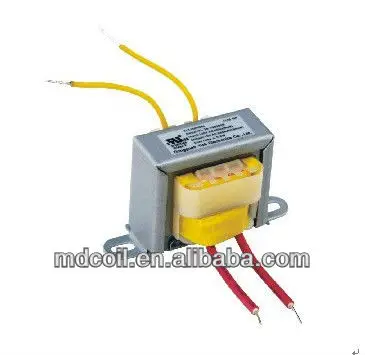

the picture

the certificate :





the main customer:
