Sealed bushing mount Feed through emi rfi filter

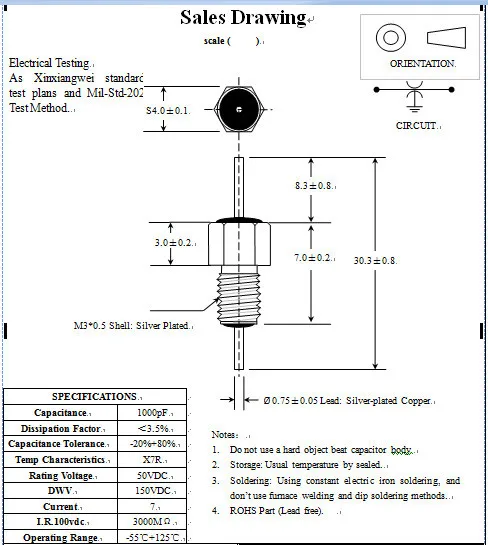

Specification:

1. Rated Voltage:                  100VDC

2.Caps and Tolerance:          1000PF  +80%  -20%

3.Dissipate Factor:                <3.5%

4.Insulation Resistor:           >3000 M Ω

5. Temperature Feature:       -55°C ~ +125°C

6.Withstand Voltage:             200VDC

7.thread:                                 M3

8.Circuit Type:                      C Type

CUSTOM DESIGN IS AVAILABLE.



Free Samples be supplied,Custom design is available.

Filter Contacts:
C-Filter [uses a Feed-Through Ceramic Capacitor, signal to ground]
L-Filter [uses an Inductor, Ferrite strip under the body as a pin alignment body]
LC-Filter [Series Inductor followed by a capacitor to ground. Low source, high load impedance]
CL-Filter [capacitor to ground followed by a Series Inductor. High source, low load impedance]
T-Filter [Two Series Inductors with a center capacitor to ground. Low source, low load impedance]
Pi-Filter [Two capacitors to ground with a center inductor.]



1.Because of the multilayer structure,there is only a minimum change of characterictics by soldering and severe thermal cycles.

2.When assembled into shield cases,both shielding and filtering can be achieved.Therefore,this will be very effective for EMC control.
3.Suitable to be assembled into connectors because of the small size.
4.RoHS Compliant.

Applications:
EMI control for AV,OA equipment,industrial equipment,and communication equipment.





Shipment:
1.Dispatch is arranged within 24-72hours once your payment was informed;
2.DHL/FedEx/UPS/TNT/EMS Express available,it usually takes around 3-7 working days to the destination except EMS;
3.To ensure you receive your products with paying minimum taxes, we will declare as”samples”with low value in commercial invoice.

Payment:
1.Making payment by Escrow,your money is deposited securely in your account.Money is only released to us after you confirm delivery,so please help us to confirm delivery in a short time after you get the package,that we can get the payment.
2.Other payment:Wire Transfer(T/T),Western Union,Money Gram.Contact us if you need.
3. Contact us if you have other request about payment.

Warranty:
1.One year warranty be provided.Our items be shipped after testing and approval ok.The supplier will be requested to replacement or supplement if you found some items are damaged or missing;
2.Please inform us within 5 days of delivery if your feel dispointed with the item;
3.Items must be returned in original condition for refund/exchange.the occurred shipping cost is on the buyer.

Feedback and FAQ:
1.Please leave feedback for us after you received the item in time,for informing us that you have received the item;
2.5 Star and positive feedback will be appreciated,please feel free to contact us if you have more advises can promote our service;
3.We care about each buyer and will do our endeavor to fix any problem in a good business manner.Your satisfaction is always our No.1 priority.

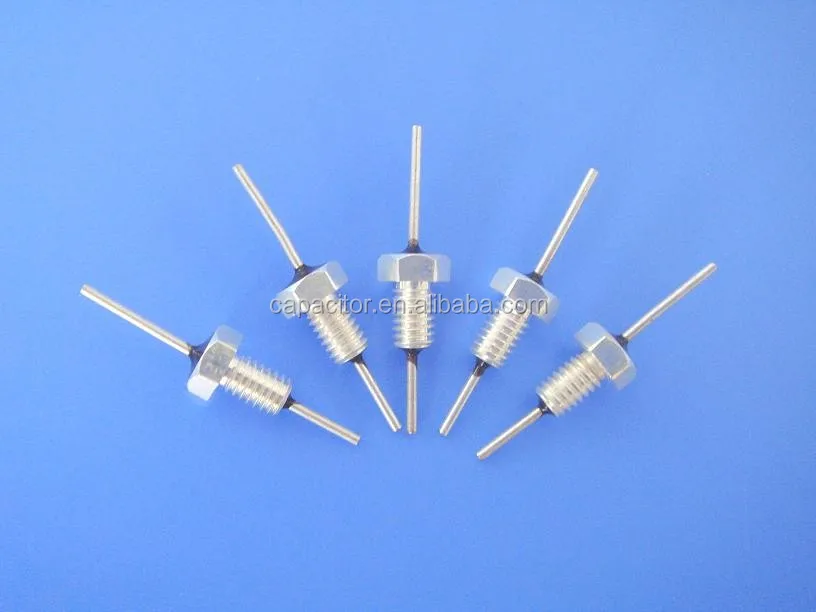

Product show
