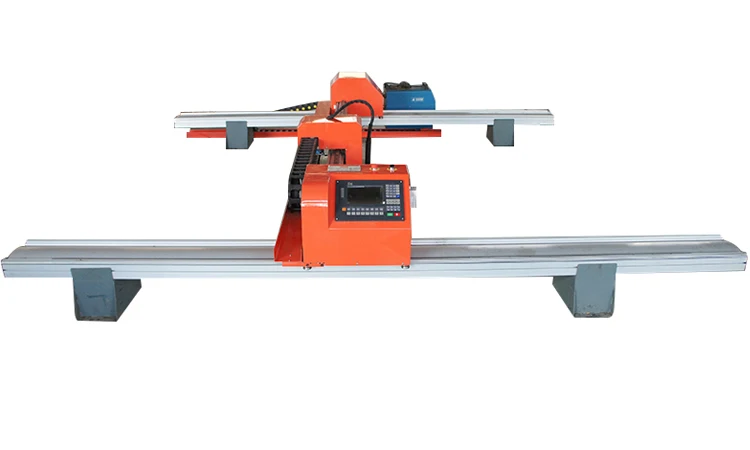

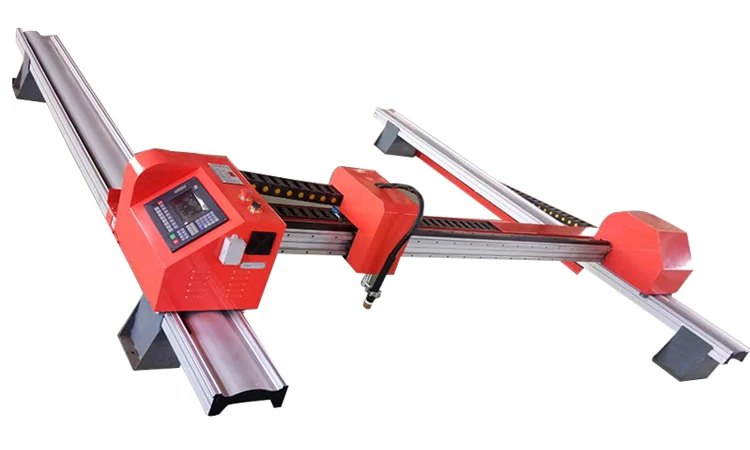

Made in China arc pressure auto gantry type plazma cutter cnc plasma      plazma cutter cnc plasma

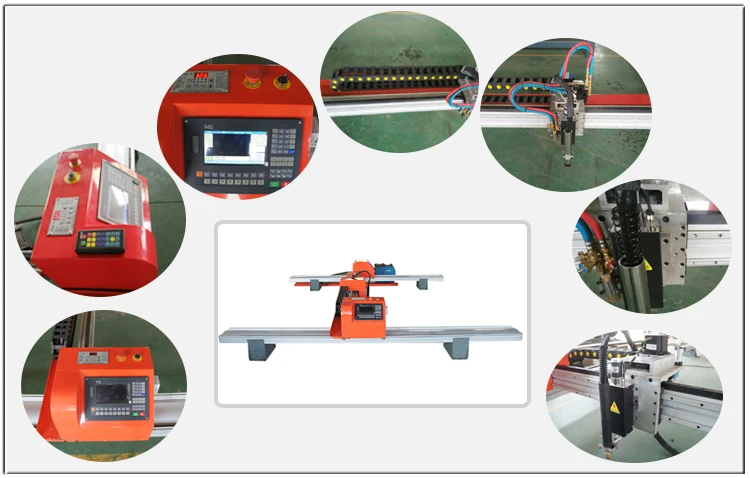

Product feature:

1. Adopt newest aviation aluminum meticulously, full of The Times flavor, beauty and durable use.

Newest transmission structure with precision rack and special reducer to ensure the accuracy of

the transmission, Y axis adopts double driver to ensure provide large torque for machine. The

control cable is made by importer retardant wear-resisting material.

2. The drive system adopts USA chip control and high precision motor, providing AC power with

big torque to ensure running smoothly under the high speed.

3. Control system is 7 "screen, with English and Chinese language. The machine adopt high

precision arc pressure automatic THC.

4. Optional function: Plasma/Plasma and flame

5. Optional configuration: Stepper motor/servo motor; linear rail/SBR round rail

6. Machine size: A,2230: 2200*3000   B,2240: 2200*4000mm;  C,2260: 2200*6000mm;

             D,22120: 2200*12000mm



Product parameter:

MODEL	FX-LML2230HD
BASIC INFORMATION	Cutting method	Plasma	Flame(Optional)
	Machine size	3550*3300mm
	Cutting material	All metal sheet	Mild/High Carbon steel
	Cutting size	2200*3000mm
	Cutting thickness	According to Plasma source	6-200mm
	Lifting travel	≤130mm
	Max travel speed	6000mm/min
	Running accuracy	≤0.03mm
CONFIGURATION LIST	CNC controller	Startshaphon
	Remote control	Yes
	Auto Height control	HYD XPTHC-16	Lifter
	Motor drive mode	Stepper motor
	Drive system	Dual drive
	Reducer	X axis: Gear box  Y axis: Direct drive
	Transmission method	Rack and pinion drive
	Linear guide	Linear axis
	X,Y Axis beam	Heavy duty aviation aluminum-alloy
EXTERNAL SUPPLY	Power	220V 50hz
	Cutting gas	Compressed air	Oxygen + Ethyne(Propane)
	Gas pressure	0.4-0.7MPa	Oxygen:0.5MPa Fuel gas:0.1MPa
SOFTWARE	Graphic import method	USB
	Programming software	AutoCAD(all dxf,dwg,CAM,NC files)
	Nesting software	FastCAM
ACCESSORIES	Torch	One set of Plasma torch	One set of Flame torch
	Consumables	nozzles and electrode	Flame nozzles
PACKING INFORMATION	Dimension	3930*690*680mm
	Weight	240kgs



Q1: I knew nothing about this machine, what kind of machine I should choose?

Very easy to choose. Just tell us what you want to do by using CNC plasma machine, then let us give you perfect solutions and suggestions.



Q2: When I got this machine, but I don’t know how to use it. What should I do?

We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or whatsapp and e-mail.



Q3: If some problems happen to this machine during warranty period, what should I do?

We will supply free parts during machine warranty period if machine have some problems. So any doubts, just let us know, we will give you solutions.



Q4: Before sending me an inquiry on our plasma, it is better for you to provide me the following information

1)Your cutting size. Because in our factory, we have different models according to working area.

2)Your materials: Carbon steel, stainless steel , aluminum, or other materails

3) what’s your cutting thickness?

We will recommend suitable power source to you according to your cutting thickness



Q4: Our Service:

1) 24 Hours online service. my whatsapp: 15165193115

2) 12 months warranty for the whole machine except for wearing parts.

3) Engineers available to service machinery overseas.
