Фильтр Lowpass EMI/RFI 100V 10000pF
Фильтр Lowpass EMI/RFI 100V 10000pF
Фильтр Lowpass EMI/RFI 100V 10000pF

Фильтр Lowpass EMI/RFI 100V 10000pF


Поделиться:

Цена:1,25 $ - 1,80 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики


Product Description

1). RoHS,REACH,CE approved!
2). Available in RF Components widely!
3).Custom design is available!

4).Certification: ISO9001:2008,ISO14001:2004, ISO18001:2007


Specification:

1.Rated Voltage: 100VDC
2.Caps and Tolerance: 10000PF +80% -20%
3.Dissipation Factor: <3.5%
4.Insulation Resistance: >1000 MΩ
5.Temperature Feature: -55 C to +125 C
6.Withstand Voltage: 300VDC
7.Circuit Type: C Type
8.Dielectric: X7R

\t
Product Name
\t

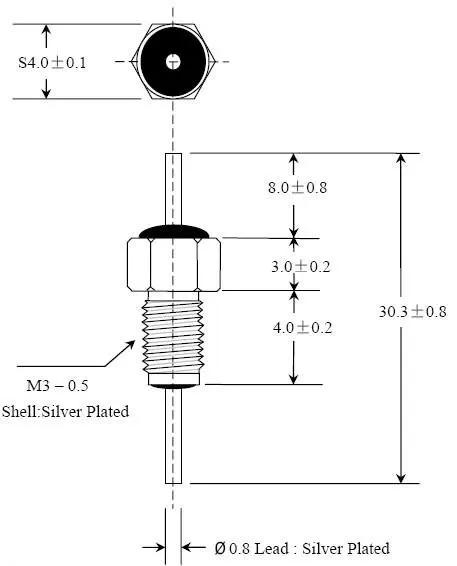

Lowpass EMI/RFI Filter 100V 103 L4030-008C
\t
Material
\t
inside:ceramic chip,outside:copper shell,leadwire:copper
\t
Color
\t
silver
\t
Standard
\t
GB ISO ANSI
\t
Grade
\t
MIL-STD-202
\t
Brade
\t
LCA
\t
Thread
\t
Metirc3.0-0.5
\t
Used
\t
Popular applications include telecommunication, CATV, telemetry, radar, amplifiers, RF switches and Industrial Process Control equipment.

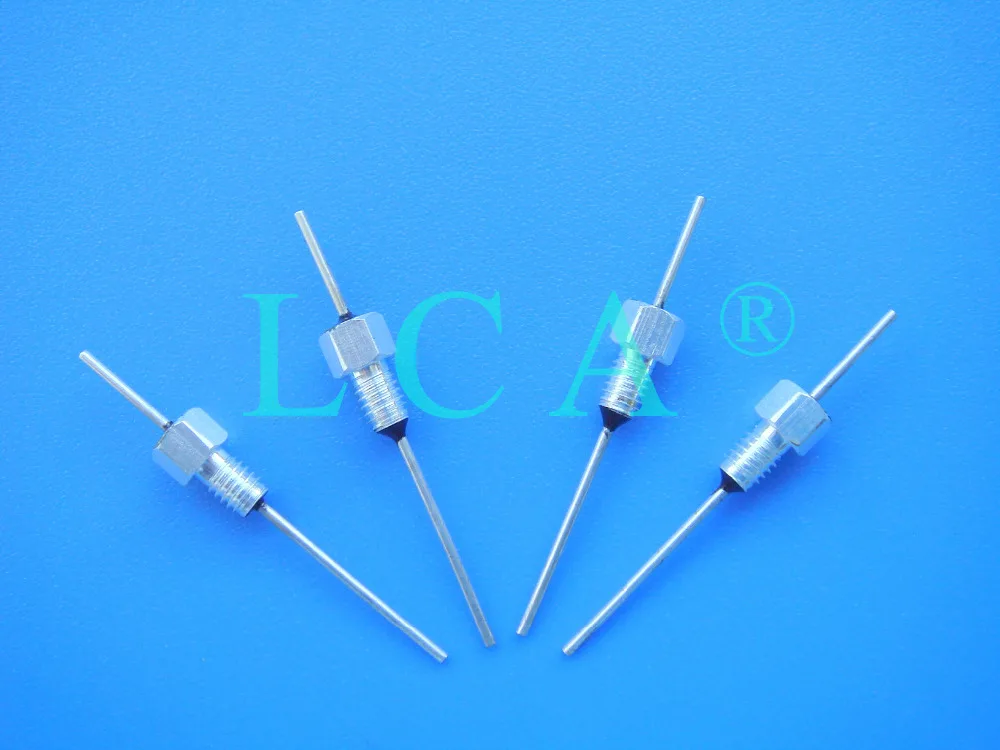

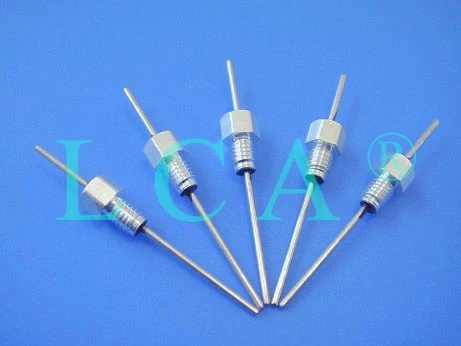

Products Show

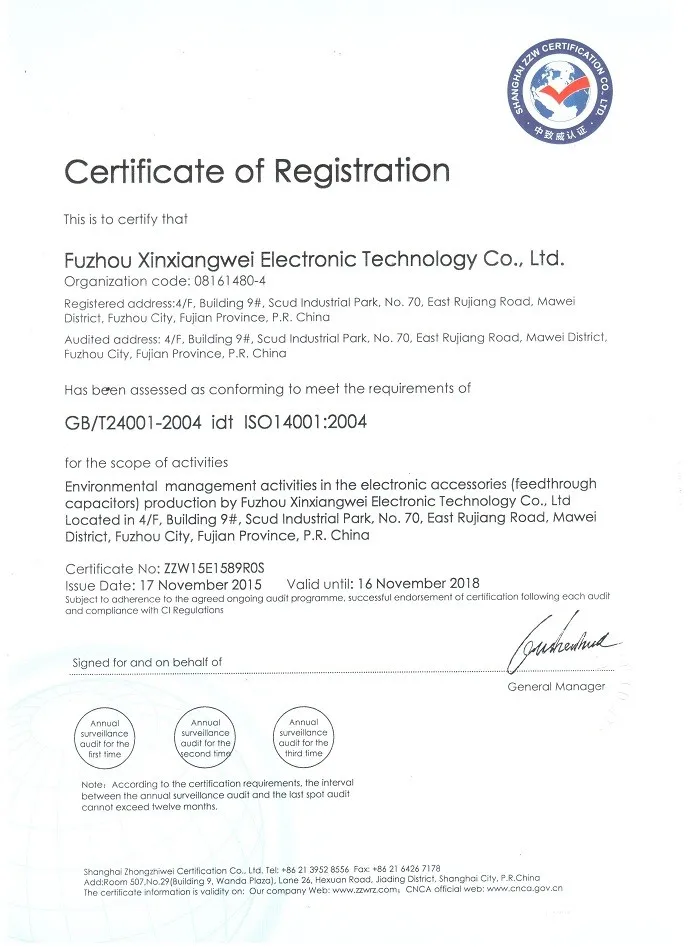

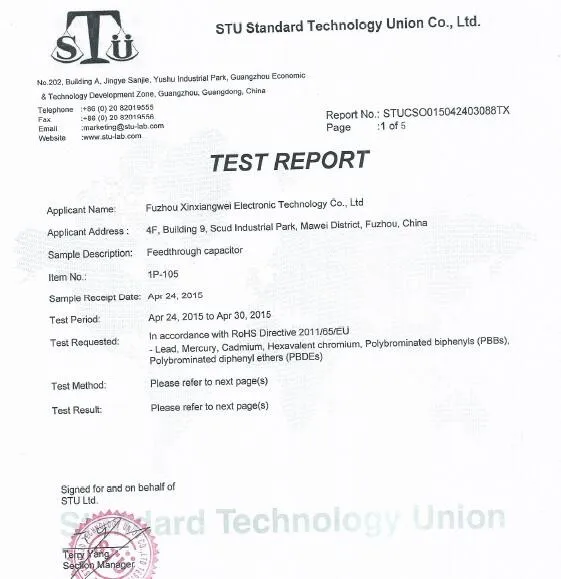

Our Certifications

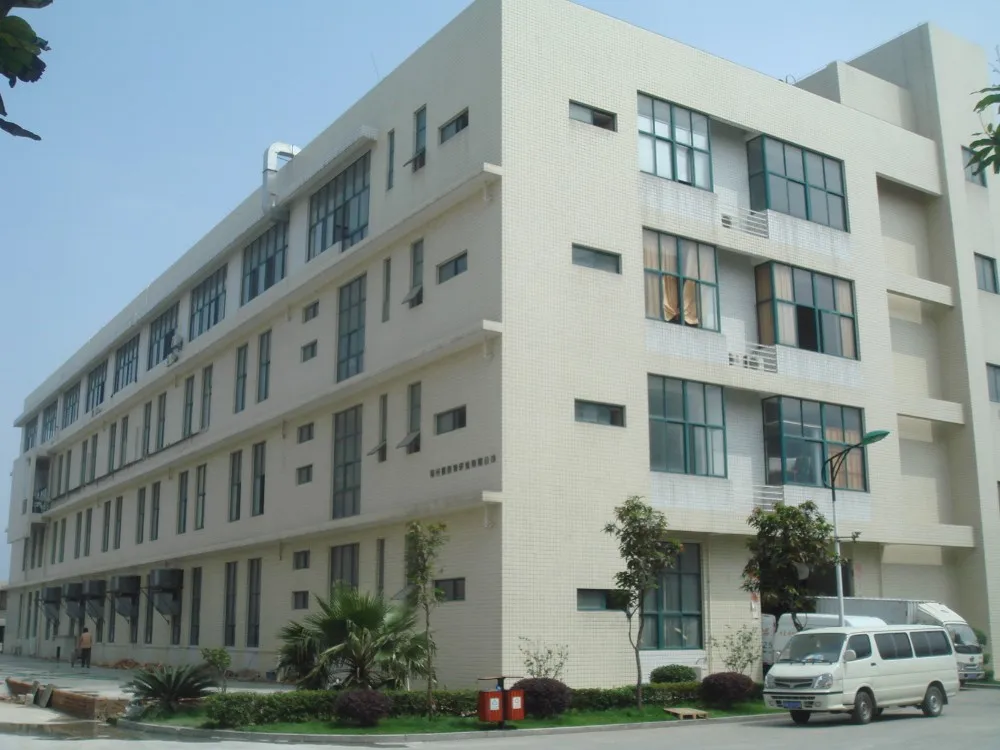

Our Company

Factory1

Factory2

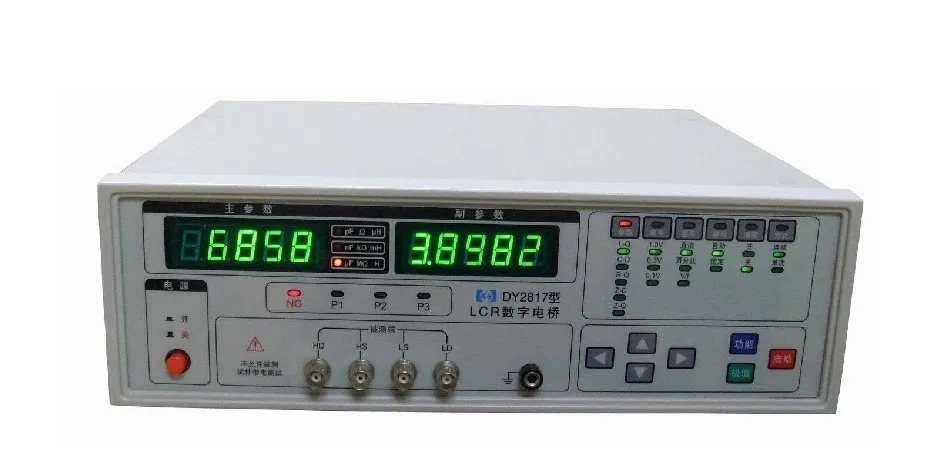

tester1

Our Machine

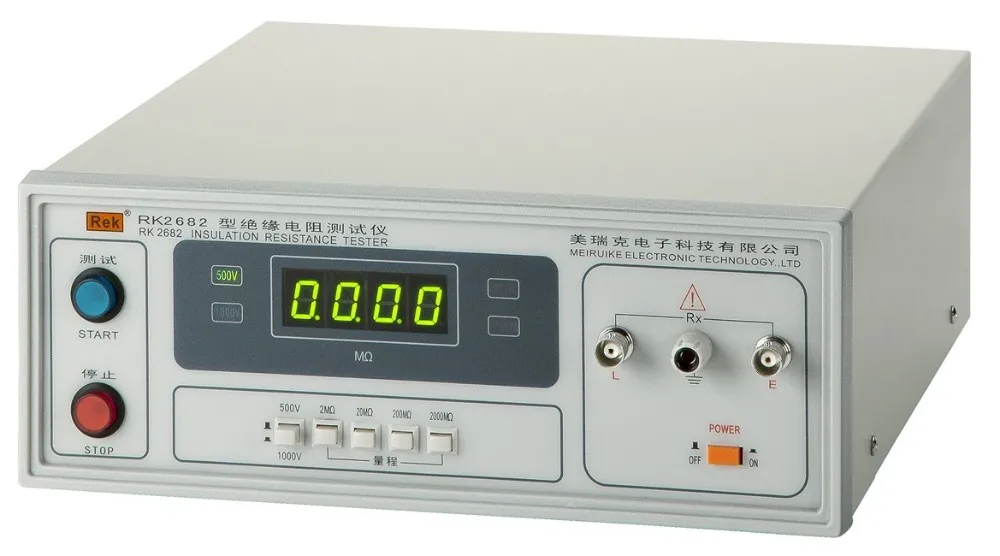

Tester2

Our Machine

Packing & Delivery

Packing Details  : Packing, inside plastic bag 500pcs/1000pcs,outside carton.

Delivery Details : 3-5 days after order confirmation.

1. Four Worldwide Express Courier
2. Package details
3.Package details
FAQ

Q: Are you trading company or manufacturer?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock. or it is 25-30 days if the goods are not in stock, it is according to order quantity.

Q: Do you provide samples ? is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment?

A: Payment<=5000USD, 100% TT in advance. Payment>5000USD, 30% T/T in advance ,balance before shipment.
If you have another question, pls feel free to contact us.
