Центр обработки станков с ЧПУ диском ATC и

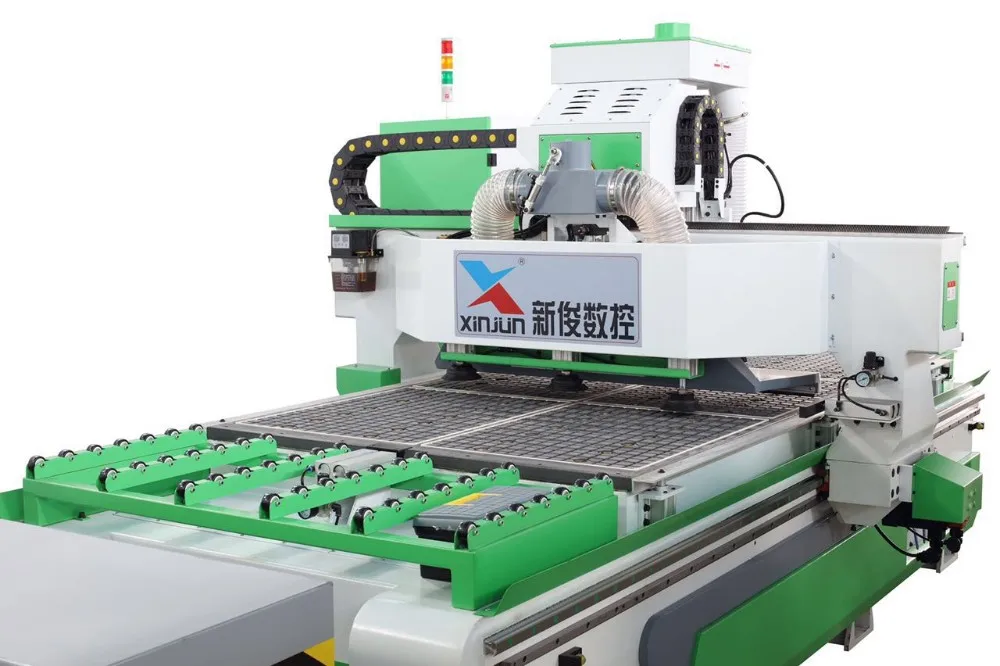

CNC Machining processing center for woodworking

CNC machining Center is a high efficiency & automatic with auto-tool-change(ATC) which is used for processing complicated shapes. It's also a highly mechatronics machine, after fixing the workpieces, the control system can seledt and change the tools automatically, can also just th spindle rotating & working speed autoomatically, which make the machine complete drilling, milling and other complicated producing continuously, greatly reduce the workpieces fixing and machine adjusting time. It's an very useful machine for the user who has complicated shapes, high accuracy request and developing new products frequently.

All heavy steel gusseted plate frame construction, with aging & tempering treatment, never deformation

Air cooling CC spindle (Pneumatic line boring head, C axis rotation mechanism and aggregates are optional)

Taiwan high-precision liner guide rail, heavy loading and durable

Workable movable or Gantry movable

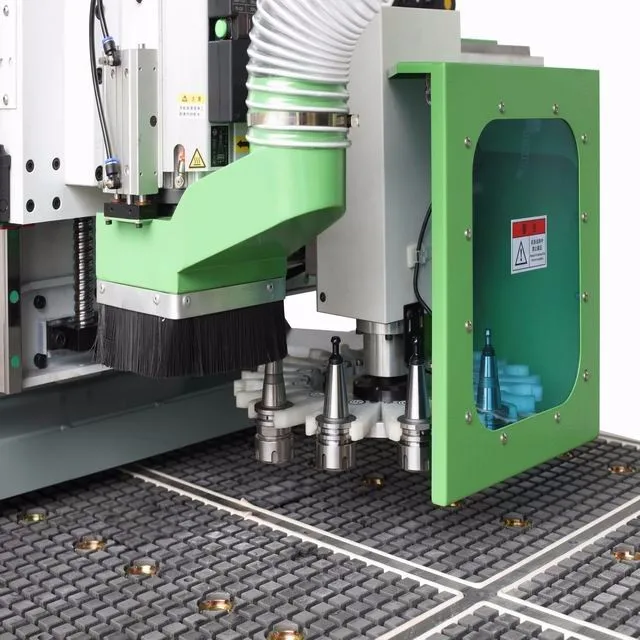

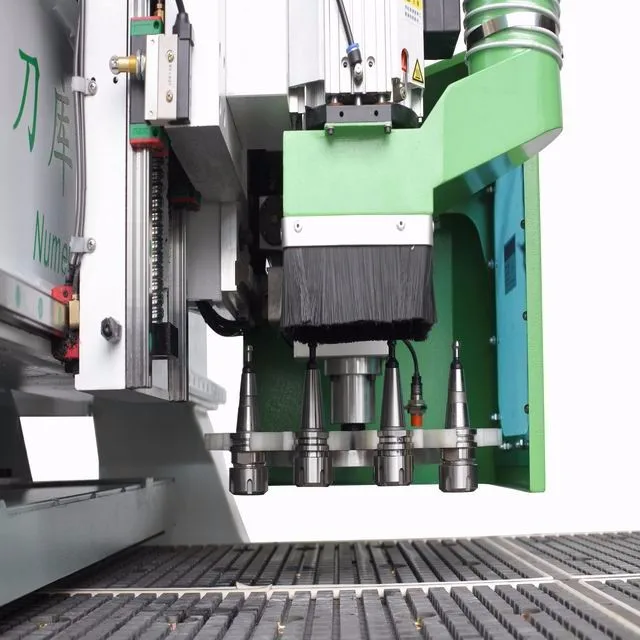

Disc type plastic steel tool maganize, 8 tools capacity

Taiwan syntec operation system with visualization, timely simulation function and excellent pretreatment ability

Vacuum workable (4 or 6 vacuum areas are optional)

Machine Parts

Name: Drilling package

Brand:  CC

Original: China

Main Features

Name: Spindle
Brand: CC
Original: China
