Автоматическая машина для производства

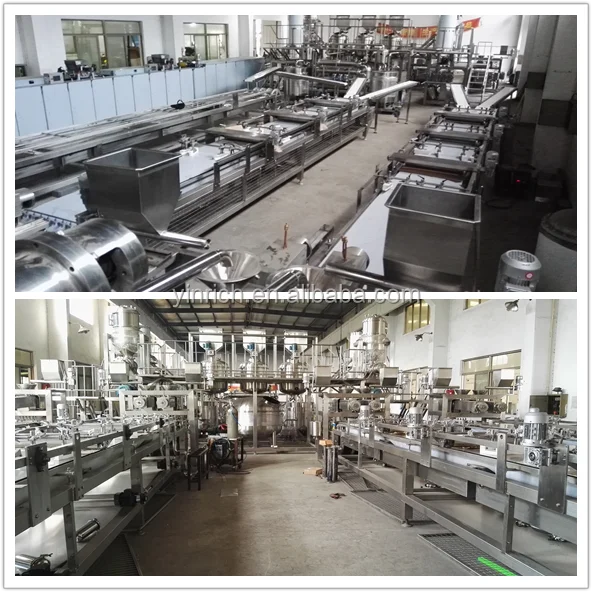

 The images of the production line for biscuit and sandwich

Features:

This cookie capper can be connected to the outlet conveyor of the biscuit plant,

and it can automatically align, deposit and cap at speeds of 300 cookies rows (15

0 rows of sandwiches) per minute. Various types of soft and hard biscuits ,cakes

can be processed .The cakes or biscuits are automatically transferred from your

exiting conveyor to the in- feed of the machine( or via a Biscuit magazine feeder

and indexing system). The machine then aligns, accumulates, synchronizes the

products, deposits an accurate amount of filling, and then caps the top onto the

products. The sandwiches are then automatically transported to the wrapping ma

-chine, or to an enrobing machine for further process.

 The machine consists of:

1)Biscuit magazine feeder;

2)Biscuit indexing device;

3)Depositing manifold(plain, center-filling, side-by side etc, as optional);

4) Top biscuit placing device;

5)PLC controller

 Advantages

-Available for various kinds of filling or capping biscuits or cakes;

-PLC Servo controlled ,high speed capacities;

-Available to be connected to the conveyor of biscuit plant;

-Precision depositing on the cookies;

- Deposition variations:

1. marshmallow

2. aerated chocolate

3.caramels & toffee;

4. jams and jellies;

5.fresh & Non-dairy cream;

6. Butter & Margarines;

-Low labor cost, Quick pay back

Main Technical Specifications:

Production capacity:appro.9000 sandwiches/hour

Rated pieces output: 30 pcs/min

Depositing heads: 5 ~8

Cookie capping heads: 5~8

Width of belt: 600mm

Power: 380V/6KW

Dimension: L:3800 xW: 800 x H:1800mm

total weight:6000kgs

Our company

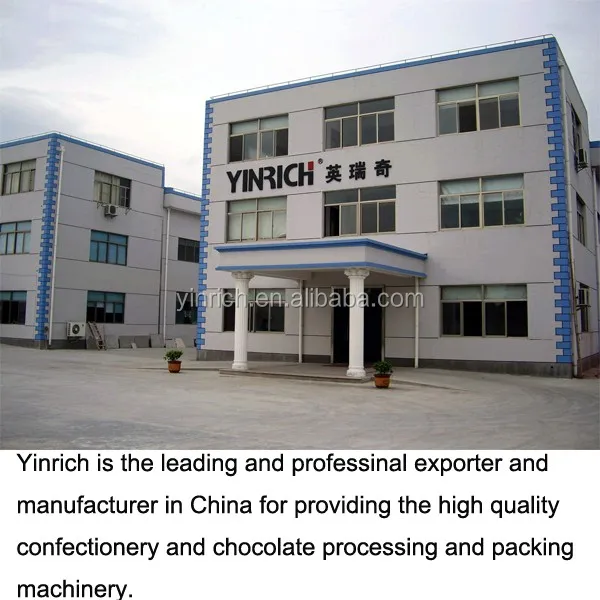

Yinrich is the leading and professional exporter and manufacturer in China

for proving the high quality confectionery and chocolate processing and pa

-ckaging machinery for more than 20 years.

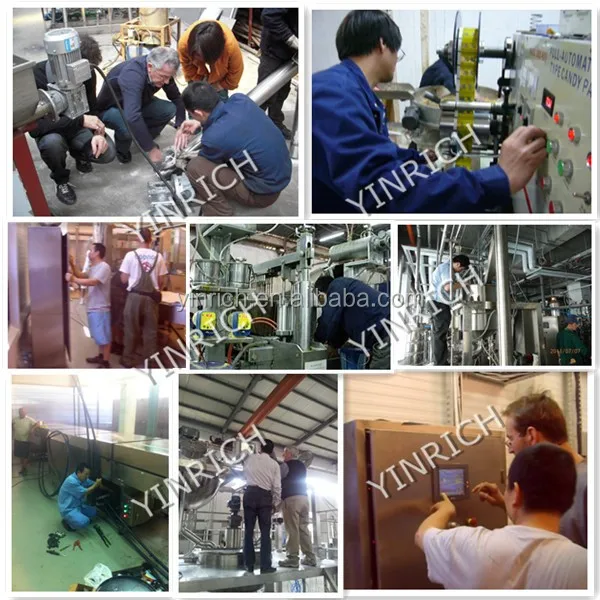

Testing & training:

The plant layout design, assembling and installation, start-up and local team training will be

FREE at no cost. But the buyer should be responsible for the round-air tickets, local transpo

-rtation, board & lodging ,and US$60.-/day/person for the pocket money to our technicians.

The testing people will be two persons, and will cost 15 days.

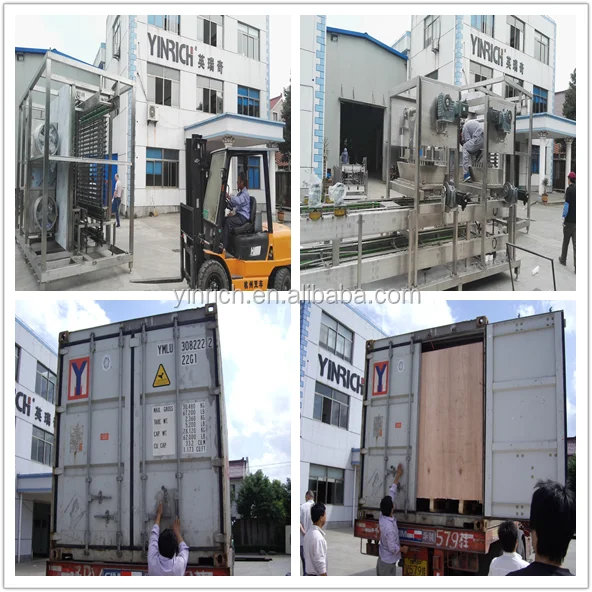

Packing and shipping

Wooden case packed with high quality package and safe for every clients.

Welcome Clients to visit Our factory

Our boss have participated in different Exhibition in different countries

for Confectioney machinery and Chocolate machinery.

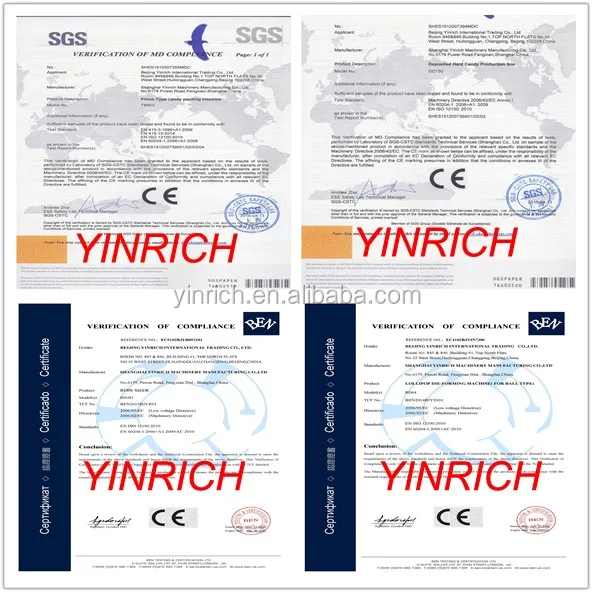

Certificate:
