Торговая марка JinXin шестицветная автоматическая печатная машина для пластиковых

Описание и отзывы

Характеристики

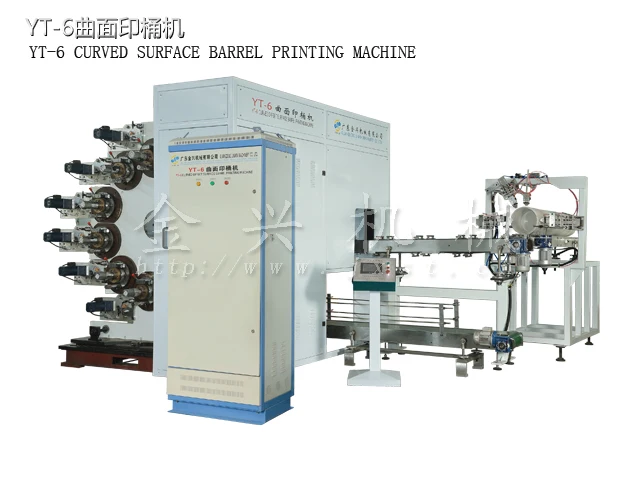

JinXin brand six colors automatic plastic bucket printing machine

Parameters

Mode/Parameter	YT-6
3 Pcs transfer printing rubber model diameter(mm)	160-220
1 Pcs transfer printing rubber model diameter(mm)	310
Printing Length(mm)	300
Max. printing bevel	≤18
Max. printing speed(P/h)	850
Power of the whole machine(kw)	15



Function

1.This machine features automatic feeding, handling before printing, 6-color printing, UV dryness and end-product output device.

2.The whole machine is convenient for operating, plate changing, the printed pattern is clear and the texture is even.



Main Fittings
1.Electric Fittings: Yatai PID Self-adjusting Automatic Temperature Control Meter, Schneider

Pushbutton, Selector Switches, Pilot Lights, Contactor and Thermal Overload Relay, Korea LG Circuit-breaker;
2.Lubricating System: Taiwan Famous Automatic Oiling System;
3.Pneumatic System: Japan SMC;

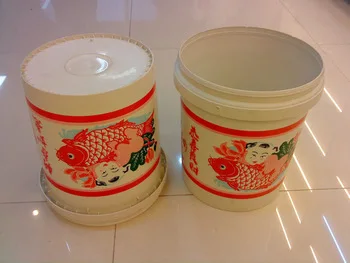

Some samples

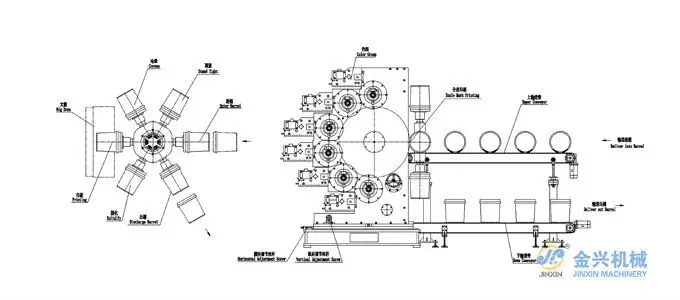

Production schemes

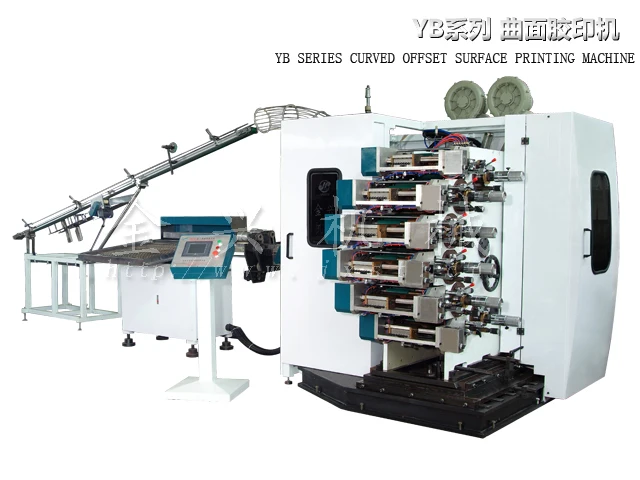

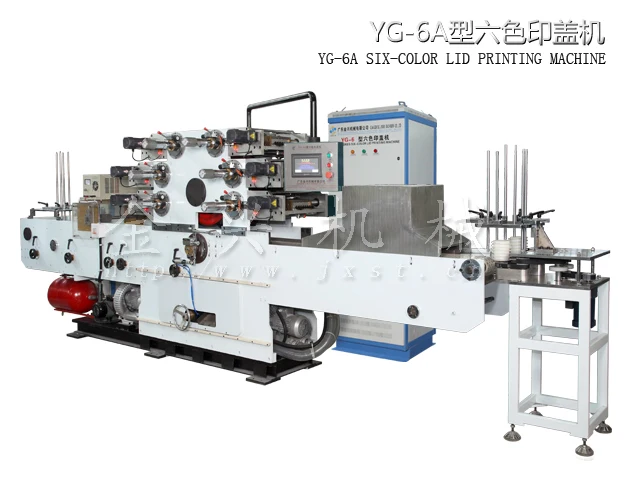

Relevant porducts
