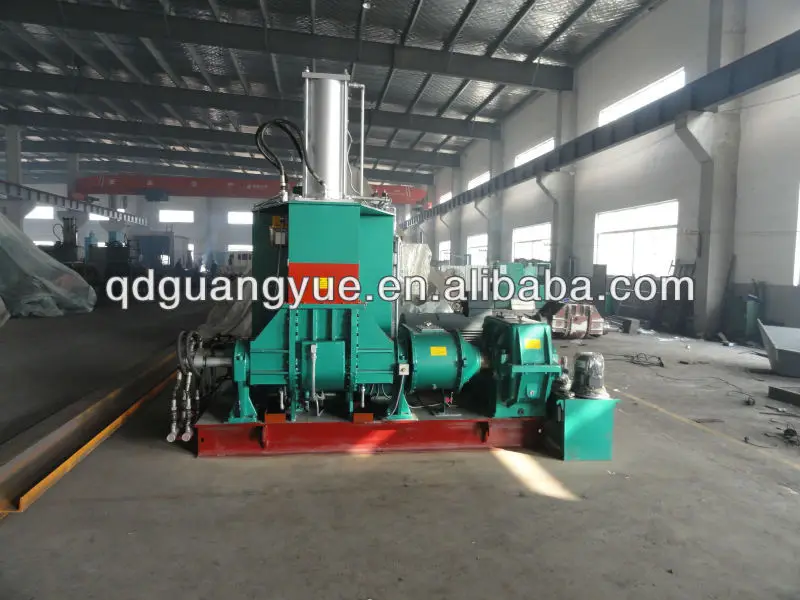

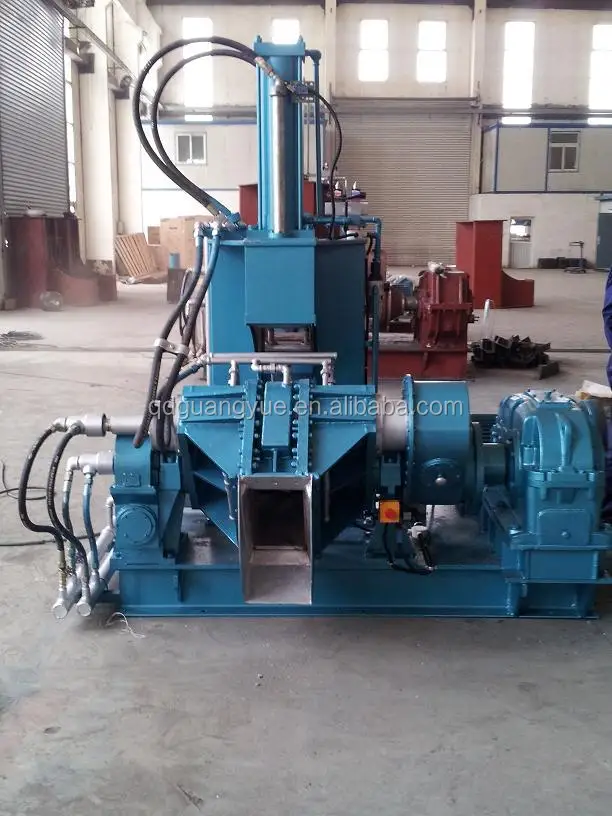

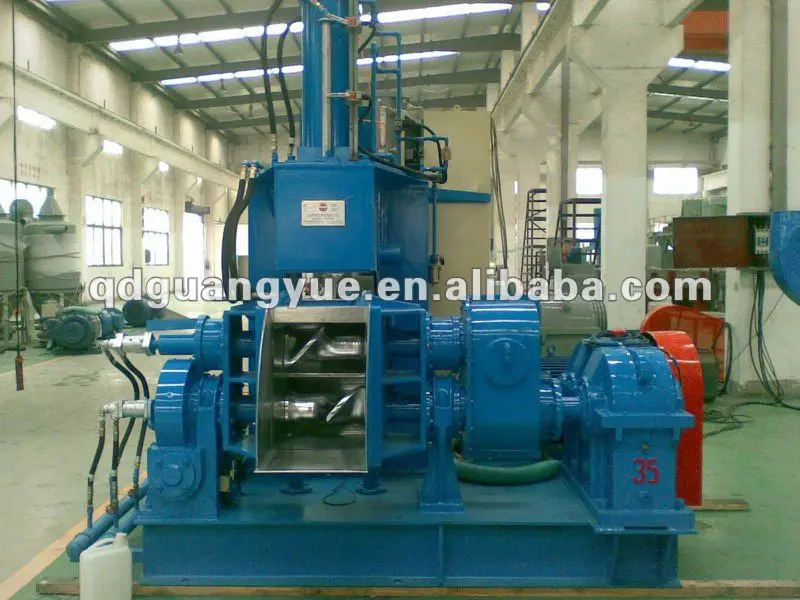

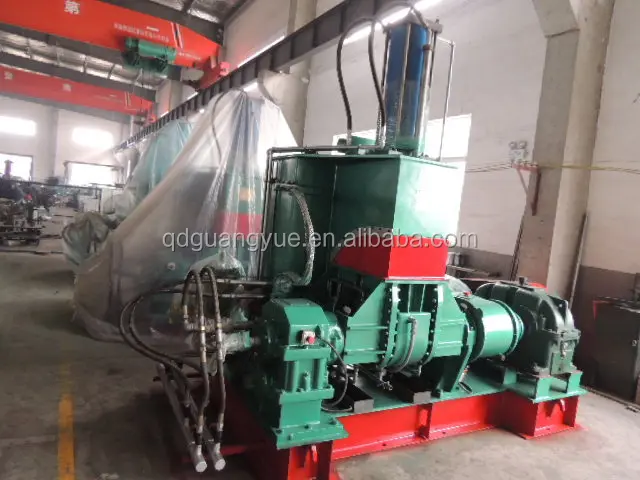

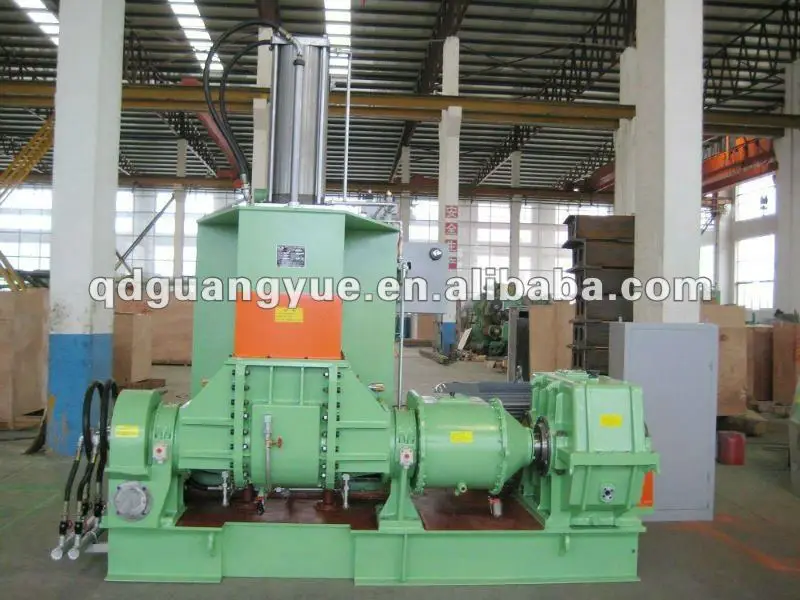

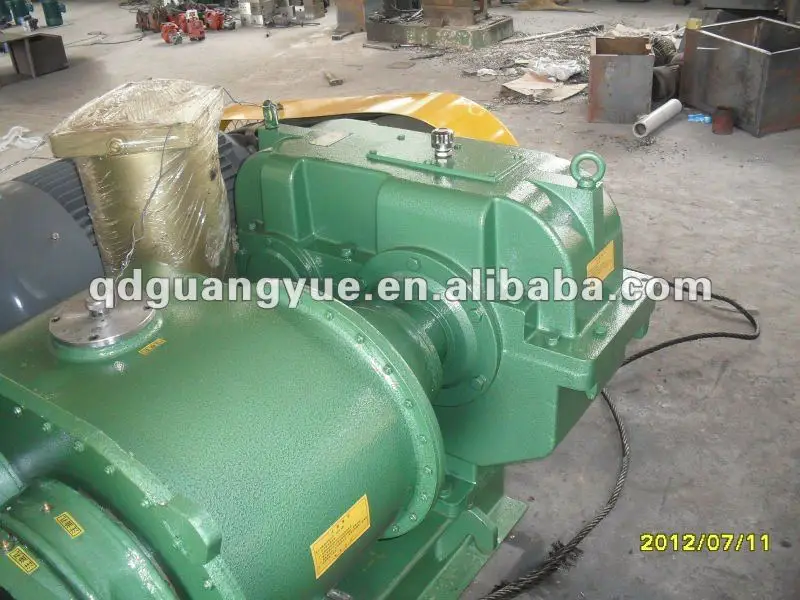

New Laboratory Kneader with German Technology

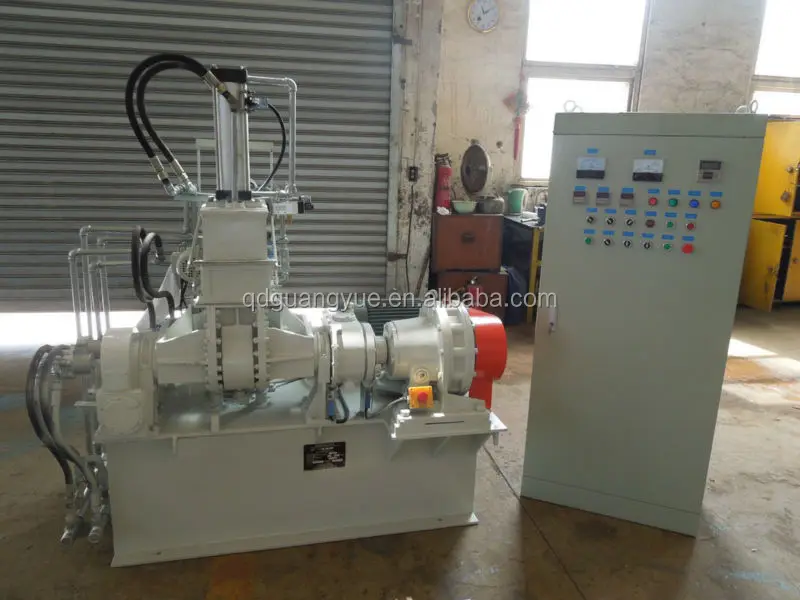

lab kneader mixer with CE standard





Features of dispersion rubber mixer

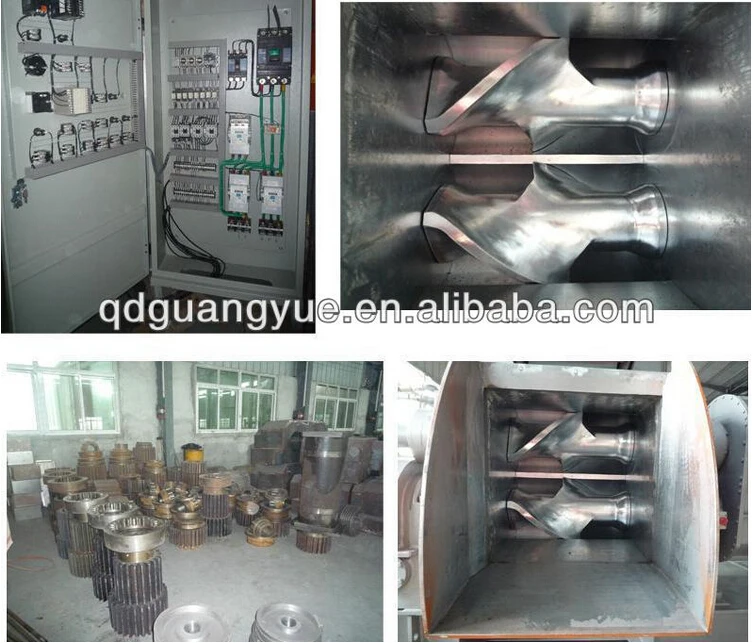

 mixing chamber :



 Alloy steel, Fabricated Hard faced, jacketted (both  logitudinal & transverse) for steam heating & water cooling. Capable of  tilting to approx. 130° for easy discharge & cleaning.



 rotors:



 Made of alloy cast-steel, spirally anullar design, with node tips internally cored for effective Tempretaure Control.The Land of  the nodes are hard & profile ground.



pressure lid :



Steel fabricated hard faced at mixing contact area, Jacketted for effective heating / cooling.



dust seals :



 Specially wet / dry type designed to keep environment cleanliness & are easily replaceable.



dust exhausing device :



 Hovering Vapours / dust, absorbed by ducting to dust collector.Tilting to Approx. 130° for easy discharge & cleaning.



sequence control :



 Either Manual or Automatic by electrical Control panel with P.L.C. timer based system as an optional feature.



temperature indication control:



Temp. Indicators with Thermoprobes giving the exact mix tempretuare. Automatic Tempretuare control device with forced water pump & contact  thermometer can be provide as an optional feature.



bed plate:



Mono Block Steel Fabricated as in bharaj Machinery.



3.Technical Parameter:



Parameters	VERSION
	X(S)N-35/30	X(S)N-55/30	X(S)N-75/30	X(S)N-110
Net chamber volume	75	125	175	250
Working volume	35	55	75	110
Front/back rotor friction ratio	1.22	1:1.22	1:1.22	1.22
Power	55	75	110	160
Main motor rotation speed	985	985	985	985
Turn angle	140	140	140	140
Size	3200*1900*2950	3750*1950*3050	3760*2143*30500	3930*3000*3660
Weight(kg)	6500	7800	10000	16000



We can make non-stand machine according to customer's requirements.
