Product Description


Webster Hardness Tester is an instrument that can promptly on-site test the hardness of aluminum alloy material, including section bar,tubes,plates,aluminum parts,and hardness of other soft mental. It is such an instrument convenient in usage, with a simple “clamp” and direct result-reading, that it always receives good feedback of high efficiency and strong stability.


Webster Hardness Tester is the best choice for mechanical testing on aluminum alloy material, it is conform to Chinese nonferrous standard YS/T420-2004 and US standard ASTM B647-84(2000).







Using Scope:


Especially suitable in production site,sales site or construction site for quickly testing on bulk products with non-destructive quality inspection piece by piece.


Besides aluminum alloy material, it is also suitable to test red copper, brass, soft copper etc.








Application:



  • W-20: General Model, suitable for common aluminum materials;

  • W-20A:Suitable for aluminum materials with thickness 13mm;

  • W-20B:Suitable for aluminum tube with inner dia.≥6mm;

  • W-B75:Suitable for brass tube, brass strip;

  • W-BB75: Suitable for red copper tube, red copper strip;

  • W-B92:Suitable for soft stainless steel, cold-rolled strip.








DTEC Advantages






  • Indenter: Re-engineerred with advanced material and new production technology manufactured, higher hardness, long service life, good interchangeability;



  • Indicator Hand: High strength indicator hand, less likely to be bent by long-term using or mis-operation;



  • Dial Glass: High strength, high toughness, uneasy to be broken or scratched;



  • Handle: Forged aluminum alloy handle with fine anodized finishing, high resistance to abraision and stain;



  • Hardness Blocks: Tested by standard Rockwell hardness tester, attached with test report;



  • Good Stability: Stable full scale point, stable calibration point, indicator never glides;



  • Easy Conversion: Results can be converted to Vickers, Rockwell and Brinell.








Specification















































Model


W-B92


Testing Range


18-100HRE


Resolution


0.5 HW (5 ~ 17 HW)


Repeatability


0.5 HW (5 ~ 17 HW)


Application


soft stainless steel, cold-rolled strip


Suitable Specimen Size


Thickness 0.4-8 Inner Dia. >6mm


Dimension


31x22x10cm(LxWxH)


Packing Weight


2.0KG

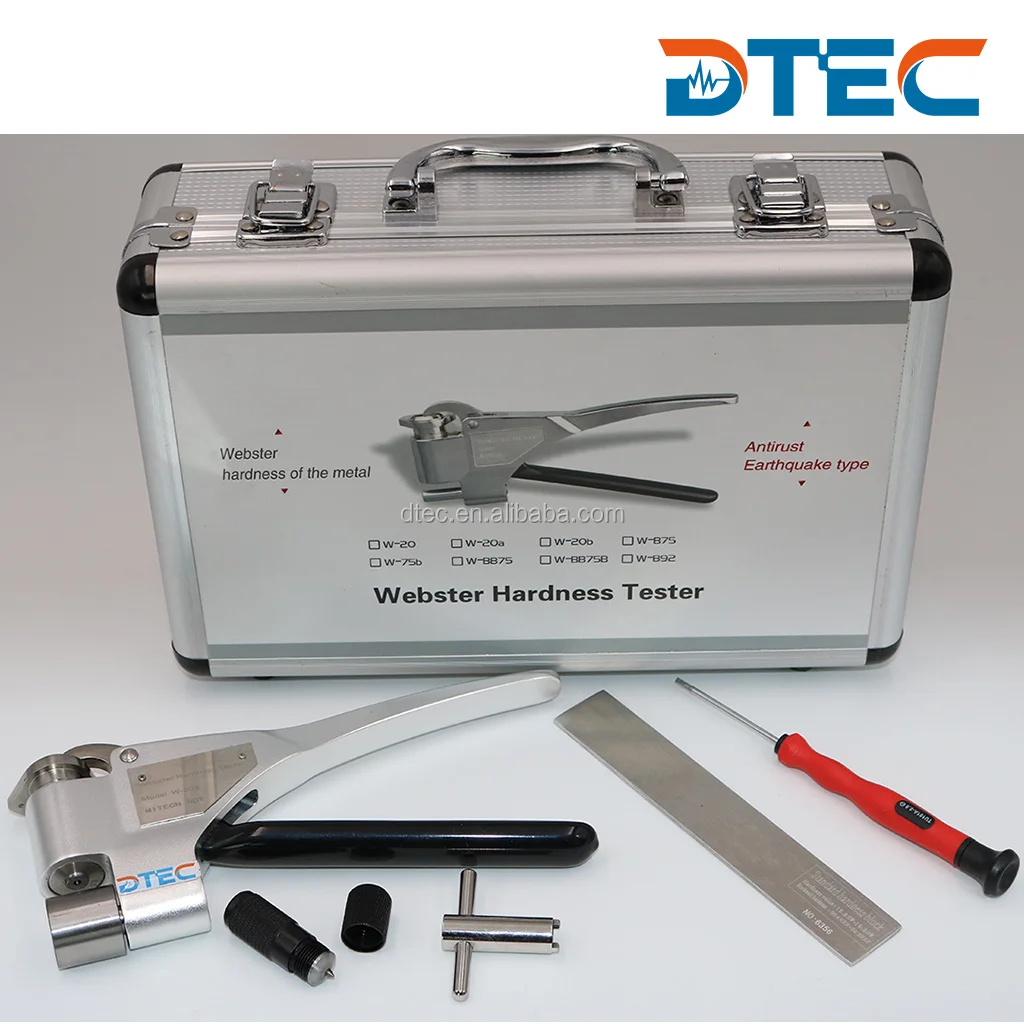

  Standard Packing List:






































Items


Qty.


Unit Tester


1


Standard Hardness Block


1


Spare Indenter


1


Calibration Wrench


1


Little Screwdriver


1


User’s Manual Book, Quality Certificate, Warranty Card



1 each


Case


1





Optional Accessories:




































Items



Indenter



Hardness Block



Dial Head



Pivot Screw



Reset Key



Adjusting Screw



Adjusting Nut



Loading Spring



Anvil







Indenter


Dial Head


Pivot Screw


Reset Key


Adjusting Screw


Adjusting Nut


Loading Spring


Anvil


Wester Hardness Block

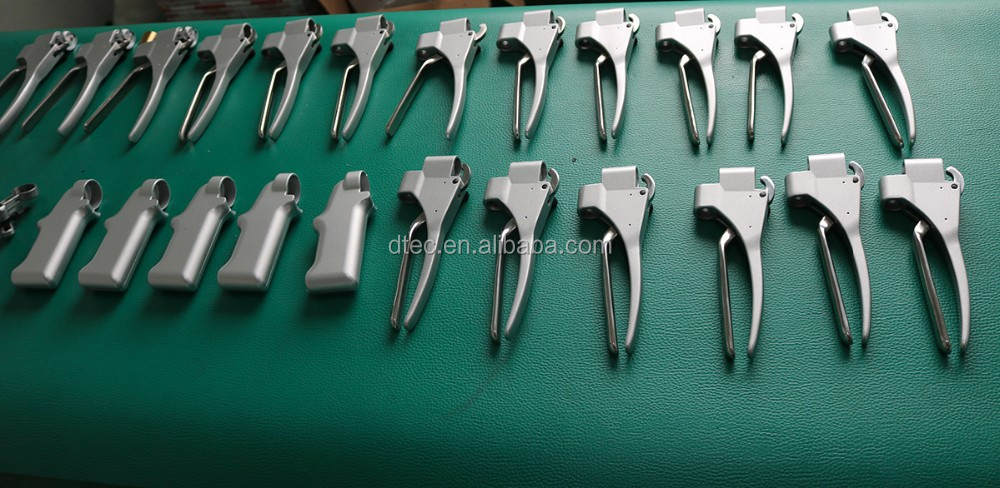

Manufacturing Line


 .jpg





Packaging & Shipping


Every set of our equipement will be carefully tested and double checked steps by steps before being packed and delivery,as we all know that among such fierce international competition,only 100% good quality and stable performance can finally attain the customer's trust.Hence,we will always put the equipment calibraton job in the first place while manufacturing.
