silk screen printer head screen printing equipment

Product Image:







Product Information:

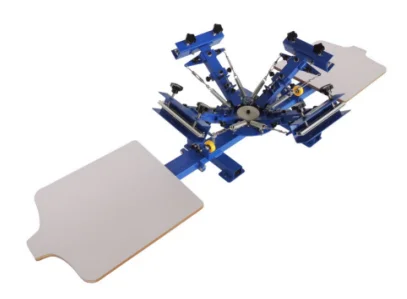

	• Model : NS402-MR micro registration 4 color 2 station screen printer (Blue color) • Pallet size : 450 x 540mm • adjust the screw handle to move the screen to all directions, very accurate for multicolor registration • Detachable shirt boards.The machine have casters • Shirtboard and screen can rotate independently • Net Weight : 42KG • Gross Weight : 44KG • Packing : 1 strong carton box (60*60*30cm)	1PC

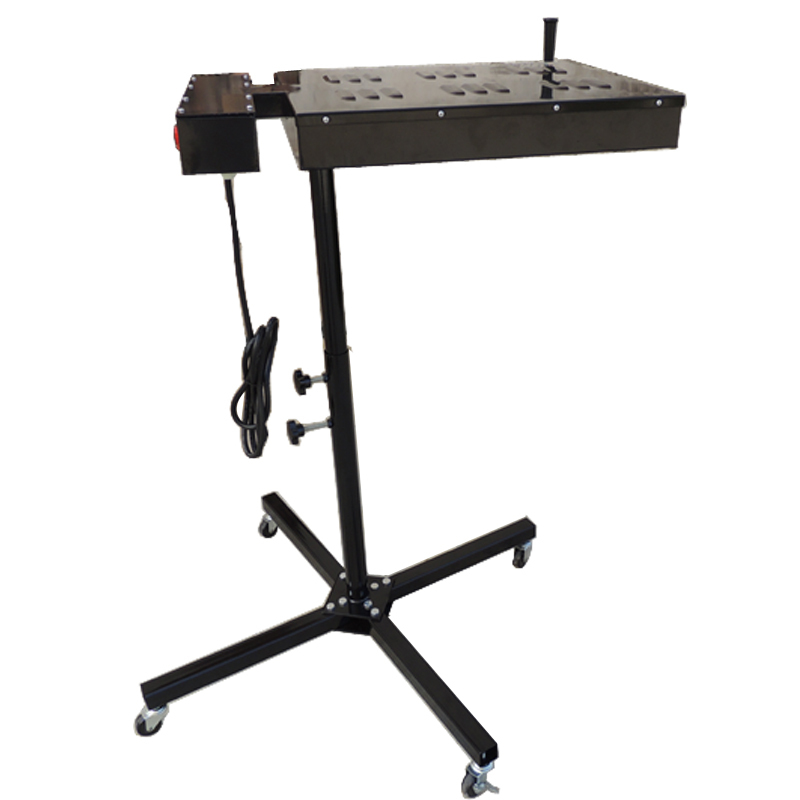

	• Model : ND605 New Digital Flash dryer • Power supply : 110V/60Hz,220V/50Hz, 2000W • Pallet size : 450 x 550mm •  Adjustable height floor stand ( from 750mm to1200mm ). •  Stainless steel screen covering element •  360-degree swivel head •  Net Weight : 22KG •  Gross Weight : 25KG •  Packing : 1 strong carton box	1PC

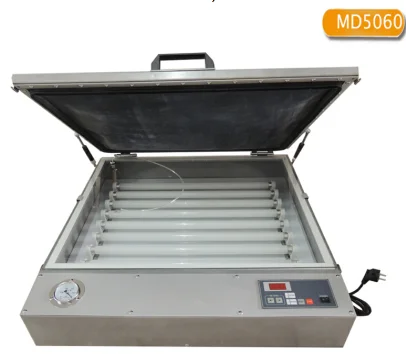

	•Mode : MD5060 New Vacuum Exposure Unit •Power: 110V,220V/50Hz, 400W • Light source:UV light • Lamp power*amount: 20W*8pcs • Digital display of exposure time setting • Max.frame size : 500*600mm • Gross Weight : 43KG	1PC

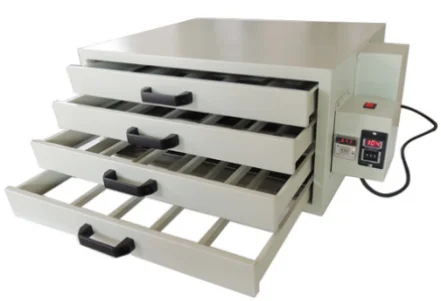

	Drying Cabinet Power : 110V/220V, 2000W Max.screen plate drying quantity : 4pcs Max.frame size : 64*53*4.5cm Gross weight:55kg
	40*50frame with 250m screen fabric	2PC
	24cm flat water/ oiliness  squeegee	2PC
	Four Color Plastic Spatulas	4PC

Applications:

     4 Color 2 Station desktop screen printing machine can simultaneously install four screen plates
     and the screen layer can rotate independently after installation,
     which is available for four colors’ overprinting and making progressive proofs of screen printing business.
     the machine can print onto clothing (especially for T-shirt), woven fabric, metal, paper,
     copybook, plastic, circuit board, wood, glass, ceramic tile,leather and other plane printing substrates,
     which is especially suitable for small businesses and individual printing shop

Features:

• Simple, but rational and more practical constructions

• Table type and combinatorial design saves place and convenient for transportation.

• Screen printing platen layer can rotate independently which is easy operated with higher efficiency.

• Adjustable double-spring devices are available for screen frames of different weight.

• Screen clamp can be moved up and down, which is suitable for screen frame within 1.2" (3cm) thickness.

• Big supporting device keeps the machine stable and in balance.

• All-metal construction, advanced electrostatic spraying and electroplating, durable, easy to clear and no rust.

• Equipped with full set of installing tools, manual instructions, installation and operation videos.

• Excellent packaging: All our equipments are perfectly packaged by high-strength five-layer corrugated carton, inside with standard soft and hard foam and three-ply board, all metal parts are separately packaged, which guarantees product safety during transportation.

whatsapp&wechat:+8618002850879

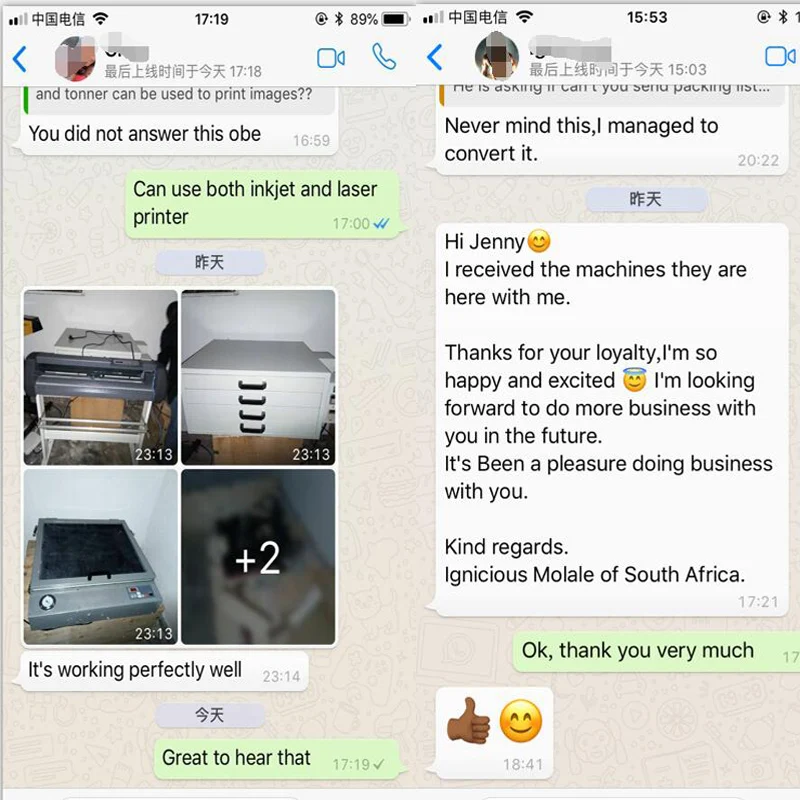

Customers Feedback
