Product Description

Amerigo C9372 Brake Lathe Combination Disk/Drum Lathe Machine

The fastest brake lathe in the world only one-minute brake lathe

Specification

Rotor diameter	4"-24"(102mm-610mm)
Maximum Rotor Thickness	2.85"(73mm)
Drum Diameter	6"-28"(152mm-711mm)
Drum Depth	9"(229mm)
Flywheel Diameter	6"-24"(152mm-610mm)
Spindle Weight Capacity(Standard1"Arbor)	150Ibs(68KG)
Spindle Speed	70-320RPM
Feed Rates-Rotor and Drum	0"-0.026"(0mm-0.66mm)
Feed Rate Per Minute	2.54"(64.5mm)
Motor	110V/220V50/60Hz
Shipping Weight	300KG
Dimension	1130mmX720mmX750mm

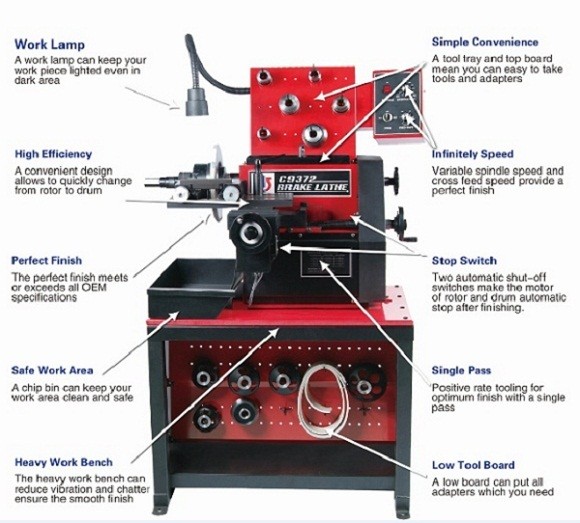

BRAKE LATHE 9372.jpg

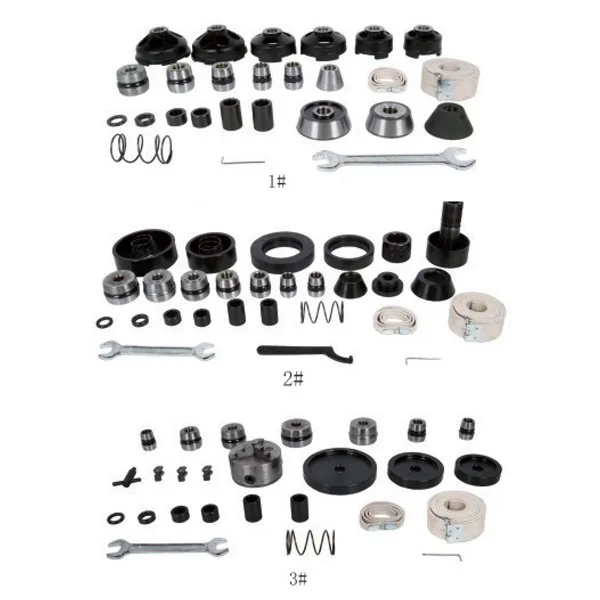

Optional adapter

1# (26 pcs) Adaptor kit for 1/2 ton

2# (28 pcs) Adaptor kit for 3/4 ton

3# (23 pcs) adaptor kit for 1 ton

C9370C1 brake lathe accessories.jpg

No	Description	Qty	1#	2#	3#
1	Double Taper Cone1.34"X1.66"(34mmX42mm)	1	√	√	√
2	Double Taper Cone1.36"X1.69"(35mmX43mm)	1	√	√	√
3	Double Taper Cone1.72"X2.06"(44mmX52mm)	1	√	√	√
4	Double Taper Cone2.06"X2.44"(52mmX62mm)	1	√	√	√
5	Double Taper Cone2.45"X2.81"(62mmX71mm)	1	√	√	√
6	Spacer(5mm,10mm,20mm,25.4mm,50.8mm,50.8mm)	6	√	√	√
7	Open End Wrench27mm-30mm	1	√	√	√
8	Special Wrench	1	√	√	√
9	Spring	1	√	√	√
10	Silencing Belt For Rotor And Drum	2	√	√	√
11	Double Taper Cone2.84"X3.19"(72mmX81mm)	1		√	√
12	Dounle Taper Cone3.19"X3.54"(81mmX90mm)	1		√	√
13	Chuck Adapter Set(5PCS)	1			√
14	Clamp4.57"(116mm)	2	√
15	Clamp3.7"(94mm)	2	√
16	Clamp5.75"(146mm)	2	√
17	Taper Cone2.91"X3.56"(74mmX90mm)	1	√
18	Taper Cone3.38"X4.05"(85.8mmX103mm)	1	√
19	Taper Cone1.62"X2.37"(41mmX60mm)	1	√
20	Taper Cone1.96"X3.43"(50mmX87mm)	1	√
21	Hubless And Composite Rotor Adapter Set(10PCS)	1		√

Packaging & Shipping

Packaging: Metal frame

Delivery time: 30 days

Our Services

1 year warranty after container arrive at port of destination

OEM & ODM service

Spare parts will be replaced within one week, buyer bear the shipping cost
