10G 60W PoE injector 48VDC 1.25A single output RJ45 power supply used for 5G Wireless Ethernet switch AP Voip CCTV
10G 60W PoE injector 48VDC 1.25A single output RJ45 power supply used for 5G Wireless Ethernet switch AP Voip CCTV

10G 60W PoE injector 48VDC 1.25A single output RJ45 power supply used for 5G Wireless Ethernet switch AP Voip CCTV


Поделиться:

Цена:17,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Description


Product Name
DC-DC 60W passive PoE Injector
Model
GRT-480125G-DC
Protocol
Passive Type, Non-compliance IEEE802.3AF/802.3AT/802.3BT
Ethernet rate
 10G ethernet
Usage
Telecommunication Devices, Security Devices and more


  • Product description


*. Input 48VDC
(Range: 41-56VDC)
*. Output 48VDC 1.25A 60Watt
*. Ethernet rate: 10G ethernet
*. Pin assignment: 12/36 & 45/78, 4 pairs
*. Inlet: 2* terminal blocks
*. Output connector: 1*RJ45 for PoE + 1*RJ45 for LAN
*. Efficiency: 85% Min
*.Material: ABS +PC
*. Dimension: L123* W61*W40 mm
*.Warranty: 2 years






Product Usage


    • Product usage

*.Security devices
*.Wireless Networking devices
*.Smart Devices
*.Telecommunication device
*.Others



Housing Type
Output Power
Ethernet Rate
IEEE802.3 Protocol
Size
PoE20
24W MAX
100Mbps,
1GBT
*.Passive,
*.Active: 802.3af
L84 * W44 *H30
PoE30
60W MAX
100Mbps
1GBT
10GBT
*.Passive
*.Active: 802.3af, 802.3at, 802.3bt
L123 * W61 * H40
PoE70
60W MAX
100Mbps
1GBT
10GBT
*.Passive
*.Active: 802.3af, 802.3at, 802.3bt
L117 * W64* H38
PoE60
120W max
100Mbps
1GBT
10GBT
*.Passive
*.Active: 802.3bt
L171* W97.5 * H42


Packing&Shipping

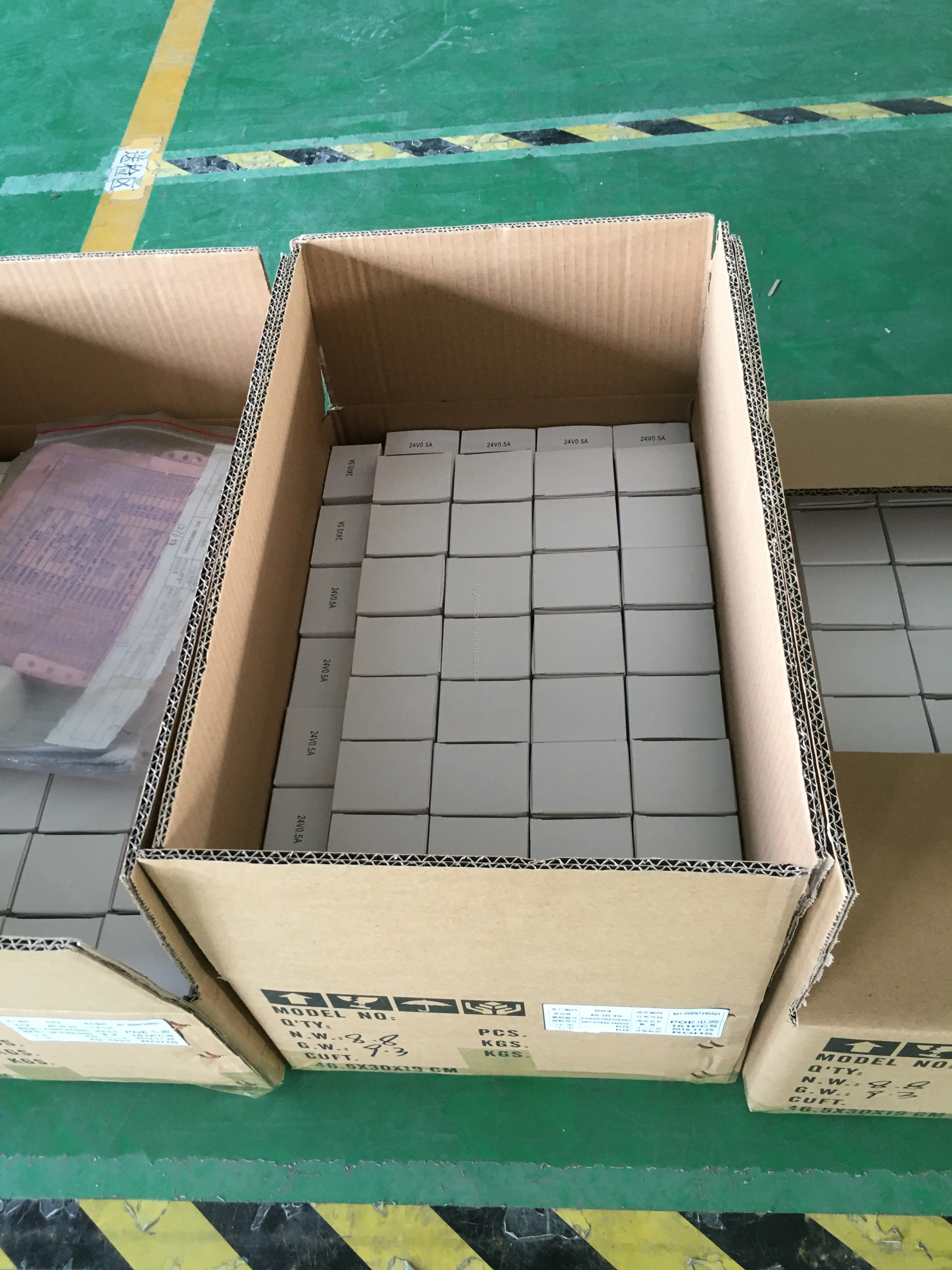

*.Standard Package: PE bag+ Inner box + Ourter carton
The buyer shall pay for the extra cost if caused by the special requirements

*. Shipment: By air, By Sea, By train, By Express and more




Company Introduction


* GRT established in 2007, is the manufacturer who specialized in research and development, production, sales, service as one. GRT is located in Shunde(the Kingdom of Home-Appliance), owns several Senior professional engineers, to research, develop and design kinds of powersupplies and provide various customized solutions.

*.All items is with 2% output accuracy and compliance with international standard. Owns license of Importing and Exporting and Pass kinds of international approvals like as UL, GS, TUV,CCC,CE, FCC,ROHS,ERP,PSE, CB,SAA ect, suitable for the global markets.

*.Owns ISO9001:2015 and kinds of advanced machines for production and testing.

*.Green workshop, owns 6pcs production lines, monthly output upto 680K







Our Services & Strength
*. Offer OEM service, accept print your own logo and special requirements for package and others
*. Experienced Techncial team, to provide kinds of solutions
*. Provided authorized certifications

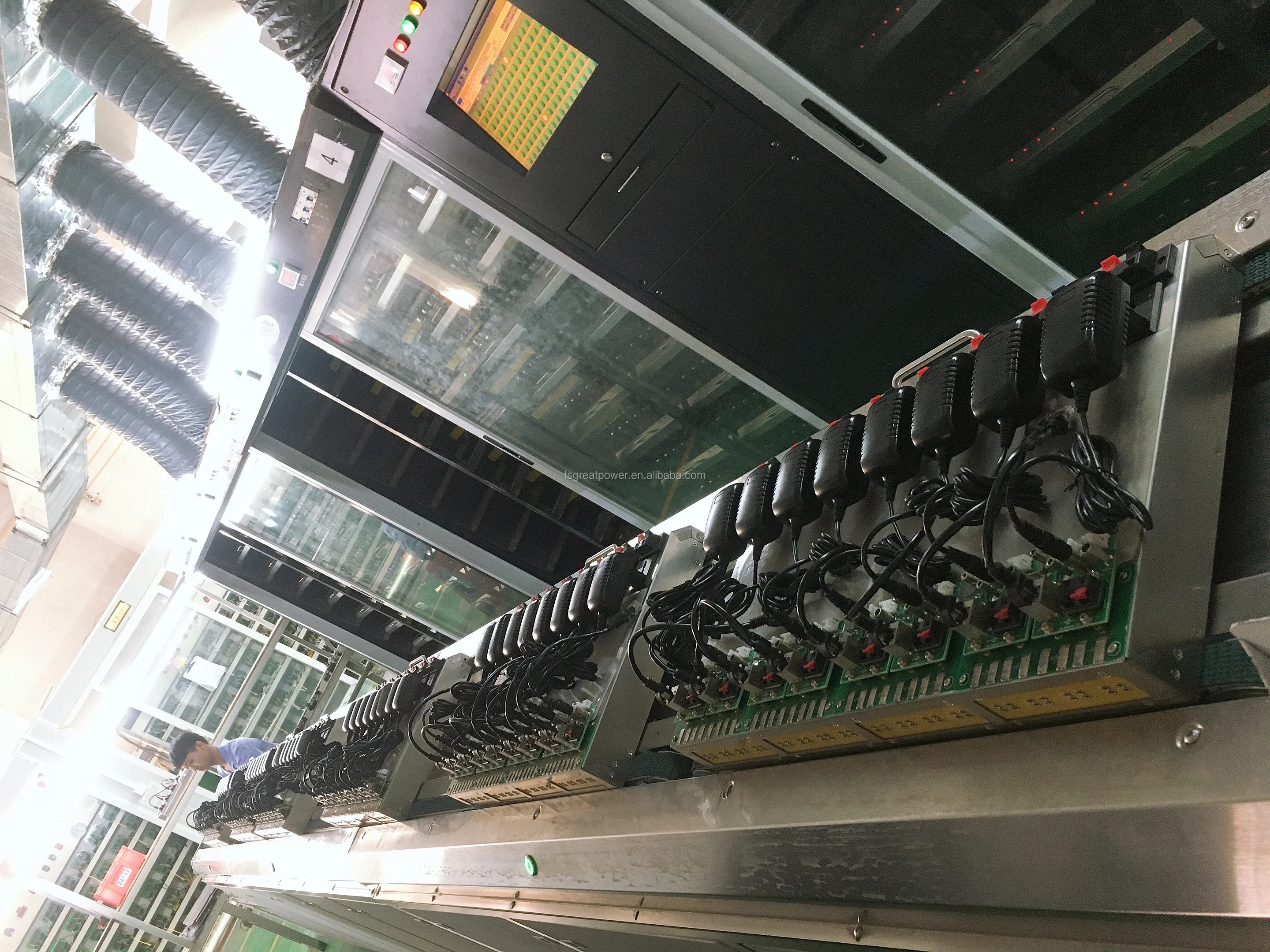

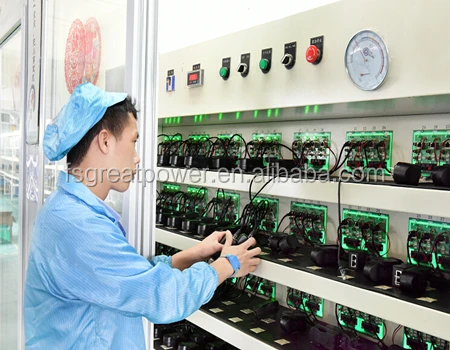

*. 100% Full Burn-In Testing, stictly inspect and control during production


Related Products




FAQ


1.MOQ 1Kas the the first order, 500nos is acceptable, but the following will be 1K

2.Sample
*Common sample:2pcs are free offered, the buyer shall pay for the shipping cost and Tax; Leadtime within
*. Special Sample: the buyer shall pay for the sample cost, shipping cost, Tax, R&D cost (if caused)
Leadtime will be confirmed when the project starting

3. Mass production
20-25 working days, from the day got the confirmed order and payment

4. Shipment
By Sea, By Air, By Train, By Express ect

5.Payment: T/T in advance, L/C
