Зеленая паяльная крышка 4-слойная печатная плата в
- Категории: Multilayer PCB >>>
- Поставщик: Shijiazhuang,Ourpcb,Tech.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
1.Pcb and pcb assy advantage :
High quality pcb, professional pcb assy service,fixed delivery time
Reputable pcb manufacturer, own pcb factory
UL,SGS,ISO,TS,CQC certification
OEM and ODM service
Keep all cost to minimum, maximize your benefit.
2.The detailed specification of pcb :
Material | FR4, High TG FR4, Halogen Free material, CEM-3, Rogers HF material, etc. |
Layer counts | 2-28 layers |
Finished Copper Thickness | 0.5-5 OZ |
Finished Board Thickness | 0.2-6.0mm |
Min. Line/Track Width | 3mil |
Min. Line/Track Space | 3mil |
Min. Contour Tolerance | +/-0.1mm |
Min. Finished Diameter of PTH Hole | 0.2mm |
Max. Board Thickness/Hole Ratio | 12:1 |
Min. Solder Mask Bridge | 4mil (Min. SMT Pad Space 8mil) |
Min. Legend (Silk screen) Track Width | 5mil |
Min. Legend (Silk screen) Height | 30mil |
Min. drilling slot size | 0.6mm |
Solder mask color | green, black, blue, white, yellow, purple, and matt, etc. |
Solder mask hardness | 6H |
Legend/Silk screen Color | white, yellow, black, etc. |
Surface Treatment | HAL, Lead Free HAL, Immersion gold, OSP, Immersion tin, Immersion silver, etc. |
Other Technology | Gold finger, peelable mask, Non-across blind/buried vias, characteristic impedance control, Rigid-flex board etc. |
Reliability Test | flying probe test/fixture test, impedance test, solderability test, thermal shock test, hole resistance test, and micro metallographic section analysis, etc. |
Wrap and twist | ≤0 |
Flammability | 94V-0 |
Packaging & Shipping
Pcb assy packing: vaccum / anti-static in carton or as your requirement
Pcb assy shipping : 15-20days after getting your payment by DHL , TNT , EMS or others
Our Services
Ourpcb Free support :
A: Guide for components selection: Assistance for type number and specification selection of the main components based on customers’ requests
B: Discussion for schema design: discuss how to make the design based on the components selected. Conquer the difficulties and issues and deal with the questions during the design process together.
C: Rules for PCB layout and routings: help customers making best layout and rules for routings to reduce cost on both time and money
PCB Layout Design Service:
We provide custom-design service for customers who have a product need to be done but know little about the electronic product design. You can just give us the function requests, final cost, environment used and other corresponding information of your product, we can make it out based on your request and provide prototype and design files.
Company Information
OurPCB company capability :
SMT, Through Hole assembly
Single/double side SMT, Single/double sides mixture assembly
Accuracy: <±40μm, under the condition of 3σ,CPK≥1
Angle accuracy <±0.06°
Components Size:SMT 01005 to 100mm×80mm
Minimum width/space of QFP: 0.15mm/0.3mm;
Minimum diameter /space of BGA: 0.2mm/0.35mm
Maximum part's highness : 18mm
Maximum part's weight:30g
PCB size:50mm×50mm~450mm×406mm
PCB thickness:0.5mm~4.5mm
Placer speed:60000chips/hour
Feeders number:140 piece of 8 mm reel feeders,28 of IC tray feeders
OurPCB company products :
Based in China, OurPCB Ltd specialize in electronic design, PCB manufacture, PCB assembly, and component sourcing services, also could provide:
- PCB&PCBA Contract Manufacturing
- Reverse Engineering Services
- PCB Design and Assembly
- Component Procurement & Material Management
- Product Design
- Fast PCB&PCBA Prototyping
- Cable and Wire Assemblies
- Plastics and Molds
- AOI,X-Ray Testing, other Function Testing Service
OurPCB Assembly Equipment :

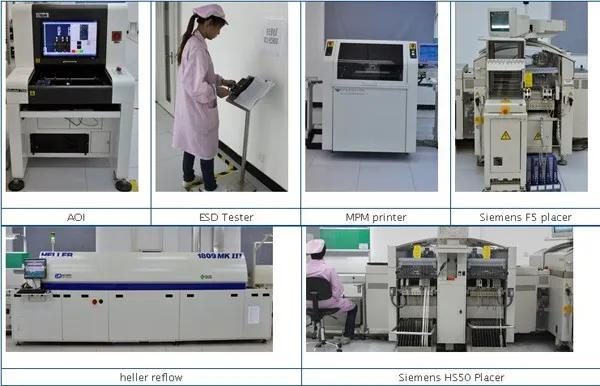

SMT line / Siemens F5 multi-function placer / hand soldering workshop / siemens HS550 high speed placer / Heller1809 Reflow / X-ray inspection / Otek automatic optical inspection / washing machine / Speedline MPM printer / BGA repair station
Ourpcb certification :
TS16949 (2009) Certified
ISO14001 (2004) ISO9001 (2008), Certified
UL certified
All products follow the IPC Standards,
All products follow the ROHS&REACH standards
Strives to do world-class products and service.
