Product Description

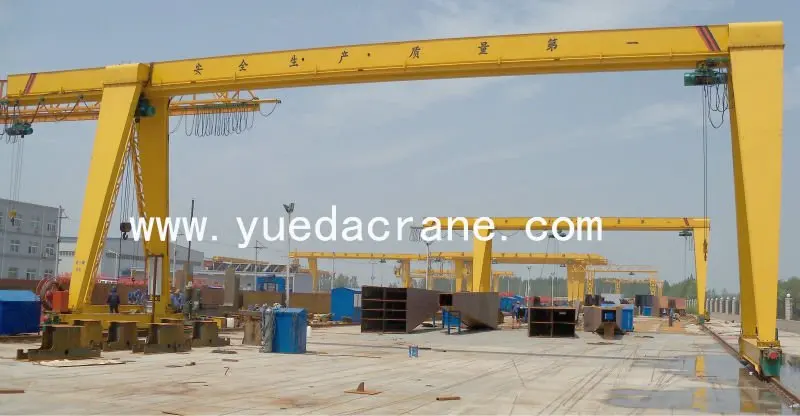

3ton-32ton MH Model Box Frame Single Beam Gantry Crane:
MH model box frame single beam gantry crane is matched with wire rope electric hoist, it is a kind of track travelling medium-duty class gantry crane, the capacity from 3ton to 32ton, span from 6m to 35m, working temperature within-20--+42 centigrade.
The main beam, legs and travelling beams are made by steel plates, it is very strong and has small body, it is suitable for ocean transport
This gantry crane is commonly used gantry crane, it be used in outside yard or warehouse for loading/unloading and moving materials.

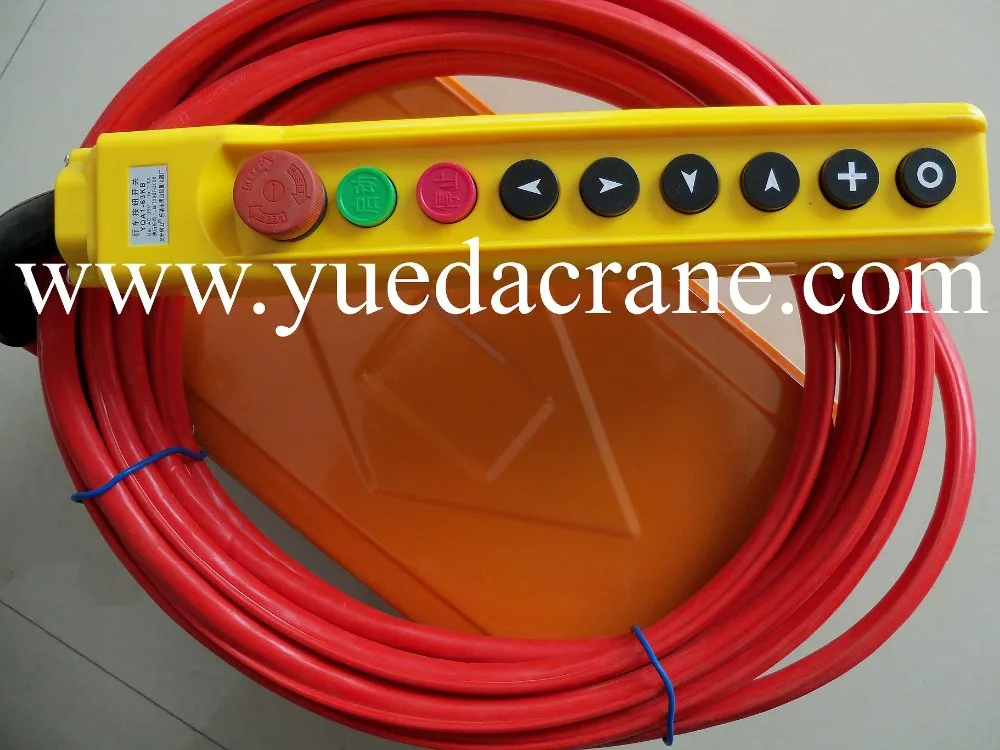

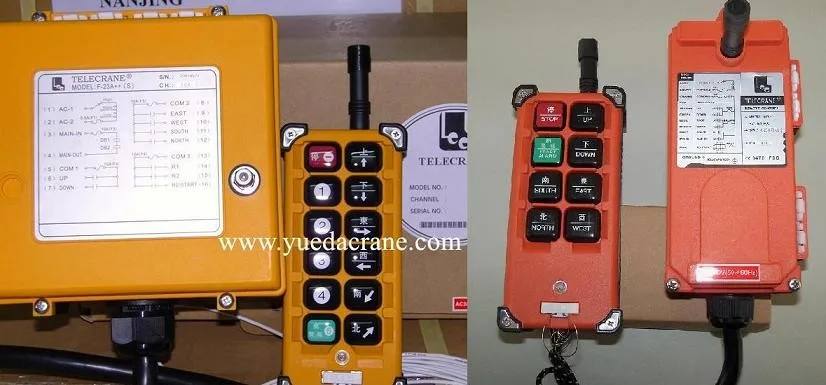

The control model are pendant pushbutton control, cabin control or remote control for choice, or two control models together.
The detailed lifting capacity of crane as follows: 3ton, 5ton, 10ton, 15ton, 16ton, 20ton, 25ton, 30ton, 32ton.

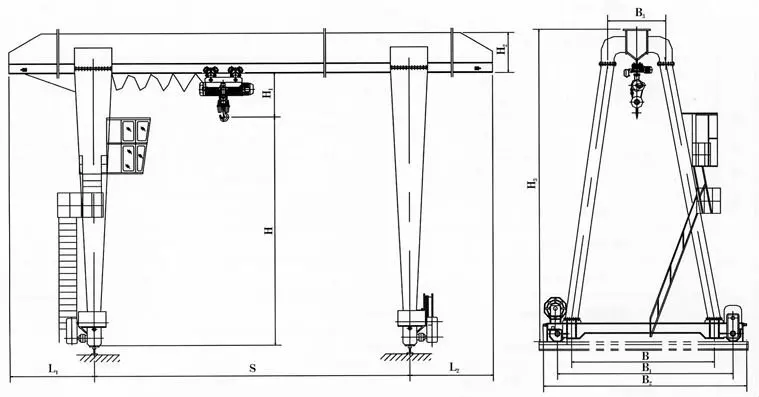

SIMPLE TECHNICAL DETAILS OF BOX FRAME SINGLE GIRDER GANTRY CRANE | ||||||
Main technical details | Lifting capacity | ton | From 3ton to 32ton | |||
Span(Rail to rail center) | meter | 6m~35m (basing on your wokring requirement) | ||||
Lifting height(H) | meter | 6m~12m (basing on your wokring requirement) | ||||
Main performance parameters | Lifting speed | m/min | 3.5,7,8(Single speed); 3.5/0.35, 7/0.7,8/0.8(Double speed) | |||
Cross traveling speed (Hoist) | m/min | 10; 20; 30 | ||||
Long traveling speed (Crane) | rpm | 10; 20; 30 | ||||
Safety Protection | Overload protection | Includes | ||||
Up/down limit switch | Includes | |||||
Low voltage protection | Includes | |||||
If you want to order this gantry crane, Pls tell me the details as follows
1. The Max. lifting capacity? (Ton)
2. The span of gantry crane?(the distance of rail to rail center)
3. Do you need cantilevers at two beam ends? if it is, Pls mention the length per side.
4.The Max. lifting height of hook? (or total height of crane)
5. What type meterial will you to lift?
6. The power source standard?(380V, 50Hz, 3phase or others)
Certifications
Detailed Images
Machine Parts

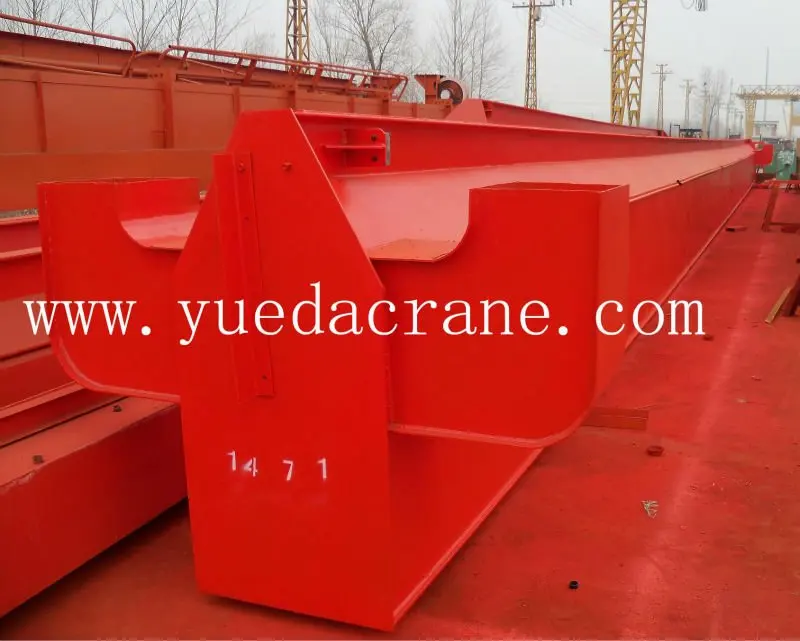

Name: Main beam
Material: Q235B steel
Original: China
The crane beam is box frame, it is made by Q235b steel, the straight welds performed by automated robotics, the welder will perform welding on curved locations only, the welding type is carbon-dioxide arc welding.
Machine Parts

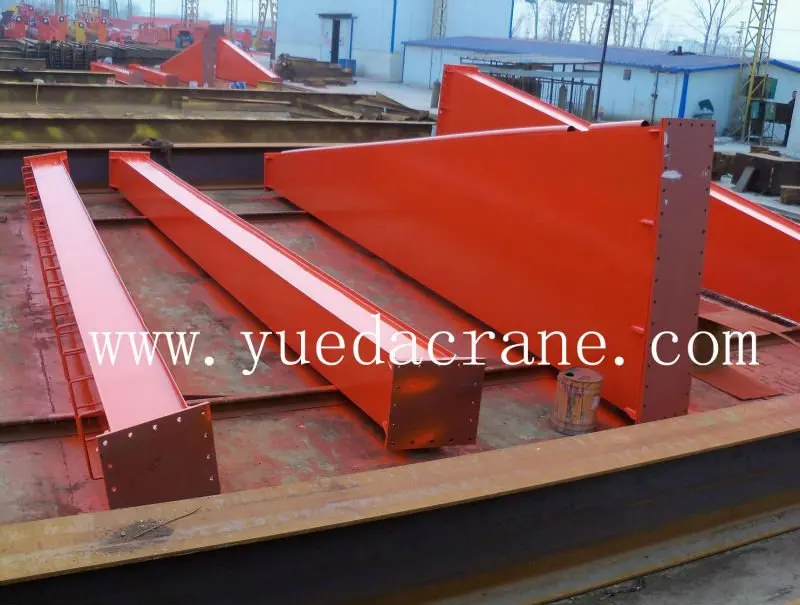

Name: Support legs
Material: Q235B steel
Original: China
The legs are box frame, it is made by Q235 steel, the straight welds performed by automated robotics, the welder will perform welding on curved locations only, the welding type is carbon-dioxide arc welding.
Machine Parts

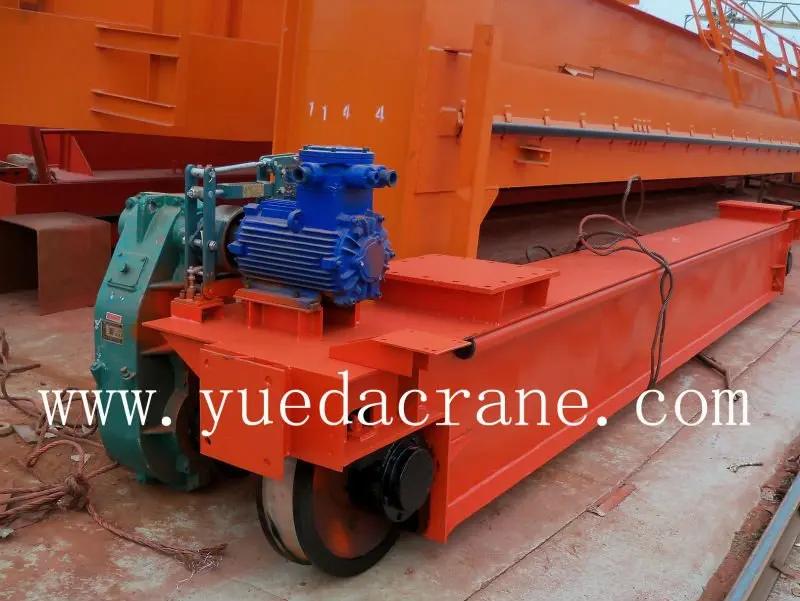

Name: Travelling beam
Material: Q235B steel
Original: China
The drive mechanism & travelling beam of single beam gantry crane (Basing on 10t-30m), the travelling drives from the motor/gear box are centre shaft mounted for direct drive.
Machine Parts

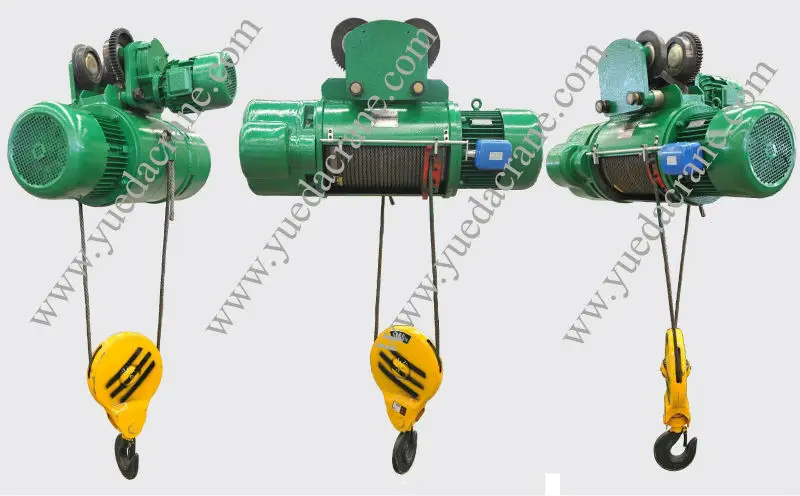

Name: Lifting mechanism(wire rope electric hoist)
Motors: Famous brand in China
Original: China
The gear boxe have hardened and ground helical gears for high efficiency, quite operation and high reliability.
It has overload protection, up/down limit switch and so on.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Special design & technical support.
* View our Factory.
After-Sales Service
* Guiding how to instal the machine.
* Engineers available to service machinery overseas.
* Supply spare parts with low price.
Packing & Delivery
Packaging | ||
Loading way | 20GP or 40HC containers | |
Transport | Ocean transport by ship | |
Packaging Details | The electrical parts and other small parts are packaged by high quality plywood chest, the big parts are packaged by PVC fabric, the loading for delivery by container. | |
Packaging | ||
Loading way | Bulk ship | |
Transport | Ocean transport by ship | |
Packaging Details | The electrical parts and other small parts are packaged by high quality plywood chest, the big parts are packaged by PVC fabric, the loading for delivery by bulk ship. yuedacrane.com | |
