Product Description
1.Design standard:AASHTO standard
2.Wind speed: more than 30M/sec
3.Anti-seismic design: more than level 7
4.Mast material:ASTM A572 GR65/Q345/Q235/GR50
5.Mast structure: 8/12/16/20 sided/Round conical
6.Mast assembly: no welding on site/slip joint
7.Anti-corrosion protection: hot dip galvanization/hot dip galvanization and powder coating
8.Mounting Height: 1-16M
9.Brackets:Single or double brackets are in the shape and dimension as per customers requirement for octagonal galvanized steel lamp post light pole
10.Welding:Welding confirms with international welding standard of CWB
11.Base plate mounted:Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement
12:Ground mounted:The length buried underground as per customers requirement
13:Galvanizing Or Powder Coating:Hot dip galvanization with thickness of 80-100µm average
14:customized service or design service by Offered
Height | From 1 m to 16m |
Suit for | Airport ,seaport,plaza,stadium ,square,highway,street way etc |
Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
Material | Usually Q345B/A572, Q235B/A36,As well as Hot rolled coil from Q460 , ASTM573 GR65, GR50,SS400,SS490, to ST52- |
Lamp power | 200 W- 2000 W (HPS/MH) 220V (+-10%) /50Hz |
Torlance of the dimenstion | +- 2% |
Optical assembly of lighting fixture | IP 65 |
Electroshock resistant protective grade | Grade one |
The casing anti-corrosion performance | Class two |
Working atmosphere of lighting fixture | -35 °C~+45 °C |
Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
Joint of Poles | Insert mode,innerflange mode,face to face joint mode |
Design of pole | Against earthquake of 8 grade |
Wind Speed | 160 Km/Hour |
Minimum yield strength | 355 mpa |
Minimum ultimate tensile strength | 490 mpa |
Max ultimate tensile strength | 620 mpa |
Standard | ISO 9001 |
Length of per section | Within 14m once forming without slip joint |
Welding | We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1 |
Thickness | 1 mm to 30 mm |

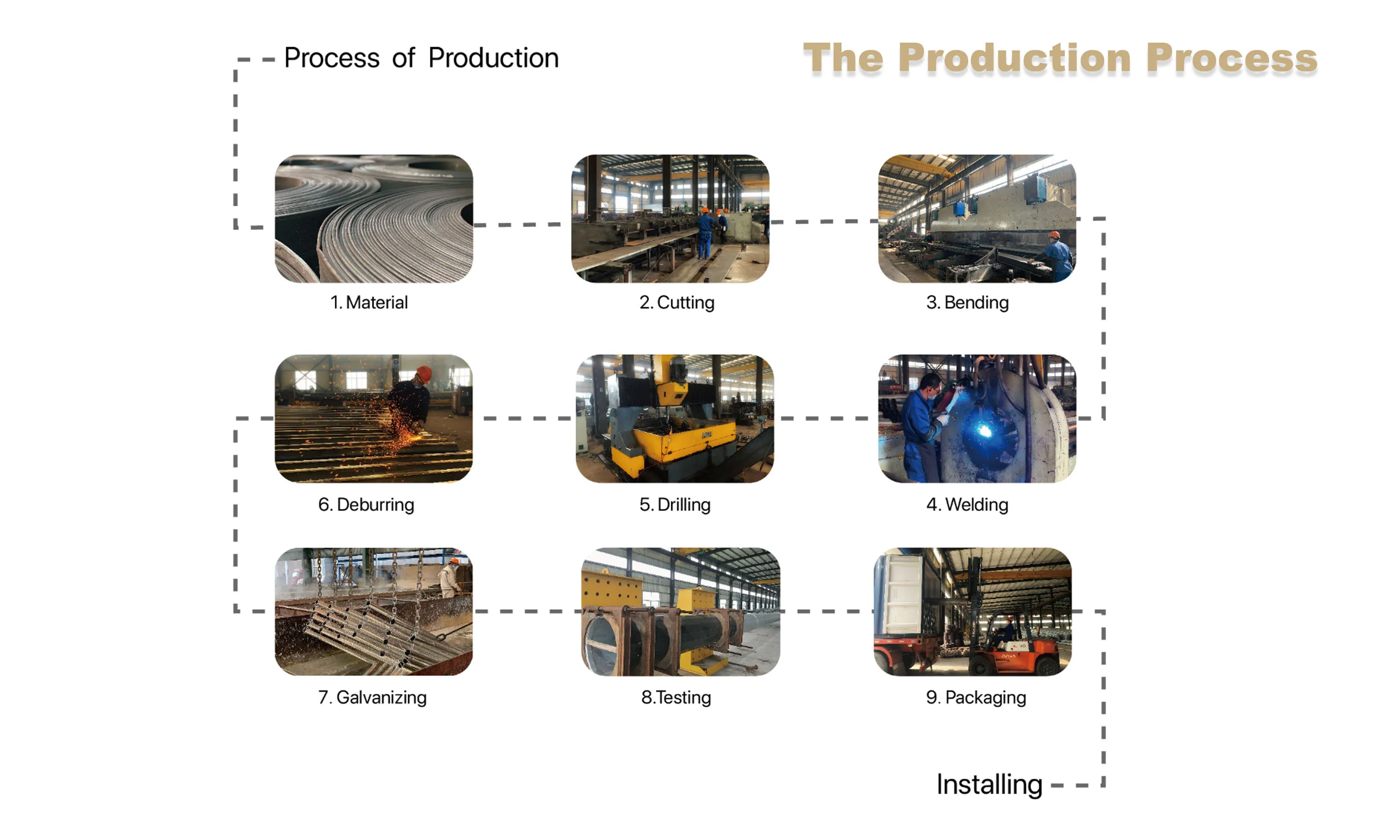

Production Process | Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
Product Name | octagonal galvanized steel lamp post light pole |
Certifications
Futao Metal is fully licensed to operate as an international supplier of steel products. Our ISO 9001 certification ensures that our company adheres to the highest manufacturing standards and is able to consistently produce high quality products that meet our customers’ needs. In addition, our company has gone through vigorous inspection conducted by SGS group to ensure our production and manufacturing process meets international standards.
Production Prcess
Package
Our Testing System
Our Services
FAQ
