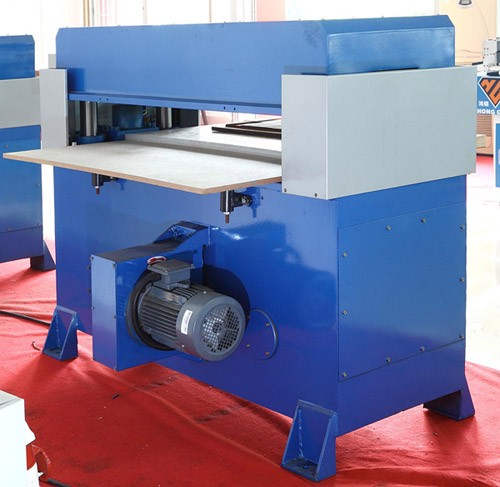

hot sale hydraulic shoemaking shoe sole press clicking machine
MORE CUTTING MACHINE CLICK FOLLOWS:
1. Hydraulic Plane Cutting Press
2. Double-Side Plane Cutting Press
3. Automatic Feed Cutting Press
4. Hydraulic Traveling Head Cutting Press
5. Hydraulic Swing Arm Cutting Press
Product Description
Applicable Materials:
This cutting machine is used for shoemaking,cutting shoe materials such as shoe insole,eva insole,leather shoe vamp,cloth,foam,sponge,EVA,rubber,plastic and so on.
Feature:
1.Auto-balance structure of double-cylinder, four-column and selfbalance connecting rod, makes sure equal pressure in any working area.
2.Slow down when the cutting die touches material, to confirm the precision between upper and bottom for thick materials.
3.Stroke adjustment device, makes stroke simple and correct to adjust with cutting die, cutting board and materials.
4.Central automatic lubrication system, increases machine durability, prolong the working time.
5.Suitable for single-layer or multi-layer sheet or roll materials.
Specification
Technicial parameter:
cutting machine - available in 25T, 30T, 40T, 50T , 60T, 100T....200T,300T.
Models | HG-B30T/63'' |
Input power source | 220V/380V/415V |
Cutting Area(mm) | 610*1600mm or 610*1220mm or custom |
Machine Dimension(mm) | 1950*1320*1260mm |
Stroke(mm) | 50-160mm or 50-240mm |
Operation precision | ±0.01mm |
Motor power(kw) | 2.2kw |
Machine Weight(kg) | 2000kg |
Cutting Force | 30Tons,40Tons,50Tons or custom |
Remark: We can make the machine according to your specifically order, for example the color, the motor information,the working table etc.
Company Information
After-sale service:
Our Services
after-sale service
1.During the first year,all parts are for free,except the consumables and artificially damaged.
2.We will supply operation video for installation,we can also solve your problems through email,photos and some communicate software.we also can provide oversea service.
3.You are also welcomed to our plant for training.We will responsible for the restaurant and meals,the training is for free.
4.We manufacture many embossing machines and hydraulic cutting machines.Such as,four-column plane cutting,gantry,roller cutting.Please find more info on our website.
5.We welcome you come to visit our plant,give us your suggestions,we will try our best to satisfy you.
Agent wanted
We want agent from all over the world,we welcome agent come to our plant for business negotiation.We give agent competitive price and guarantee the quality,it’s good that you can do after sale service in your area for customer convenience.
