Product description
Rubber Seat Manual Butterfly Valve For Water
=================================================

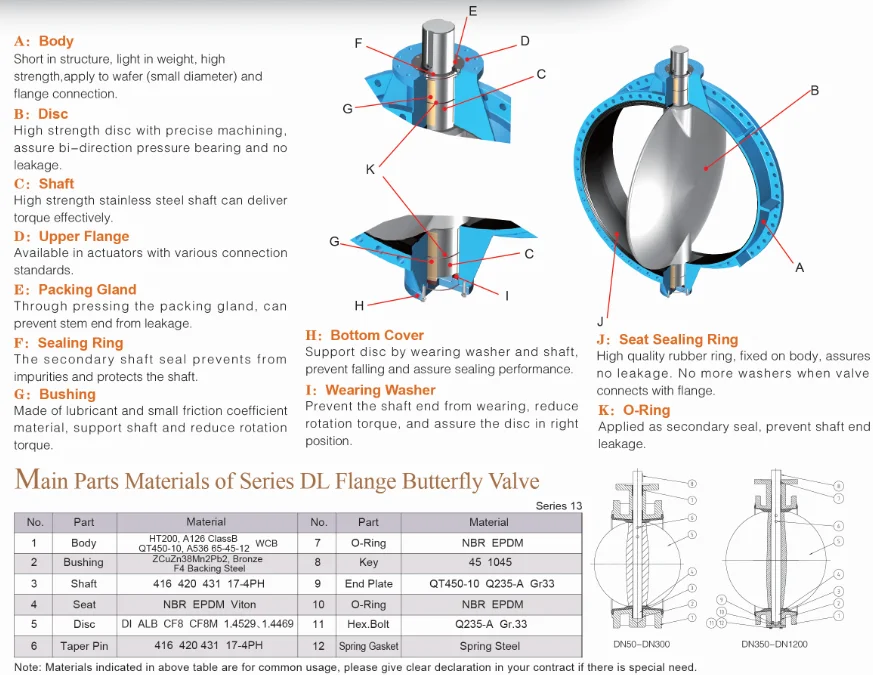

Technical data for double flange butterfly valve:
| Valve parts | Material |
| Body | DI, WCB, CF8,CF8M |
| Disc | DI, WCB, CF8, CF8M, MONEL, 1.4469, 1.4425, 2507, 2205, AL-B C954 |
| Shaft | SS416, SS420, SS431, SS410, 17-4PH, DUPLEX 2205 |
| Seat | EPDM, NBR, VITON |
| Face to face | EN558-1 Series 13 |
| End flange | EN1092 PN10/PN16, ANSI CL150 |
| Pressure | PN10, PN16, 150LB |
| Size | DN50-DN2200 |

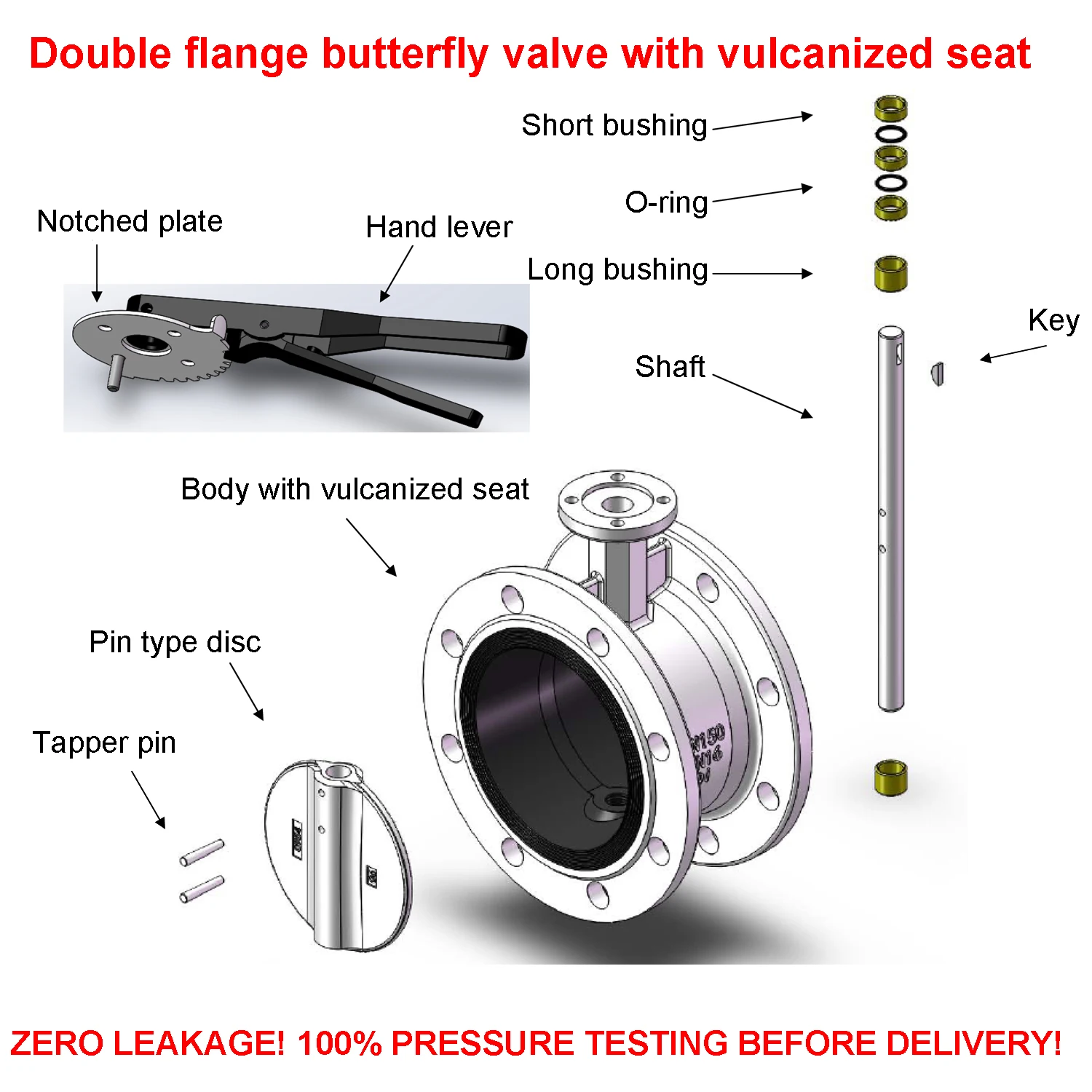

Exploded view of double flange butterfly valve

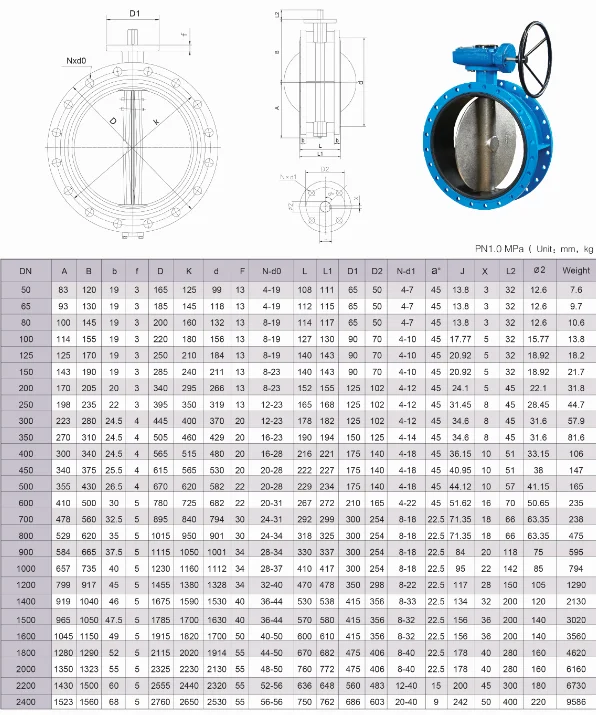

Drawings of double flange butterfly valve
Packaging & Shipping
Genearl packing of Butterfly Valve/Gate Valve/Check Valve;
- Standard Export Package: plywood wooden box.
- Box Size: 1.1*1.1.0.6m, 1.1*1.1*0.7m, 1.1*1.1*0.9m, or other customerized size.
- Packing: 1 set valve in a poly bag, then some pieces in a wooden box.
Company Information
COMPANY PROFILE
Tianjin Tanggu Water-Seal Valve Co., Ltd. was established in 2003 and specialized in manufacture following valves:
Wafer butterfly valve, lug butterfly valve, double flanged butterfly valve, u type butterfly valve, grooved end butterfly valve, double eccentric butterfly valve, dual plate check valves, resilient seat gate valves, backflow preventer, y-strainer, balancing valve, and related series products.
Why choose us?
1. 35000 sq m factory;
2. Two production bases;
3. 15 years valves experience;
4. 15 R & D personnel;
5. 360 employees;
6. 130 sets production equipment;
7. 18 sets imported testing equipment;
8. North China largest valve testing station
FACTORY
OUR TEAM
QUALITY CONTROL Our target is 0 leakage!
CETRIFICATES
EXHIBITION
CUSTOMERS
FAQ
Q1. What's the delivery time genearally?
For common valves 15-25 days, OEM valves 30~35 days.
Q2. What's your payment terms?
We can accept T/T, L/C, E-checking, Visa, Mastercard, Western Union, MoneyGram, etc.
Q3. What's the nearest shipping port?
The nearest port is Tianjin, but we also can export from Beijing, Shanghai, Ningbo, ect.
Q4. What trade terms you can accept?
EXW, FOB, CIF, C&F, etc.
Q5. How long is the time of warranty time?
12 months from using day or 18 months from shipping day.
Q6. Could you company accept Trade Assurance on Alibaba?
Yes, sure, we welcome your trade assurance order.
