Белый цинковый бетонный оцинкованный клиновый анкер из углеродистой

Описание и отзывы

Характеристики



Carbon Steel White Zinc  Concrete galvanized Wedge Anchor



The  Wedge Anchor is a threaded, torque-controlled, carbon steel or stainless steel wedge expansion anchor which is designed for consistent performance in concrete. Suitable base materials are normal-weight and sand-lightweight concrete. The anchor is manufactured with carbon steel body and expansion clip or a stainless steel body and expansion clip. Nut and washer are included.



→ Anchor can be hammered below th surface of the concrete when no longer needed.
→ The clip is formed around anchor, assuring full expansion for dependable, superior holding power. Expanding clip will not fall off twist in the hole.
→ Stainless steel and special style are available according sketch and samples.

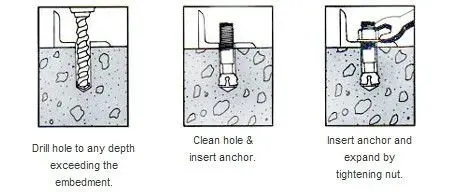

Installation:

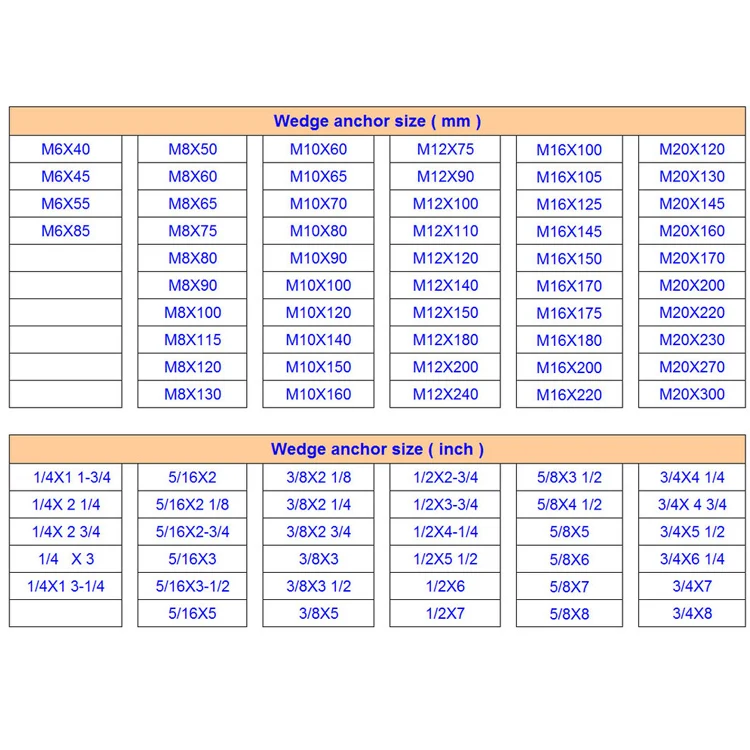

Specification:Carbon Steel White Zinc Concrete galvanized Wedge Anchor



Anchor Size	Threaded Length	Mini Embedment	Quantity Box/Carton
1/4 x 1-3/4	3/4	1-1/8	20/100
1/4 x 2-3/4			20/100
1/4 x 3			20/100
3/8 x 2-1/4	1-1/8	1-1/2	100/500
3/8 x 2-3/4			100/500
3/8 x 3			100/500
3/8 x 3-3/4			50/250
3/8 x 5			50/250
1/2 x 2-3/4	1-1/4	2-1/4	50/250
1/2 x 3-3/4			50/250
1/2 x 4-1/4			40/200
1/2 x 5-1/2			40/200
1/2 x 7			25/125
5/8 x 3-1/2	1-1/2	2-3/4	40/200
5/8 x 5			40/200
5/8 x 6			25/125
5/8 x 7			25/125
5/8 x 8-1/2			25/125
3/4 x 4-1/4	1-1/2	3-1/4	20/100
3/4 x 5-1/2			20/100
3/4 x 7			20/100
3/4 x 8-1/2			10/50
3/4 x 10			10/50
7/8 x 6	2-1/4	4	10/50
7/8 x 8			10/50
7/8 x 10			10/50
1 x 6	2-1/4	4-1/2	10/50
1 x 9			10/50
1 x 12			10/50
1-1/4 x 9	3-1/4	5-1/2	5/25
1-1/4 x 12			5/25
