Вертикальная прямолинейная машина для полировки окантовки 45

Описание и отзывы

Характеристики

Main features:
1. Suitable for flat glass straight edge and 45° arris;
2. Manual, single chip or PLC control system for option;

3. Rough grinding, fine grinding, polishing are done at one pass;

4. Chain or bearing conveying system, stepless/frequency speed adjustment for option.



This machine can process flat glass bottom edge, 45° arris and 45° chamfer, With 3 or 5 angle changing for option.





Main Technical Specification:

Model Number	YD-EM-8	YD-EM-9	YD-EM-9-45	YD-EM-10	YD-EM-10(bearing)
Total nr.of spindle	8	9	9	10	10
Profile	Flat/Arris	Flat/Arris	Flat/Arris	Flat/Arris	Flat/Arris
Glass thickness(mm)	5~20	5~20	5~20	5~20	5~20
Min.size of glass(mm)	100×100	100×100	100×100	100×100	50×50
Glass speed (m/min)	0.8~3.5	0.8~3.5	0.8~3.5	0.8~3.5	0.8~5
Power(kw)	15.5	18	18	20	20
Outer dimension(m)	6.5×1.0×2.6	6.8×1.0×2.6	6.8×1.0×2.6	6.8×1.0×2.6	7.5×1.0×2.6
Weight(kg)	2600	3000	3000	3500	4500



The position of grinding wheels:

Name	Model	Qty per machine
1# Diamond Wheel	80#	1
2# Diamond Wheel	180#	1
3# Resin Wheel	150-240#	1
4# Resin wheel	130-240#	1
5# Mud wheel	BD	1
6# Resin wheel	130-240#	1
7# Mud wheel	BD	1
8# Yew Wheel	10S40	1
9# Yew wheel	10S60	1

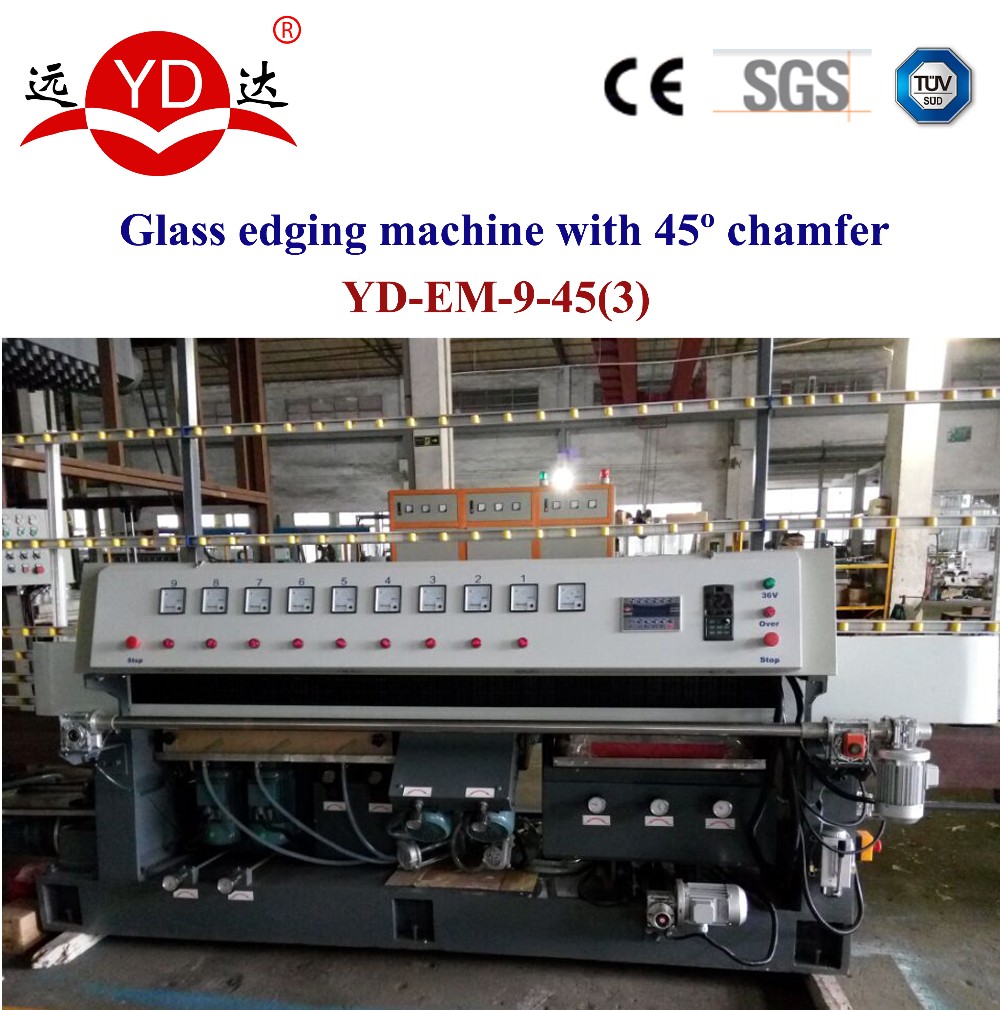

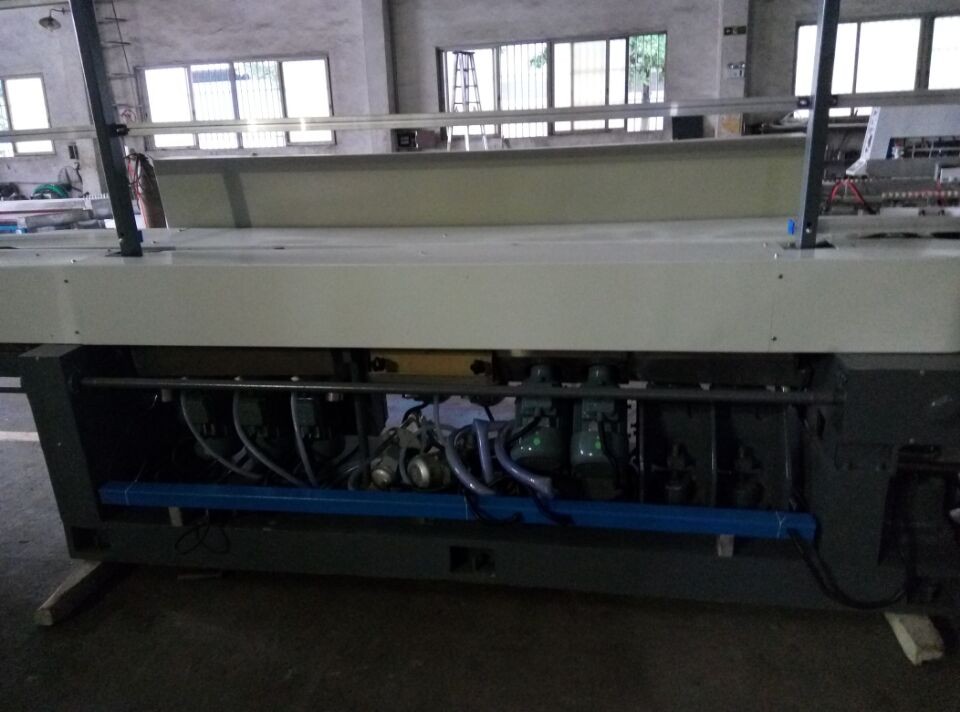

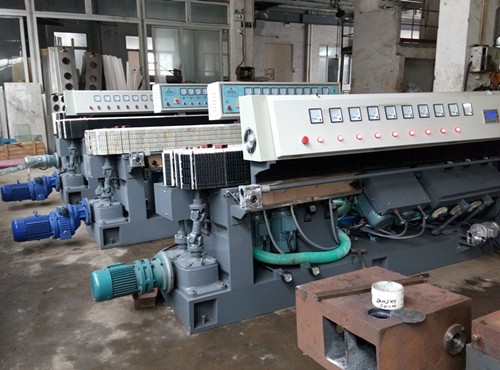

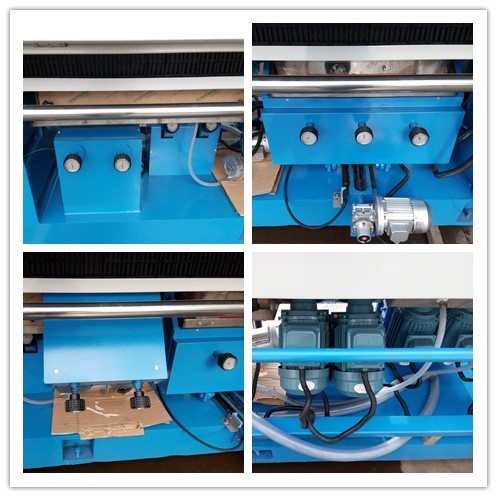

Machine photos:









Guarantee And After-sale Service:

• One year guarantee for whole machine.
• 24 hours technical support by e-mail.
• Ues-friendly English software,manual and detailed Videos/CD.

• We will provide all spare parts needed for maintenance of the equipments.

• Professional after-sales service team support face-to-face training and installation to customer's factory.
