Product Description

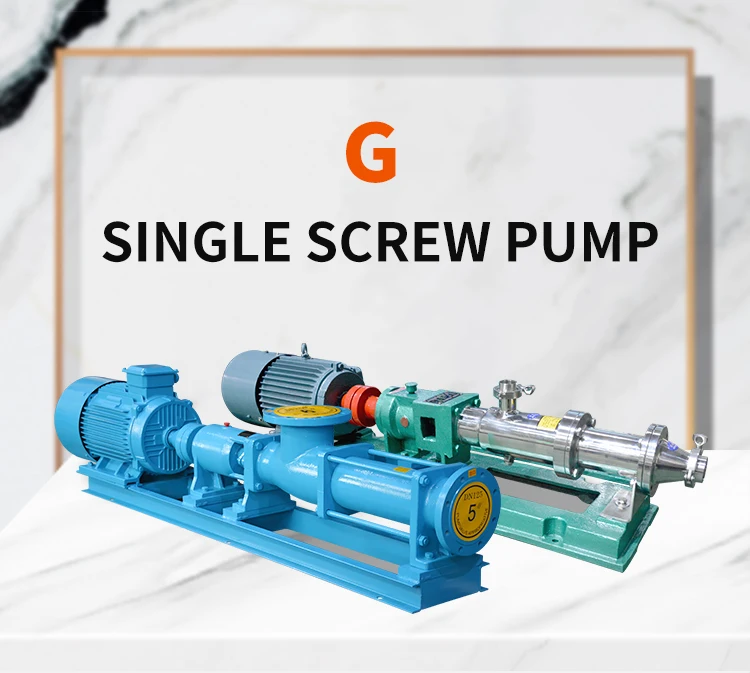

Single Screw Pump with solid is a positive displacement pump that use one or several screws to move fluids or solids along the screw(s) axis. In its simplest form (the Archimedes' screw pump), a single screw rotates in a cylindrical cavity, thereby moving the material along the screw's spindle. This ancient construction is still used in many low-tech applications, such as irrigation systems and in agricultural machinery for transporting grain and other solids.
Working Principle: | Screw |
Driver: | Electric Motor or Diesel Engine |
Flow rate range: | 0.8-150m3/h (3.5-660US. GPM) |
Maximum head: | 120m (393 feet) |
Casing parts material: | Cast Iron / Stainless Steel |
Screw material: | SS201 / SS304 / SS316 |
Stator material: | NBR / Silicon Gel. |
Seal: | Packing seal |
Motor type: | YX3 Series motor / Gear box and YX3 series motor / Explosion proof motor |
Max.permissible fluid temperature: | 150°C(302°F) |
Type of connection: | Flange |
Advantage: | 1. High sellf-suction. 2. No eddy flow and stirring. 3. Transport high viscosity liquid with solid. 4. Stable flow and pressure pulsation. |
| Model | Speed r/min | Capacity m3/h | Pressure MPa | Power KW | Inlet / Outlet mm |
| G20-1 | 960 | 0.8 | 0.6 | 0.75 | 25/25 |
| G20-2 | 960 | 0.8 | 1.2 | 1.5 | 25/25 |
| G25-1 | 960 | 2 | 0.6 | 1.5 | 32/25 |
| G25-2 | 960 | 2 | 1.2 | 2.2 | 32/25 |
| G30-1 | 960 | 5 | 0.6 | 2.2 | 50/40 |
| G30-2 | 960 | 5 | 1.2 | 3 | 50/40 |
| G35-1 | 960 | 8 | 0.6 | 3 | 65/50 |
| G35-2 | 960 | 8 | 1.2 | 4 | 65/50 |
| G40-1 | 960 | 12 | 0.6 | 4 | 80/65 |
| G40-2 | 960 | 12 | 1.2 | 5.5 | 80/65 |
| G50-1 | 960 | 20 | 0.6 | 5.5 | 100/80 |
| G50-2 | 960 | 20 | 1.2 | 7.5 | 100/80 |
| G60-1 | 960 | 30 | 0.6 | 11 | 125/100 |
| G60-2 | 960 | 30 | 1.2 | 15 | 125/100 |
| G70-1 | 720 | 45 | 0.6 | 11 | 150/125 |
| G70-2 | 720 | 45 | 1.2 | 15 | 150/125 |
| G85-1 | 720 | 55 | 0.6 | 15 | 150/150 |
| G85-2 | 500 | 55 | 1.2 | 18.5 | 150/150 |
| G105-1 | 400 | 80 | 0.6 | 22 | 200/150 |
| G105-2 | 380 | 80 | 1.2 | 30 | 200/150 |
| G135-1 | 380 | 150 | 0.6 | 37 | 250/200 |
| G135-2 | 380 | 150 | 1.2 | 75 | 250/200 |
