Buliding materials polyurethane / PIR / PUR sandwich wall panel
P
Product Description
PU Sandwich panel (Polyurethane sandwiched panel )is composed of 2 layers of weather-proof colored steel sheets and jetted the hard forms of polyurethane between 2 layers which feature fireproof materials. It is suitable for the various roofs and walls referring to the large-size factory buildings, storages, exhibition halls, gymnasiums, freezing stores, purifications workshops, etc, which features temp-keeping, heat insulation, weight-bearing, weatherproof with the rich colorfulness and good appearance.
PUR/PIR Sandwich Panel Technology Data
Density | 40-45kg/m3 |
The thermal conductivity | 0.019-0.023W/M.K |
Moisture permeability coefficient | ≤3.34Ng/Pa/m.s |
Water absorption | ≤0.5g/100cm2 |
Enclosed rate | ≥97% |
The compression strength | ≥220KPa |
The bending strength | ≥2450KN/m2 |
Oxygen index | ≥28 |
Fire proof | B1 |
Dimensional stability | ≤1% |
Application temperature | -50℃-150℃ |
Exterior Steel thickness | 0.4-0.7mm |
Interior steel thickness | 0.4-0.7mm |
Core material thickness | 40/50/60/75/100/120/150/200mm |
Length | Less than 11.8m |

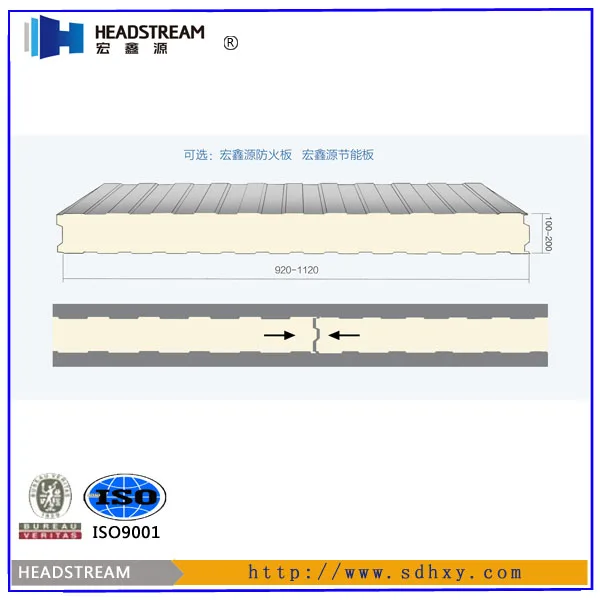

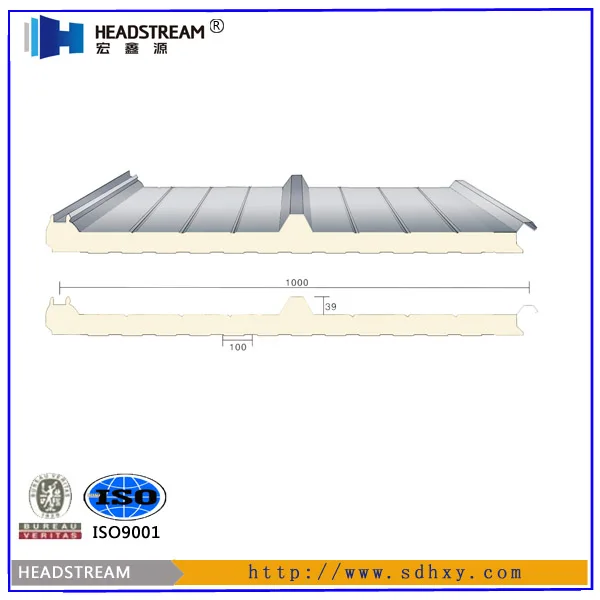

Effective width | Wall panel:400-1120mm;Roof panel:1000mm |
Grace finish | Embossment,small wave,big rib,flat finish |
Advantage | Heat Insulation, light weight, quick installation,waterproof, fireproof, soundproof, energy-saving,environmental friendly, |
Usage | Various roofs and walls referring to the large size factory building ,workshop,coldstorage,villas, |
Thickness of sandwich panel | Application temperature |
50mm | Temperature 5°C or above |
75mm | Temperature -5°C or above |
100mm | Temperature -15°C or above |
120mm | Temperature -25°C or above |
150mm | Temperature -35°C or above |
200 | Temperature -45°C or above |
P

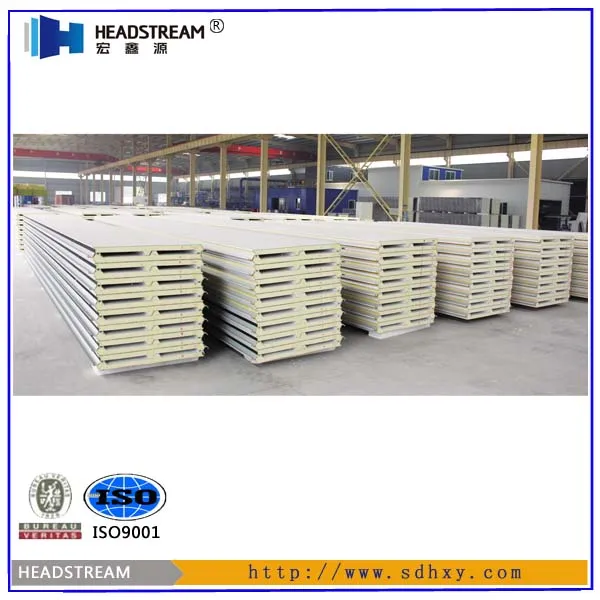

Product Pictures
Product Pictures
P
Production Line
Production Line
World famous steel sandwich panel production line from PUMA,Italy
The longest double belt main machine Guarantee the quality ofthe panel
The 6 component foaming Guarantee the continuous quality stability of the pu sandwich panel
P
Packaging & Shipping
Packaging & Shipping
P
Payment
Payment
L/C AND T/T
O
Our Services
1)Expertise:
20 years' manufacture: we know how to properly handle every step of production.
2)Accuracy:
We have a technicial team and a QC team,ensure the quality products.
3)High quality and competitive price
We cooperated with BLUESCOPE,BAOSTEEL,YIEH PHUI,HUNTSMAN,MA STEEL,BASF,which are both high guality and famous raw materials.
4)Certificate
Our products are certified by ISO9001:2008,ISO14001:2004 etc.
5)Producitivity
We have 6 sandwich panels production lines,to guarantee all your orders will be finished in earlist time.
Your inquiry related to our products or prices will be replied in 24 hours.
C
Company Information
Shandong Hongxinyuan Coated Steel Co.,Ltdis a large-scale group company,which coversPUR/PIR/ROCKWOOL/EPS Sandwich panels,puriofication sandwich panels,PPGL/PPGI/GL/GI,C/Z purlin,H beam,Floor decking and Corrugated steel palte,etc. Hongxinyuan has become one of the leading steel construction material enterprises in China ,which focuses on manufacturing and selling.
The modernized Hongxinyuan has successively passed the authentication of ISO9001,ISO14001 with reference to latest global management concept and the universal management standard conforming with international step. Our products are exported to more than 30 countries and regions such as Europe, America, Middle East, Asia,Africa, etc. Boasting of its international idea and standardized operation model, we are ready for embracing a new future.
F
FAQ
1) How can I place order?
A: You can contact us by email about your order details, or place order on line.
2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and L/C are the most usual ways we are using.
3) What's the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
4)How do you take care when your clients received defective products?
A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
5)How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
