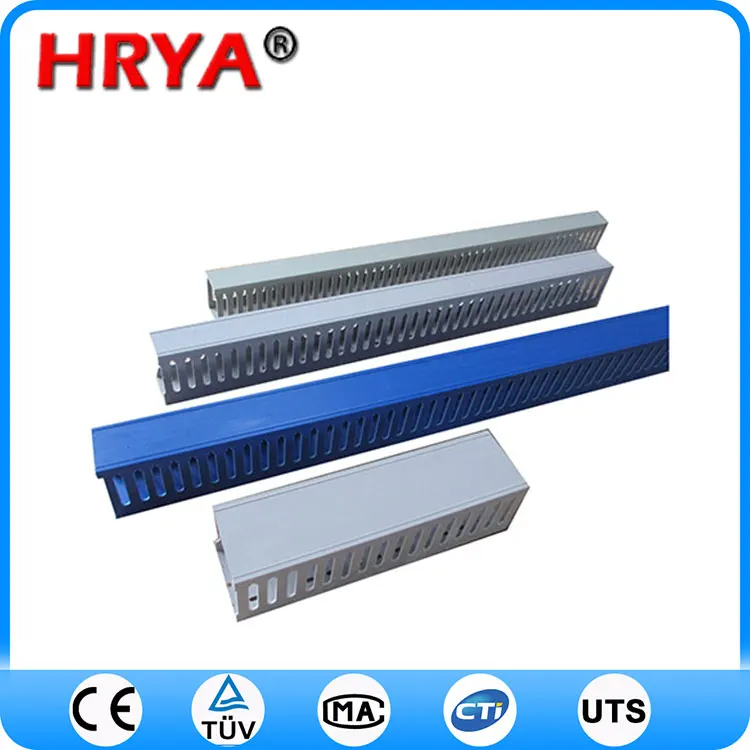

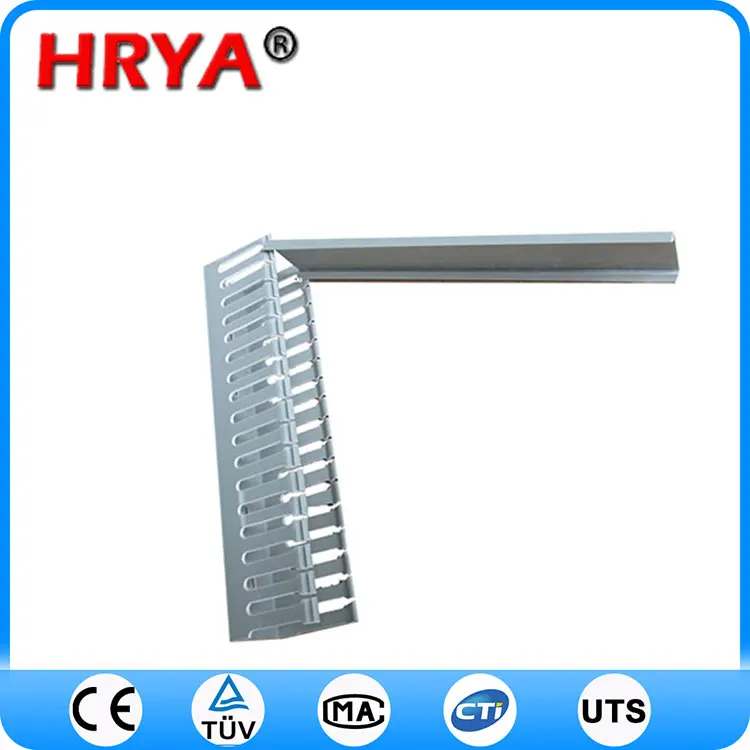

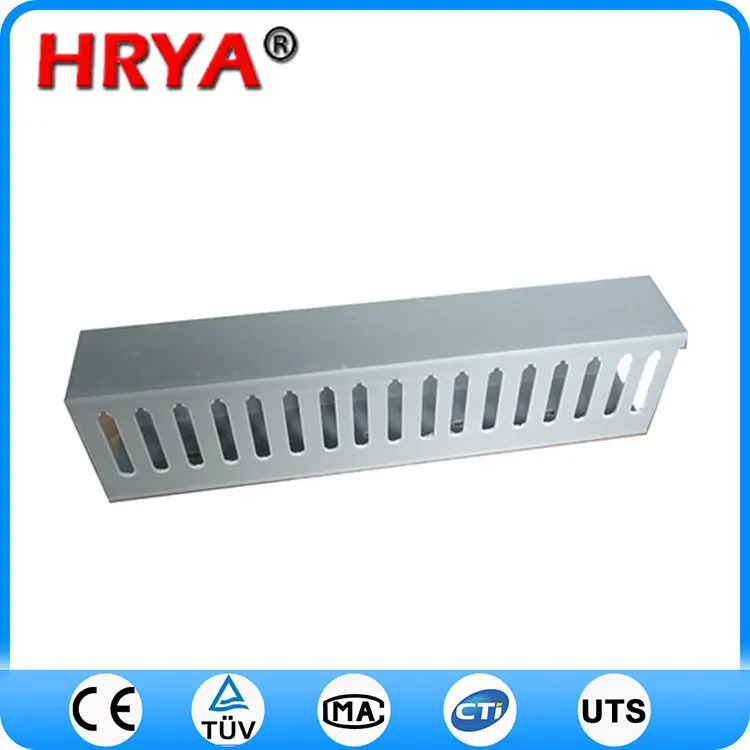

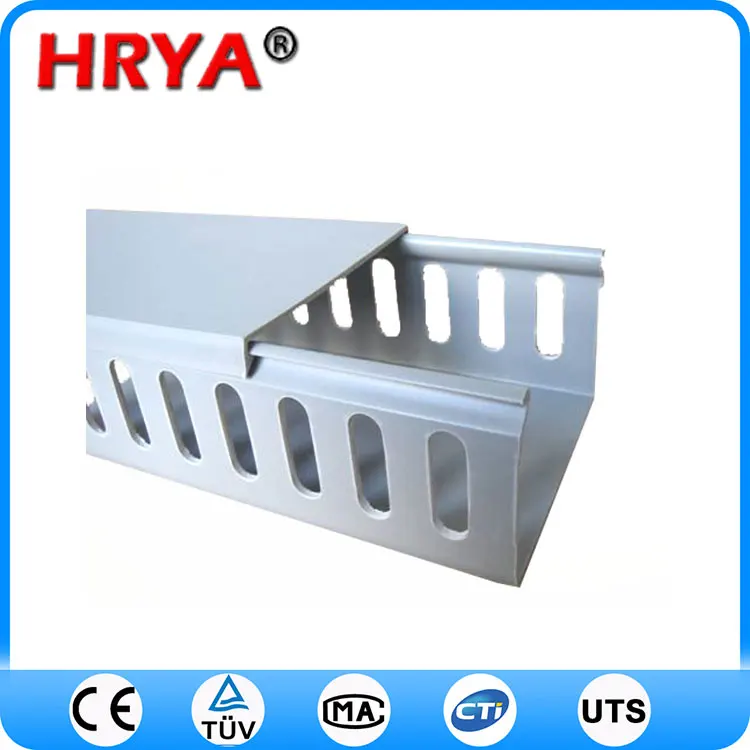

wiring duct pvc open slot , hinged cover wire duct





Rigid Plastic Wire Ducts :



Material	PXC - Rigid PVC.                         Self-extinguishing.UL94 V-0 EAR - Lead-Free PVC Material.   Self-extinguishing.UL94 V-0
Length	2 Meter (~78") complete with cover.
Features
1)	Conforms to EN 50085-2-3 standard
2)	CE or Rohs complies. UL File number E354081
3)	With mounting holes for easy mounting.
4)	Excellent Cover Retention



Specification of  Rigid Wire Ducts:



Part No. CE &UL94V0	Part No. Rohs &UL94V0	WxH	M/PACK	14AWG/PCS
PXC1525	HY1525	15x25	300	5-12
PXC2025	HY2025	20x25	232	5-12
PXC2525	HY2525	25x25	180	10-25
PXC2030	HY2030	20x30	192	15-25
PXC2530	HY2530	25x30	144	15-25
PXC3030	HY3030	30x30	120	15-25
PXC3530	HY3530	35x30	112	25-30
PXC4030	HY4030	40x30	100	25-35
PXC3333	HY3333	33x33	124	20-30
PXC2535	HY2535	25x35	144	15-25
PXC3535	HY3535	35x35	120	40-45
PXC5035	HY5035	50x35	100	55-65
PXC2540	HY2540	25x40	124	20-25
PXC4040	HY4040	40x40	80	60-70
PXC6040	HY6040	60x40	80	100-115
PXC2545	HY2545	25x45	128	20-25
PXC3345	HY3345	33x45	84	40-55
PXC4545	HY4545	45x45	92	60-70
PXC6545	HY6545	65x45	72	80-90
PXC2550	HY2550	25x50	100	20-25
PXC3050	HY3050	30x50	120	30-35
PXC3550	HY3550	35x50	120	40-45
PXC4050	HY4050	40x50	100	50-60
PXC4550	HY4550	45x50	80	60-70
PXC5050	HY5050	50x50	80	80-90
PXC5550	HY5550	55x50	72	80-90
PXC6050	HY6050	60x50	68	85-95
PXC8050	HY8050	80x50	52	150-170
PXC10050	HY10050	100x50	40	200-240
PXC2560	HY2560	25x60	132	40-45
PXC3560	HY3560	35x60	108	40-55
PXC4060	HY4060	40x60	96	100-115
PXC4560	HY4560	45x60	84	113-118
PXC5560	HY5560	55x60	72	115-130
PXC6060	HY6060	60x60	60	120-135
PXC8060	HY8060	80x60	44	180-240
PXC10060	HY10060	100x60	32	190-250
PXC2565	HY2565	25x65	132	40-45
PXC3365	HY3365	33x65	108	60-75
PXC4565	HY4565	45x65	84	110-120
PXC6565	HY6565	65x65	60	180-200
PXC2580	HY2580	25x80	100	100-120
PXC3080	HY3080	30x80	80	110-130
PXC3580	HY3580	35x80	72	120-140
PXC4080	HY4080	40x80	56	120-135
PXC4580	HY4580	45x80	56	130-140
PXC5080	HY5080	50x80	48	150-190
PXC5580	HY5580	55x80	48	150-190
PXC6080	HY6080	60x80	40	180-210
PXC8080	HY8080	80x80	32	240-290
PXC10080	HY10080	100x80	24	260-350
PXC12080	HY12080	120x80	20	260-350
PXC14080	HY14080	140x80	16	300-400
PXC33100	HY33100	33x100	72	110-160
PXC40100	HY40100	40x100	56	130-170
PXC48100	HY48100	48x100	48	220-250
PXC50100	HY50100	50x100	40	220-250
PXC60100	HY60100	60x100	40	240-290
PXC70100	HY70100	70x100	32	250-350
PXC80100	HY80100	80x100	32	260-350
PXC100100	HY100100	100x100	24	300-400
PXC120100	HY120100	120x100	16	330-430
PXC160100	HY160100	160x100	12	360-460
PXC100150	HY100150	100x150	12	330-450

















































































































































Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
   2).We make the PI for you.
   3).After you confirm the PI, we arrange the order for you after receiving your payment.
   4).After the goods finished, we send the goods out to you and tell you the tracking number.
   5).We will track your goods until you receive the goods.



Q: What's your warranty ?

A: One years

Q: What's your contact information?
A: Our address: Liushi town, Zhejiang province, China. Sky-pe: CHINAHRYA



Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.



Q: What's about MOQ?
A: First order MOQ=1pcs



Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.

Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
