KEDU 2P 25A автоматические выключатели остаточного тока с VDE CB CCC

Low Voltage Switches、 Power Tool Switches、 Industrial Plugs & Socdets、 Isolation Switches、 Domestic Switches

1.30 years manufacture experience

2.OEM is available: material,size and other requirements are customized
3.Our laboratory is certified by UL,CTDP,TUV
4.ALL of our goods have acquired UL,CSA,VDE,TUV,CE,SEMKO,ENEC,3C,CQC certification

5.We use 3D software UG to design and develop our product
6.16000pcs models for choosing
7.Our products supply over 200 middle and high-end cusomers from America,the UK,France and Germany etc.

8.Building Area:26000 square meter(WENZHOU) 88000 square meter(HANGZHOU)

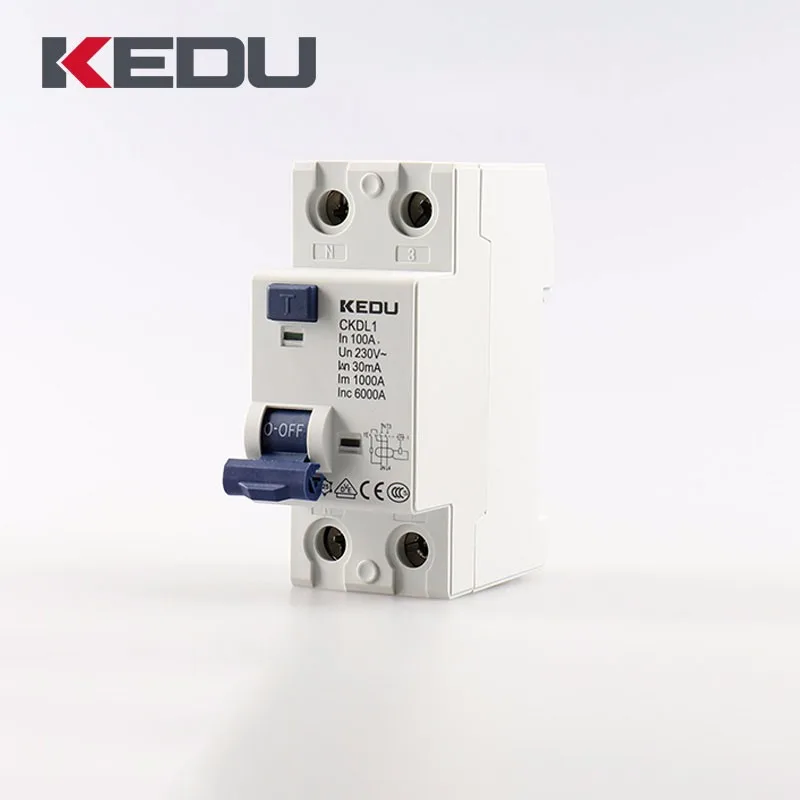

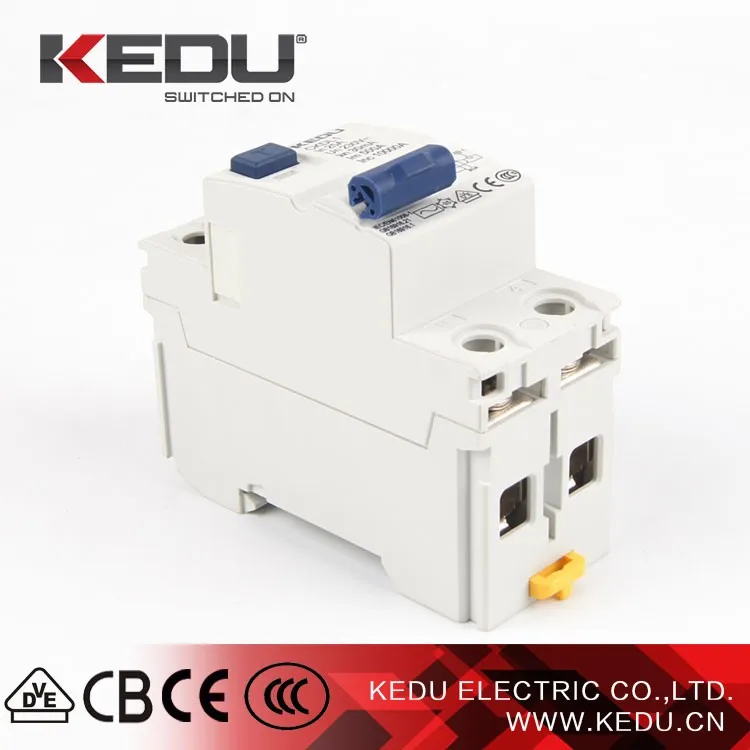

 KEDU 2P 25A Residual current circuit breakers with VDE CB CCC CE approved

Applicable scope:

CKDL series residual current circuit breakers are applied to the lines with AC 50/60Hz,rated voltage of 230V(1P+N) or 400V(3P+N),and rated current of 100A.In case of electric shock or electric leakage current exceeds the specified value,the residual current circuit breaker can switch off the fault circuit in a very short time,protecting the safety of person and electric equipment.
Can be used in the industrial,commercial,high-rise buildings,civil residences and other places.

The residual current action uses pure electromagnetic type,its detection,discrimination and breaking action function is independent of the power supply voltage,overcoming the defects of poor anti-interference of electronic products,great fluctuation to the power grid voltage and protection failure due to broken neutral line,presenting reliable action.

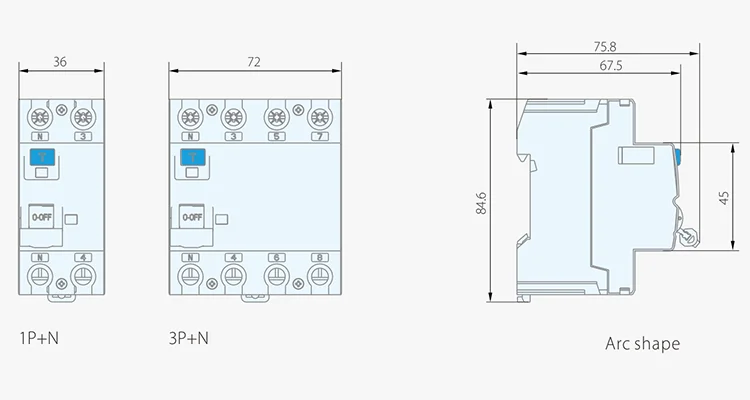

Reference size

Ordering instructions

The following information shall be provided in ordering:
.Name and code of residual current circuit breaker
.Rated current
.Pole number of residual current circuit breaker
.Rated residual current(IΔn)
.Residual action current type (Type AC or type A )
.Rated short-circuit current limit(Inc)
.Ordering quantity

Ordering example: for ordering 10000 units of CKDL1 (see the code and meaning)

1P+N, type A, with rated current of 25A, rated short-circuit current limit of 6000A, rated residual
current of 30 mA, and straight shape. It shall be written as: CKDL1-A2563 in 10000 units
