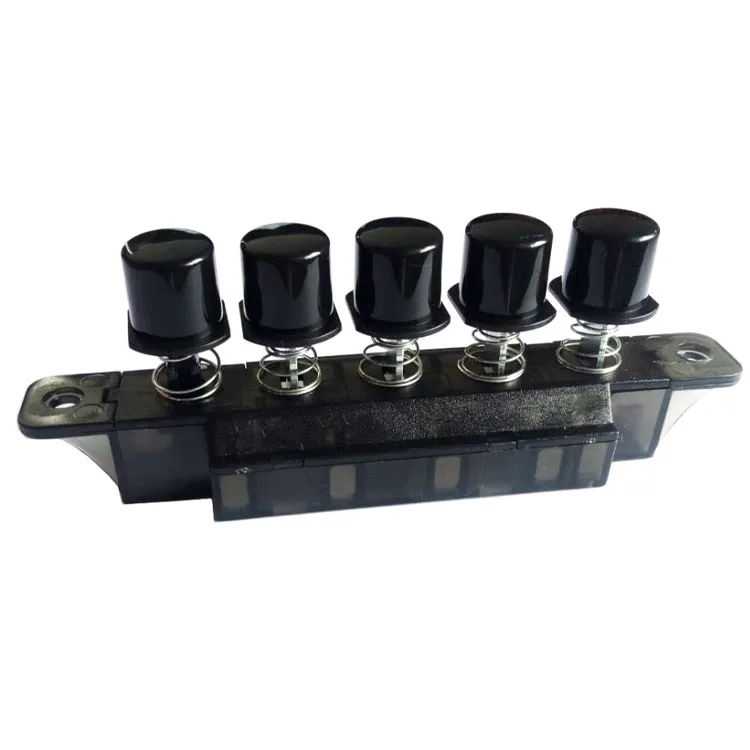

5 keys range hood keyboard switch inserting wire type

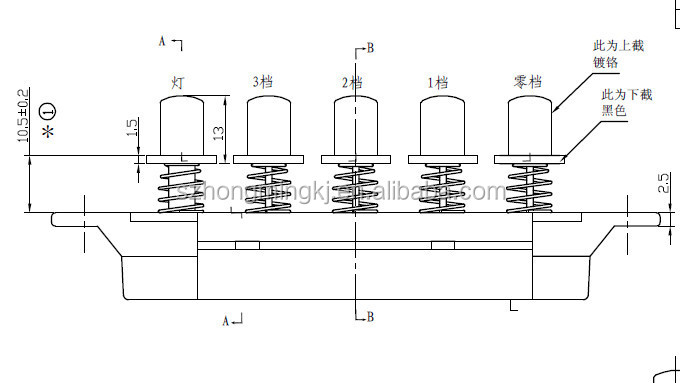

photo &demensions
materials:
| Housing: PC /PBT/PA66 | |
| Cover: PC /PBT/PA66 | |
| Push block: PA66 | |
| Actuating Tip: Copper Button: Stainless steel or iron | |
| Locking Plate: Zinc Plating Iron Blocking Plate: steel/iron | |
| Terminal Spring: stainless steel Stationary terminal: Copper alloy | |
| Spring: Steel |
specifications
|
Electrical Rating |
1A250V AC, 4A250V AC |
|
Button distance |
18mm |
| Temp(C) | 80°C |
| Circuit/ Functions | OFF L1 L2 L3 montary or off L1 L2 momentary |
| Wiring specifications | 22-18AWG UL1015 |
| The keyboard distance | 18mm |
| materials | PC V0 ABS spring copper |
| Wire Connect |
Soldering wires or Inserting wires (without terminals outside) |
| life time |
10000cycles |
