Truck and car equipment pneumatic gas struts

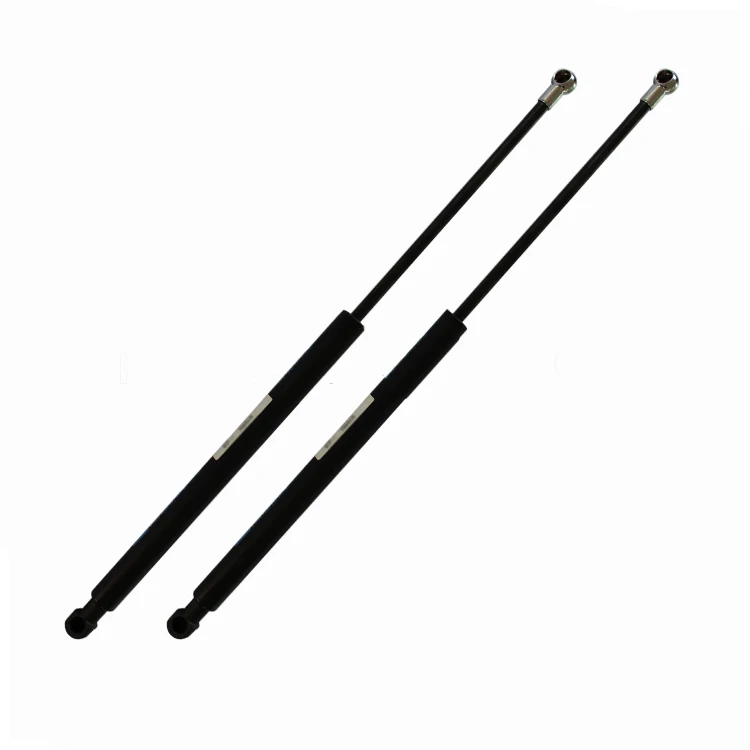

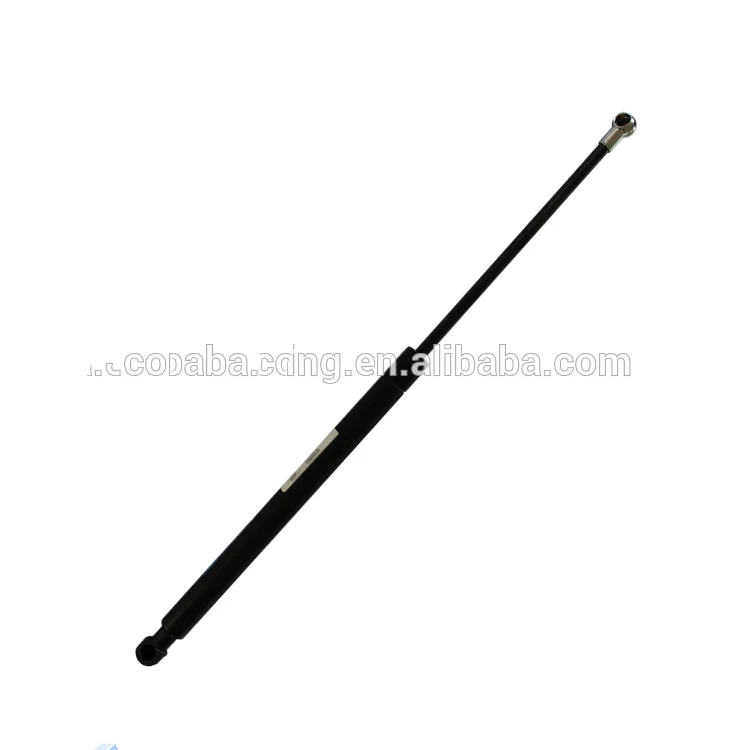

car gas struts

car gas struts

Name	Truck and car equipment pneumatic gas struts
Quality	1. SIRA International Authentication institute
	2. ROHS certificated by SGS
	3. ISO9001:2008 International Quality System
Use	Industrial equipment series, cars series, train series, furniture hardware, medical machine, sport machine, engineering machinery, bus station lamp box, etc
Material	Steel / stainless
Color	Silver / black / others
Connector	Ball connector / metal eye / clevis and so on Connector fittings be made as your requirement according to different usage & different areas
Advantage	1. long use lifetime guaranteed , 20,000 cycles a year
	2.Excellent paint surface. Surface finish: Nickled-plate, chromed-plate, powder paint, oven paint, Galvanized, oil anti-rust, etc.
	3. we can supply samples for free
	4. Competitive price
	5. Fast delivery .
	Length can be cut upon your request. The size can be made according to  the customer requirement.
OEM orders are welcomed

1.This car gas spring is mainly applied in front cover supporting,car back deck supporting,and carriage deck door supporting. We can also produce according to your designated styles or we can design and produce according to your need.
2.Our factory is specializing in manufaturing car gas spring,car gas strut,gas spring etc.You can glance over this kind pictures on our website,welcom to read and inquiry.

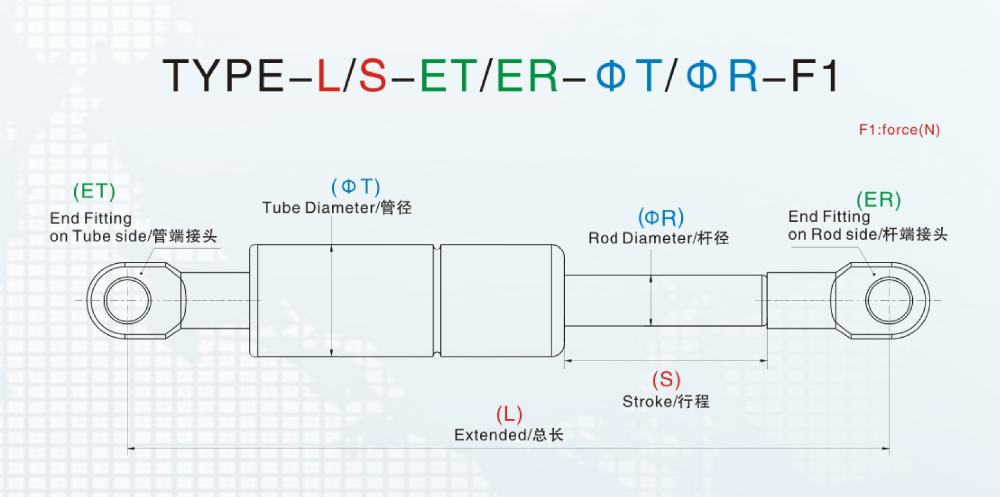

Application	Type	Model	Length	Stroke	Rod	Tube	F1	End fitting
Car door  Car boot car bonnet vehicle tailgate	YQ	360/130 aa 10/22 465/190 aa 10/22 675/270 aa 10/22 745/235 UU 12/26	360 465 675 745	130 190 270 235	8 8 10 12	18 18 22 26	custom	ball



Our Advantage:
1) We are one of the most professional manufacturers in China.
2) Provide all kinds of damper
3) According your drawing or dimension
4) High quality with competitive price
5) passed ISO9001:2008 quality system
6) Fast delivery
7) Excellent paint surface
8) We will reply your inquiry on the first time.
9) Warranty: 1 yesrs
10) The measure of this table only offer consult, particular measure according the design
demand of the customers





Series	Type	Description
Y-Series -Normal Gas Spring	Y0	Normal Gas Spring
	Y1	Normal Gas Spring with Grooved -Tube Design
	Y2	End-Lock at Fully Compression Position with an Interal Locking Mechanism
	Y3	End-Lock at Fully Extension Position with an Interal Locking Mechanism
	Y4	End-lock at Fully Extension Position with a Tilted-Tube Mechanism
	Y5	Two Rods Gas Spring
	YS	Stainless Steel Gas Spring
	YA	Aluminum Tube Gas Spring
K-Series   -Lockable Gas Spring (Rod-End Release Control)	K0	Spring Lock
	K1	Rigid Lock in Extension Direction
	K2	Rigid Lock in Compression Direction
	K3	Rigid Lock in Both Extension/Compression
HK-Series  -Lockable Gas Spring (Rod-End Release Control)	KH0	Spring Lock
	KH1	Rigid Lock in Compression Direction
KL-Series  -Lockabe Traction Gas Spring  (Rod-End Release Control)	KL0	Single Tube Dsign-Spring Lock
	KL1	Single Tube Dsign-Rigid Lock
	KL2	Double Tube Design-Spring Lock
	KL3	Double Tube Design-Rigid Lock
L-Series   -Traction Gas Spring	L0	Single Tube Design
	L1	Doube Tube Design
	LS	Stainless Steel Gas Spring
Z-Series  -Damper	Z0	Damping in Extension Direction Only
	Z1	Damping in Compression Direction Only
	Z2	Damping in Both Extention / Comprssion Ditrction
	Z3	Damping Speed is Adjustable



XF (short name of XiongFeng ) is a professional Gas Spring and damper manufacturer for more than one decade. For past years, our creative and innovative engineers have been working with our customers and developing high-end and robust products to meet their expectation. That's why our products NOW can range from Normal Gas Spring(Y-series),Traction Gas Spring(L-series),Lockable Gas Spring(K&KH-series),Lockable Traction Gas Spring(KL-series) and Damper (Z-series) which have been applied to Automotive,Furniture,Medical, Food, Sports and Electronic industries.

Continuous development, in-house test and improvement are our commitment to our customers and also our philosophy. Moreover, with the expertise and ability of excellent 3D-CAD mechanism-design and electro-mechanical integration of our engineer team , all major production equipments are designed and assembled in-house.

You are welcome to drop by , take a rest and rely on us. You will find that XF will be one of your best long-term partners in the world.

Q1: Are you factory or trade company?

A1: We are factory and have more than 20 years experience in this business.



Q2: Do you have any stock of the products?

A2: Sorry, we don’t have too much stock as this is a customize product.



Q3: So how is the lead time of our order?

A3: Normally 5-7days , the lead time is according to the quantity.



Q4: Could you produce our own brand products?

A4: Yes, of course if you have authorization.



Q5: Could you customize packing box for me?

A5: Yes, we can customize it for you as your requirement.



Q6: Can we visit your factory before we order from you ?

A6: Yes,welcome ! That is our pleasure to be visited.



Q7: Does your factory provide sample for quality check and test,free or charge ?

A7: We able to provide 2-6pcs FREE sample for evolution,but you need to handle the shipping cost.



Q8: If your product have quality problem,how will you solute ?

A8: First of all,our product have 12 months warranty, if the product have any quality problem,we will compensate the fully product quantity and bear all the lose of this order.
