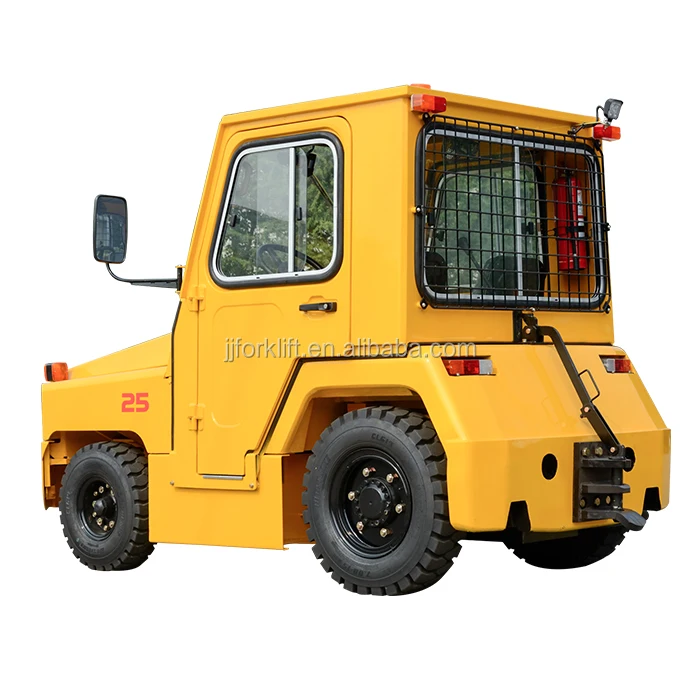

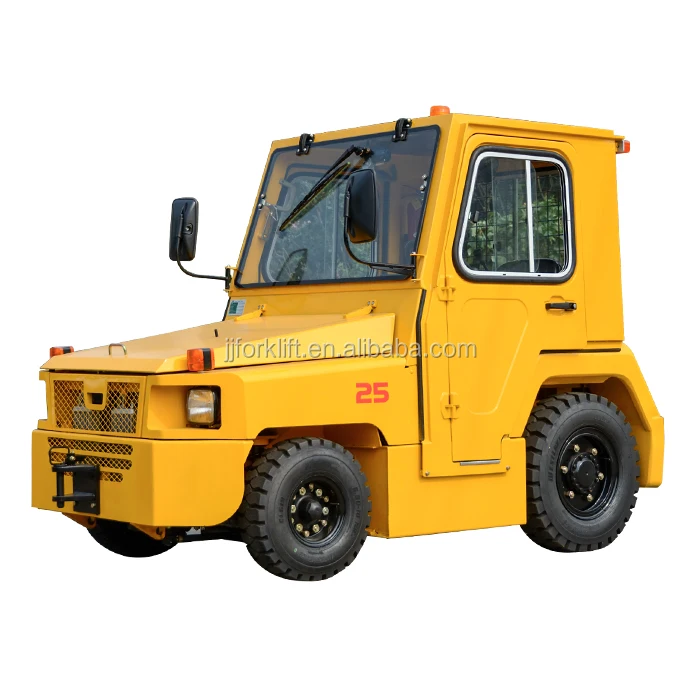

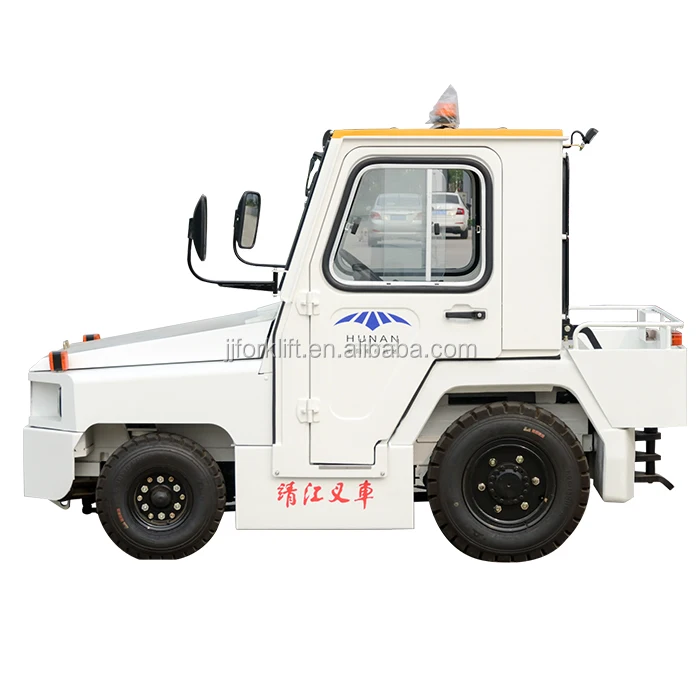

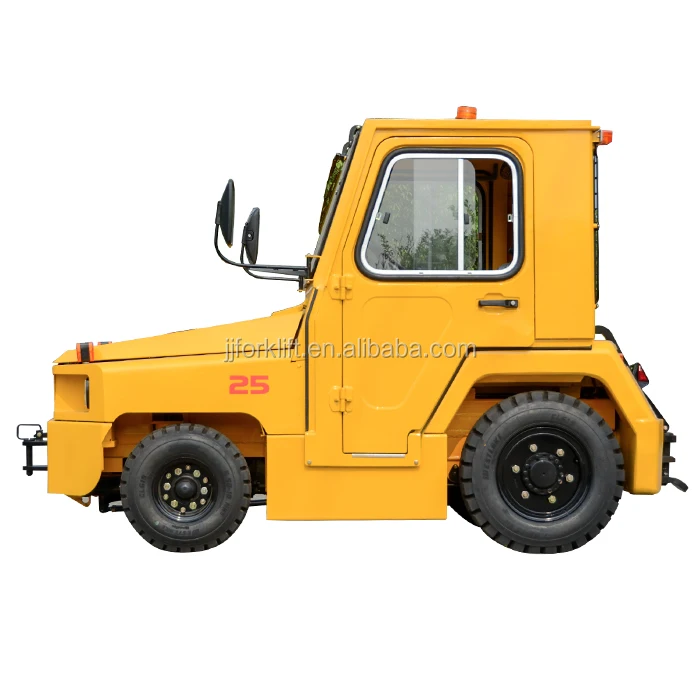

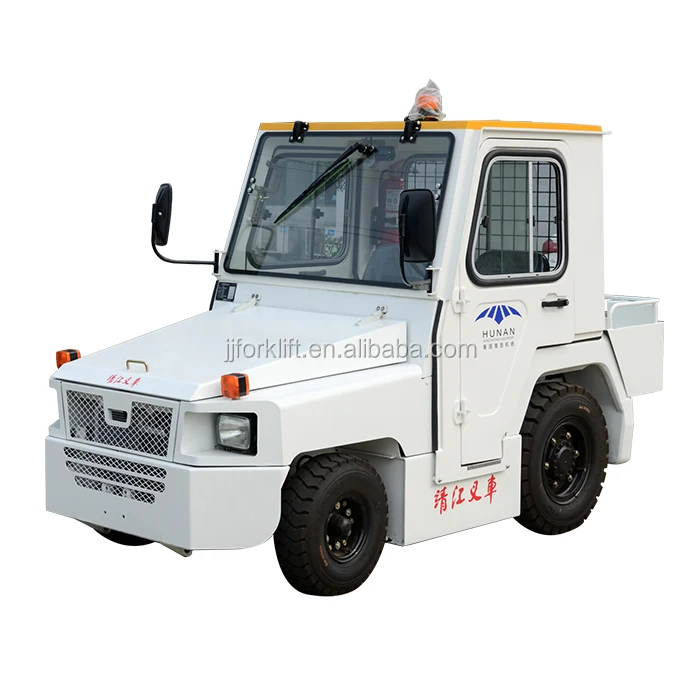

Products to sale two cylinder diesel tractor engine baggage 2 ton towing for

Описание и отзывы

Характеристики











 New high –power engine ,JAPAN MITSUBISHI S4S engine



 New integrated power steering reduces steering effort and enhances maneuverability.It also allows the operator to make sharper and quicker turns easier.

Standard automatic transmission with two-speed torque converter and an additional torque converter oil cooler.

Large open step

Easy-to- Read instrument panel from USA CURTIS ,all meters and warning lamps are clustered together for at –a –glance recognition of vehicle status,which containes oil pressure warning,brake fluid low level warning,hour meter,water temperature gauge with warning light,fuel gauge with warning light etc

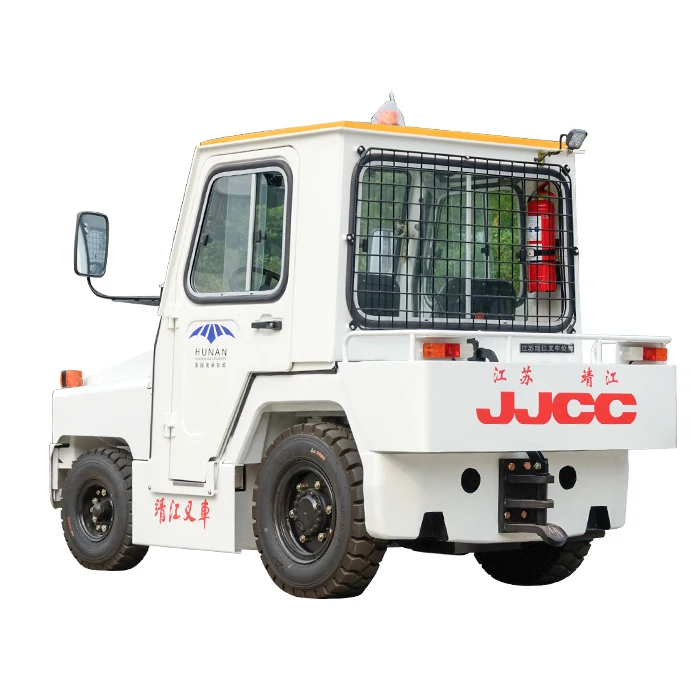

E-type two-stage towing bar easy to operate beside seat of drivers.

Front and rear bumper can be equipped (optional)

Japan KT21600000 automatic transmission converts the engine power ifficiently and provides smooth acceleration for the tractor. Transmission oil coller and forward reverse interlock further guarantee reliablity and durability of the transmission

Manufacturer				JJCC/ NISSAN technology
Model code				QCD20-KM II	QCD25-KM II	QCD30-KM II
Max.drawbar pull			KN	20	25	30
	Max.towed weight (at dry even concrete surface)		Kg	25000	32000	38000
	Traveling speed	Forward	Km/h	25
		Backward	Km/h	22
	Max.gradeability	No load	%	38		35
Dimensions	Overall length (with coupler)		mm	3015
	Overall width		mm	1440
	Overall height(without canopy)		mm	1450
	Wheelbase		mm	1620
	Front overhang		mm	635
	Rear overhang (with coupler)		mm	760
	Front tread		mm	1250
	Rear tread		mm	1200
	Min.turning radius	Outer	mm	3000
	Floor height		mm	425
	Seat height		mm	980
	Center height coupler		mm	305/405
	Coupler length		mm	280
	Min.groud clearance		mm	165
tires	Tire size	Front		6.50-10-10PR
		Rear		7.00-15-12PR		7.50-15-12PR
Weight	Truck weight (No load)		Kg	3450	3900	4400
	Weight distribution	Front axle	Kg	1160	1120	1080
		Rear axle	Kg	2290	2780	3320
Engine	Model			Japan MITSUBISHI S4S
	Displacement		cm3	3331
	Rated output		kw/rpm	47/2500
	Rated torque		N.m/rpm	200/1600
TRANSMISSION	Model			JAPAN EXEDY  KT21600000
	Type			AUTOMATIC with torque converter
	Gear shift			2 forward/1reverse
	GEAR RATIO			Forward I: 4.894
				Forward II: 2.462
				Reverse:2.696
















 1.What's the Certificate do you have?
JJCC workshop meet with the ISO9001 Quality System. And all of our products are with CE certificate

2. Can you customize and design as the clients' requirement?
JJCC will try its best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients. All kinds of attachments such as roll paper clamp, side shifter and so on can be available



3. How long is the warranty of your products?
All of products are with 1 year / 2000 working  hours subject to the first



4. Can you produce the products labeled with the client's brand?
Yes, we do!
With the authorization of the brand, we can OEM for our clients



5. What's the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery or LC at sight, or 70%balance upon BL COPY



6. Delivery date:
If clients need normal products, we will deliver the products within 25days. If clients need customerized products, the delivery date depend on the requirements.


How to choose the most suitable JJCC forklift trucks?

1. Power Type
2. Load Capacity
3. Mast Size and Height
4. Side Shifter, tyre and etc.
