Синтетический промышленный абразивный алмазный микронный порошок для
- Категории: Абразивы >>>
- Поставщик: Zhecheng,Hongxiang,Superhard,Material,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Name | Diamond micron powder | Specification | W0.1-W50 | ||

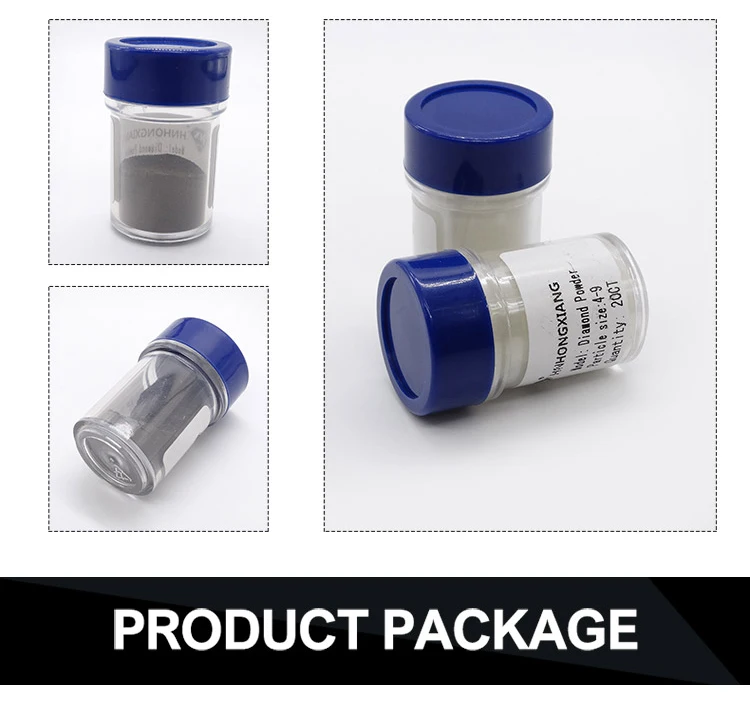

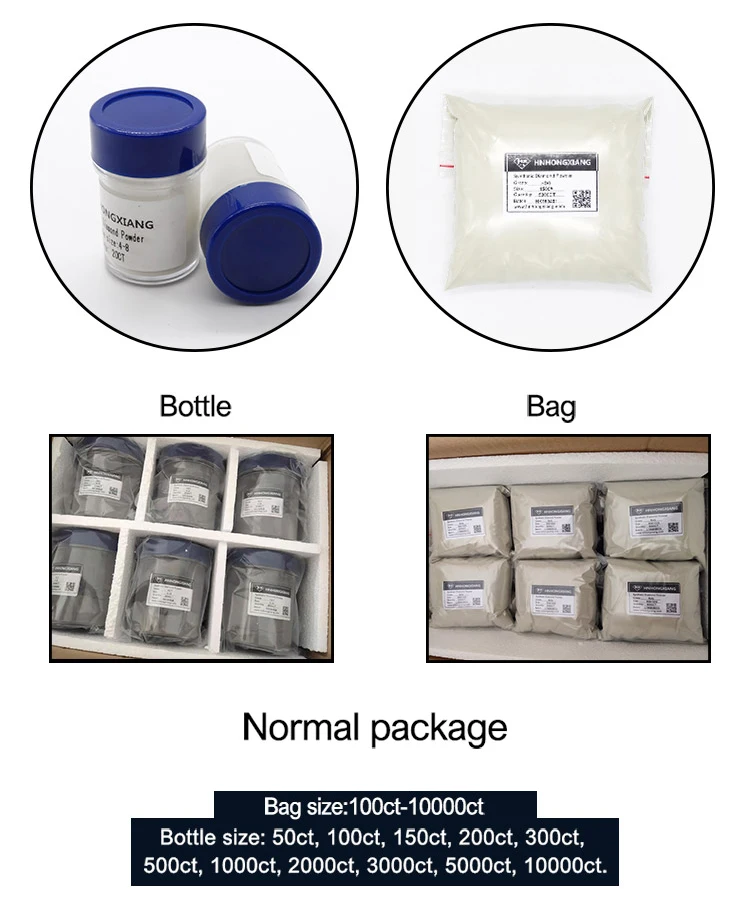

Material | Diamond Powder | Package | Bag or bottle | ||
Features | Good crystal form, high purity, concentrated particle size distribution | ||||
MODEL SIZE COMPARISON TABLE.
Standard of China | Standard of international | Mesh | Polishing effect | Standard of China | Standard of international | Mesh | Polishing effect |
W0.1 | 0-0.1 | 100000 | Super mirror polishing | W12 | 8-12 | 1600 | Normal polishing |
W0.25 | 0-0.25 | 60000 | W14 | 7-14 | 1500 | ||
W0.5 | 0-0.5 | 30000 | Mirror polishing | W14 | 8-16 | 1300 | |
W1 | 0-1 | 15000 | W20- | 10-20 | 1200 | ||
W1.5- | 0-2 | 13000 | W20 | 12-22 | 1000 | ||
W1.5 | 1-2 | 12000 | Fine polishing | W20+ | 15-25 | 800 | |
W2.5 | 1-3 | 10000 | W28 | 20-30 | 700 | ||
W3 | 2-3 | 7000 | W28+ | 22-36 | 600 | ||
W3.5 | 2-4 | 6500 | W40- | 20-40 | 500 | Rough grinding | |
W3.5 | 2-4 | 6000 | W40 | 30-40 | 450 | ||
W4 | 2-5 | 5000 | W40+ | 35-45 | 400 | ||
W5 | 3-6 | 4000 | W50 | 36-54 | |||
W6 | 4-6 | 3500 | 325/400 | 320 | 43-48 | ||
W7 | 4-8 | 3000 | Normal polishing | 270/325 | 280 | ||
W10 | 4-9 | 2500 | 230/270 | 240 | |||
W10 | 5-10 | 2000 | 200/230 | 200 | |||
W10 | 6-12 | 1800 |
Irregular shape. The same raw material as green RVD. For making diamond polishing pads/diamond abrasive Fickert/resin bond diamond grinding wheel
For making diamond lapping paste/diamond polishing pads/ diamond abrasive Fickert/ resin bond & vitrified bond diamond grinding
wheel/ electroplated diamond bur
wheel/ electroplated diamond bur
For making diamond slurries/ suspensions to polish sapphire, silicon wafer, precision ceramics, optical lenses, optical fiber communication.
Regular shape and polishing better to avoid scratch, for making diamond lapping paste, resin bond diamond grinding wheel.
Uniform particle size and shape. For making silicon wafer cutting diamond wire, jewelry saw, semiconductor saw.
For making diamond slurries/suspensions to polish sapphire, silicon carbide, emiconductor wafers, optical and electro-optical crystals, hard brittle materials.
HNHONGXIANG is a research and development enterprise specializing in the production of synthetic diamond, diamond micron powder,diamond drill bit, diamond grinding wheel, diamond saw blade, etc. We have professional product quality inspection and professional technical support. The factory is located in the heart of Henan Province, China, covering an area of 12,400 square meters. Our core values are "quality products, excellent prices, and excellent service."
