Изолированные ПВХ бетонные формы строительство

Цена:*

Стоимость в USD (на сегодня):Узнать

Количество:

Insulated PVC concrete forms building formworm construction

Henan Lanke Plastic Building Material Co., Ltd.

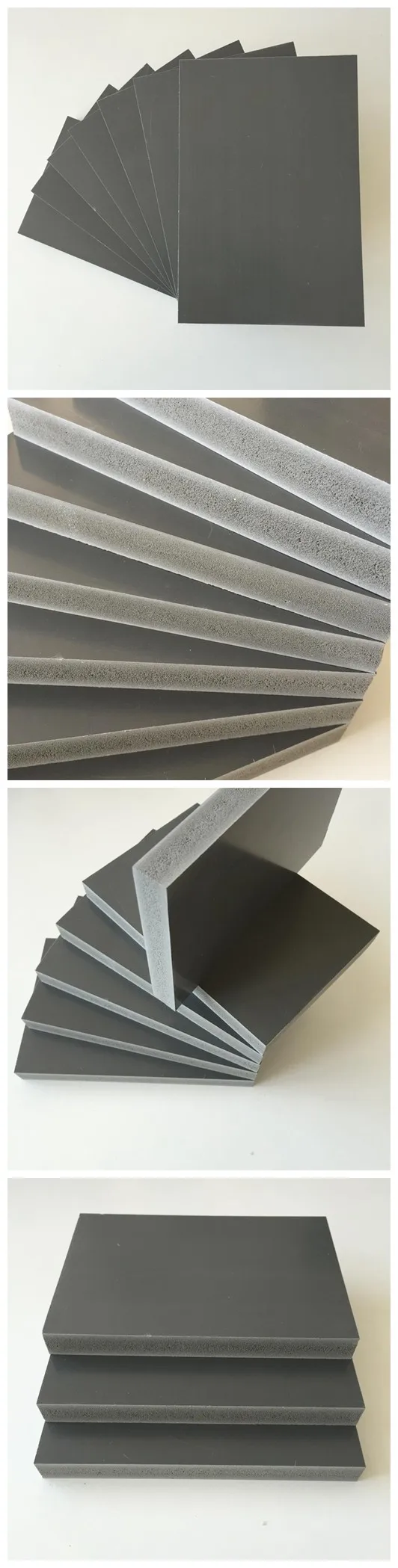

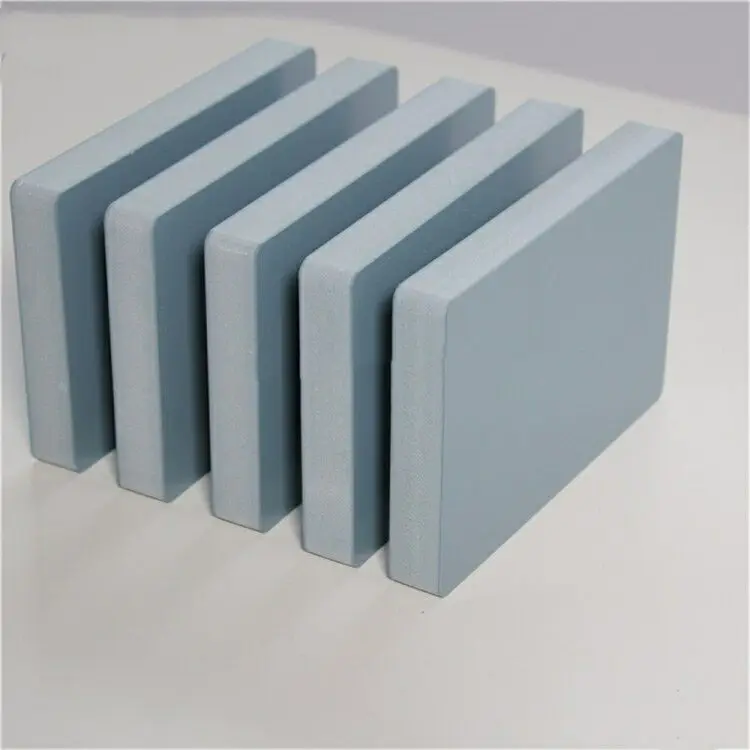

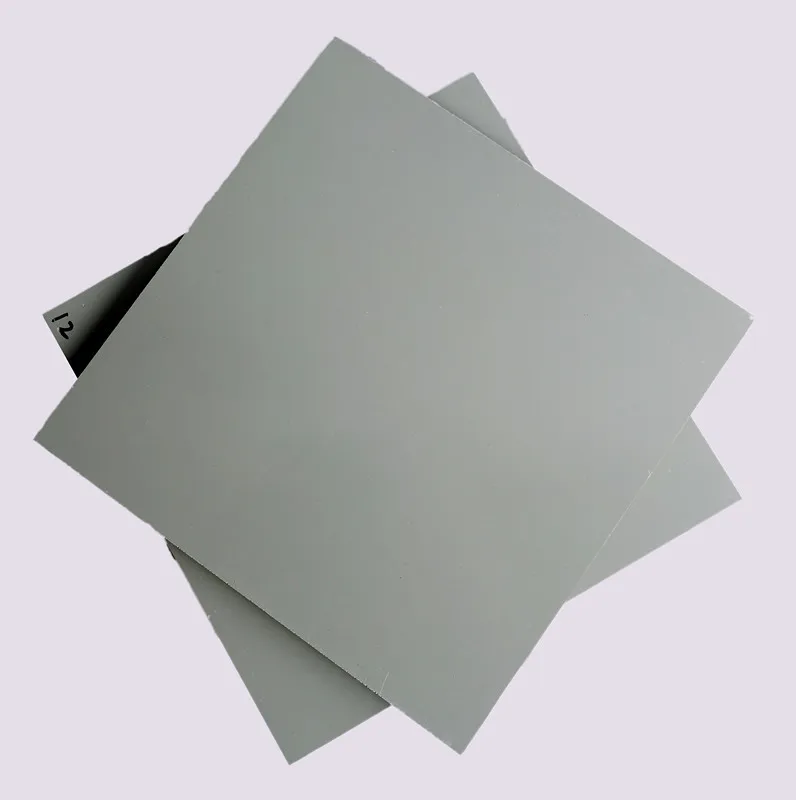

PVC Formwork baord for Concrete construction, furniture making, and Washroom Partitions.

PVC Square Beam

PVC H/I Beam

Product Description

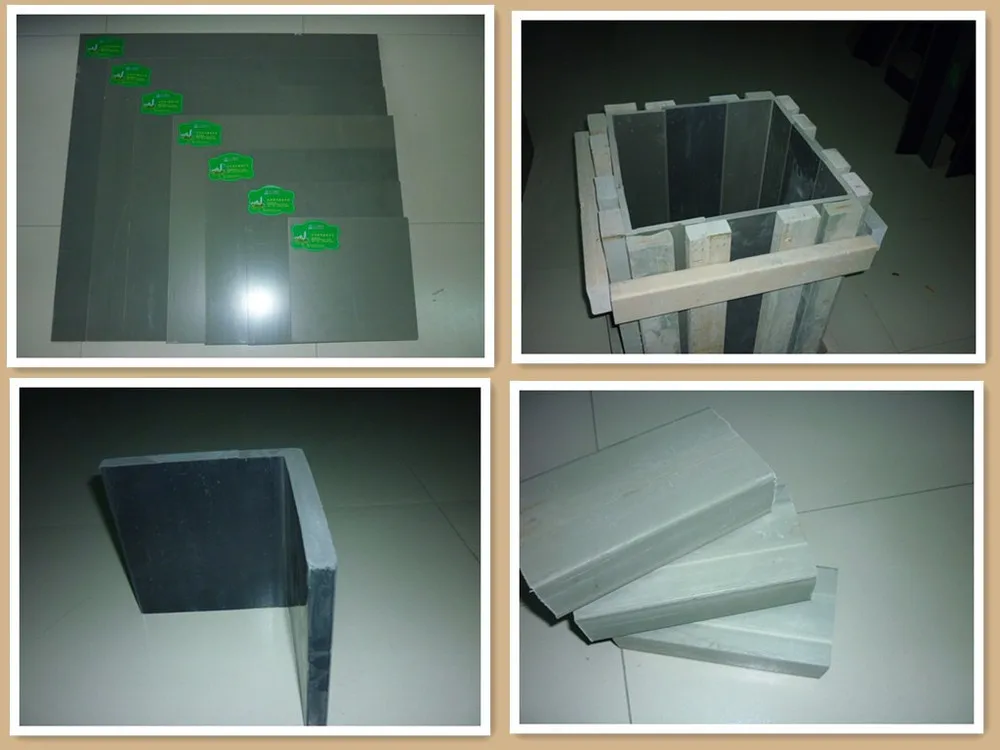

pvc board-1

Product Range
Name	PVC Concrete Formwork	PVC Beam	PVC H Beam/ PVC I Beam/ PVC Rail Brace
Size(mm)	12202440mm, 9151830mm	4080mm, 50100mm	50*90mm
Thickness(mm)	12mm, 15mm, 18mm, 20mm	/	/
Density(g/cm2)	0.7	0.7	0.7

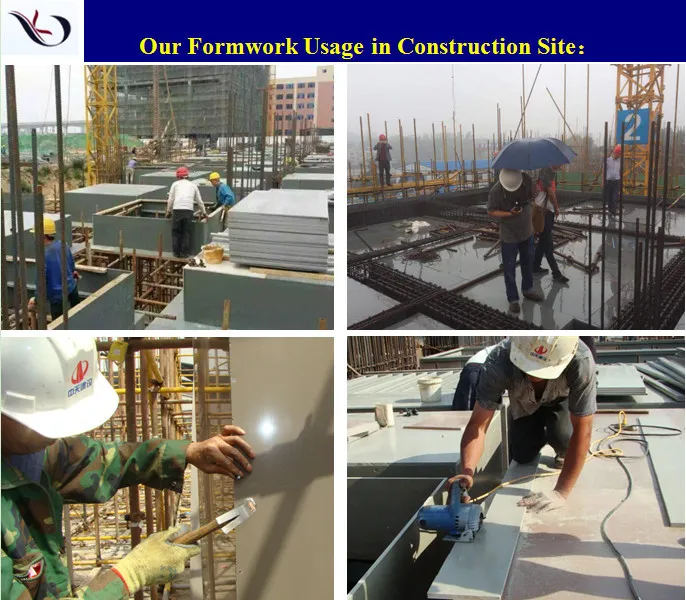

Application	Applied in building concrete construction, ex.,roof, wall panel

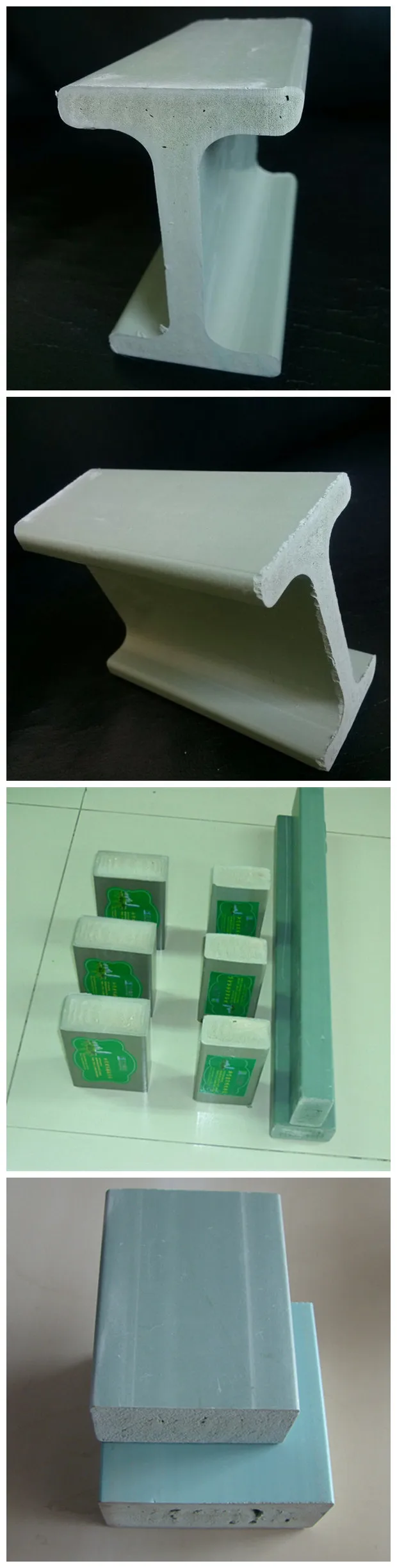

Lanke Beam__.jpg

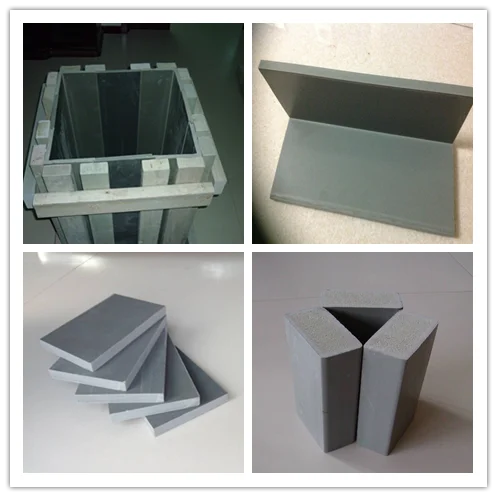

Our PVC formwork can completely replace the traditional steel formwork, wood formwork and square timber;

it is of low cost and can be reused over 30 times, and can be recycled. PVCFPJP Plastic Formwork can adapt

to different temperatures, it can be sawed, drilled, punched,planed,very convenient to use, The surface

smoothness and flatness have surpassed the existing technic of other concrete formworks.

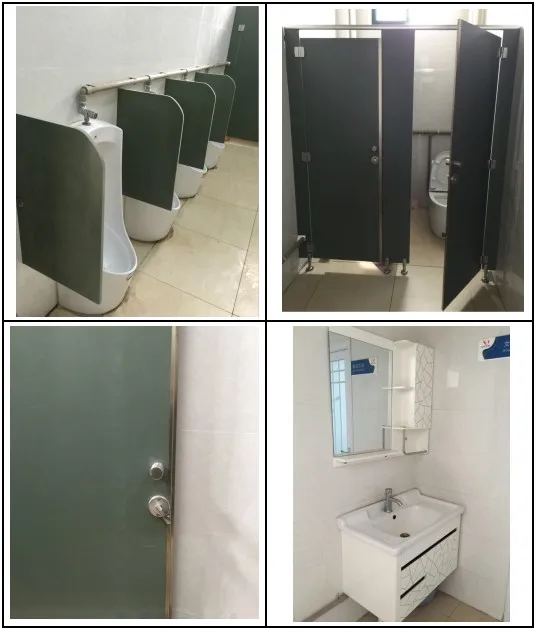

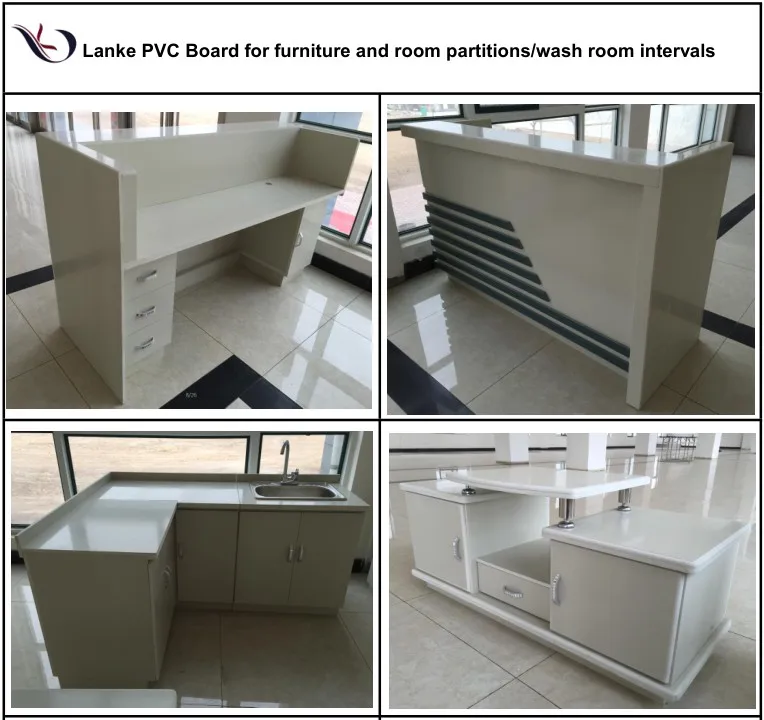

Due to the good features of waterproof, our PVC board can be used as furniture board and Tolit Partition.

Lanke PVC FormworkTest Report
Project	Unit	Index
Surface density	0.7	g/cm3
Tensile strength	18	MPa
Bending strength	21.2	Mpa
Elongation at break	15-20	%
Flexual Modulus	1540	MPa
Vicat Softening point	76	°C
Dimensional stability	±2.0	%
Screw holding strength	1900	N
Impact Strength	20.4	KJ/m2
Shore D Hardness	80	Value
Water Absorption	3.5	%
Fire retardance	Self-Extinguishing Less than 5 seconds

Comparison of Plastic Formwork with Other Formwork:
Features	PVC Board	Bamboo Glued Board	Wood Board	Steel Board
Fire Resistance	B2 Grade Flame Resistance	No Flame Resistance	No Flame Resistance	Flame Resistance
Recycling	100% Recyclable	Unrecyclable	Unrecyclable	Recyclable
Water Resistance	No Deformation	Easy Deformation	Easy Deformation	Rust and Deformation
Removal Process	Easy	Moderate	Moderate	Difficult
Customized Size	Yes	No	No	No
Acid and Alkali Resistance	Good	Poor	Poor	Poor
Surface Treatment Fee	0	0	0	1.7USD
Repeatable Frequency	More than 30 times	8	4	40
Cost Per Time	0.17-0.33USD	0.82USD	1.31USD	0.66USD

Product Application
