Токарный станок Sumore Тип
- Категории: Gear Cutting Machines >>>
- Поставщик: Shanghai,Sumore,Industrial,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики

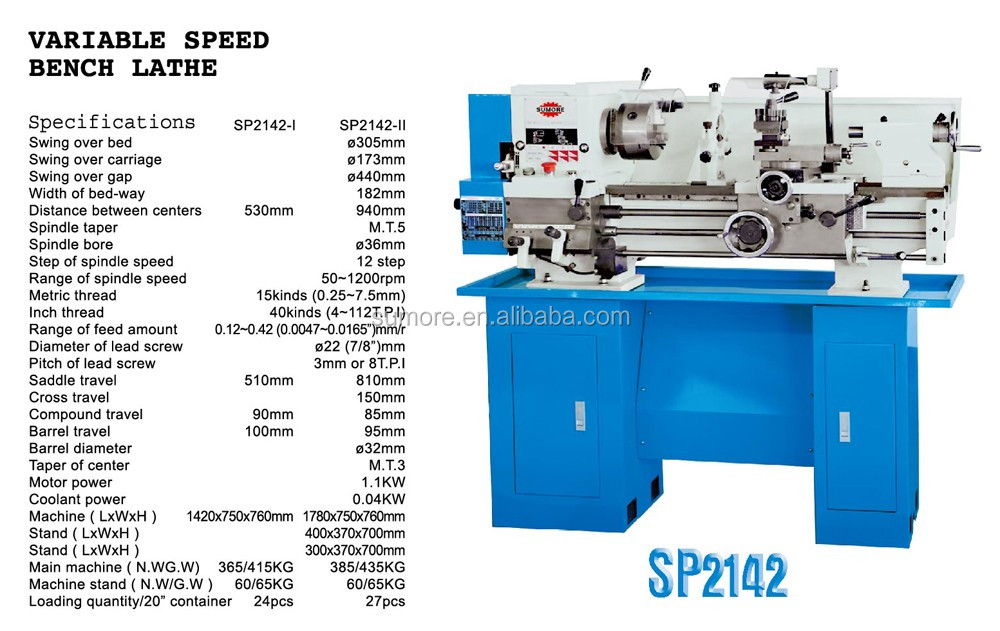

manual lathe SP2142 torno lathe machine
| Model | SP2142-I | SP2142-I |
| Max. Swing over bed | 305mm | |
| Swing over Carriage | 173mm | |
| Max. Swing over gap: | 440mm | |
| Width of bed | 182mm | |
| Distance between centers | 530mm | 940mm |
| Spindle taper | MT5 | |
| Spindle bore | 36mm | |
| spindle speed | 12 step | |
| Range of spindle speed | 50~1200r/min | |
| Range of Imperial thread | 40kinds(4~112T.P.I) | |
| Range of Metric thread | 15kinds (0.25~7.5mm) | |
| Range of feed amount | 0.12~0.42 (0.0047”~0.0165) | |
| Diameter of lead screw | φ22(7/8”) | |
| Pitch of lead screw | 3mm or 8T.P.I | |
| Saddle travel | 510mm | 810mm |
| Cross slide travel | 150mm | |
| Compound travel | 90mm | 85mm |
| Barrel travel | 100mm | 95mm |
| Barrel diameter | 32mm | |
| Taper of tailstock quill | MT3 | |
| Motor power | 1.1kw | |
| Coolant power | 0.04(0.055HP) | |
| Machine size | 1420×750×760mm | 1780×750×760mm |
| Stand left | 400×370×700 | |
| Stand right | 300×370×700 | |
| Machine weight (N.W/G.W) | 365/415 | 385/435 |
| Stand (N.W/G.W) | 60/65 | |
| Loading amount | 24pcs/20’ | 27pcs/20’ |
