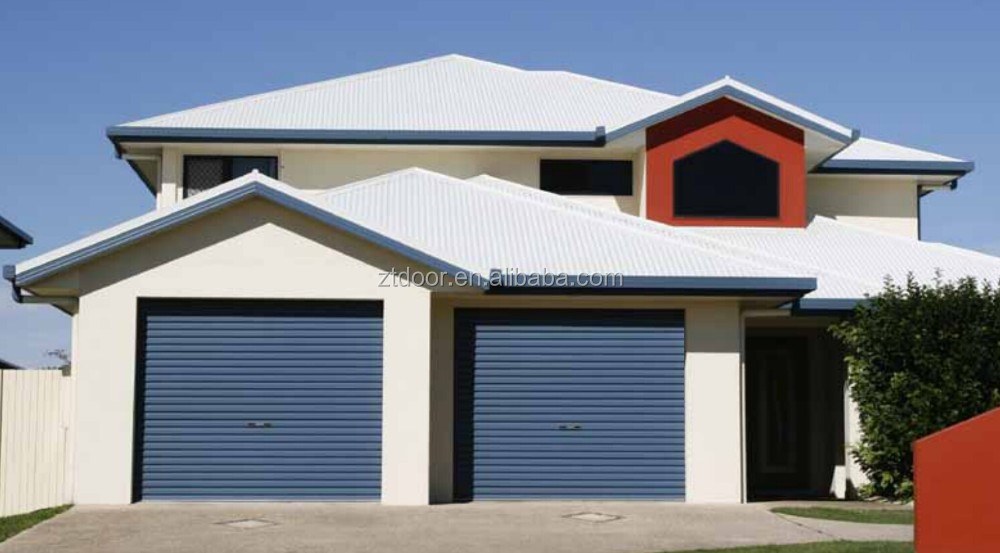

Roller Door Motors

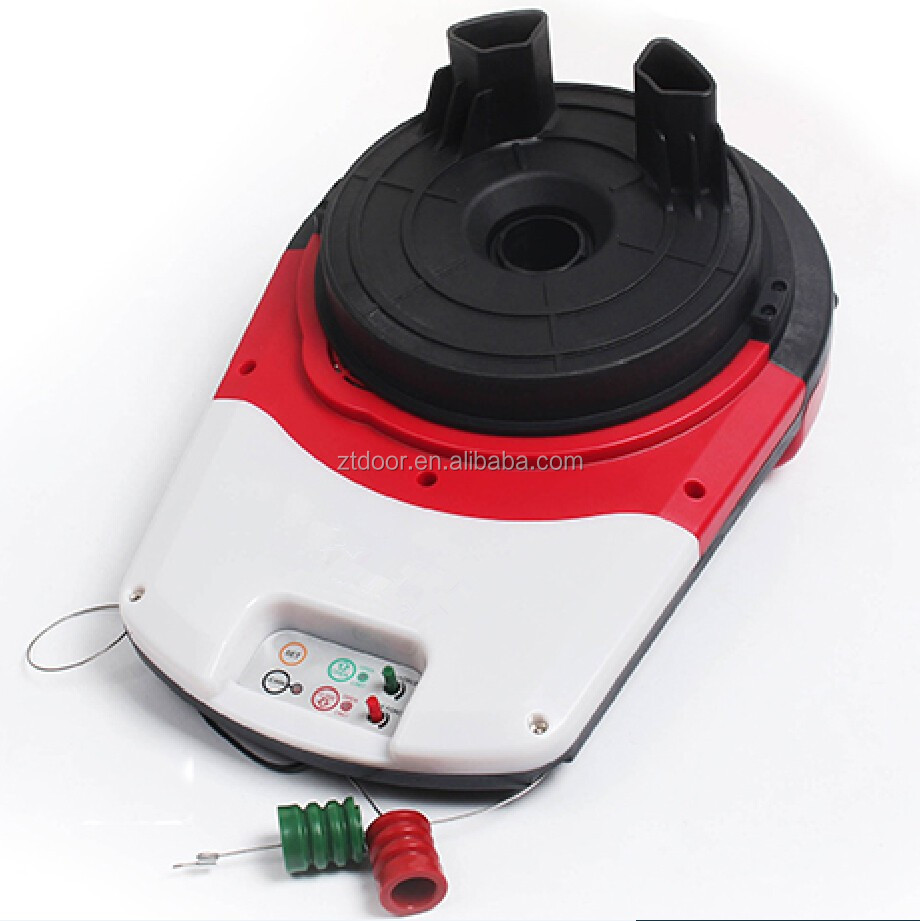

1,Motor

2,Specification of Tubular Motor



Item	ZTRDM
Input Voltage	240V AC, 50HZ
Motor Voltage	24V DC with overload protection
Max.Peak Pulling Force	300N
Rated Door Area	15sqm
Max.Door Weight	30kg
Remote Frequency	433.92/ 433.22/ 315MHZ
Travel Speed	0.20m/m
Max. Lifting Height	6M
Min. Side Room	135m/85m
Operating Range(open field test)	50m
Memory Register	30 remotes

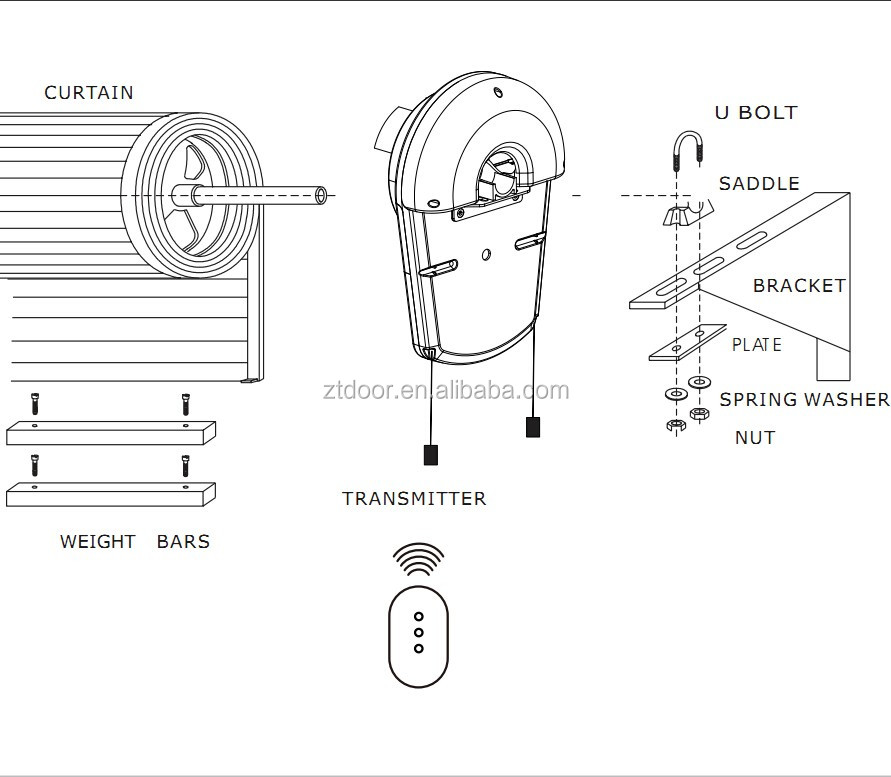

3,Function Sketch of Roller door motr
1,Convenient for debugging and using, with a high degree of automation
2,Control and Monitor the status of your garage door from anywhere with your smart device.
3,Flexible starting and stopping technique.
4,Electronic limit device, which can be memory and restore automatically.
6,Never locked out. Built-in battery allows for normal use even when the power is out







4,Accessories together with one set

1) One  Motor

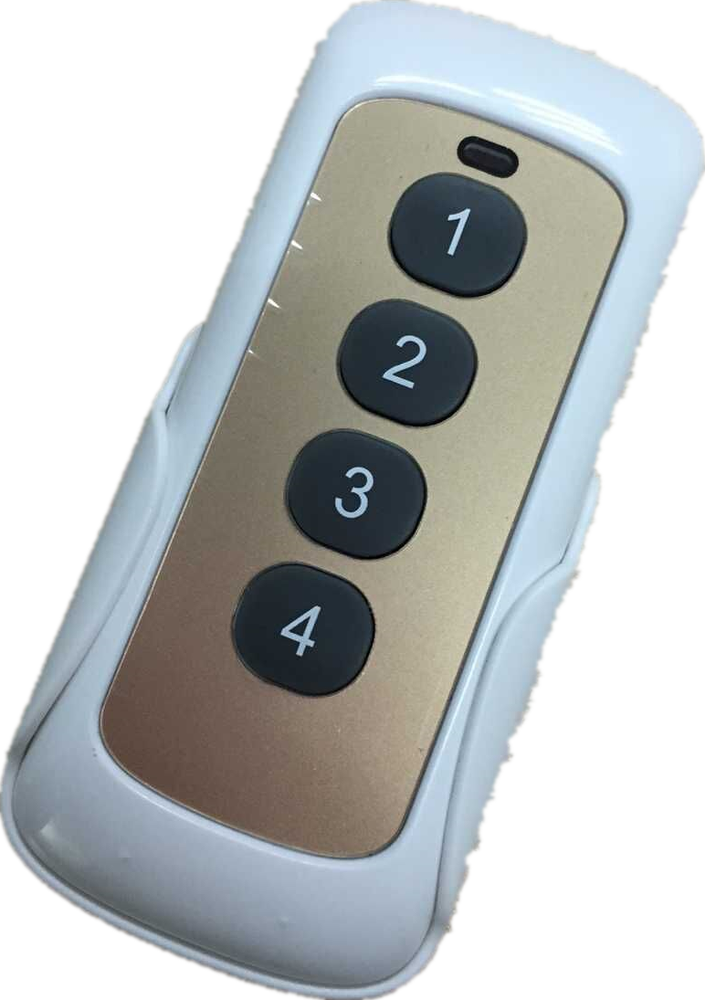

2) Two Remote Control

3) other necessary accessories




Optional Accessories

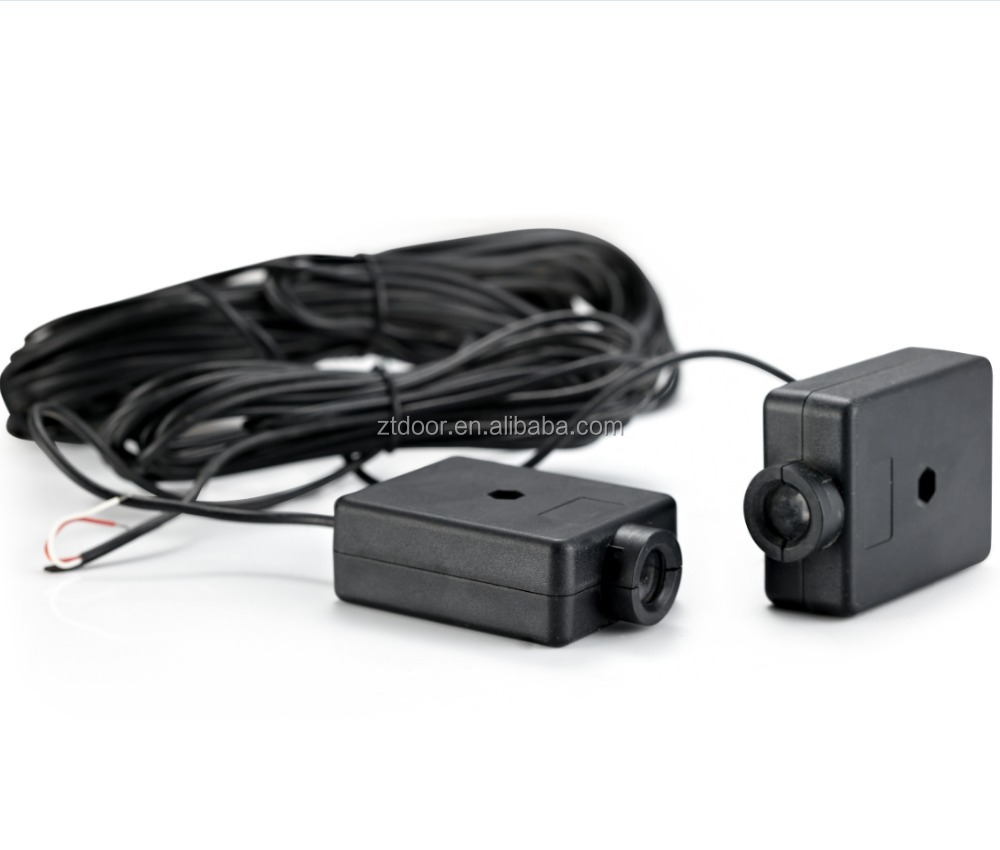

1, Photocell: To prevent serious injury or death from closing garage door. Can work with ALL ZHONGTIAN openers



Voltage: DC24V +/-20%

Current:100mA

Temperature: -40°C~65°C

Distance:10m

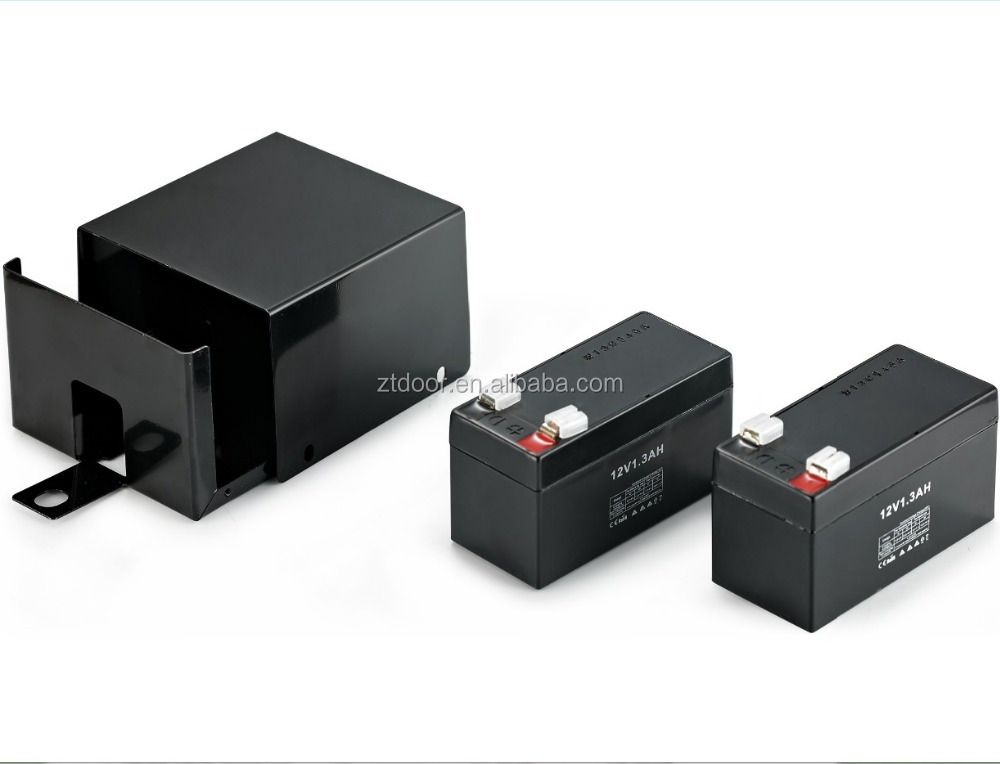

2, Back-up Battery: For using when power off

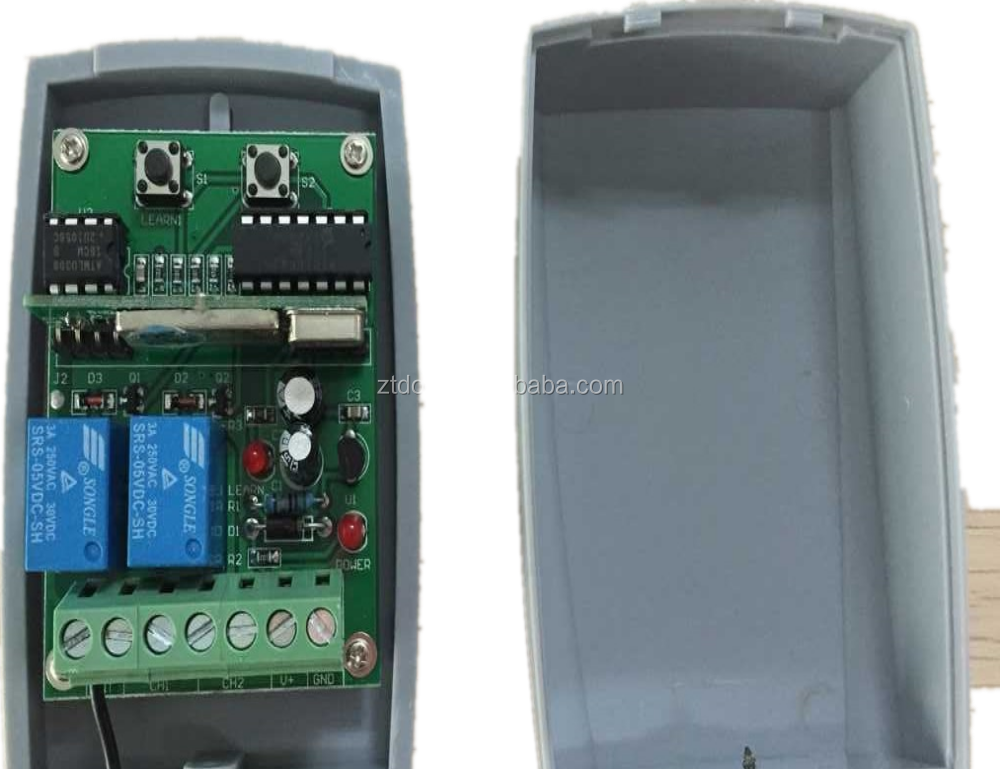

3, Universal External Receiver: For using to  compatible with different code.

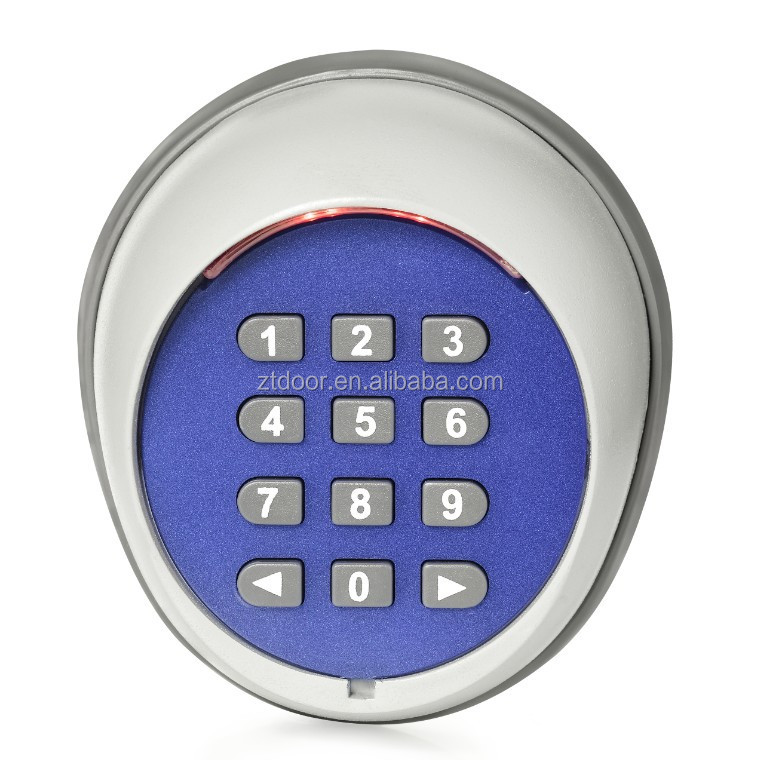

4, Wireless Keypad: For use outside of the home to enable access to the garage. Can work with ALL ZHONGTIAN openers

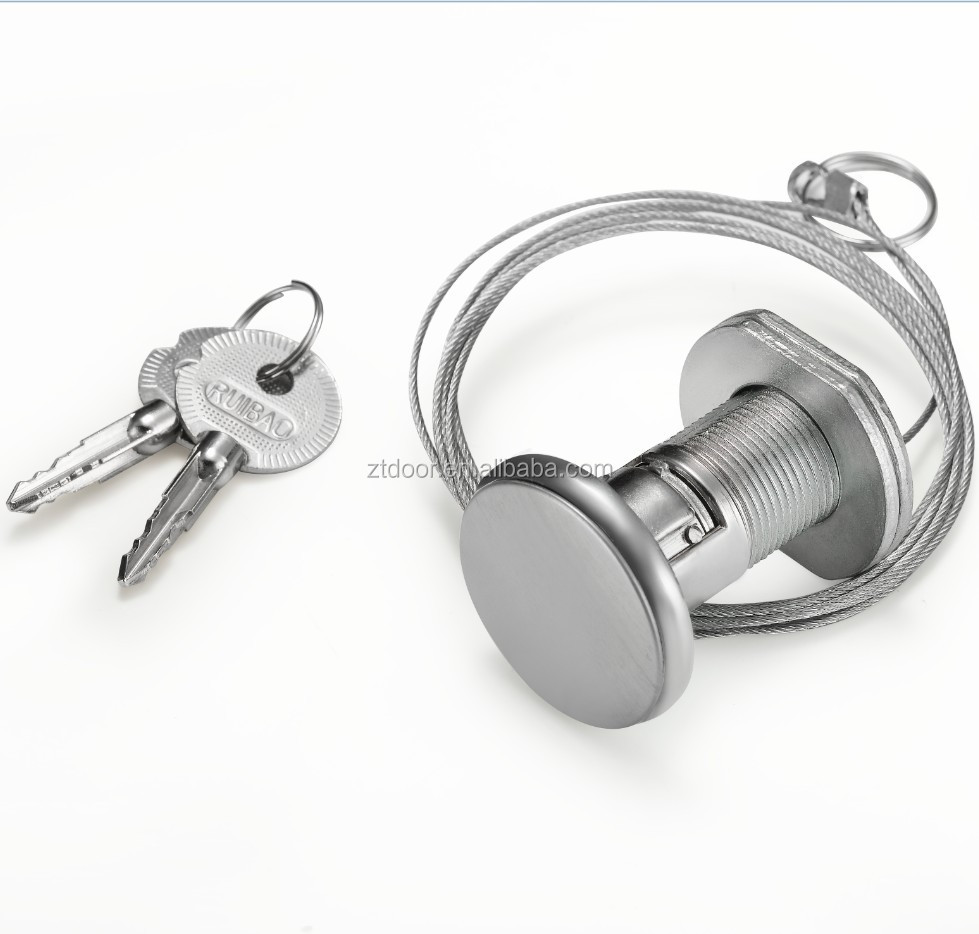

4, Emergency Lock: For opening door from outside of garage when power off. Can work with ALL ZHONGTIAN openers.

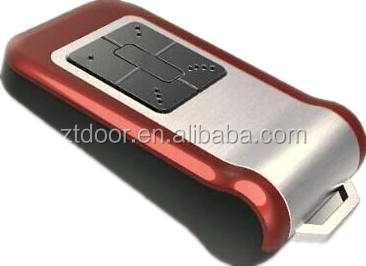

5, Wireless Wall-mounted remote control:

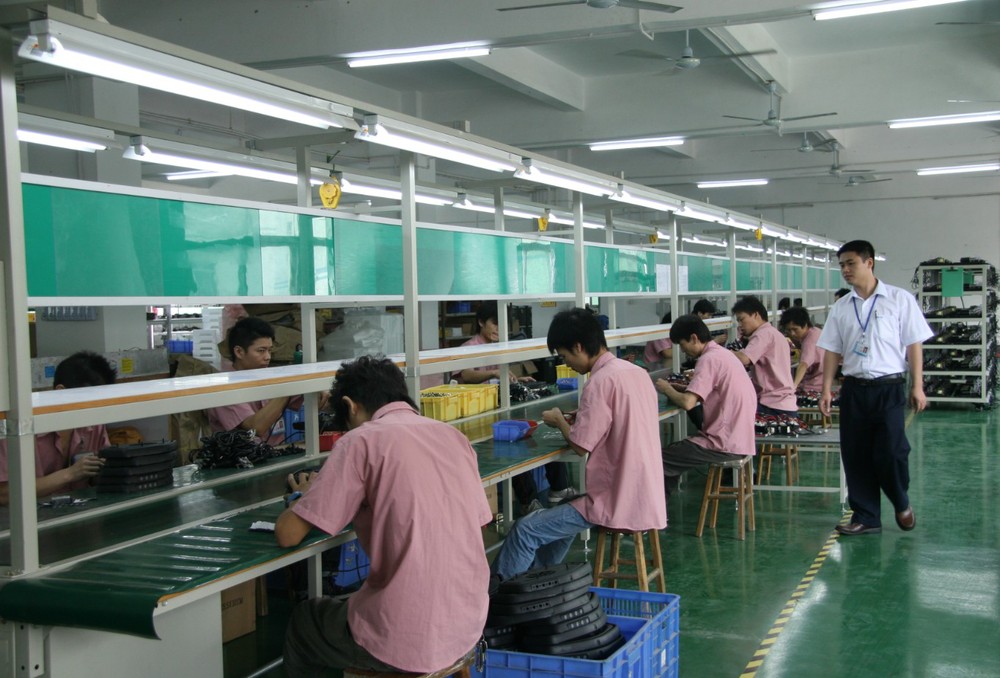

Production Line keep High capacity

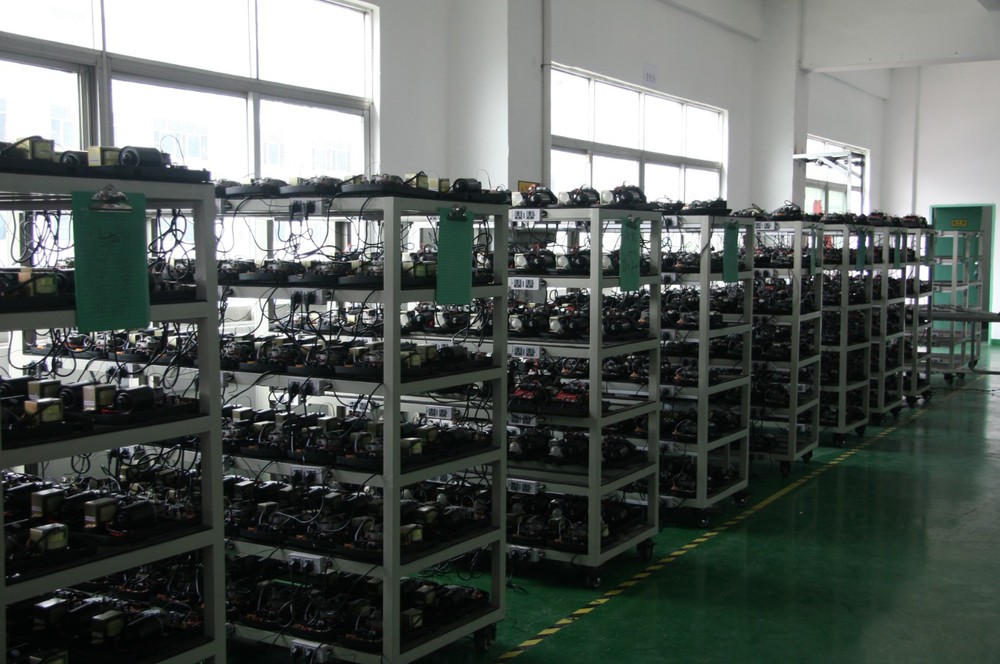

All Devices need to burn-in over 12hours before packed





 Contact with us for more information !
