Product Overview

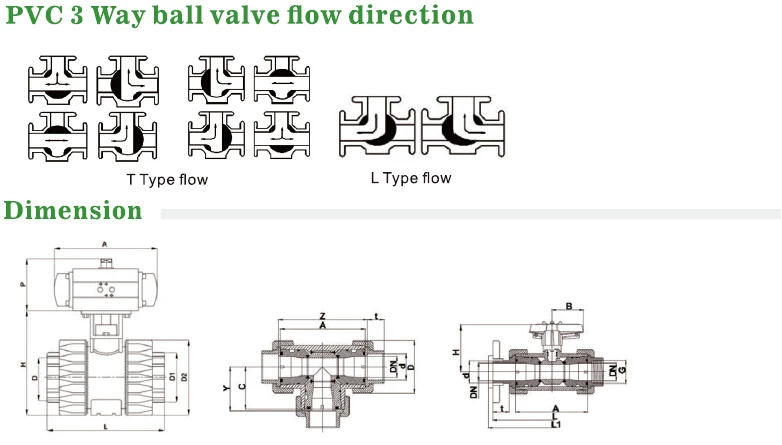

Plastic ball valve according to the different media selection of corresponding materials, small size, light weight, strong corrosion resistance. The structure consists of a valve body and both ends of the connection, and the pipeline adhesive, heat welding, convenient disassemble and repair. Divided into direct type and three way type, the formula can realize shunt, three confluence, reversing, mixed flow effect.
Stand technical parameters
Valve body
Nominal diameter: DN15~DN100
Body material: UPVC, PPH, CPVC, PVDF, PP
Connection: Double union, flange
Pressure class: PN1.0MPa, PN1.6MPa
Structure: 2 way, 3 way
Design and manufacturing standards
Design and manufacture: AP1609 EN593
Connection standard: ISO5272 AP1609 EN558-1
Top flange: ISO5211
Pressure testing: ISO5208 AP1598
Valve components
Seat sealing: PTFE:-30~180℃
Core material: UPVC, PPH, CPVC, PVDF, PP
Stem material: SS410,304

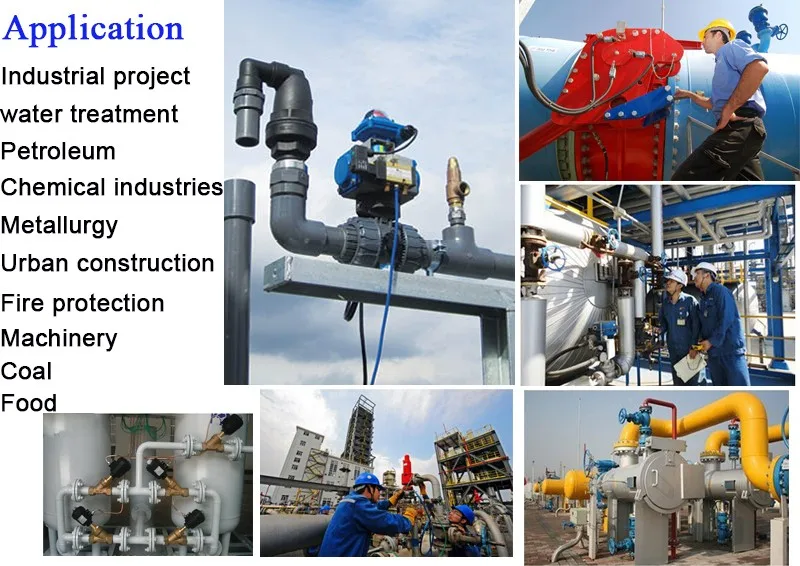

Applicable medium: Water, liquid, gas, oil, acid, alkali corrosive medium.

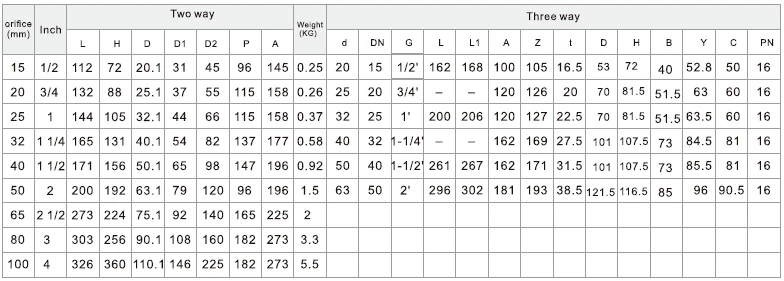

Note: Valve body, disc, seat material characteristics, please as shown in table.

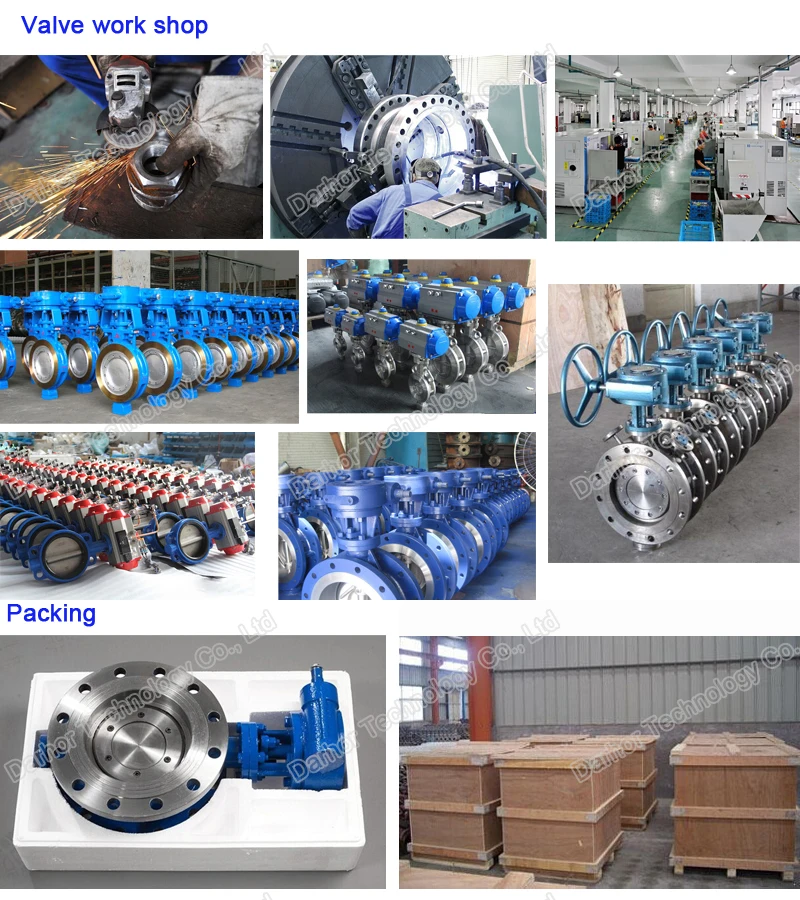

Packing & Delivery
Shockproof Bag to protect valve
Strong Cartons
1.English neutral packaging 2.with Darhor logo 3.with your logo (Charged)
membrane outside protect rain
Package more than 40kgs,use Fumigated wooden case or pallet.
We will compensate to the damage!pls contact within 3 days when you receive.
Our Company
Each Darhor Valve pass 10 testings to ensure high quality!
