30.18*92.08 mm Universal joint for American cars GU2200

Описание и отзывы

Характеристики

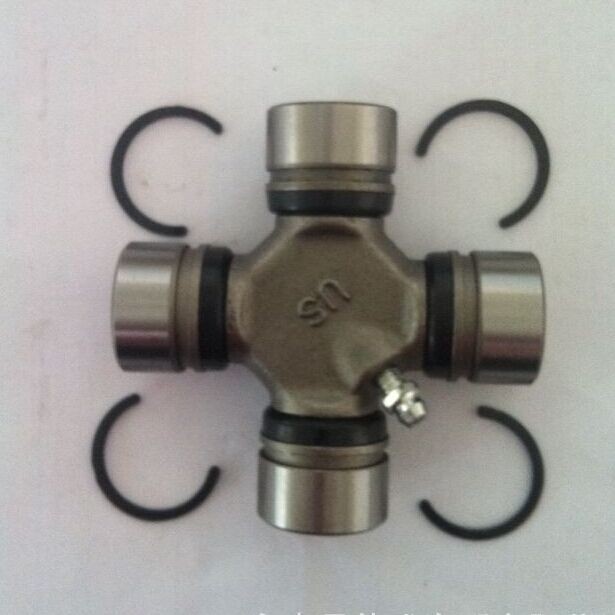

30*55*88 inside snap ring universal joint



1.Universal joint bearing, is part of the power transfer to realize variable Angle, used to need to change the location of the drive axis direction.It is the universal transmission device of car driving system of the "joint" part.



2.Universal joint and combination of transmission, known as the universal joint transmission device. On the front engine rear wheel drive vehicles, universal transmission device installed in the gearbox output shaft and drive axle of the main reducer input shaft between; And front engine front-wheel drive vehicles omit the transmission shaft. 3.Universal joint is installed in the steering system is responsible for driving and responsible for between front axle and half axle and the wheel.



FOR U.S. AND EUROPEAN VEHICLES IDENTIFICATION AND WEIGHT LIST
PART NO	D m/	L m/m	N.WEIGHT	G.WEIGHT
5-1X	23.82	61.3	275	325
5-4X	27.01	74.6	430	480
5-121X	27	81.75	500	570
5-134X	27	92	610	670
5-153X	27	81.75	500	570
5-155X	34.93	126.22	1350	1530
5-160X	30.18	106.35	820	920
5-178X	30.18	92.08	680	780
5-188X	34.93	106.3	1150	1350
5-200X	27	81.78	500	570
5-213X	27.02	92	610	670
5-1204X	27.00/28.60	92	610	700
5-1503X	25.02	63.5	280	350
5-12062X	48.05	161	3000	3200
5-12072X	56.9	162.9	4700	5000
5-12100X	45	120.4	2400	2600
5-12219X	48.05	125.8	2300	2500
5-12276X	44.059	149	2500	2700
5-12278X	50	164	3250	3500
5-12924X	52	133	3000	3300
5-12932X	57	152	4300	4500
GU300	19.04	51.98	170	230
GU400	23.82	61.3	300	350
GU500	23.82	61.3	300	350
GU700	27	61.86	400	450
GU1000	27	81.75	500	600
GU1100	27	74.6	450	550
GU1700	22	55	200	280
GU2000	30.18	106.35	820	920
GU2200	30.18	92.07	680	780
GU2300	34.93	106.3	1120	1320
GU3000	39.69	115.95	1850	2050
GU3500	39.67	115.42	1850	2050
GU3800	44	126	2250	2450
GU3810	50	152.6	3400	3500
GU7280/4	24.09	74.55	400	500
GU7430	35	96.8	1000	1100
GU7440	38.03	105.6	1150	1300
GU7530	45.03	120.4	2300	2500
GU7560	52.1	133	3000	3300
GU7610	53	135	3100	3350
GU7620	48.05	125.8	2300	2500
GU7630	57.07	152	4300	4500
GU7650	48	126	2300	2500
GU8130	57	144	3900	4100
GU9930	53	135.05	3100	3350
EG10	22.02	54.15	210	300
EG20	23.82	61.3	320	400
EG30	27.03	70.2	450	550
EG40	27.03	74.8	470	600
EG50	30.22	80.15	650	750
EG60	30.2	91.4	700	800
EG70	30	105	850	950
EG80	35	106.5	1200	1300
EG90	41	108	1850	1950
GUA21	41	118	2000	2100
GUA20	36.04	89	1000	1100
SPL70-1X	34.92	126.1	1350	1530
SPL90-1X	41.28	126	1750	1900
SPL140-1X	49.22	139	3400	3600
SPL170-1X	55	165	4200	4350
SPL250-1X	60	163	4800	5000
GGPL-14R	28.6	66.65	600	670
GGPL-35R	31.8	81.6	510	590
GGPL-44R	33.28	67.5	500	580
GGPL-55R	38.91	109.4	1350	1450
CZ101	23.8	61.3	300	350
CZ102	27	70	430	480
CZ116	30.03	82.55	630	700
CZ117	27	70.12	430	480
CZ119	27	81.7	500	600
CZ120	27	61.9	400	450
CZ121	27	81.8	500	600
CZ127	27	74.6	450	500
CZ170	27	80	500	600
CZ208	30.18	92.08	680	780
CZ210	30.18	106.35	820	920
CA224	45	120.3	2250	2450
CZ225	27	81.7	500	600
CZ230	52.08	132.94	3100	3300
CZ231	57	152	4300	4400
CZ280	65	189.7	7400	7700















If you need,just feel free to contact with us.
