2016 Off-line Working Ticket/RFID Card Automated Parking System(SEWO-T9)
Product Description
T9 series smart parking management system is our SEWO Star Product, its sales volume has been more than sixty thousand sets from 2006 product launch. It is designed for economical and popular with customers all over the world. All of our parking management systems have Design Patent and T9 is no exception, once it brought imitation trend of its exterior design in the Security Industry.
What's the specification of SEWO car parking management system?
| Model | SEWO-T9 |
| Dimension | 470*310*1370mm |
| Housing Material | Steel & Tempered glass |
| Housing Color | Yellow / Blue |
| Support Built-in Reader | IC/ID. Barcode. RFID |
| Com Mode | RS485. Rear TCP/IP |
| Communication distance | 1200m(RS485) |
| Data Transmission speed | 4800bps/100m |
| Offline storage Capacity | 10000pcs(Extendible) |
| Blacklist Capacity | 1000pcs(Extendible) |
| Card Capacity | 1000pcs(Extendible) |
| Working Temperature | -30°C--70°C |
| Working Conditional | Indoor / Outdoor |
What's the features & functions of SEWO car parking management system?
A. Adopted the thickening type coldly and pitched the stencil plate, the surface was dealt with through 13 technological process, and use the import paint, did not get rusty, not fade, durable more substantial.
B. System adopt latest ARM, trade of it, develop technology, system operation and charge steady, there is storage space of ultra capacity , make their holding time of data overlengthy and can be expanded limitlessly.
C. Easy learn and to operate the software.
D. There have two kind readable distance of IC/ ID card for your choose, 5-15CM and 50-120CM
F. The function includes: automatic dispense card and read card, outdoors high clear LED display screen (show welcome words and pay information, time, etc.), Bilingual prounciation, picture compare with the system.
G. Could use together with our other system, such as ticket pay parking system, car plate number identification system, long distance parking system(non-stopping parking system).
Advantages:
- Low-cost, completely wireless solution that replaces loop detectors and lead-in wires
- Provides wireless presence indication (or traffic measurement
parameters) directly into the Controller Cabinet - Reliable operation in all weather conditions
- Flexible installation (number of lanes and location)
- No scheduled maintenance required
- Real-time secure wireless communication
- Unparalleled local support
Standard Configurations:

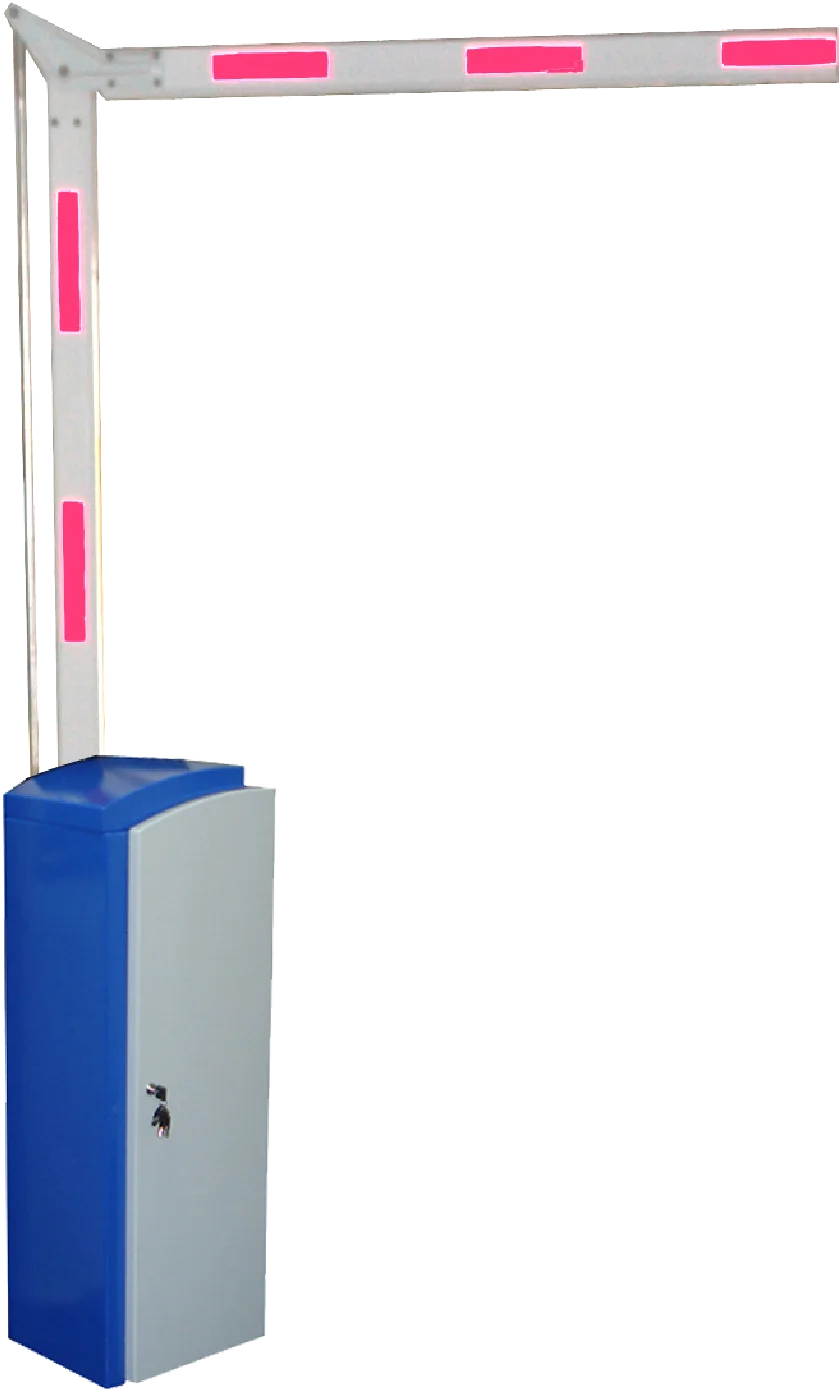

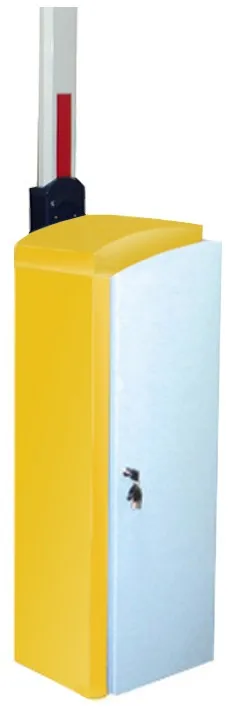

Entry Barrier, Exit Barrier
As one part of parking management system, barrier gate stops unauthorized parkers entering your premises, or giving access to authorized parkers.

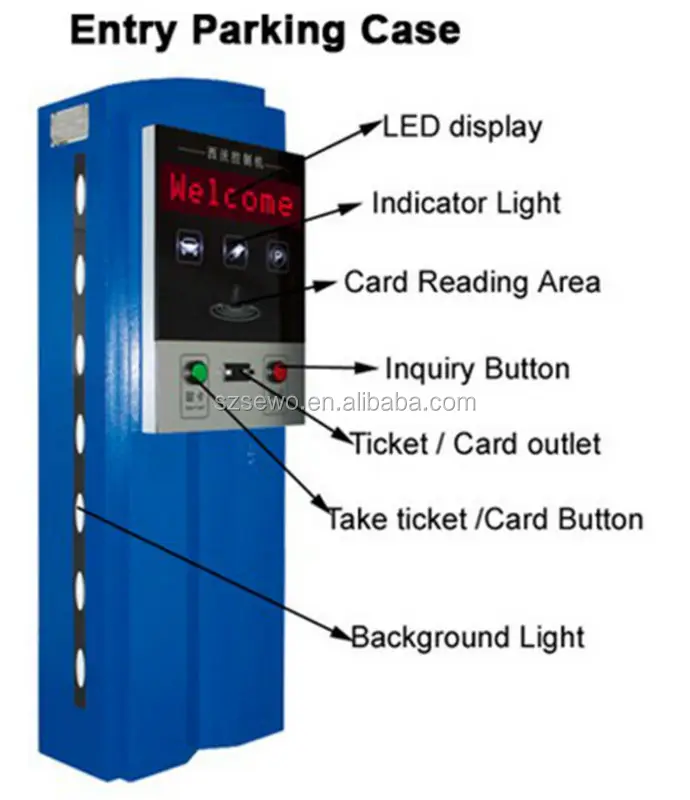

Entry Station
It dispenses ticket/card to hourly parkers. While registered parkers get access by self-service swiping their proximity cards close to the reader built-in Entry Station, or enter w/o stop if tag on windowshield is read by external long range RFID reader. Typically Entry Station is coupled with Entry Barriers, Loop Detectors, and optional accessories, depending on the site requirements.

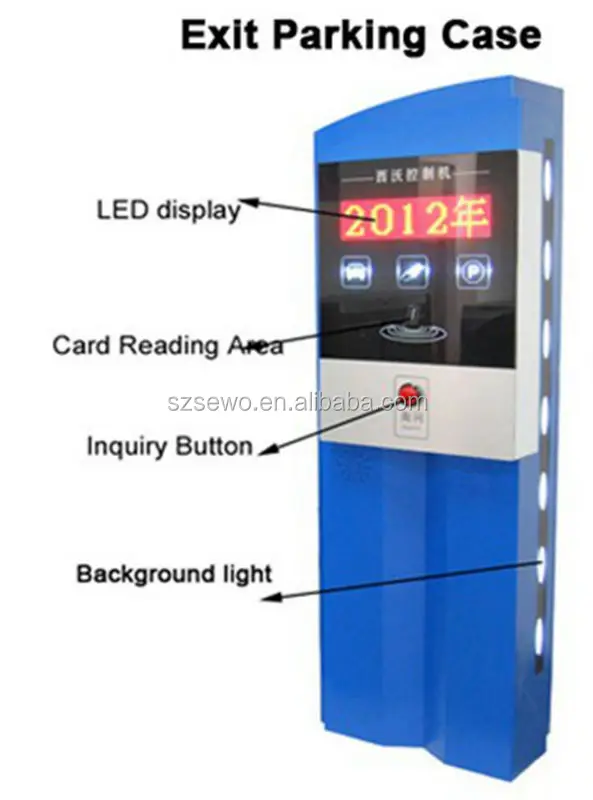

Exit Station
Hourly parkers insert the ticket/card into unmanned Exit Station to leave, registered parkers can leave by self-service swiping cards onto the reader built-in Exit Station, or leave w/o stop if tag on windowshield is read by external long range RFID reader. Typically Exit Station is coupled with Exit Barriers, Loop Detectors, and optional accessories, depending on the site requirements.

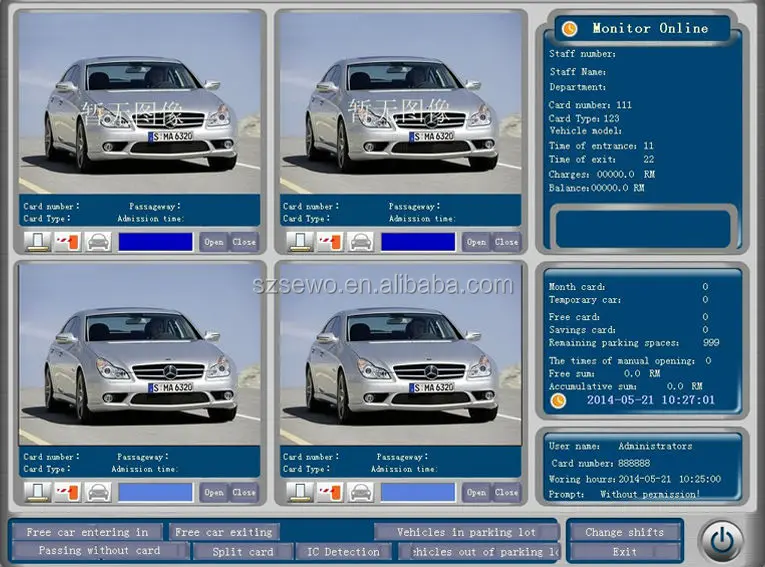

Parking Management Software & PC
The software provides the operators with idiot proof and user-friendly interface, and practical multi functions, such as managing registered parkers and occasional parkers, setting charging standard, real-time surveillance, parking space display, managing events, managing report, registering card etc.
Standard Configuration:
| Entrance Control System | Exit Control System | ||||
| A | Items | QTY | B | Items | QTY |
| 1 | Auto Boom Barrier | 1pcs | 1 | Auto Boom Barrier | 1pcs |
| 2 | Induction Coil | 2pcs | 2 | Induction Coil | 1pcs |
| 3 | Vehicle detector | 2pcs | 3 | Vehicle detector | 1pcs |
| 4 | Entry Control System | 4 | Exit Control System | ||
| (With below items) | (with below items) | ||||
| 4.1 | Entry Control Case | 1pcs | 4.1 | Exit Control Case | 1pcs |
| 4.2 | LED display | 1pcs | 4.2 | LED display | 1pcs |
| 4.3 | Background Light | 1pcs | 4.3 | Background Light | 1pcs |
| 4.4 | Auto Card Dispenser | 1pcs | 4.4 | Card Reader | 1pcs |
| 4.5 | Card Reader | 2pcs | 4.5 | Slave Intercom | 1pcs |
| 4.6 | Slave Intercom | 1pcs | 4.6 | Voice Intercom | 1pcs |
| 4.7 | Voice Intercom | 1pcs | 4.7 | Power Supply | 1pcs |
| 4.8 | Power Supply | 2pcs | 4.8 | Main Control Board | 1pcs |
| 4.9 | Main Control Board | 1pcs | 4.9 | ||
Management Center Equipment:
| C | Items | QTY |
| 1 | Master intercom | 1pcs |
| 2 | Issuing card device | 1pcs |
| 3 | RS485 Converter | 1pcs |
| 4 | management software | 1pcs |
| 6 | RFID card | optional |
