Bank/Hospital/Clinic/Pharmacy Customer Counter Service Equipment Queue Ticketing Management System



Shangxu Queue Management System

Our Products and Service

ShangXu Technology manufacture and supply professional queue management systems and deliver them to reputable corporate customers worldwide. All queue management systems are subjected to strict quality control by the QA engineer before the queue management systems are exported or being installed at the sites of customers.



Queue Management System Application Place:

Banks, Hospitals,Embassies	Public Services & Facilities Outlets, Clinics,
Medical Analysis Laboratories, Airlines Offices,	Customers Service Centers, Automotive Service Centers, and Super markets.
Other organization or place need queuing for service

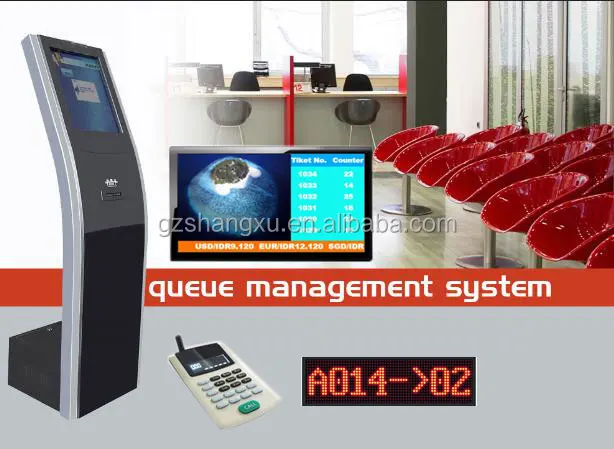

QUEUE MANAGEMENT SOLUTIONS

Our Queue Management System enables people handling easily. It includes the following devices:



• Touch Screen Ticket Dispenser: for customer token a ticket number by select desired service;
• Window/Counter led displays: for put above counter to display the current calling queue number;
• Keypad: for put on the counter desk for counter staff call the ticket number,with function of next client call, pause, recall,transfer,callback,special call and etc
• LED/LCD Main display : for put on the waiting room to display the centralized queue number from all counters;
• Thermal Printer:Print ticket number including service name, number of people waiting, company logo etc.

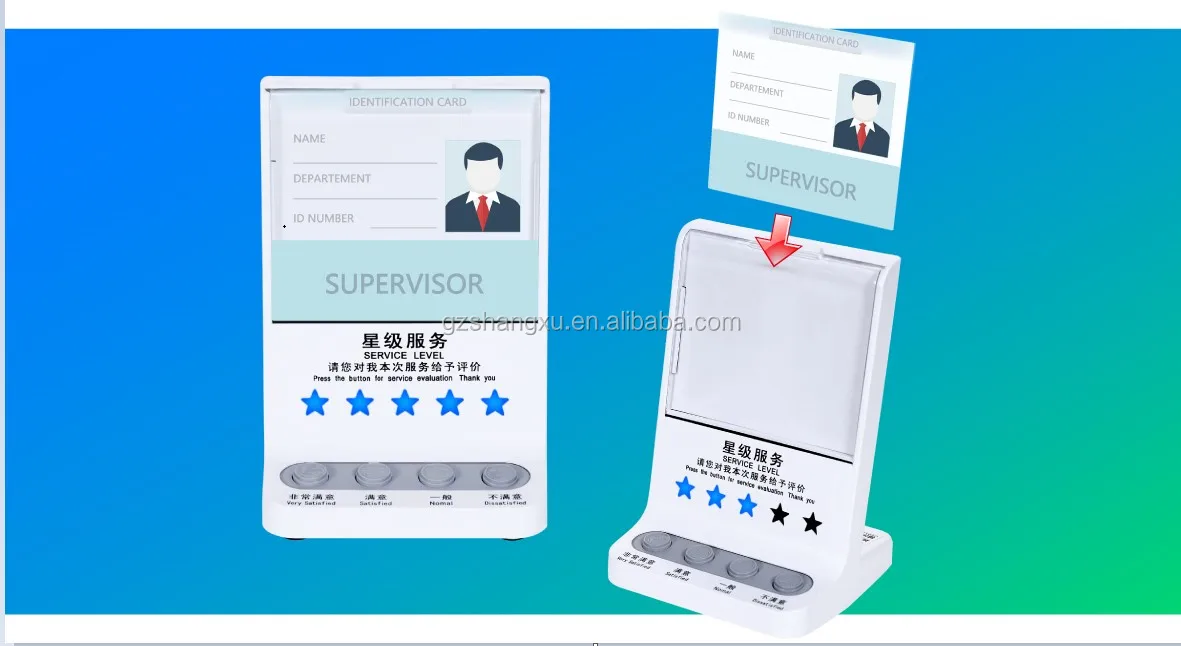

• Customer Feedback Terminal for customer make a comment on counter staff service quality



Technical Specification for Queue Management System each component



Floor Stand Touch Screen Ticket Dispenser

SX-QTK173
Kiosk Ticket Dispenser

-Integrated 80mm Epson thermal printer and system controller queue ticket dispenser.

-Support up to 32-service category and 48-counters.

-Ticket contains customer company logo, service name, ticket number., counter number,waiting no., date, time and other promotional message .

-Includes Real Time Reporting Features.

-Built in Industrial Mini PC

-Can Link to RS485 wired or wireless

-Color can be customized as per customer request



Cabinet	Floor Stand All in one cold steel cabinet
LCD Display	17” LCD Display with resolution of 1280*1024
Touch Screen	17” IR Touch Screen
Thermal Printer	80mm Epson Thermal Printer with auto cutter
PC Configuration	CPU: Intel 2.41Ghz 2G DDR3,500G HDD,6 USB port,Windows 7/Windows 10 OS
Speaker	Inbuilt amplifier and 2 speakers for calling voice in Arabic/ French/ Russia/Italian etc multiple language
Power Supply	110V-240V
Queue Management System	1.Queue Management System software: control and manage the queues, can realize the function of Multiple language calling and Multiple language translation, and can realize the report statistic function 2.Interface and language and ticket format can be customized, and you can add logo or some other information on the ticket, like time, waiting people, the information can be editable



Queue Number LED Counter Display

SX-CD04
8-digits 4.8" high bright Red color Indoor calling number display. Double color also available.

Wall or ceiling mounts available. 2 digits for counter number,4 digits for ticket number,with 2 digits arrow for direction

110V-240V power supply



Queue Number Calling Keypad

SX-QKP21
21 buttons Keypad with digital lcd screen
5-digits for ticket no., 3-digits for waiting no., full 21 key queue keypad. Support for call, re-call, transfer, special call, store queue and call back queue management functions.



Waiting Area Main Display



Option 1: Queue Number LCD Main Display

SX-QLD

Queue Number LCD main display with multimedia, Standard LCD screen main display. Wall or ceiling mounts. Display play centralized queue number along with advertising video.



Option 2: Queue Number LED Main Display
SX-QMD04

8-Digits * 4-Rows LED Main Display.Double color also available
4-digits ticket no., 2-digits counter no.,with arrow for direction, 4.8" high bright Red color Indoor 4-row main display. Wall or ceiling mounts.



Complete Queue Management Software

SX-QS01
Queue Management System Software
Queue system software to control the connection of ticket dispenser,call pad,led display and etc.can customize to setting through the queue system software ,also with report system for analysis and statistic,can export to excel .


SX-SQT01
Soft Keypad
Software call pad which can install the counter staff pc to call the ticket number.

can realize the function of call, recall, transfer, special call,call back and etc function



Queue Management System Application Place
