Линия по производству жареной лапши быстрого приготовления
US $150000-$190000
Автоматическая промышленная машина для производства макаронных
- Категории: Grain Product Making Machines >>>
- Поставщик: Shandong,Kailai,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

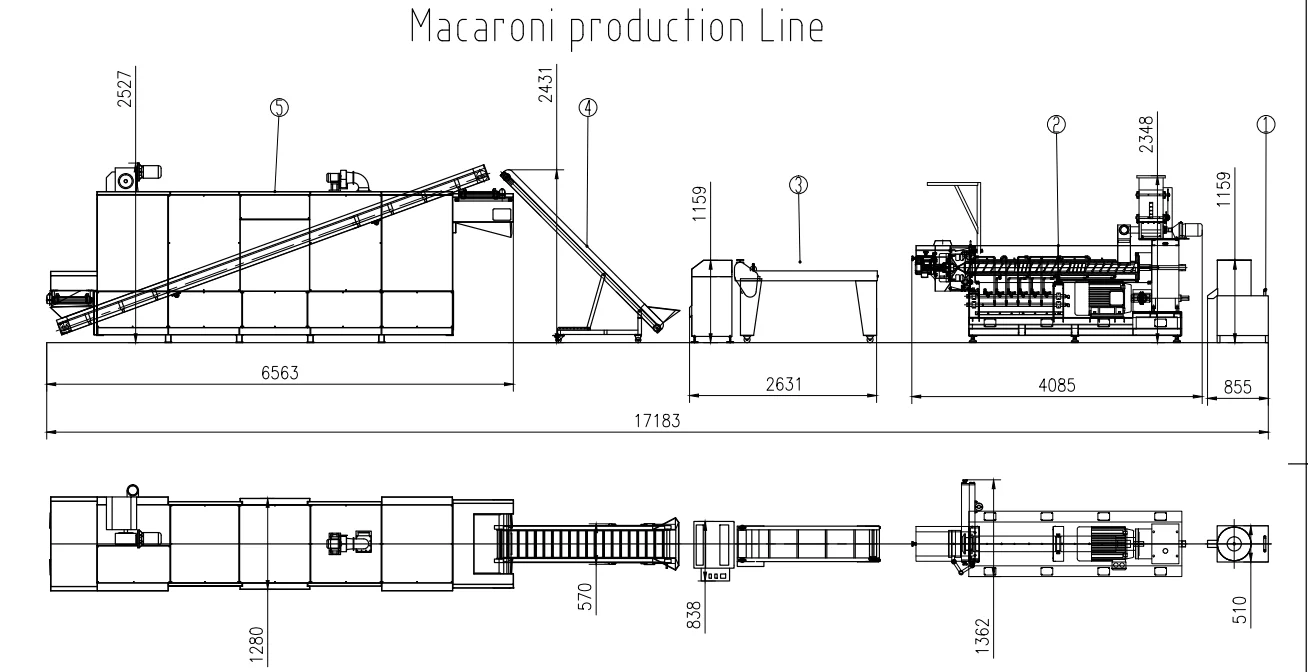

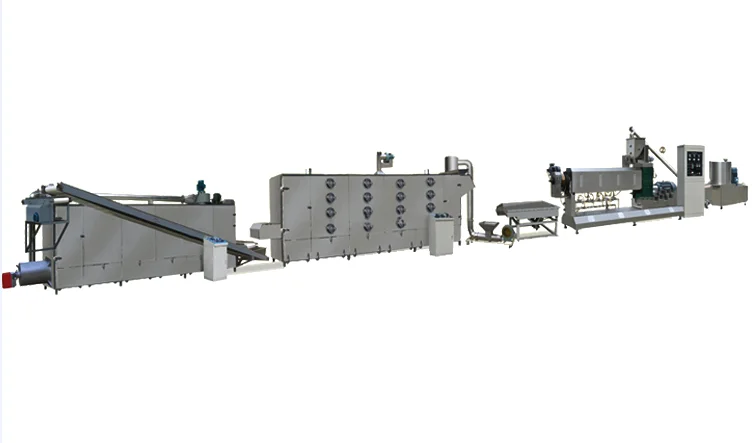

Macaroni Processing Line
NO. | Name | Brief introduction |
1 | Raw material | Wheat flour, Potato starch, potato powder and corn starch |
2 | Basic Recipe | Grist powder; additives; water |
3 | Equipment involved | Mixer; Screw elevator; Single screw extruder; Vibrator; Roller dryer; Cooler oven; Recycling dryer |
4 | Final products | Variety shapes are available for crisp pea, shell, screw, tube, square tube, round tube and wave shape by adjusting the mould in the extruder ; |
5 | Machine material | Stainless steel 304 or as customer’s request |
Product Sample
.
Product Paramenters
Model | SX3000-100 | SX3000-130 |
Voltage customized | 380V/50Hz | 380V/50Hz |
Installed power | 105kw | 125kw |
Power consumption | 85kw | 100kw |
Capacity | 80-120kgs/hr | 150-220kgs/hr |
Length | 26m | 30m |
Detailed Images
Name | Mixer |
Capacity | 150kg/batch |
Parameter | power: 7.5kw |
Usage | Mixing various kinds of raw material |
Working Principle | The motor drives the stirring cage, automatic water adding device and pneumatic discharge valve |

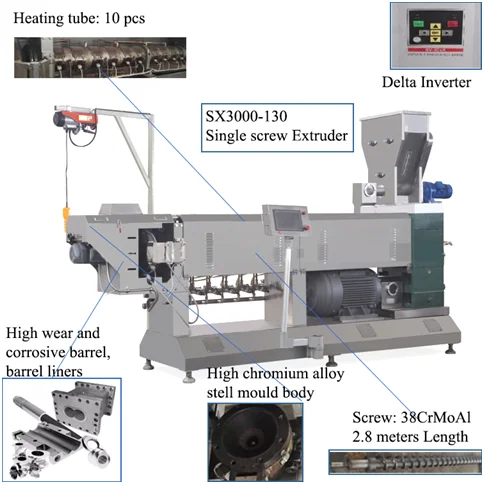

Name | Single Screw Extruder |
Capacity | 80-220kg/h |
Parameter | power: 37kw; |
Usage | Raw material is curing and puffed in extruder, becoming different shapes of puffing snacks with moulds changing. |
Working Principle | It consists of feeding system, extruding system, cutting system, heating system; main motor and controlling system. |
Name | Vibrator machine |
Usage | Vibrating and separating |
Working principle | Separate the sticky extruding macaroni and pasta under motor working . |
Name | Dryer |
Capacity | 200-300kg/h |
Parameter | power: 60kw |
Usage | Drying puff corn snacks after extruding |
Working Principle | The heating source can be electric, gas, steam and fuel. The material is stainless steel 304. It consists of rack system, conmbustion system, dehumidifier system, sheet metal insulation system and controlling system. |
Name | High temperature hot air puffing oven |
Parameters | Power:100KW |
Capacity | 200-250kg/h |
Usage | Bubbles will appear on surface , and after hot air drying Corn flakes will be crispy . |
Working Principle | Heat exchanger is burned by gas or diesel burner. Hot air is sprayed by high pressure blower , which makes corn flakes puffed and bubbles instantly. |
Our Advantages
1. Established in 1995, more than 24 years of experience in extrusion food machinery industry.
2. CE, ISO, SGS have been obtained, Our machine have been exported to 150 countries and districts. 3. We offer complete solution, turnkey solution service for customers.
4. Strong sales service team with 20 years of experience, ensuring high quality products.
5. Superior geographical position, the convenience traffic conditions. Located in Jinan city, Shandong province,1 hour away from Jinan airport, 2 hours away from Qingdao port.
Customer Photos
1.Packaging: daub coal oil on the surface to protect the machine from moisture, Then cover with plastic film.Finally pack them with wooden case.
2.Customer's special packing requirement is available.
After-sales Service
Engineering Support Team
Customer Service Team
1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free online debugging of equipment until everything is functional;
4. Free management of equipment long distance shipping from seller's factory to place by the buyer;
5. Free training of equipment maintenance and operating personally in the seller's factory;
6. Free new production techniques and formulas;
7. Provide 1 year complete warranty and life-time maintenance service; The seller is responsible for the nature damage of the machinery in one year except for man-made damage. All spare parts and wearing parts are attached with the machinery for free.
2. Free project planning and design services;
3. Free online debugging of equipment until everything is functional;
4. Free management of equipment long distance shipping from seller's factory to place by the buyer;
5. Free training of equipment maintenance and operating personally in the seller's factory;
6. Free new production techniques and formulas;
7. Provide 1 year complete warranty and life-time maintenance service; The seller is responsible for the nature damage of the machinery in one year except for man-made damage. All spare parts and wearing parts are attached with the machinery for free.
How to Test Our Machine
1.We’ll offer machine working videos first.
2.We offer customized machine trial in our factory.
① If customers offer formulas, we’ll try our extruders in stock according to your formulas with our local purchased
materials. We’ll offer trial videos. We charge material cost, which will be refunded when you place order.
② If we couldn’t find the raw materials listed in your formulas, customers should offer raw materials.
③ If customer wants to check the trial samples, we’ll deliver samples by DHL, TNT, FedEx, etc. Customer will bear the
freight.
3. We also welcome you to visit our factory and we'll test machine specially to you, according to your requirments.
2.We offer customized machine trial in our factory.
① If customers offer formulas, we’ll try our extruders in stock according to your formulas with our local purchased
materials. We’ll offer trial videos. We charge material cost, which will be refunded when you place order.
② If we couldn’t find the raw materials listed in your formulas, customers should offer raw materials.
③ If customer wants to check the trial samples, we’ll deliver samples by DHL, TNT, FedEx, etc. Customer will bear the
freight.
3. We also welcome you to visit our factory and we'll test machine specially to you, according to your requirments.
Extruder Machine
Customized Production Lines
