Новый дизайн магнитные регулируемые гидравлические буферы для домашнего позиционирования подпружиненные Дверные доводчики

Описание и отзывы

Характеристики

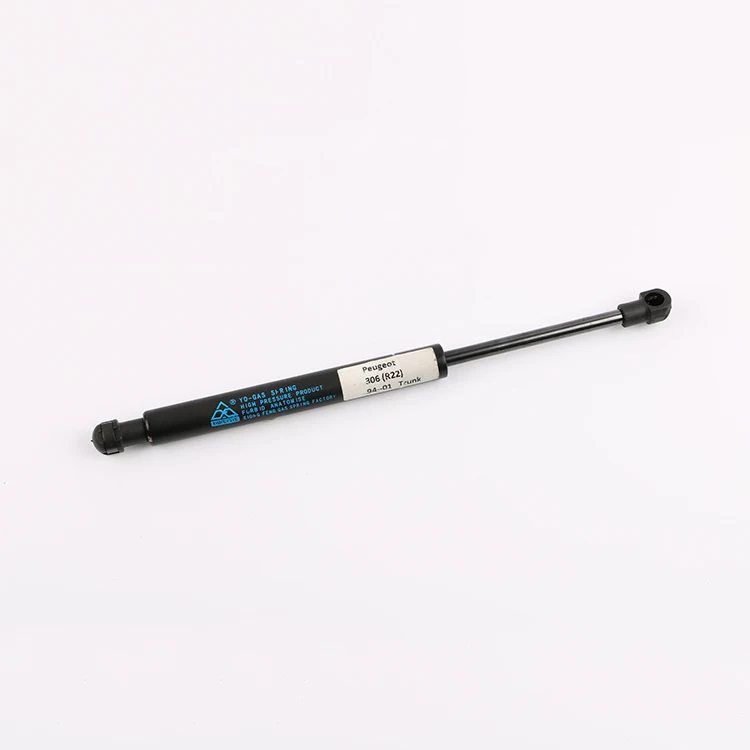

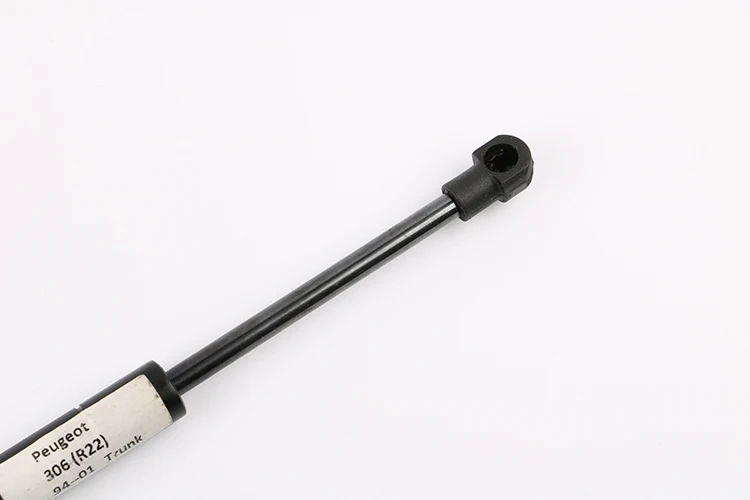

New Design Magnet Adjust Hydraulic Buffer Home Positioning Spring Loaded Door Closers For Cabinet

spring loaded door closers

1,available in: industrial equipment series, cars series, train series, furniture hardware, medical machine, sport machine, engineering machinery, bus station lamp box, etcBelow are our product 's features:
2,various size/type/specification/color
3,surface finish: Nickled-plate, chromed-plate, powder paint, oven paint, Galvanized, oil anti-rust, etc.
4,material: iron
5,significance: as an important parts for some machine/equipment/device/facility, such as Toyota, who is indispensable & make the cars be consummate.
6,guarantee:20,000 cycles per year
7,connector fittings be made as your requirements according to different usage & different areas.
8,OEM orders are welcome

Series	Type	Description
Y-Series -Normal Gas Spring	Y0	Normal Gas Spring
	Y1	Normal Gas Spring with Grooved -Tube Design
	Y2	End-Lock at Fully Compression Position with an Interal Locking Mechanism
	Y3	End-Lock at Fully Extension Position with an Interal Locking Mechanism
	Y4	End-lock at Fully Extension Position with a Tilted-Tube Mechanism
	Y5	Two Rods Gas Spring
	YS	Stainless Steel Gas Spring
	YA	Aluminum Tube Gas Spring
K-Series   -Lockable Gas Spring (Rod-End Release Control)	K0	Spring Lock
	K1	Rigid Lock in Extension Direction
	K2	Rigid Lock in Compression Direction
	K3	Rigid Lock in Both Extension/Compression
HK-Series  -Lockable Gas Spring (Rod-End Release Control)	KH0	Spring Lock
	KH1	Rigid Lock in Compression Direction
KL-Series  -Lockabe Traction Gas Spring  (Rod-End Release Control)	KL0	Single Tube Dsign-Spring Lock
	KL1	Single Tube Dsign-Rigid Lock
	KL2	Double Tube Design-Spring Lock
	KL3	Double Tube Design-Rigid Lock
L-Series   -Traction Gas Spring	L0	Single Tube Design
	L1	Doube Tube Design
	LS	Stainless Steel Gas Spring
Z-Series  -Damper	Z0	Damping in Extension Direction Only
	Z1	Damping in Compression Direction Only
	Z2	Damping in Both Extention / Comprssion Ditrction
	Z3	Damping Speed is Adjustable

*The size above for reference purpose,details can be customized according to customer demand.

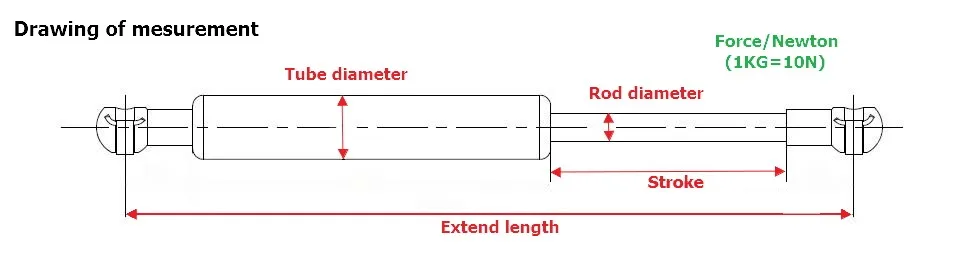

Application	Type	Model (L/S ZZ D2/D1)	Length (MM)	Stroke (MM)	Pole  Diameter (D2)MM	Duct Diameter (MM)	Support Pressure (F1-N)	Connector
furniture bed frame wardrobe	YQ gas spring	250/90 AA 6/15	250	90	6	15	90-200 N	All type are available
		580/220 QQ 10/22	580	220	10	22
	Controled Type	555/172 -Q 10/22	352	100	10	22
	Black control	325/100 Q- 10/28	394	120	10	28





XF (short name of XiongFeng ) is a professional Gas Spring and damper manufacturer for more than one decade. For past years, our creative and innovative engineers have been working with our customers and developing high-end and robust products to meet their expectation. That's why our products NOW can range from Normal Gas Spring(Y-series),Traction Gas Spring(L-series),Lockable Gas Spring(K&KH-series),Lockable Traction Gas Spring(KL-series) and Damper (Z-series) which have been applied to Automotive,Furniture,Medical, Food, Sports and Electronic industries.

Continuous development, in-house test and improvement are our commitment to our customers and also our philosophy. Moreover, with the expertise and ability of excellent 3D-CAD mechanism-design and electro-mechanical integration of our engineer team , all major production equipments are designed and assembled in-house.

You are welcome to drop by , take a rest and rely on us. You will find that XF will be one of your best long-term partners in the world.

Q1: Are you factory or trade company?

A1: We are factory and have more than 20 years experience in this business.



Q2: Do you have any stock of the products?

A2: Sorry, we don’t have too much stock as this is a customize product.



Q3: So how is the lead time of our order?

A3: Normally 5-7days , the lead time is according to the quantity.



Q4: Could you produce our own brand products?

A4: Yes, of course if you have authorization.



Q5: Could you customize packing box for me?

A5: Yes, we can customize it for you as your requirement.



Q6: Can we visit your factory before we order from you ?

A6: Yes,welcome ! That is our pleasure to be visited.



Q7: Does your factory provide sample for quality check and test,free or charge ?

A7: We able to provide 2-6pcs FREE sample for evolution,but you need to handle the shipping cost.



Q8: If your product have quality problem,how will you solute ?

A8: First of all,our product have 12 months warranty, if the product have any quality problem,we will compensate the fully product quantity and bear all the lose of this order.
