10018047 бронзовая направляющая латунная втулка C86300 подшипник скользящей муфты 10060528 поддерживающая для

Описание и отзывы

Характеристики

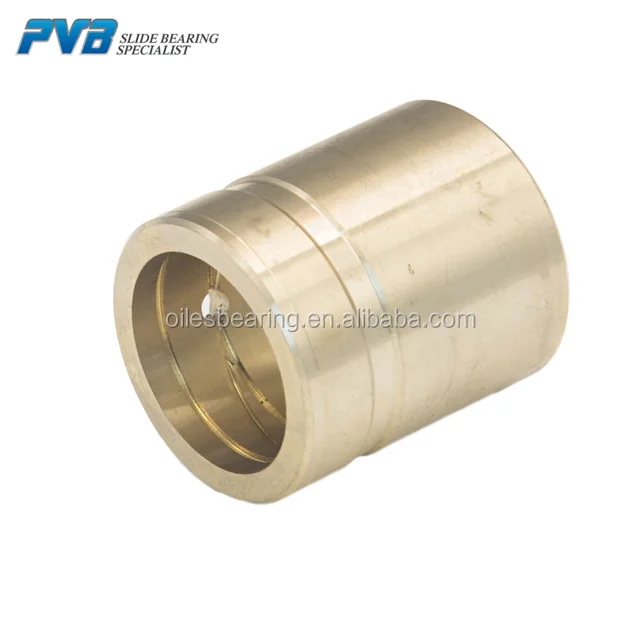

10018047 bronze guide brass bushing, C86300 slide sleeve  bearing, 10060528 bronze support bushing for Swching



Material	CuZn25Al5	CuSn5Pb5Zn5	CuAl10Ni5Fe5	CuSn12	CuZn32Al5Ni3
Density	8	8.9	7.8	8.9	8
HB hardness	>210	>70	>150	>95	>280
Tensile strength N/mm2	>750	>200	>600	>260	>540
Yeild strength N/mm2	>450	>90	>260	>150	>450
Elongation %	>12	>15	>10	>8	>0.3
Coefficient of linear expansion	1.9x10-5/°C	1.8x10-5/°C	1.6x10-5/°C	1.8x10-5/°C	1.8x10-5/°C
Max. temp.	-40~+300	-40~+400	-40~+400	-40~+400	-40~+150
Max. load N/mm2	100	60	50	70	150
Max. speed (Dry) m/min	15	10	20	10	15
Max. PV N/mm2*m/min (Lubrication)	200	60	60	80	200
Compression deformation 300N/mm2	<0.01mm	<0.05mm	<0.04mm	<0.05mm	<0.005mm





We make all kinds of bronze bearing for Putzmeister, Schwing, CIFA and etc



Split Bushing	285355004
DU-B Bushing	028550008
DU-B Bushing	222484006
DU-B Bushing	455706
Bush DU Nut	66586005
Collar Disc Q80	066586005
Collar disc Q90	427720
Support Bushing	10018047
Bronze bushing	10061082
Bearing Bushing	10018037

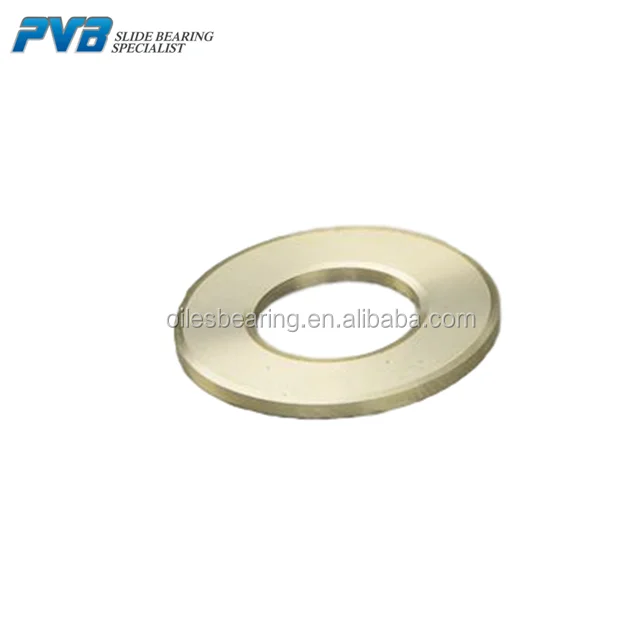

bronze washer	10061083
bronze bushing	10061077
bronze bushing	10007772
Bronze Bush	211731
Ring	1031126
Bushing	1071085
Bushing	1071090
Ring	1031105
Ring	1031126
Bushing	1071085
Bushing	1071090
Ring	2061100
Cover Lining	10018029
Sealing Cover	10018035
Support Bushing	10025626
Bearing Bushing	10067810
Transition Piece	10077886
Guide Bushing	10102071
Bushing	10118219
Cutting Ring DN 180	10140388
Cutting Ring DN 230	10166890
Necking Bearing	240046002
Foot Bearing	240047001







1. Q: Are you a factory or trading company?

A: We are professional factory and exporter with more than 15 years experience,we have professional production teams, technical team, QC team and sales team.

2. Q: What is your main products?

A: DU Bush, DX Bush, Bimetal Bearing, Wrapped bronze bearing, Cast bronze bearing, Oiles bearing, Oiles wear plates.

3. Q: How to get a sample?

A: For stocks, sample can be free of charge. If we need to make, it can be negotiated based on different situation.

4. Q:What’s your advantage?

(1) competitive price

(2) continuously stable high quality

(3) professional OEM manufacturer

(4) professional sales and technical team to understand your requirement very well

(5) perfect customer service. Reply your inquiry or email within 6 hours on working time and 12 hours on weekends

(6) perfect package to protect your goods during long distance transportation

5. Q:What is your Minimum quantity?

A: Different type of bushes have different MOQ,pls contact us for details.

6. Q: What is your lead time?

A: Lead time depends on bush type and order quantity. Normally, our lead time is 20 days after receiving your down payment. If the items you choose with stocks, we can delivery within 3 working days
