200 тонн гидравлический пресс Раздельный тип меламиновая формовочная машина для специальных чашек

Описание и отзывы

Характеристики

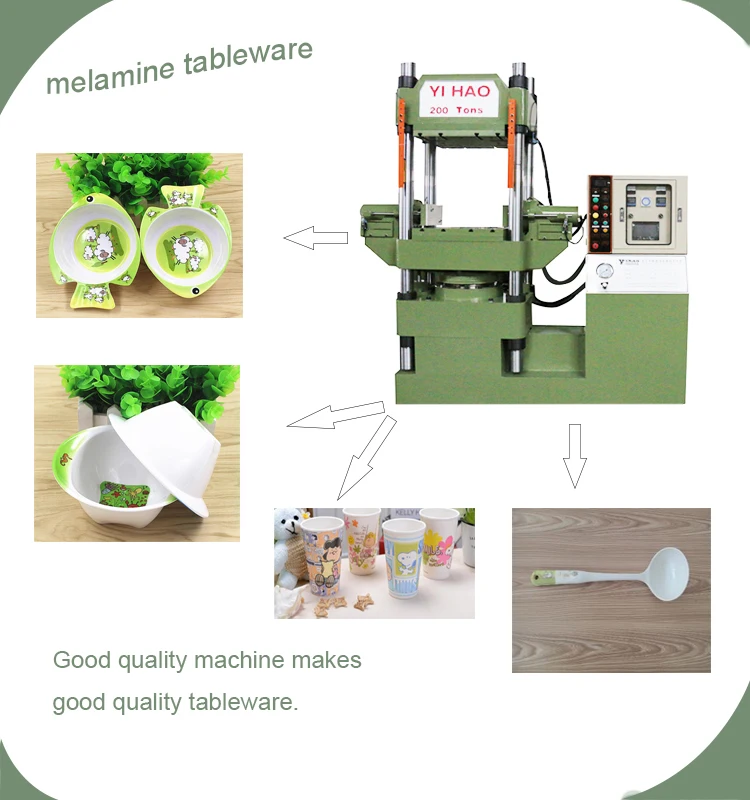

200 ton hydraulic press split type melamine molding machine for special cup mug









		Model
Items	Unit	BM-200A	BM-250A
Clamping Force	TON	200	250
Piston Diameter	mm	380	400
Platen Size	mm	620*660	720*720
Opening Stroke	mm	500	600
Maximum Opening Stroke	mm	700	700
Pump pressure	kg/cm²	210	210
Oil Tank Volume	L	450	450
Motor Power	HP (kw)	10 (7.5)	10 (7.5)
Heating Power	kw	10.8	11.4
Total Wattage	kw	18.3	18.9
Machine Dimensions	m	2.6*1.5*2.8	2.7**1.5*2.8
(L*W*H)
Weight	TON	5.4	6.5





 Product features

1.PLC control system, the operation is simple, low failure rate, the maintenance is convenient.

2.High and low pressure loop system,the machine moves smoothly without noise, fast and slow speed free adjustment.

3.The main structure accord with 3D mechanical design, strong and durable.

4.Equipped with safety grating in order to ensure safe operation.

5.Suitable for use in melamine, urea resin, bakelite, fiber etc hot hard raw material produce tableware products.

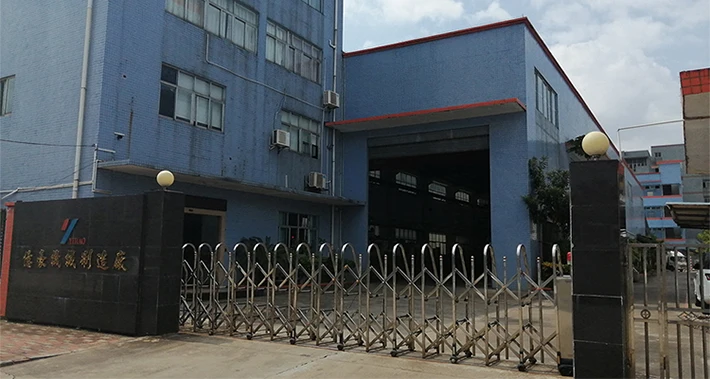

 In June 2003, due to business expansion, we set up factories in Dongguan Hengli town. Dongguan Hengli Yihao Mechanical Manufacture Factory engaged in professional R & D and manufacturing high precision hydraulic rubber forming machine, toilet seat cover forming machine, melamine tableware molding machine, melamine tableware molding machine, double color melamine forming machine, cup mode melamine tableware molding machine, double-Layer toilet seat cover forming machine, mahjong forming machine, and the like.



After several years of development, the factory has professional production and technical personnel to ensure that products could meet the customer demand.



The spirit of Yihao Mechanical Manufacture Factory is quality first, service first, customers first. The purpose is customer demand is our pursuit, the interests of customers is our interests.



We adhering to the modern enterprise scientific management methods, pioneering and innovative, forge ahead, has developed into a machinery manufacturing industry star enterprise. The customer on my Yihao machinery manufacturing plant products praise, achieve economic and social benefits. Yihao mechanical Manufacture Factory will be combined with the mechanical structure of the oil control system, circuit control system, production and service of professional R & D and manufacturing technology to manufacture in line with the needs of the hydraulic machinery and equipment.



We are willing to work with new and old customers to create a better future.









Please click here know more.

200 ton hydraulic press split type melamine molding machine for special cup mug
