4kw to 7.5kw 380V 440V FUJI IGBT 3 Phase Solar Pump Inverter



SG600-4K0GB-4T-D



Solar pumping system is a series-parallel absorb sunlight radiation energy through solar panels and convert it into AC power by inverter to drive centrifugal pump, irrigation pump, axial flow pump, mixed-flow pump of deep well water pump system. According to the change of intensity of sunlight, solar pump inverter system adjusts output frequency in real time, output power close to the sun cell array maximum power.



Solar pump inverter system is widely used in the desert greening, desert governance, agricultural irrigation, water supply, urban life water, pump systems, water purification, seawater desalination, etc.

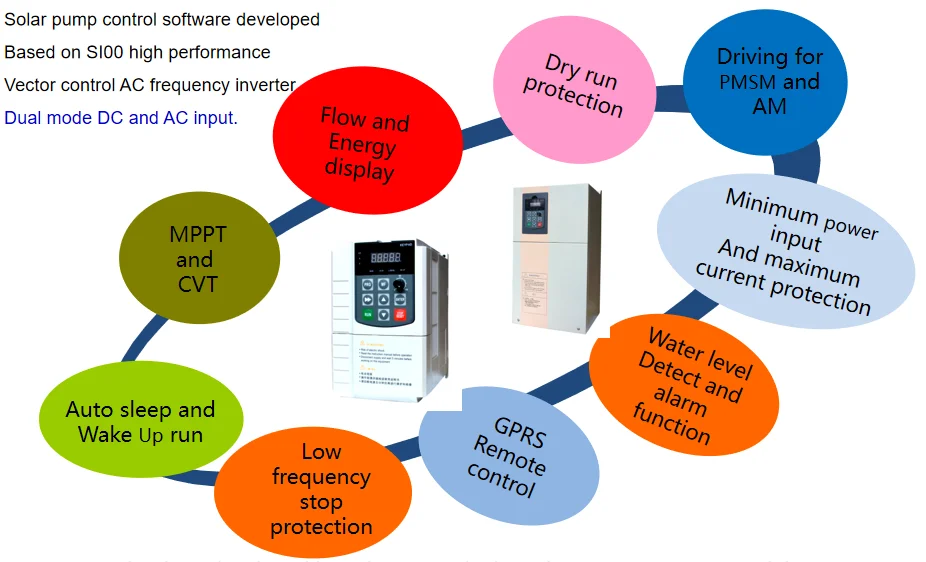

Descriptions and Features
1. Maximum power point tracking (MPPT) with fast response speed and stable operation efficiency> 99.6%
2. Suits for most 3 phase AC pumps and AC PMSM high efficiency pumps
3. The working voltage of solar panel can set by manual or MPPT automatically tracking
4. Compatible with dual power input, AC grid and DC power supply input
5. Built in automatic sleep-wake up function
6. The PQ (power/flow) performance curve enables calculating the flow output from the pump
7. Digital control for fully automatic operation, data storage and protective functions
8. LED display operating panel and support remote control,LCD display coming soon.
9. Low water probe sensor, and water level control function



	Models	Rate current	Output voltage ( 3PH VAC)	Applicable for pumps	MPPT voltage (VDC)
General type: 2T series 150 to 450 VDC or 200 to 240VAC input, Voc 350VDC/336VDC
7	SG600-0K7GB-2S	4A	220V/240V	0.75KW	260 to 375
8	SG600-1K5GB-2S-D	7A	220V/240V	1.5KW	260 to 375
9	SG600-2K2GB-2S-D	10A	220V/240V	2.2KW	260 to 375
10	SG600-4K0GB-2S-D	16A	220V/240V	4.0KW	260 to 375
General type: 350 to 800 VDC or 300 to 440VAC input, Voc 540VDC/616VDC
11	SG600-0K7GB-4T	2.5A	380V-440V	0.75KW	486 to 750
12	SG600-1K5GB-4T	3.7A	380V-440V	1.5KW	486 to 750
13	SG600-2K2GB-4T	5A	380V-440V	2.2KW	486 to 750
14	SG600-4K0GB-4T-D	10A	380V-440V	4.0KW	486 to 750
15	SG600--5K5GB-4T-D	13A	380V-440V	5.5KW	486 to 750
16	SG600-7K5GB-4T-D	17A	380V-440V	7.5KW	486 to 750





FAQ:

Q1:What's the delivery time?
A1:3-5 days for sample order;10-25 days for bulk order.



Q2:What's the warranty?

A2:18months.



Q3:How to choose suitable converter for machine ?

A3: Please send us your motor details, we will select you most suitable model.



Q4: Can I customize the product?

A4: Yes,we can print your Logo,customize your package,and Special function inverter.



Q5: Do you support OEM service ?

A5: Yes,please send us more details.



Q6: Do you have any MOQ limit?

A6:1 pc for sample is available.
