This Dynamic 5 axis water jet cutting machine is specially used to cut marble and granite, it can compensate ±10° cutting angle. It is one kind of bevel cutting machine.

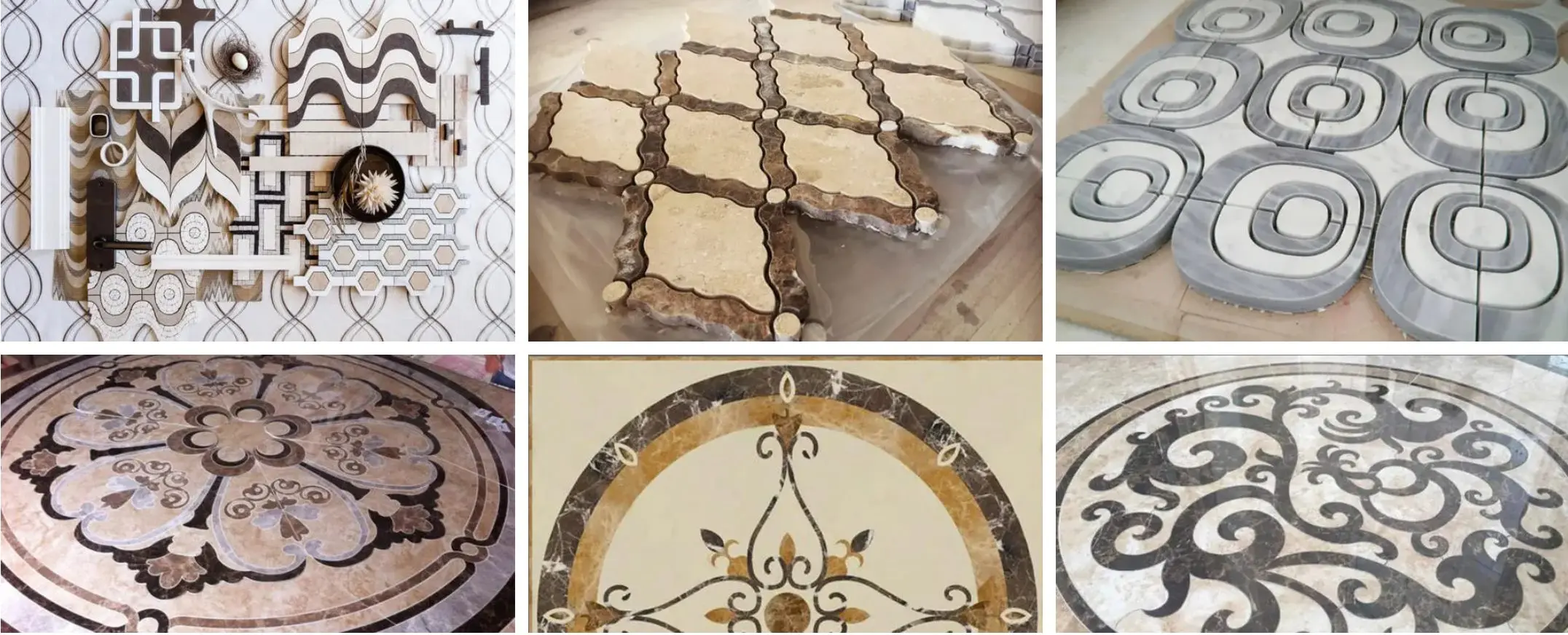

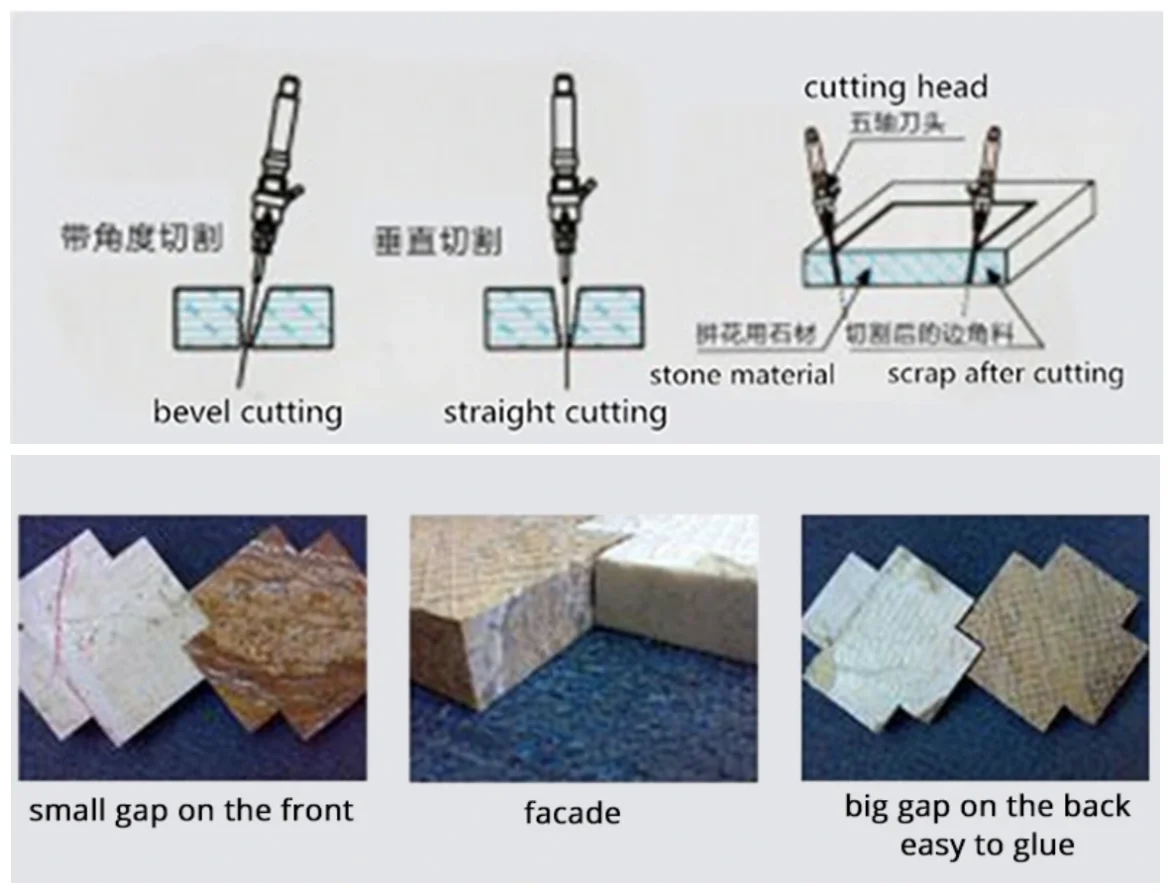

Due to the water jet cutting is a flexible cutting, therefore,there will be a certain degree of inclination on the product cross section after cutting by the traditional 3 axis water jet cutting.In order to ensure the accuracy of vertical cutting section, it must reduce the cutting speed. However, our 5 axis water jet cutting machine can ensure the accuracy of vertical cutting section by compensating the cutting angle, without reducing the cutting speed. So that it can be used for cutting parquet stone, the parquet flooring does not need to be polished again, which can save time and labor.

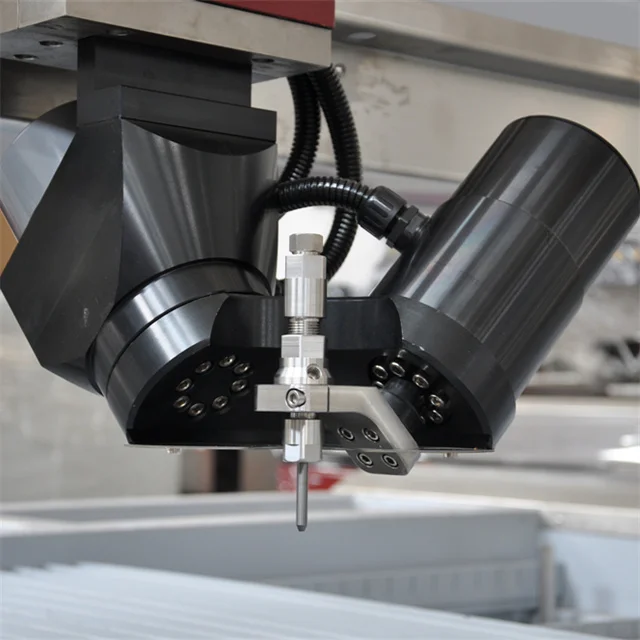

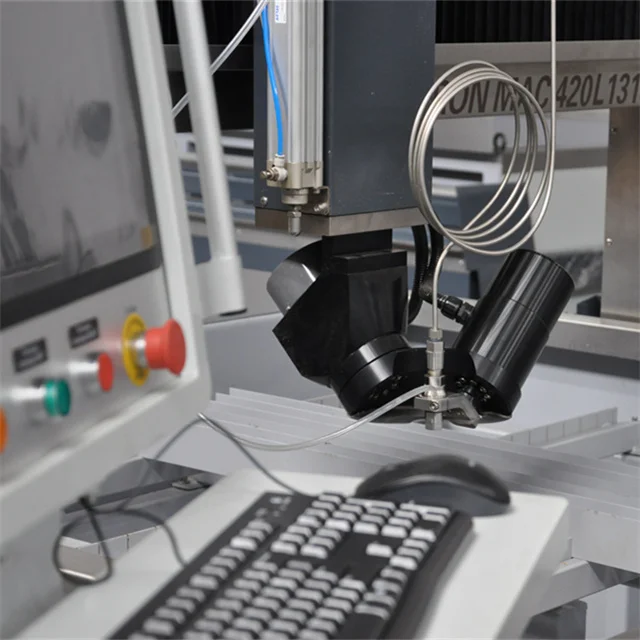

Dynamic 5 axis cutting head X、Y、Z axis for transmission A,B axis for compensation 0°-±10°

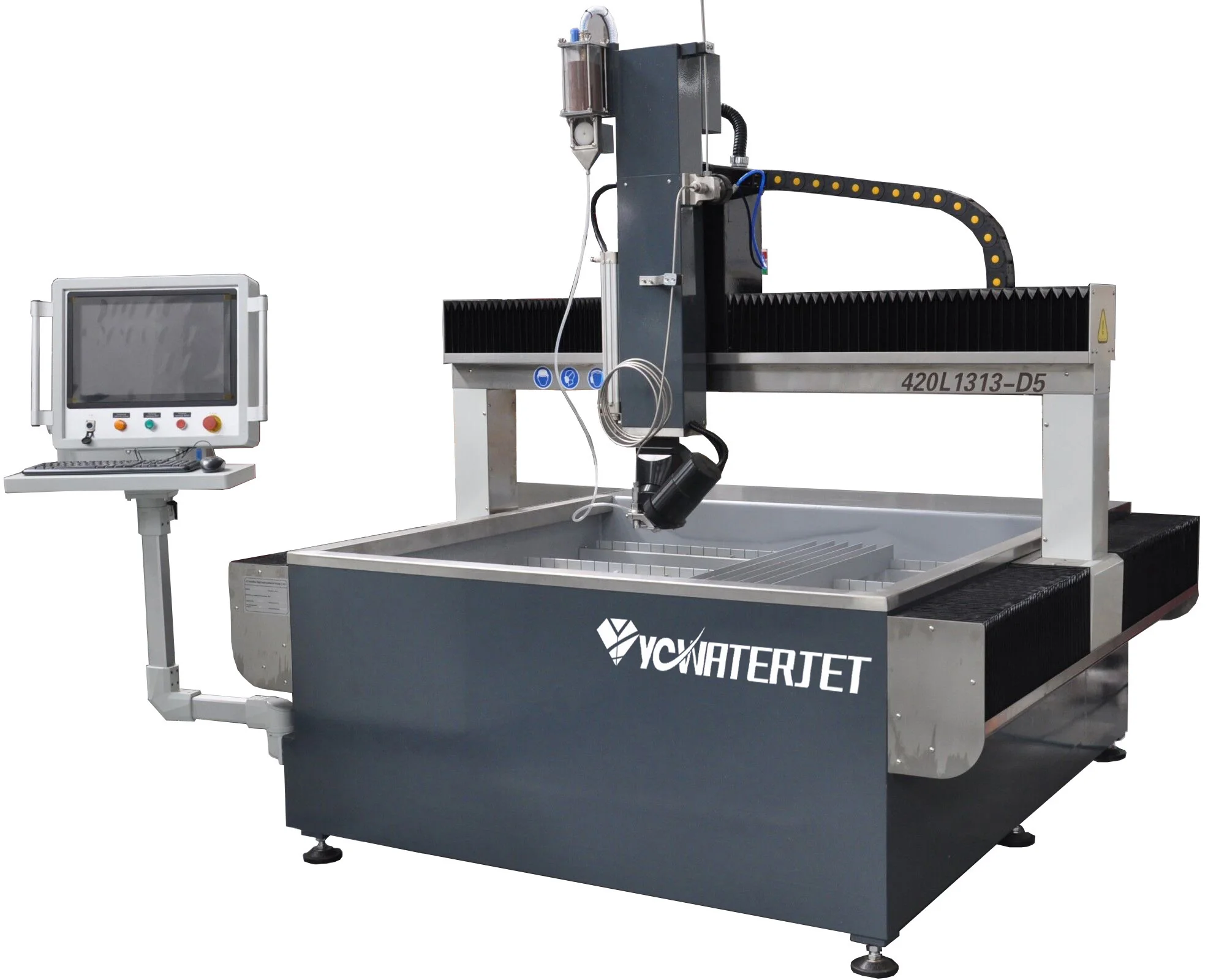

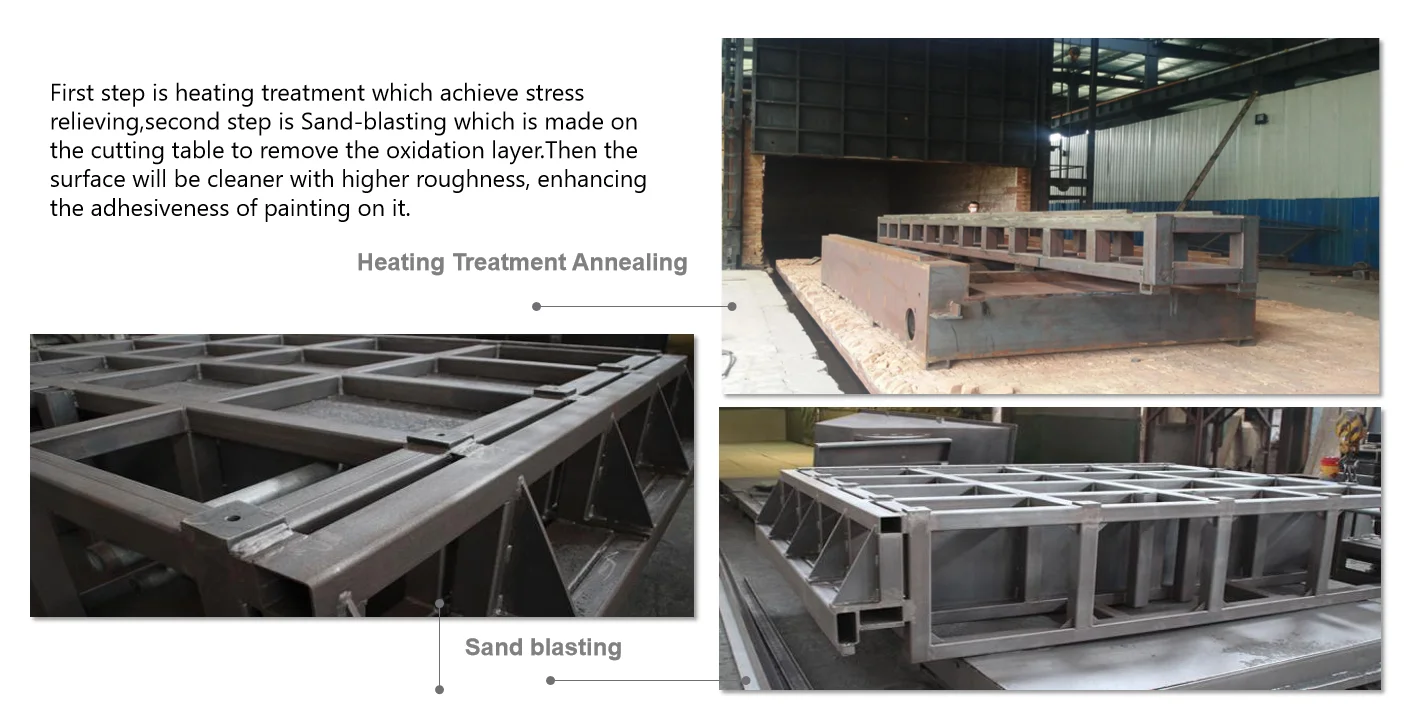

1. Waterjet cutting platform
CNC Water Jet Cutting Machine Parameter(L=Gantry type) | ||||||||||||||
Parameters | Unit | YCWJ-L1010 | YCWJ-L2015 | YCWJ-L3015 | YCWJ-L3020 | YCWJ-L2060 | ||||||||
Efficient Cutting Area | mm | 1000×1000 | 2000×1500 | 3000×1500 | 3000×2000 | 2000×6000 | ||||||||
Axis Travel | X | mm | 1000 | 2000 | 3000 | 3000 | 2000 | |||||||
Y | mm | 1000 | 1500 | 1500 | 2000 | 6000 | ||||||||
Z | mm | 150-180 | 150-180 | 150-180 | 150-180 | 150-180 | ||||||||

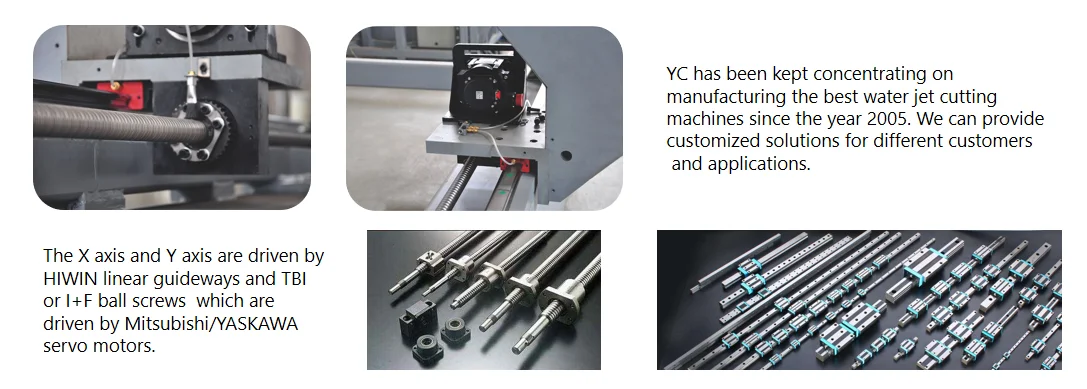

X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt MITSUBISHI or Yaskawa | ||||||||||||||
Cutting Accuracy | mm | ±0.1 | ||||||||||||
Positioning Accuracy | mm | ±0.025 | ||||||||||||
X,Y Dry-run Speed | m/min | 0-15 (if need 30m/min speed,we can do as request ) | ||||||||||||
Cutting Speed | m/min | as to detail material and thickness | ||||||||||||

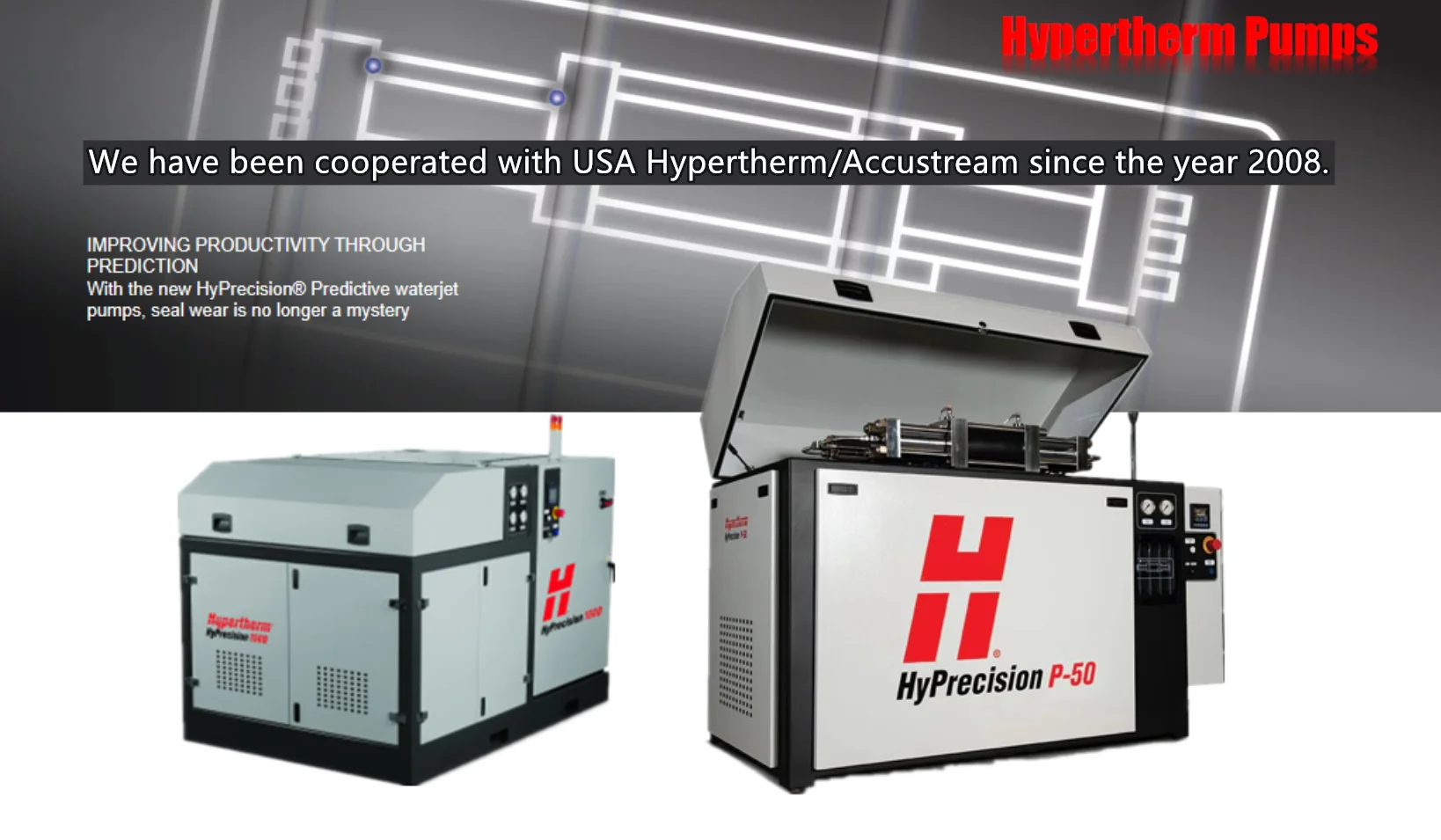

2. Waterjet high pressure system
Main Feature:
Control: PLC
Shifting: electro-hydraulic
Control Cooling: cooler/oil heat exchanger
Inlet water filter accuracy: ≤0.45μm
Oil-return filter accuracy: 20 μm
Working temp: 0-50°c
Outlet: UNF 3/8" Cooling in/out-let: NPT1"
Max orifice size: 0.33mm

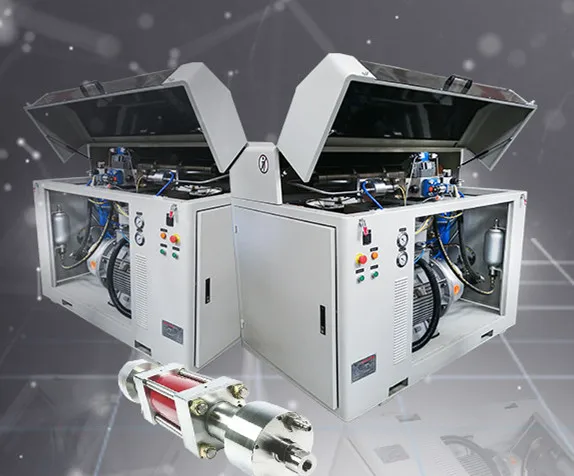

High Pressure Pump | ||||||
Model | YCG-3038 | YCG-3742S | YCG-7542S | |||
Max Pressure | 3800Bar/55,000Psi | 4137Bar/60,000Psi | 4137Bar/60,000Psi | |||
Max Water Flow | 3.7L/min | 3.7L/min | 7.4L/min | |||
Max Orifice/Nozzle | 0.011/0.03 | 0.013/0.04 | 0.016/0.05 | |||
Power | 30KW/40HP | 37KW/50HP | 75KW/100HP | |||
3. Waterjet controlling system

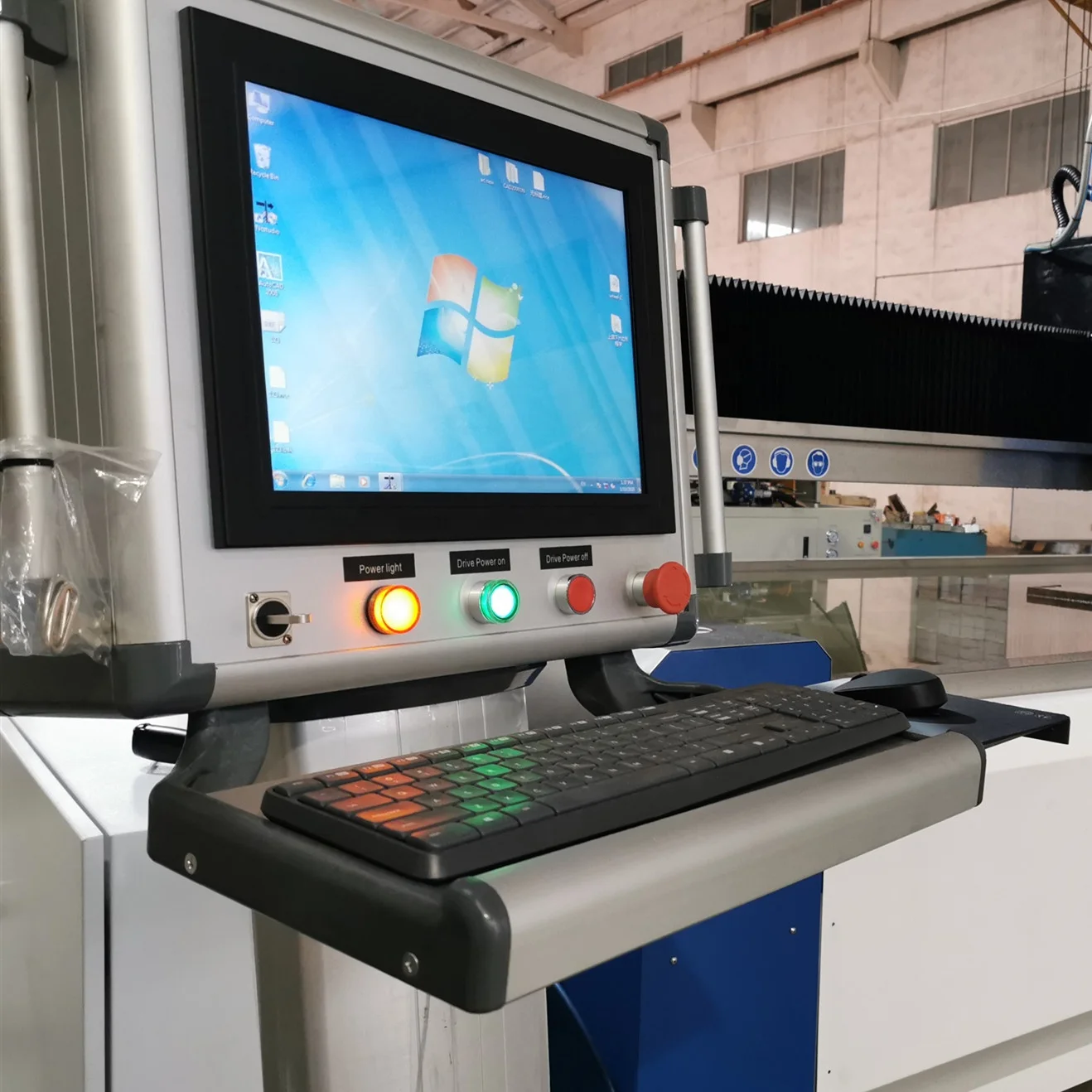

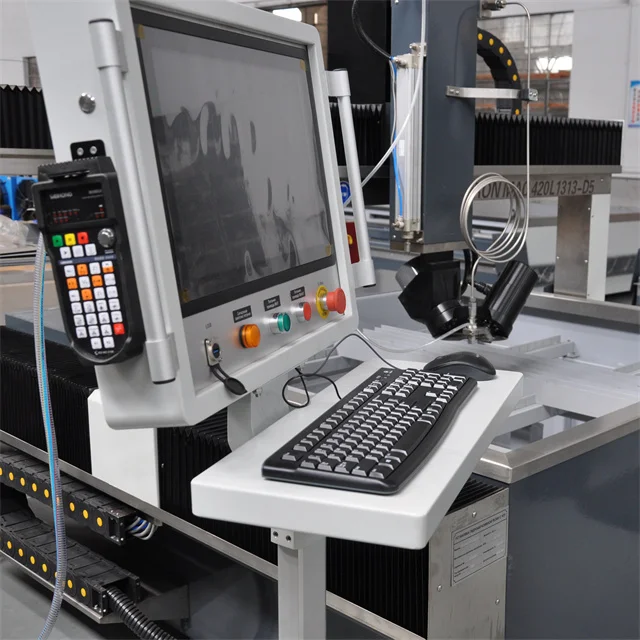

1. 17 LCD liquid crystal display.
2. DNC on-line working function.
3. Functions of returningarbitrary point,bending and circular are working auto deceleration.
4. Function of cutting figure imitation display.
5. 80GB memory hard disk.
6. 6. MITSUBISHI AC servo driver and motor.
7. 1GB memory card.
8. Multilingual function(Chinese English etc.).

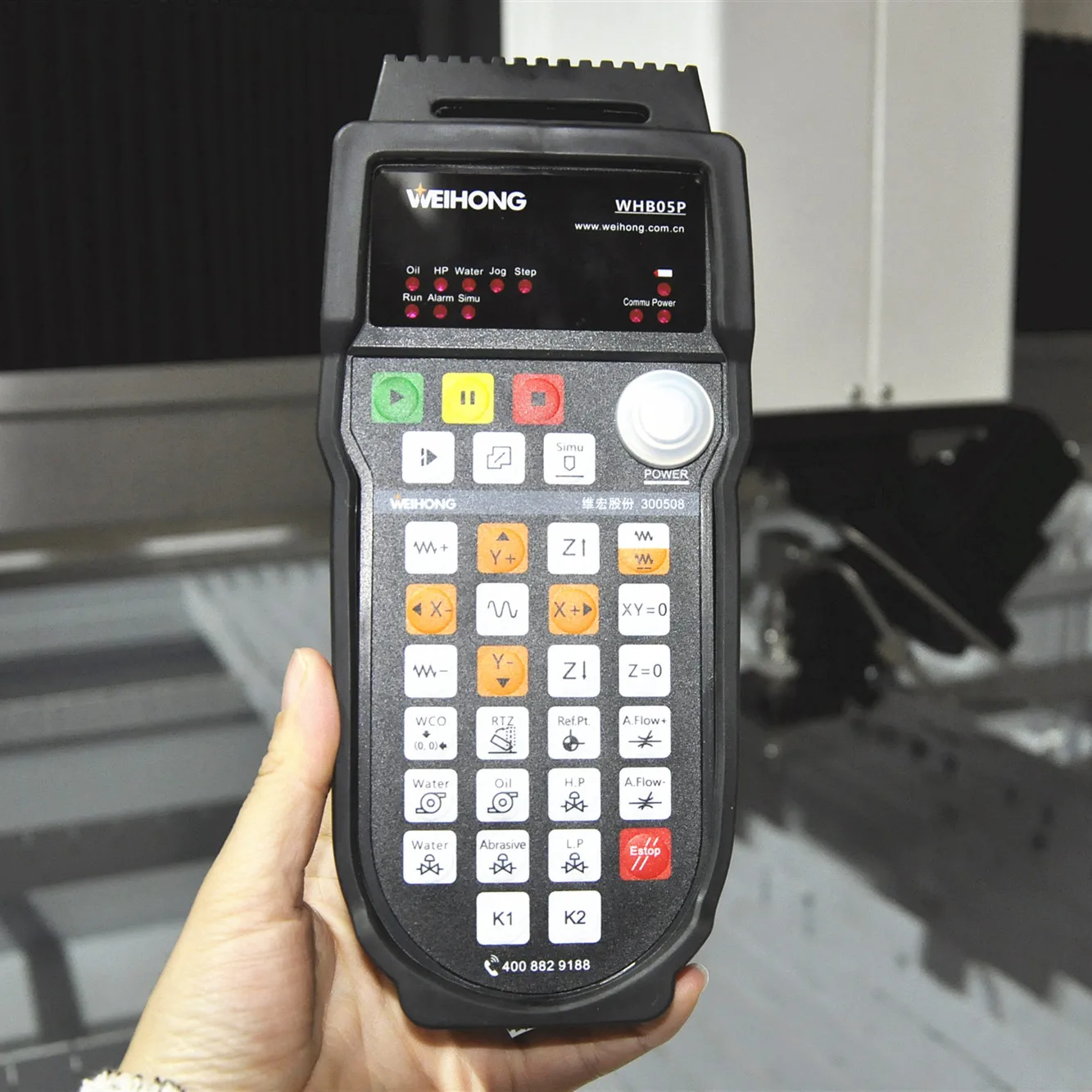

9. Drive-by-wire and hand-hold controller.
10. NAIKY PCIMC-6A special software is special for YC.
2. DNC on-line working function.
3. Functions of returningarbitrary point,bending and circular are working auto deceleration.
4. Function of cutting figure imitation display.
5. 80GB memory hard disk.
6. 6. MITSUBISHI AC servo driver and motor.
7. 1GB memory card.
8. Multilingual function(Chinese English etc.).
9. Drive-by-wire and hand-hold controller.
10. NAIKY PCIMC-6A special software is special for YC.
