Инструмент для бурения водяных скважин по цене производителя Соединительный адаптер винтовая Резьбовая муфта

Описание и отзывы

Характеристики

Manufacturer Price Water Well Oil Drilling Tools Joint Adapter API Screw Threaded Rod Coupling

Product Description:

1.OD:57mm-168mm

2.Material:35CrMo/40Cr/4137H

3.Length: N:235mm M:195mm

4.Apply to connection 50mm drill rod Well Drilling,Geological drilling

5.Tool Joint: NC26, NC31, NC38, NC40, NC46, NC50

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Specification:

Drill pipe joint code	Drill Pipe		Drill Pipe Joints(mm)
	Spec.	Steel Grade	OD	ID of Pin Tap	Tong Space of Pan Tap	Tong Space of Box Tap
NC26	2 3/8''	DZ5O,R780	Ø86	Ø45	178	203
	2 3/8''	G105	Ø85.7	Ø44.5	178	203
NC31	2 7/8''	ZD5,R780	Ø104.8	Ø50.8	232	280
	2 7/8''	G105	Ø104.8	Ø50.8	232	280
NC38	3 1/2''	DZ50,R780	Ø127	Ø65.09	248	310
	3 1/2''	G105	Ø127	Ø61.9	248	310
NC46	4 1/2''	DZ50,R780	Ø158.8	Ø82.6	236	320
	4 1/2''	G105	Ø158.8	Ø76.2	236	320
NC50	4 1/2''	G105	Ø168.3	Ø86	236	320
	5''	DZ50,R780	Ø168.3	Ø89/82.6	236	320
	5''	G105	Ø168.3	Ø82.6	236	320

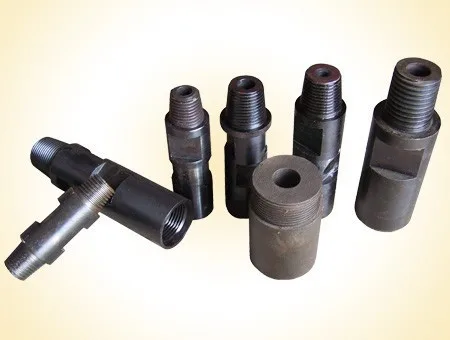

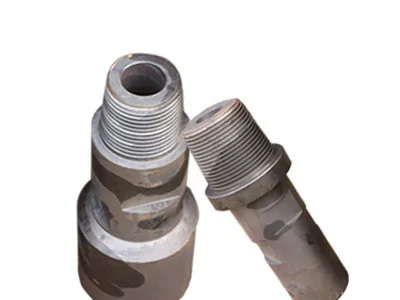

Tool Joint Pictures:

Certifiaction:

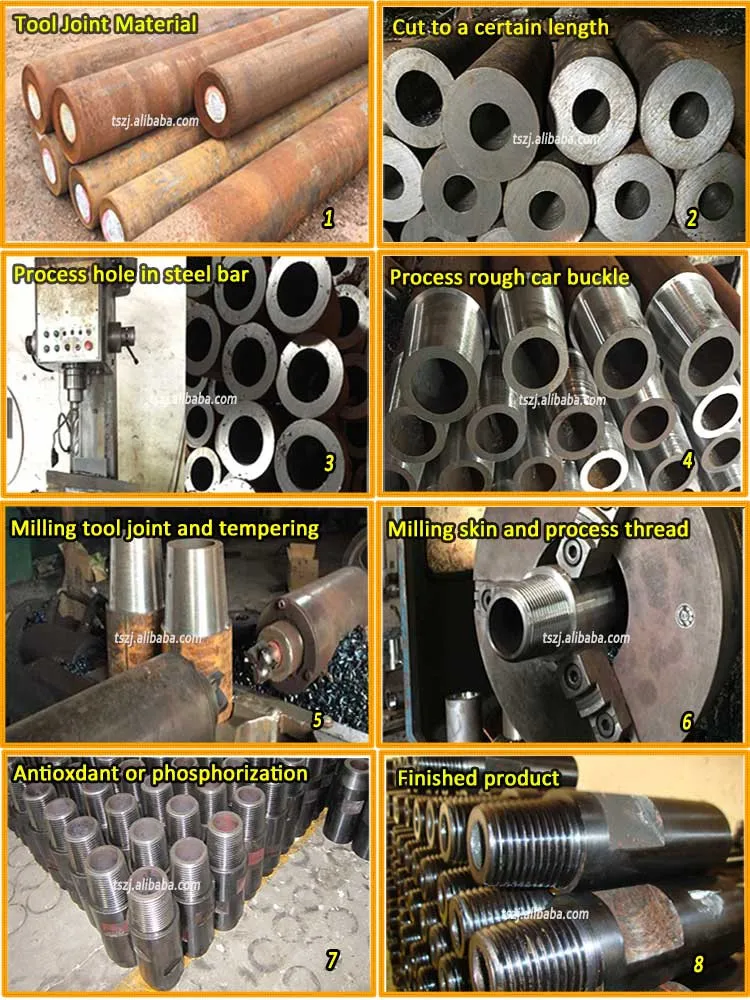

Process Flow:

Tool joints quality control:



1.Before order to be confirmed, the raw material of drill pipe and tool joint body should bebooked from famous big steel enterprises in China.

2.Tool joint of checked by our QC staff and factory own laboratory.

3.Every tool joint has nondestructive inspection , cleaned and breach oil before packing

4.Tool joint before deliver clients could send one QC or point the third party to check the quality such SGS, BV or others.



Packing&shipping:

1. The tool joint will be packed into bundles as 3x3, 3x4, 4x4 etc. and loading into containers after black painting and thread protectors installation.

2. For 20’ container, the max loading weight is 23 metric tons

3. For 40’ container, the max loading weight is 27 metric tons.

4. Usual loading port is XINGANG port in Tianjin, main port in north of China.

Tool joint usage notes:

1.New tool joint should be pasted thread oil before connection

2.Make up and break at least 3 times before drilling

3.Hard bending and plastic coating can be processed according to costumer special requirement



Our Services:

1.Tool joint strictly according to ISO9001 standard

2.If you found to quality problems within one month of the package returned.

3. All strictly according to the contract and fulfill the obligations and responsibilities

4. 24 hours online customer service,feel free contact us.



FAQ:

Q: Are you a manufacturer or trading company?

A: We are a specialized manufacturer.



Q: What are your main products, and used for?

A: Our products include core barrel, casing, drill rod, drill rig and other drilling parts.

They are used for mineral exploration, geological drilling.



Q: If the tool joint the buckle, the screw is not how to do?

A: You can tap and screw, this tool joint is not easy to take over tripping in use.



Q: How about the delivery terms?

A: 1.Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.

2. Min. order quantity: 1 piece.

3. Transportation: By sea, train.



Q: How about discount?

A: Price is based on products and order quantity.



Q: Do you accept sample order?

A: Yes sure, please contact us for details.



Q: How about your after-sales service?

A: As a manufacturer has 32 years of history we offer prompt technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.



Q: Where is your factory located in?

A: Our factory is located in JIN ZHOU city, HEBEI province, China.



Q: How does your company control the quality?

A: Quality first. In order to guarantee high quality for our products, our always make a serious inspection for all products and raw materials in strict procedure. We have obtained certificate of ISO9001

*TongShun is professional production of drilling tools, if you want to know more about our products, please feel free to contact us.

*Molly at your service in 24 hours

*Address:Beikou Village JinZhou City Hebei Province China



If you any need, please fell free to contact us.
