USA Size DC12-24V Glass Touch Dimmer Touch panel Dimmer Wall Switch for Single Color LED Strip Light Lamp Black White



Summarization:
Touch panel dimmer is a new high-end dimmer which newly developed by our company. It adopts glass panel design, is beautiful and fashionable in appearance. It adopts high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, panel lights etc., it has many advantages such as convenient to connect, easy to use and others.

Specification:
Working temperature: -20-60 ℃
Supply voltage: DC12~24V
Output voltage: DC12~24V
Output: 1 channel
Connection mode: common anode
External dimension: L74 Χ W120 Χ H41.8mm

Packing size: L150 Χ W100 Χ H57 mm
Net weight: 150g
Gross weight: 207g
Static power consumption: <1W
Output current: <8A
Output power: 12V<96W, 24V<192W

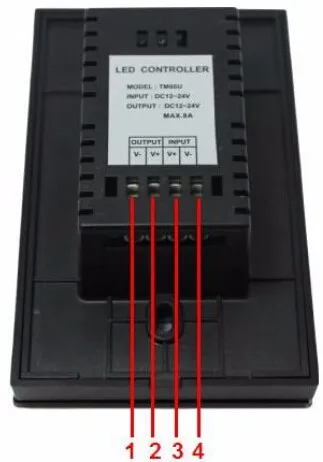

Interface Specifications

3 and 4: power input, input voltage range: 12-24V, 3 for positive, 4 for negative.
1 and 2: power output, output voltage is 12-24V, Max output current is 8A, 2 for positive, 1 for negative.

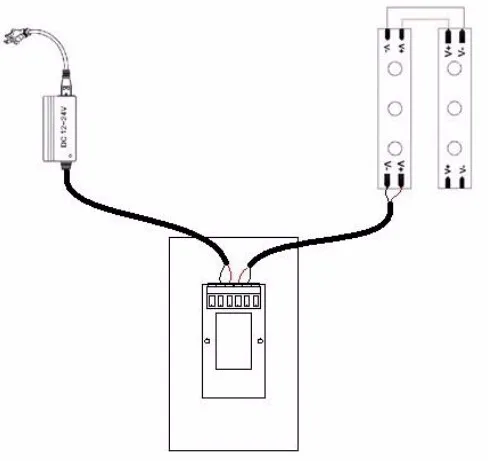

Typical Application

Package included:
1 x Touch Panel Dimmer

1 x User Manual

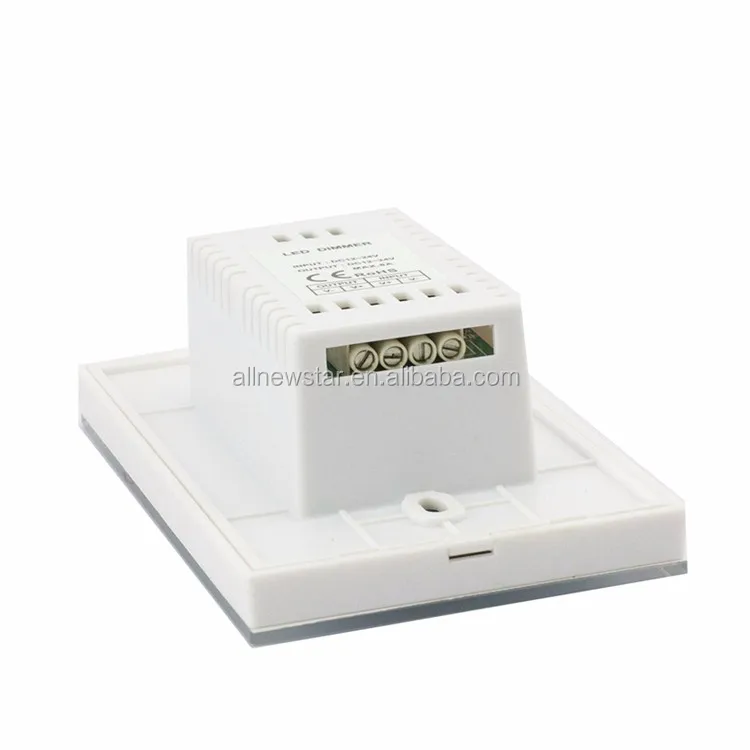

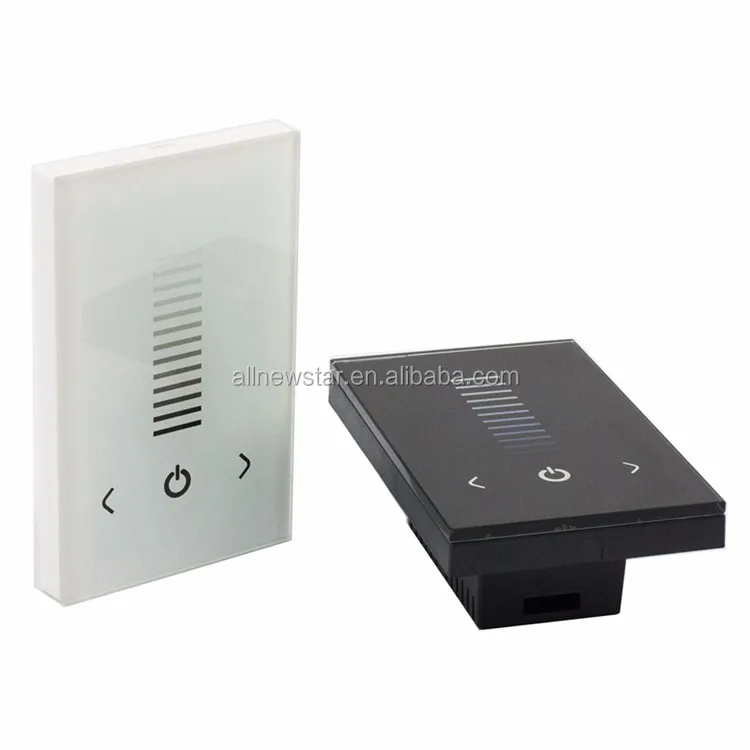

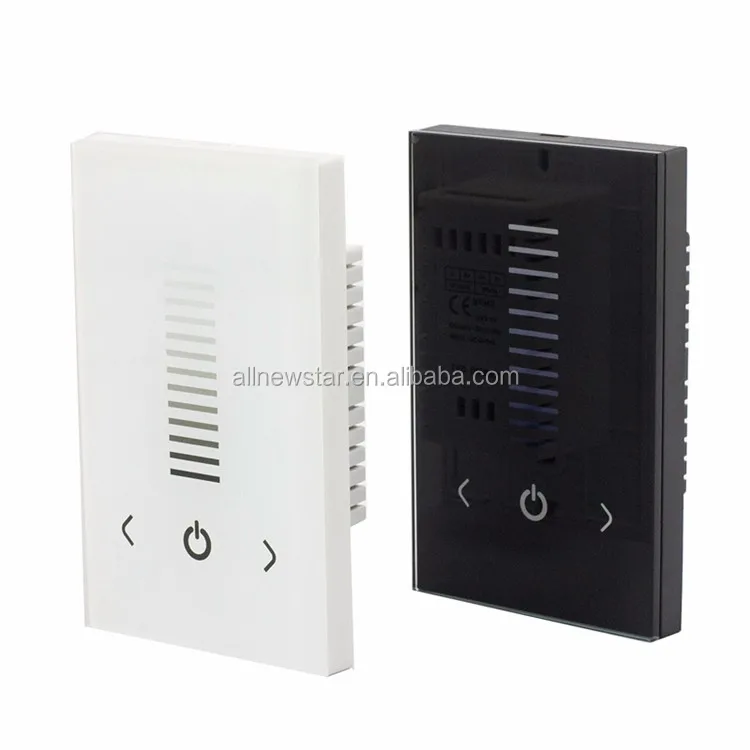

Product pictures:

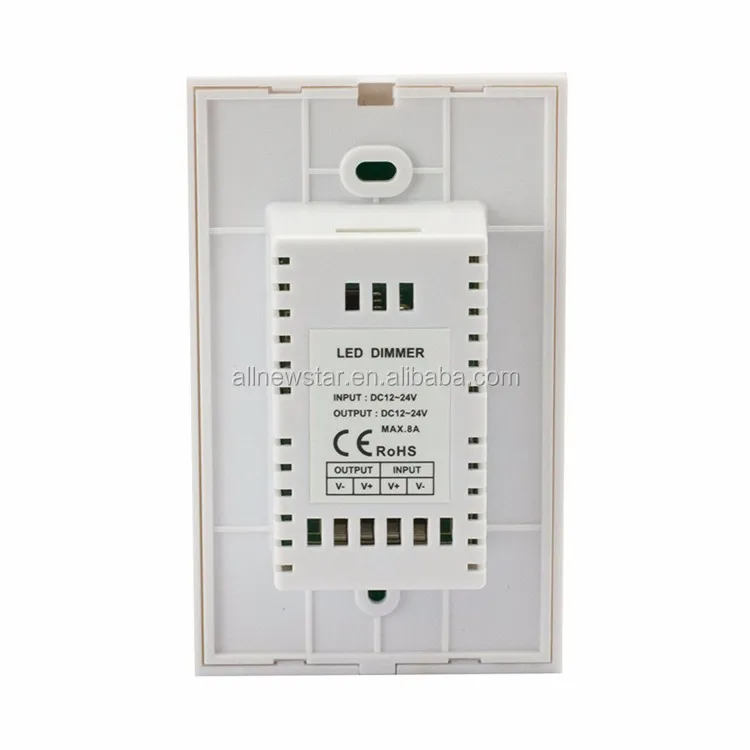

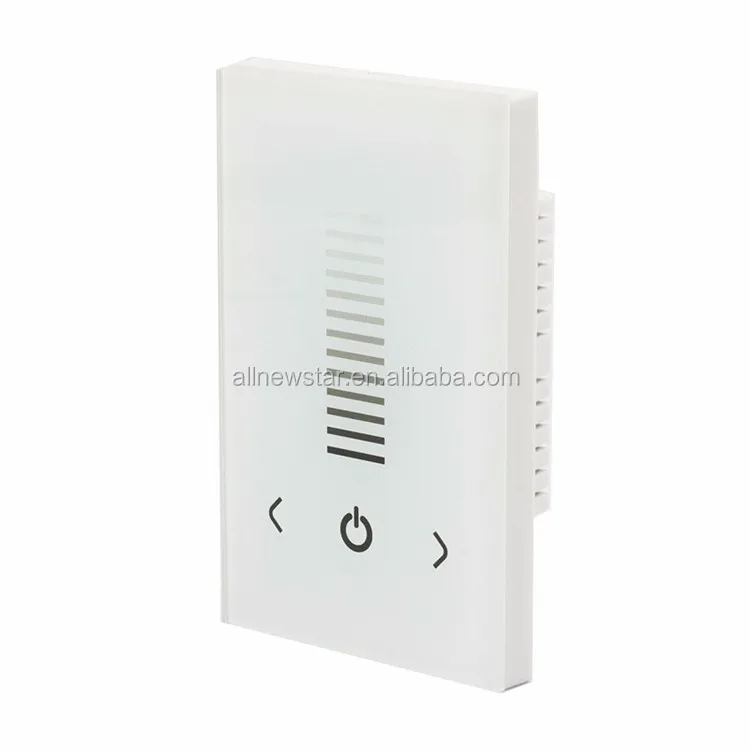

White color

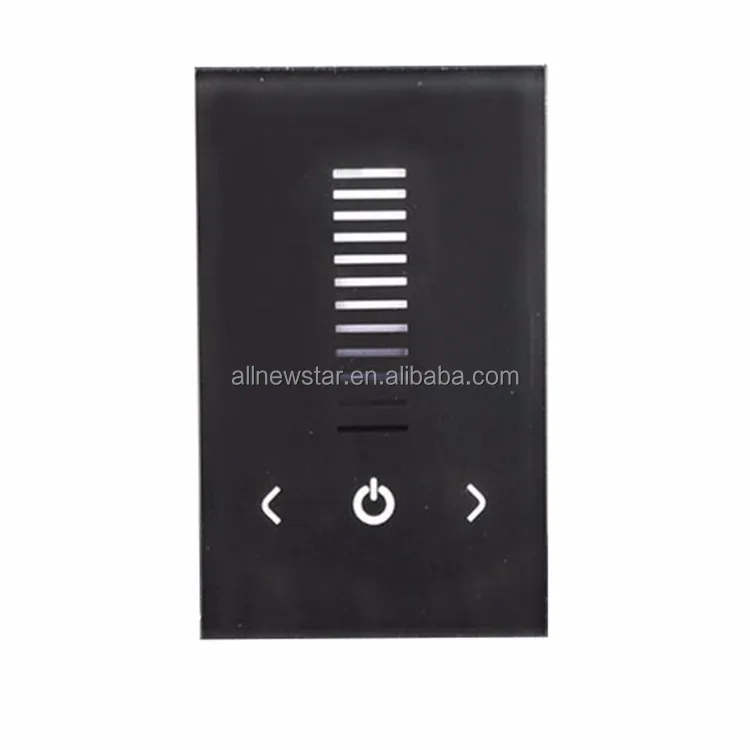

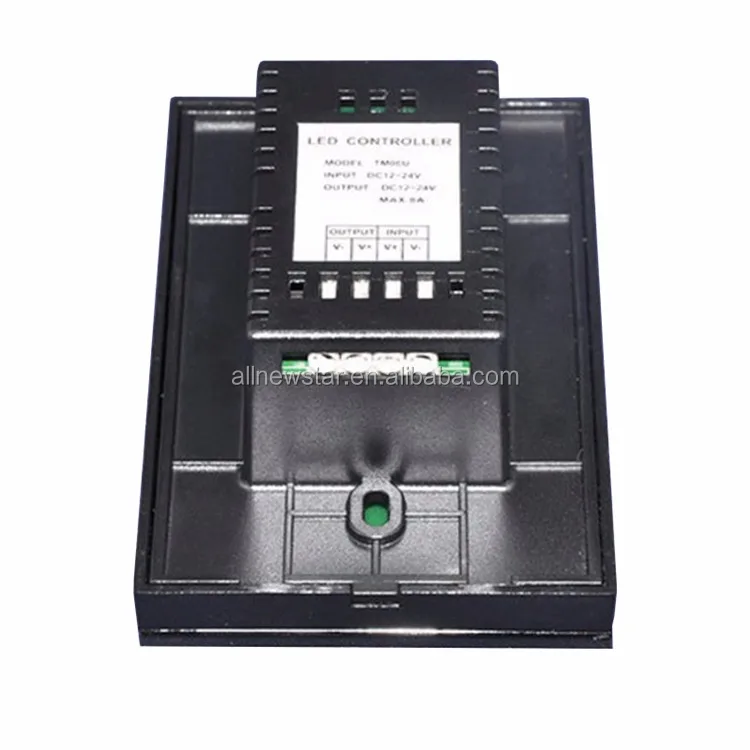

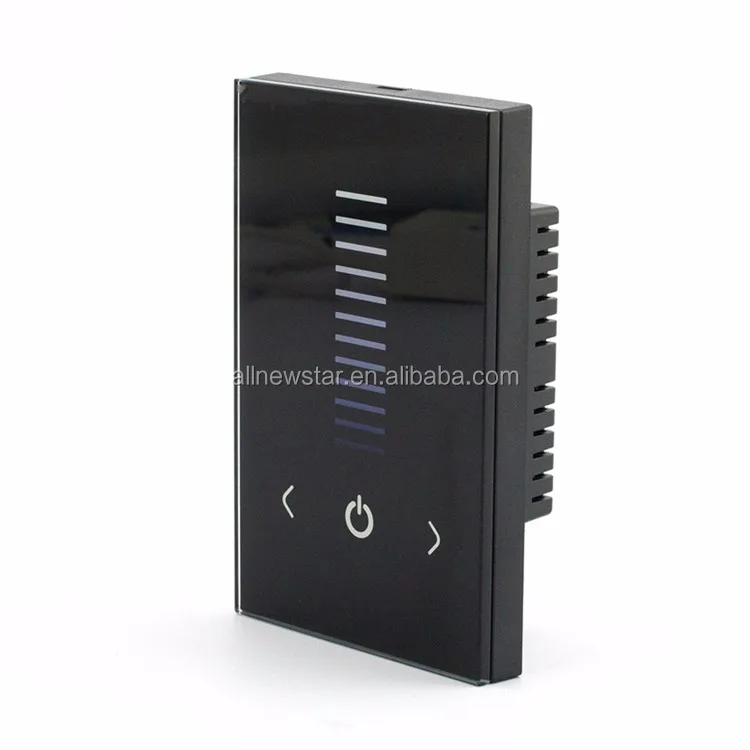

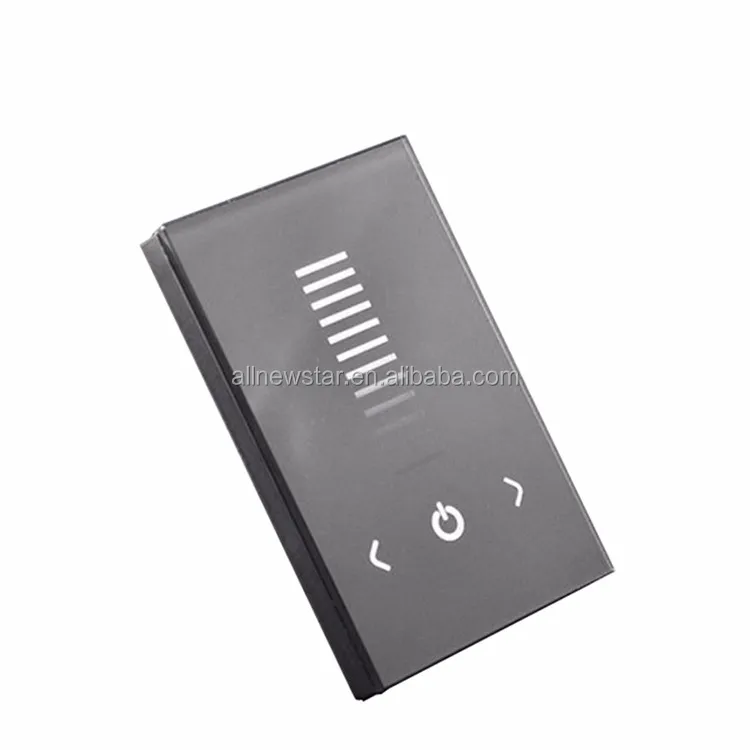

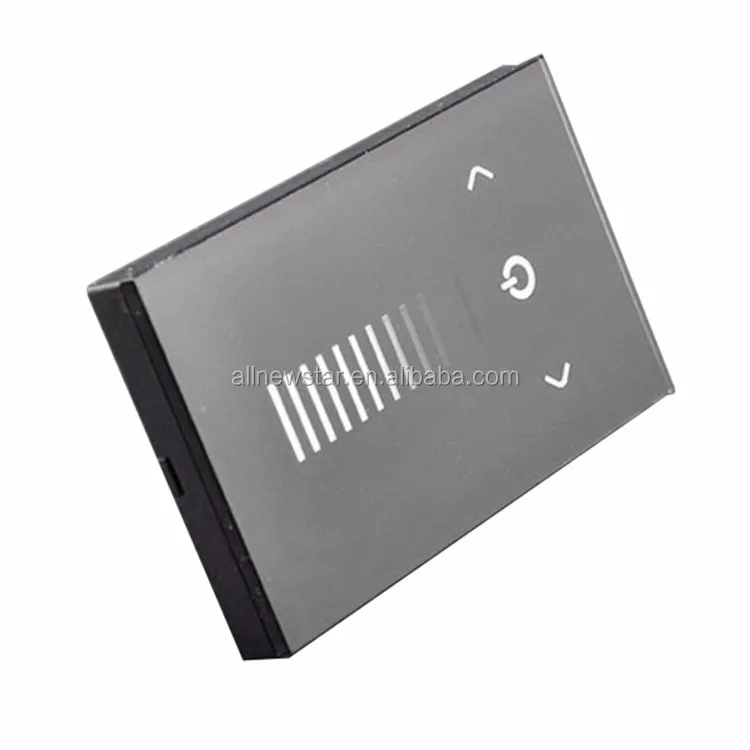

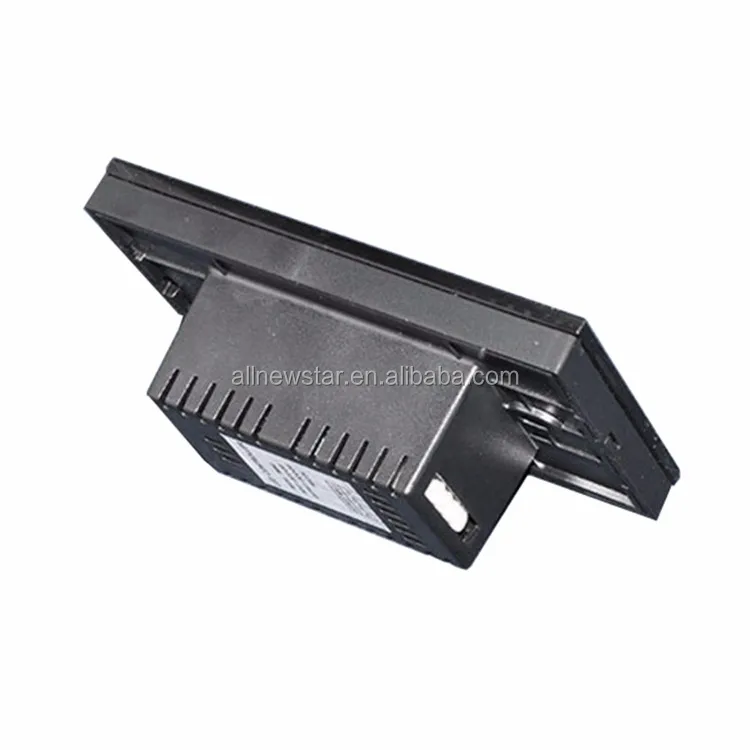

Black color
