Lonking 3 ton wheel loader for sale with low price



 -6

Contact us



All wheel loaders



Product Description



Specification for  3 ton wheel loader

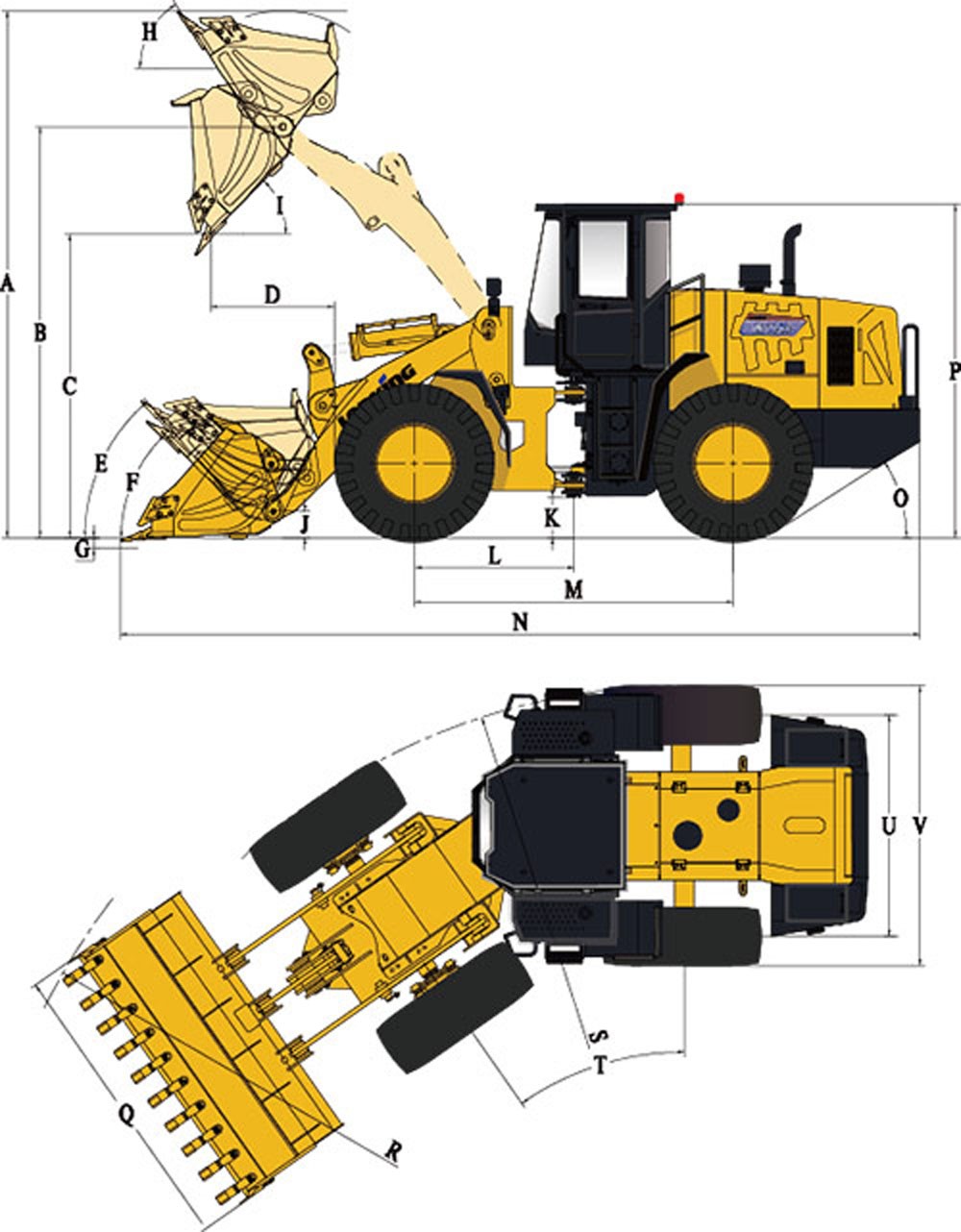

The parameter for Lonking 3 ton wheel loader



NO.DESCRIPTIONUNITSTDHigh Dump
AOverall Height – Bucket Raisedmm47375080
BBucket Pin Height at Max. Liftmm37104064
CDump Clearance at Max. Lift ( 45°) mm29043249
DReach at Max. Lift and 45° Dumpmm10951002
ERack Back Angle at Carry°46.346.6
FRack Back Angle at Ground°4040.9
GDigging Depthmm30-4030-40
HRack Back Angle at Max. Lift°50.747
IDump Angle at Max. Lift°46.645
JCarry Heightmm400400
KGround Clearancemm345345
LCenter Line of Front Axle to Hitchmm14251425
MWheel Basemm28502850
NOverall Lengthmm72007450
ODeparture Angle°2727
PHeight to Top of Cabmm31803180
QOverall Width over Bucketmm25002500
RMin. Turning Radius over Bucket mm61906280
SMin. Turning Radius over Tiresmm56755675
TSteering Angle – Left/Right°3535
UWidth at Tread Centermm18501850
VOverall Width over Tiresmm23202320



 Overall Date












OVERALL DATA
Bucket Capacity1.7m³1.7m³
Rated Payload 3000kg 3000kg
Operating Weight10300±300kg10500±300kg
Traction Force97±3kN97±3kN
Breakout Force105±3kN95±3kN
L×W×H(mm)7200×2500×31807450×2500×3180



 ENGINE&ELECTRICAL SYSTEM

ENGINE&ELECTRICAL SYSTEM
Maker/ModelWEICHAI/WP6G125E22
Emission StandardEPA (TierⅡ)/NationalⅡ
Engine Type4 Stroke,Turbocharged,Water-cooled,Direct Injection,Diesel Engine
Rated Power92kW(125hp)/2200rpm
Maximum Torque500N·m/1400-1600rpm
Bore x Stroke (mm)105×130
No. of Cylinders/Displacement6/6.75L
Compression Ratio18
Air CleanerThree Stage Air Cleaner
Alternator 55Amp
Battery2-24V/105Ah
Starting Motor24V/6kW
Heating Capacity (W)5000W
Cooling Capacity (W)4700W



 Brake system

DRIVE TRAIN
Transmission TypeCountershaft Powershift Transmission
Shift TypeMechanical Powershift Control
Pressure of Transmission1.1-1.5MPa
Torque Converter TypeSingle-stage,Single-turbine,3-element
Torque Ratio3.2
AxlesRigid Front Axle&Oscillating Rear Axle
Rear Axle Oscillation (°)±10°
DifferentialConventional
Main ReducerSpiral Bevel,1-stage Reduction
Final ReducerPlanetary Reduction
Tire17.5-25 L-3 12PR TT
Travel Speedskm/h1st2nd3rd4th
Forward7122436
Reverse8.528

Hydraulic system

HYDRAULIC SYSTEM
TypeMechanical Shift Control
PumpGear Pump,176L/min·2200rpm
Control Valve2 Spool (Bucket&Boom)
System Pressure16MPa
CylinderLift Cylinder2-125×784mm
No.-Bore x strokeTilt Cylinder1-140×553mm
Joystick Control Pressure--MPa
Cycle TimeRaiseDumpLowerTotal
(Sec)5.51.33.710.5



 Brake system

BRAKE SYSTEM
Service BrakeSingle Circuit Caliper,Dry Brake
Setting Pressure0.70-0.78MPa
Parking BrakeFlexible Shaft Controlled Caliper Brake
Emergency BrakeFlexible Shaft Controlled Caliper Brake

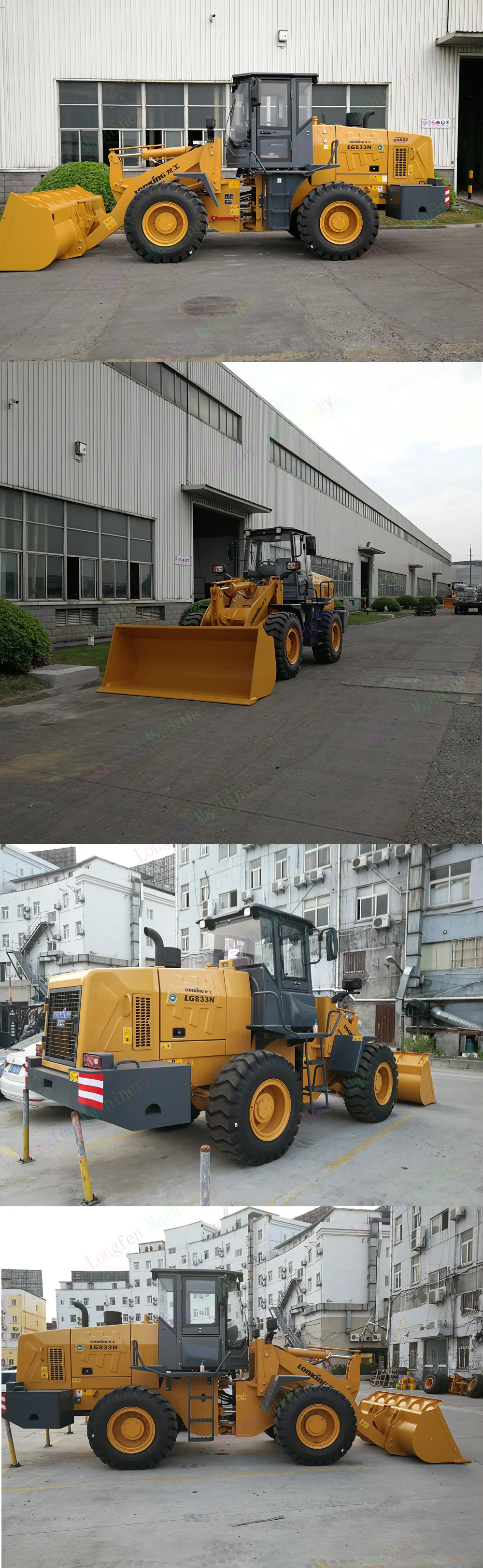

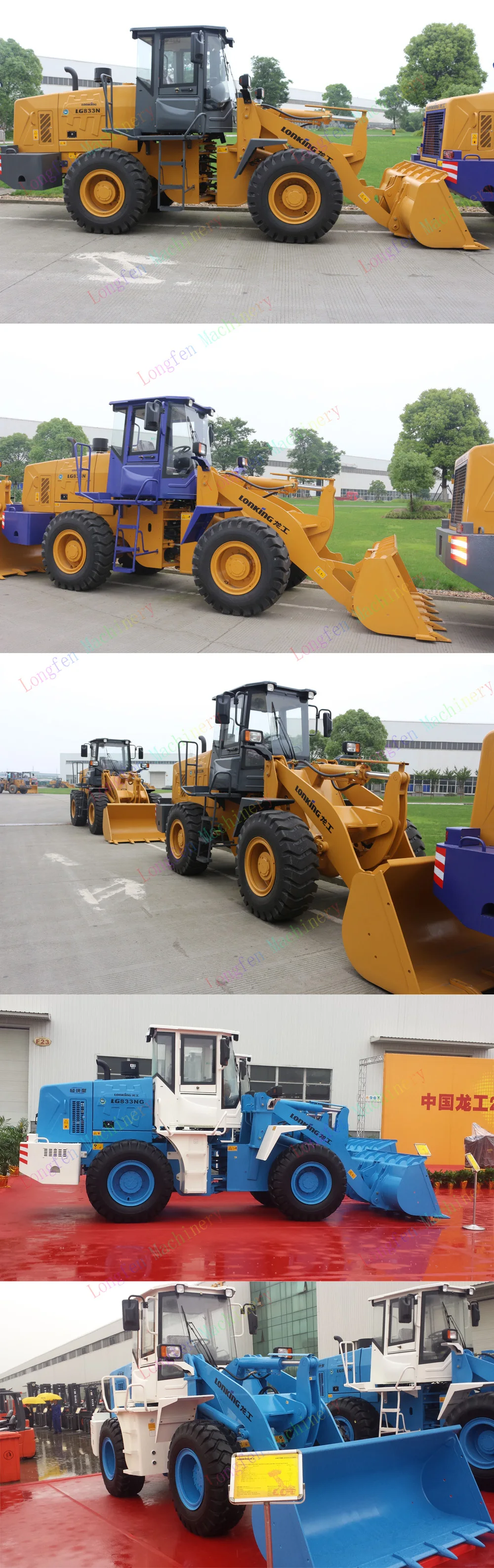

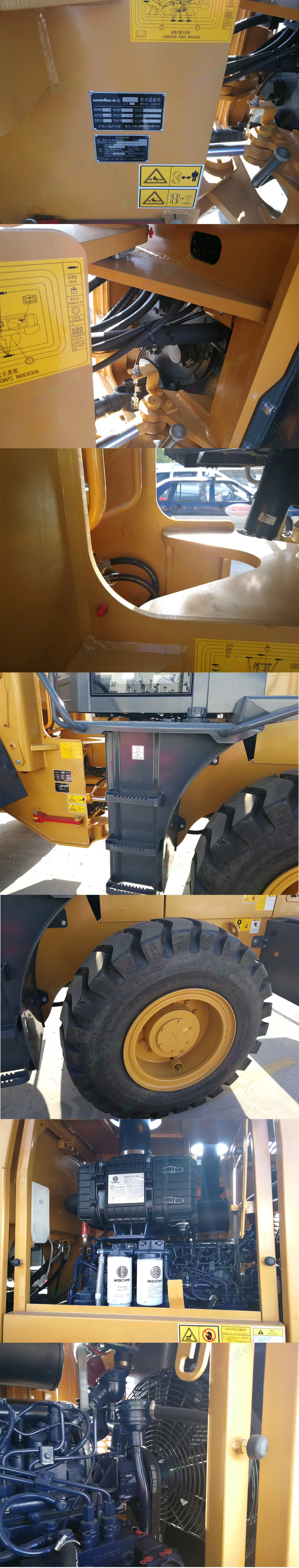

Lonking LG833N photo

LG833 (4)combine 1.jpg

wheel loader833-combine.jpg

LG833 (4)combine 2.jpg

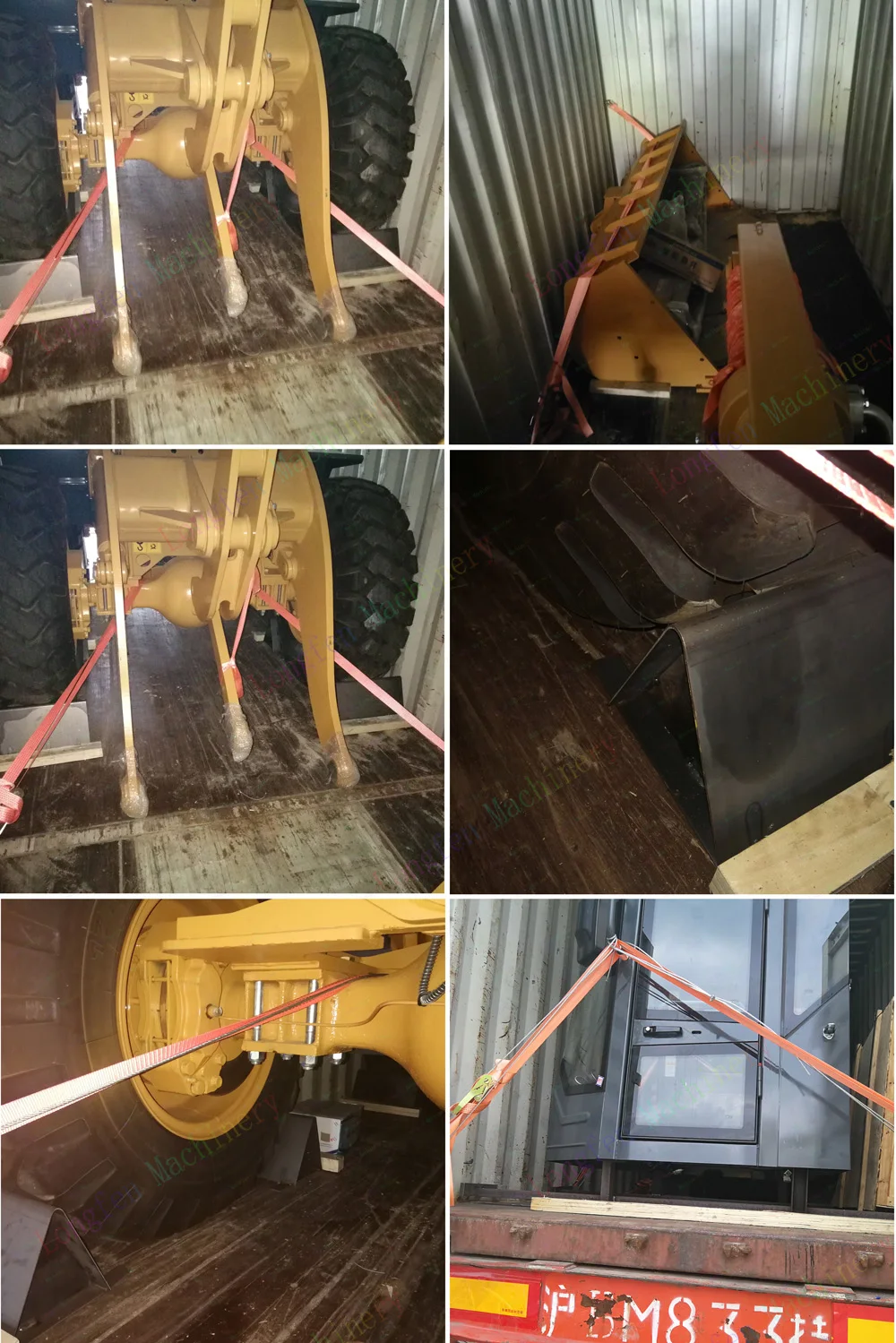

Loading




Company Profile

     Found in 1993 , Lonking  holding limited  for short  lonking is a large scale construction and logistic machinery company in longyan of Fujian Province, china  it was established by Mr.Li San Yim deputy of the National People’s Congress, National Model worker, National Advanced individual of Glorious Cause. The company took the initiative to be listed in Hongkong(SEHK) among  china’s construction machinery  industries(stock code:03339) and was awarded the titles as  Global Top 50  construction machinery  manufacturer , china Top 100 Machinery manufacturer of core competitiveness and Top 100 enterprises Established by overseas Chinese.



     Adhering to the principle of dealership model the company sells its products in over 50 countries and regions around the world and constantly enhance three major advantages of quality, service and cost performance . by doing this it has ensures the smoothness of sales channels and improved its after sale service ,thus wining customers’ trust.



    The company attaches great importance to  the corporate governance policy of being dependent on talents, management, quality, brand creativity ,trust and excellence as well as the product idea of  putting people first and man-machine union, aided by lonking’ s 4 major bases,19 wholly – owned subsidiaries and over 1000 distributors  both home and abroad . the company has acquires successful experience  in researching, developing and manufacturing wheel loader, excavators, road rollers, forklifts, and relevant core parts and established an independent R&D center ,taking the purpose as high technology, high quality  and high efficiency the company is committed to providing customs with earthmoving machine of high quality and cost performance and a complete whole solution to improve construction efficiency and generate more values.
