Тиристорные регуляторы высокого скорости 3D 5-осевой фрезерный станок с ЧПУ для устройств водоструйной
- Категории: Станки гидроабразивной резки >>>
- Поставщик: YC,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Details

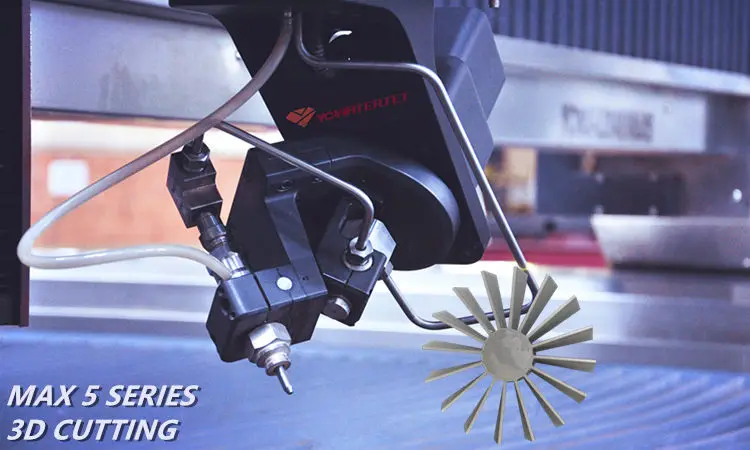

MAX5 series 5 axis water jet cutting machine unlike a conventional 3-axis waterjet cutting machine, this product is added with A-axis (in a vertical direction) and C-axis (which rotates around the Z axis).By using state-of-the-art technology and the Italian ECS control system, it can produce 0-±45° inclined cuts with a maximum rotation angle of up to ±540°. Currently, this state-of-the-art cutting equipment has been applied by a wide variety of advanced processing industries.
It can cut the product cross section without inclination, and cut bevel at any angle, as well as cut the workpiece vertically, especially cut cone, curved impeller, gear, etc.
Technical Parameters:
Bevel axis (A): ±45°
Rotary axis (C): ±540°
Control accuracy: ±0.01mm
Angle accuracy: 0.01°
CNC Water Jet Cutting Machine Parameter(L=Gantry type) | ||||||||||||||
Parameters | Unit | YCWJ-L1010 | YCWJ-L2015 | YCWJ-L3015 | YCWJ-L3020 | YCWJ-L2060 | ||||||||
Efficient Cutting Area | mm | 1000×1000 | 2000×1500 | 3000×1500 | 3000×2000 | 2000×6000 | ||||||||
Axis Travel | X | mm | 1000 | 2000 | 3000 | 3000 | 2000 | |||||||
Y | mm | 1000 | 1500 | 1500 | 2000 | 6000 | ||||||||
Z | mm | 150-180 | 150-180 | 150-180 | 150-180 | 150-180 | ||||||||

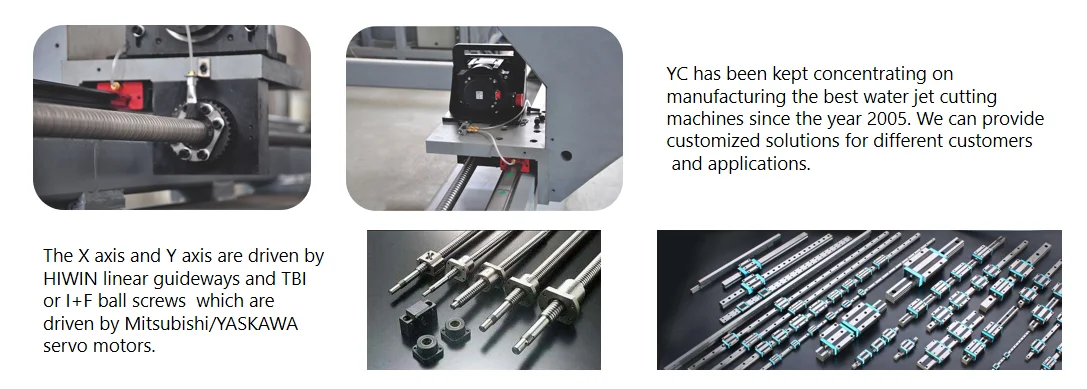

X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt MITSUBISHI or Yaskawa | ||||||||||||||
Cutting Accuracy | mm | ±0.1 | ||||||||||||
Positioning Accuracy | mm | ±0.2 | ||||||||||||
X,Y Dry-run Speed | m/min | 0-15 (if need 30m/min speed,we can do as request ) | ||||||||||||
Cutting Speed | m/min | as to detail material and thickness | ||||||||||||
Main Feature:
Control: PLC
Shifting: electro-hydraulic
Control Cooling: cooler/oil heat exchanger
Inlet water filter accuracy: ≤0.45μm
Oil-return filter accuracy: 20 μm
Working temp: 0-50°c
Outlet: UNF 3/8" Cooling in/out-let: NPT1"
Max orifice size: 0.33mm
High Pressure Pump | ||||||
Model | YCG-3038 | YCG-3742S | YCG-7542S | |||
Max Pressure | 3800Bar/55,000Psi | 4137Bar/60,000Psi | 4137Bar/60,000Psi | |||
Max Water Flow | 3.7L/min | 3.7L/min | 7.4L/min | |||
Max Orifice/Nozzle | 0.011/0.03 | 0.013/0.04 | 0.016/0.05 | |||
Power | 30KW/40HP | 37KW/50HP | 75KW/100HP | |||
Specification Parameters：
1. Up to 16 axes interpolated.2. Hardware Architecture dual core ( Kontron).
3. With high performance and low power.
4. Monitor 15" LCD - Integrated Touch Screen(Optional).
5. Peripheral interface: EtherCAT.
6. Node EtherCAT to manage EcsLink.
7. Mechatrolink® 2 and analogic drives.
8. Up to 2048 I/O with EtherCAT.
9. Modular machine panel (Optional).
10. Alphanumeric keyboard (Optional).
Auto abrasive delivery system & Cooling system
Abrasive delivery system
Air cooler
Water chiller(optional)
\t\t\t\t\t\t\t\t\tOptional Accessories \t\t\t\t\t\t\t
Remove the abrasive from the tank automatically, separate the abrasive and water.
Reduce the labor force,improve work efficiency.The absorption pump sucks up the mixture of sand and water from the tank into a collection box when it works.There are plastic woven filter bags in the collection box,water is recycled to the machine tank, sand and the mixturefrom cutting are collected into filter bags Inside. So as to achieve the purpose of automatic collection to make it easy to clean.
Water Soften System
Hydraulic Loading System
Cutting Head With Drilling
\t\t\t\t\t\t\t\t\tRelated Products \t\t\t\t\t\t\t
Dynamic 5axis Waterjet Machine
（Bevel Cutting 0-±10°）
3 axis Waterjet Cutting Machine
Max5 axis
Water Jet Cutting Machine
（Bevel Cutting 0-±45°）
Multi- head
WaterJet Cutting Machine
WaterJet Cutting Machine
Cantilever Type
Waterjet Cutting Machine
Robotic
Waterjet
\t\t\t\t\t\t\t\t\tCutting Samples \t\t\t\t\t\t\t
Glass Cutting
Metal Cutting
Stone Cutting
Composite material cutting
Leather cutting
Crystal Cutting
Packing&Delivery
Company Profie
CUSTOMIZE YOUR WATER JET
Straight to do the most professional water jet cutting machine, for different customers in different industries we will provide a variety of solutions
Development
1999, YC Industry was established by Mr. Min, mainly engaged in manufacturing large production line.
2005, YC started to research and developed UHP water jet cutting equipment and cooperated with German KMT as well.
2008, YC started to cooperate with the UK agent.
2009, YC started to cooperate with USA Accustream whom is specialized in water jet parts and pumps.
2014, YC Industry built a new company Wuxi YC Waterjet Technology Co.,Ltd.
2015, YC WATERJET started to cooperate with RU agent.
2019,YC has sold the products to more than 50 countries .
Why us
We are engaged in machinery manufacturing since the year 1999,there are more than 20% workers with more than 8 years experience in water jet cutting field.
Our chief engineer Mr. Tian who started research of water jet when he was a university student has 20 years experience in water jet cutting field, and other technical persons have over 10 years experience.
YC is the partner of Accustream/Hyperthem, every year we have technical meetings with engineers from USA.
For different customers in different industries we will provide different solutions, Your water jet is tailored based on your individual needs.
Our Engineers go to many countries for installation and debugging every year.
Sales Service
Pre-sales service
1. YC owns a 15 years team focusing on waterjet. We promise to provide prompt service.
2. Any question will be replied within 24 hours. We promise to provide a reasonable and detailed quotation.
3. Welcome to send us your materials, and we will cut them into samples as required.
After-sales Service
1. If the product proves detective during the warranty period, we will respond within 12 hours after receiving your request. Our operators will reach you by phone, fax and email. If you still don't know how to repair, we will dispatch our maintenance staff to your designated destinations within 48 hours of receiving your request.
2. If you need to purchase wear parts, we will respond within 12 hours and provide technical support after receiving your request.
1. YC owns a 15 years team focusing on waterjet. We promise to provide prompt service.
2. Any question will be replied within 24 hours. We promise to provide a reasonable and detailed quotation.
3. Welcome to send us your materials, and we will cut them into samples as required.
After-sales Service
1. If the product proves detective during the warranty period, we will respond within 12 hours after receiving your request. Our operators will reach you by phone, fax and email. If you still don't know how to repair, we will dispatch our maintenance staff to your designated destinations within 48 hours of receiving your request.
2. If you need to purchase wear parts, we will respond within 12 hours and provide technical support after receiving your request.
Engineer Overseas after-sale service is available
