Шиномонтажный станок с гарантией для машины смены автомобильных шин

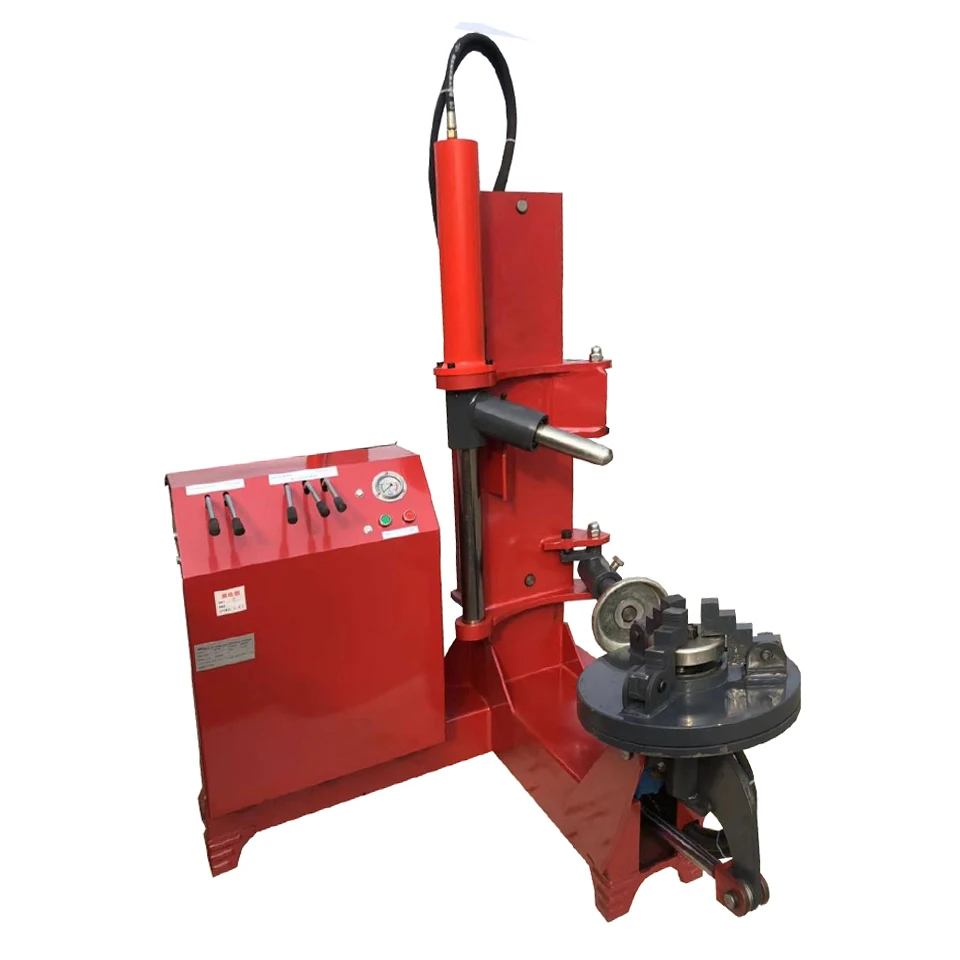

This tyre changer can dismantle various models tyres of various heavy duty vehicles, it is suitable for tyres with junk ring and mound layer, tyres of agricultural vehicles and engineering vehicles, like Dongfeng, Liberate, Yellow river, Steyr, the North, golden dragon, Volvo,etc. This tyre changer is with character of saving time and labour, high working efficiency, it does not damage the tyre mouth and rim, it is an ideal equipment for tyre reparing and maintenance.

Structure:

1.      Power source: three phase

2.      Regulate the pressure regulating valve: counterclockwise rotation to increase the pressure, clockwise rotation to decrease the pressure

3.      Switch: rotate the red switch clockwise

4.      First, adjust the mechanical arm on the upright support, move up and down

5.      Second, adjust the operation platform by clockwise or counterclockwise rotation

6.      Third, adjust the working platform angle

7.      1stmechanical governor lever: adjust the length of the extension bar according to the tightness of tyre mouth

8.      Fix the tyre: fastening the steel rim of the tyre by moving the fixed jaw outwards

Motor Power: 3KW

Operating Pressure: 8-10MPa

Power Supply:380V, 50Hz,

Place of Origin: ShandongChina (Mainland)

Brand Name: furun

Model Number:BTJ-2

Warranty: 12 Months

Name: economical and durable semi-automatic  BTJ-2 tyre changer

Color: Blue, Red,etc

Optional Part: shop truck and passenger car

Outside clamp:20"

Range of application:all 22.5 tubeless

Dimension(L*W*H):1200MM*1200MM*2300MM

Weight:425kg
