TOB New Energy

TOB NEW ENERGY

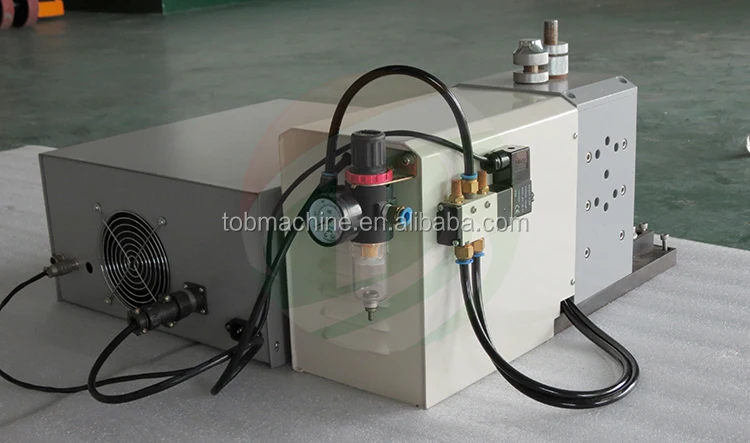

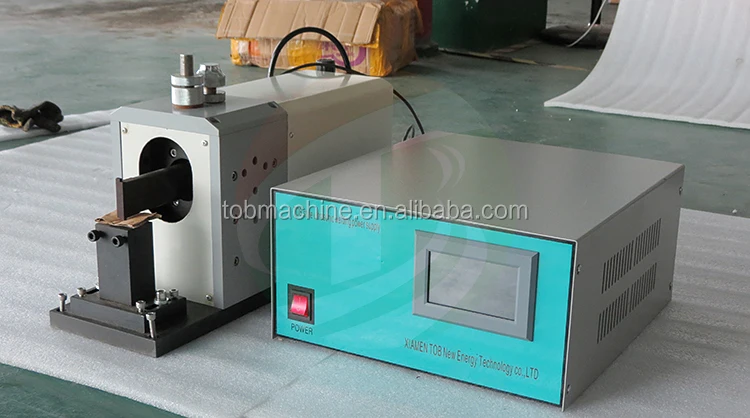

Lithium Polymer Battery Ultrasonic Spot Welder Machine For Welding Multi-layers Stacked Electrode and Tab

TOB SPECIFICATION

1. TOB-USW-3000W ultrasonic spot welding machine is designed for prepare polymer battery core in lab and production line. It can weld Ni tab with 10-30 layers copper foil, or Al tab with 10-30 layers aluminum foil.

2. If you only need to weld 10-25 layers, you can choose model TOB-USW-2600W, it will be cheaper.

3. If you need to weld 10-60 layers, please choose model TOB-USW-4500W with good welding effect.

Model	TOB-USW-3000W
Type	Ultrasonic spot welding machine
Welding ability, it can weld:
10-30 layers copper foil with 0.1-0.3mm Ni tab/Nickel-clad copper tab. Welding point : 46, 48, 410, 412 mm, customized
10-30 layers aluminum foil with 0.1-0.3mm Al tab. Welding point : 46, 48, 410, 412 mm, customized
0.2mm Al tab with 0.2mm Ni tab/Nickel-clad copper tab. Welding point : 46, 48, 410, 412mm, customized
2-4 pcs 0.2mm Al tab. Welding point : 46, 412mm, customized
2-4 pcs 0.2mm Ni tab. Welding point : 46, 412mm, customized

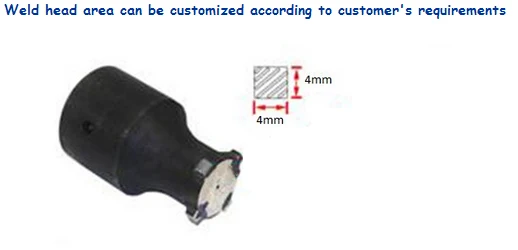

Welding Head
Frequency	24KHZ
Max output power	3000W

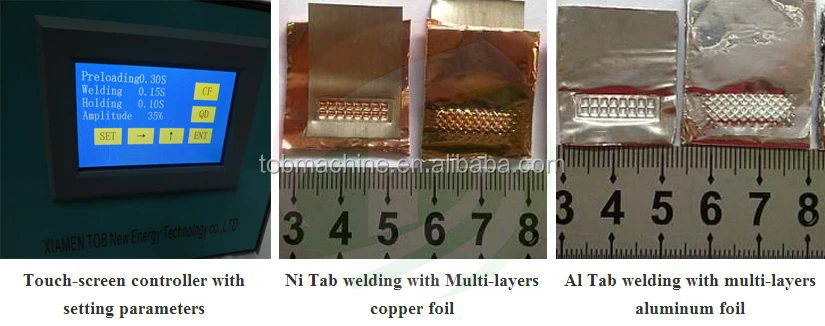

Control mode	CPU control
Air supply	≥0.5MPa
Voltage source	110/ 220V, 50HZ/60HZ
Humidity	≤48%
Temperature	≤45℃
Warranty	One year limited warranty with lifetime support
