20-80 куб. М площадь сцены коробка грузовик для мобильной
- Категории: Other Trucks >>>
- Поставщик: Chengli,Special,Automobile,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
We are 12 years professional manufacturer of special trucks,supply different kinds of trucks,customized as customer requirements.
(1). Capacity: 18-80 m3 area mobile stage truck.
(2). Steering wheel: both left and right hand drive,meet the needs of different countries.
(3). Emission standard: option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 stage trucks.
(4). Truck chassis: option DONGFENG,FOTON,HOWO,JAC,etc
Get the latest quotation,contact Ms.Bella WeChat and WhatsApp: 0086-15927378796.
Product Description

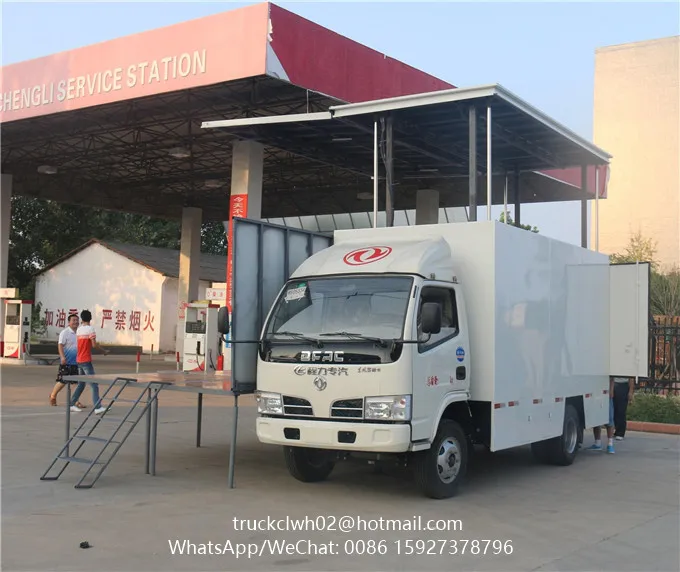

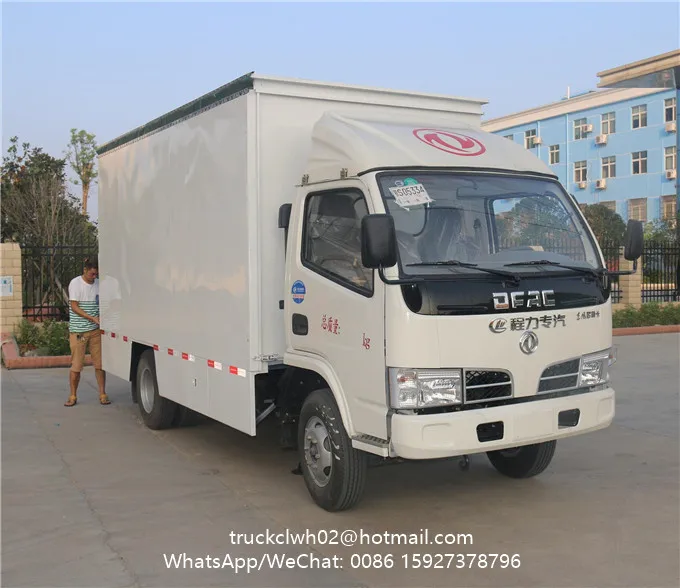

20-80m3 stage area stage box truck for mobile advertising.
24m2 stage truck DONGFENG specification:
ITEM | UNIT | PARAMETER |
Vehicle |
| DONGFENG mobile stage truck |
Overall dimensions | mm | 5995×2000×2950 |
Stage body dimension | mm | 4200×1800×1850 |
GVW | kg | Appro×4495 |
Curb weight | Appro×3950 | |
Loading | Appro×415 | |
Wheel base | mm | 3300 |
F/R overhang | 1032/1663 | |
Approach/departure angle | ° | 19/12 |
Max speed | km/h | 95 |

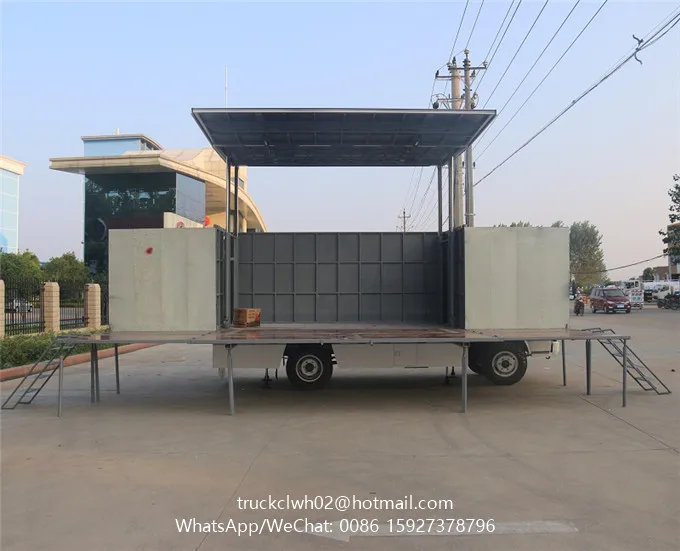

Performance | 1. Height from ground to the stage : 1100mm. 2. Height from the stage to the stage roof : 1850mm. 3. Hydraulic cylinder lifting height : 1000mm. 4. When hydraulic cylinder is lifting up,height from ground to the stage roof is 3950mm. 5. Stage depth 4200mm. 6. Outer stage length 7000mm. 7. Stage open time 3-5 minutes. | |
Standard configuration | 1. Single side and box box body roof are hydraulic lift to form the top of the stage. 2. The other side is fixed. 3. Left side hydraulic extend to form the stage,hydraulic stage area is 16.8m2, manual operated stage is 7.2m2. 4. Using non-slip stage board,thickness 15mm.. 5. Stage van body material cold-rolled steel. 6. Hydraulic support leg 4pcs. 7. Balance leg 16pcs. 8. Step ladder 2pcs. | |
Selective equipment | Air guide sleeve (not including in the price) | |
Chassis Parameter | ||
Cabin | Single cabin, power steering,no air conditioner,3 passengers,right hand drive | |
Drive form | 4×2 | |
Engine | Engine brand : DONGFENG CHAOCHAI POWER Engine model: CY4102-C3F, 95HP Displacement: 3856ml Emission standard: Euro 3 Fuel type: diesel Engine type: 4 cylinder, turbocharged, inter-cooled. | |
Transmission | 5-speed, manual | |
Tire | 7.00-16, 6pcs | |
Packaging & Shipping
Stage truck packing and shipping : nude, covered with wax , shipping in Container 20"GP, 40"GP, 40"HQ ; in RO/RO operation; in Bulk carrier.
Roll on roll off (RORO) ship
It's the specialized ship to transport cars and trucks, which has power wheel, it's the best way of truck transportation.
Bulk carrier ship
It's the specialized ship to transport grain, coal, ore, salt, cement ,etc, dry and bulk goods, can also used to transport trucks,price is cheap, but the truck always be put on the deck, sea water will damage the truck painting.
Container ship
It's well-known shipping way, and also the highest cost among these three ways. Few sea port only container ship can arrive, so sometimes, we have to use container ship.
Company Information
Cheng Li Special Automobile Co., Ltd is an important part of Hubei Chengli Group, we are large scale special truck modification plant for DONGFENG, FOTON, SINOTRUK, JAC, JMC, and we are domestic well-known special trucks manufacturer for landscaping vehicles, petrochemical vehicles, municipal sanitation vehicles, pressure vessels. National product code: "CLW", government and enterprise procurement designated special vehicle supplier.
Company is located in Cheng Li Automobile Industrial Park,Zengdu District,Suizhou City, Hubei Province, China, near Wuhan Tianhe International Airport.
Company covers an area of more than 1,000 acres, more than 8,000 employees, among them, the technical staff is more than 500, more than 2,000 skilled workers, the annual production capacity is 100,000 vehicles.
Our factory has more than 2000 sets large production equipment,detection equipment more than 200 sets , 16pcs assembly production lines, strong technical force and the detection means complete. Now already through a comprehensive ISO9001-2008 international quality system certification, all products through the 3C international compulsory product certification, and through the export of the product certification.
Our company is China top 500 private manufacturing enterprise.
