Product Description
FY-1600--64inch roll to roll hot cold laminator suitable for industrial applications.
It allows laminating, mounting and incapsulating prints, applying application tape and double-sided adhesive; compatible with all kinds of cold laminating film on the market.
This model is a fully automatic roll to roll laminator that suitable for bottomed paper materials and plate mounting.There,max laminating width is 1.6m,speed is 10m/min,thickness is 35mm,temperature is 60Celsius.Yes,the upper roller can be heated up to 60Celsius.Roller going up and down is controlled by handle valve with air cylinder.It’s pneumatic.So compressor will follow this machine.The color of silicon roller is light gray.Normally specification,the lighter the color,the purer the silica gel.And it’s easy to clean with alcohol.
This model is a fully automatic roll to roll laminator that suitable for bottomed paper materials and plate mounting.There,max laminating width is 1.6m,speed is 10m/min,thickness is 35mm,temperature is 60Celsius.Yes,the upper roller can be heated up to 60Celsius.Roller going up and down is controlled by handle valve with air cylinder.It’s pneumatic.So compressor will follow this machine.The color of silicon roller is light gray.Normally specification,the lighter the color,the purer the silica gel.And it’s easy to clean with alcohol.
1600mm roll to roll hot cold laminator FY-1600 | |||||||
Application | laminating business | ||||||
Max laminating width | 1600mm/63 inch | ||||||
Roller material | silicone roller | ||||||
Max laminating thickness | 35mm | ||||||
Roller diameter | 130mm | ||||||
OEM | Acceptable | ||||||
Max laminating temperature | 60℃ | ||||||
Roller upgrade | By air | ||||||
Warranty | one year | ||||||
Feature
1. ABS cover, easy to disassemble and easy to clean
2. Silicon roller,Non-adhension,high anti-adhension,light gray,In the same specification, the lighter the color, the purer the silica gel, the less impurities, the longer the life, and the easier to clean
3. Cutter device for easy disassembly, a total of four cutters to remove excess material. Left and right macro adjustment function(Max:0.05mm)
4. Fully automatic,multi-functional,suitable for bottomed paper materials,bottomless paper materials, plate mounting.Remove the cutter device to cover large and wide material and install cutter device, can cover A3, A4 and other small board material.
5. Emergency stop buttons on both sides,meet EU standards
6. Aluminum tube for easy loading into roll materials
7. Air cylinder, adaptive thickness:35mm
8. Configure geared motor(120W) ;competitors motor(60~90W)
9. OEM,Provide after-sales support (manuals, installation videos, etc.), one year warranty, free accessories during the period(non-human damage)
10. Support multi-language
11. Our advantage: the same configuration, the price is lower than competitors in the same industry; the same price, the configuration is better than the same industry
2. Silicon roller,Non-adhension,high anti-adhension,light gray,In the same specification, the lighter the color, the purer the silica gel, the less impurities, the longer the life, and the easier to clean
3. Cutter device for easy disassembly, a total of four cutters to remove excess material. Left and right macro adjustment function(Max:0.05mm)
4. Fully automatic,multi-functional,suitable for bottomed paper materials,bottomless paper materials, plate mounting.Remove the cutter device to cover large and wide material and install cutter device, can cover A3, A4 and other small board material.
5. Emergency stop buttons on both sides,meet EU standards
6. Aluminum tube for easy loading into roll materials
7. Air cylinder, adaptive thickness:35mm
8. Configure geared motor(120W) ;competitors motor(60~90W)
9. OEM,Provide after-sales support (manuals, installation videos, etc.), one year warranty, free accessories during the period(non-human damage)
10. Support multi-language
11. Our advantage: the same configuration, the price is lower than competitors in the same industry; the same price, the configuration is better than the same industry

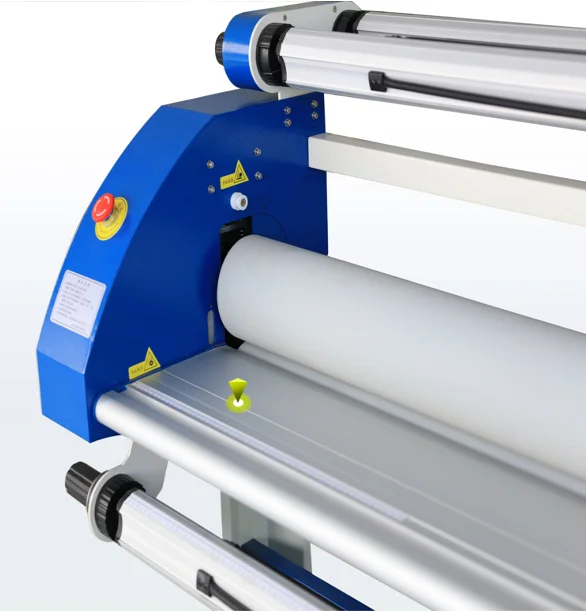

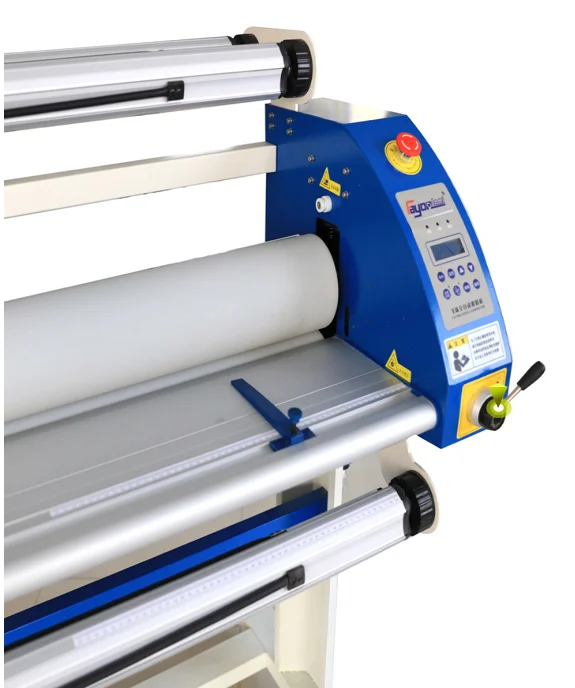

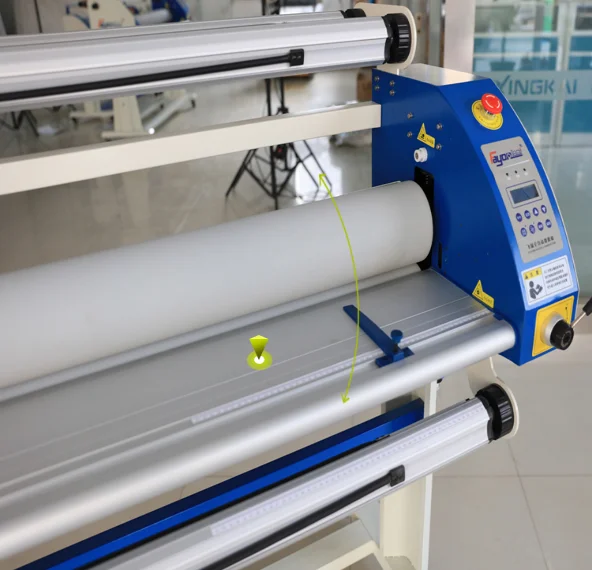

Detailed Images
1.Tensioning knob---adjustment lever
2.Emergency stop---buttons on the both sides,can use timely
3.Silicon roller---main material--two rollers laminating picture and film thing
4.platform---Working table--loading and unloading material smoothly
5.aluminum lever---holding pure picture or prints
6.foot wheel---Moving the whole laminator,working at anywhere what you want
7.roll lever---Support bottom paper film
8.aluminum lever---holding film with bottom paper,releasing film

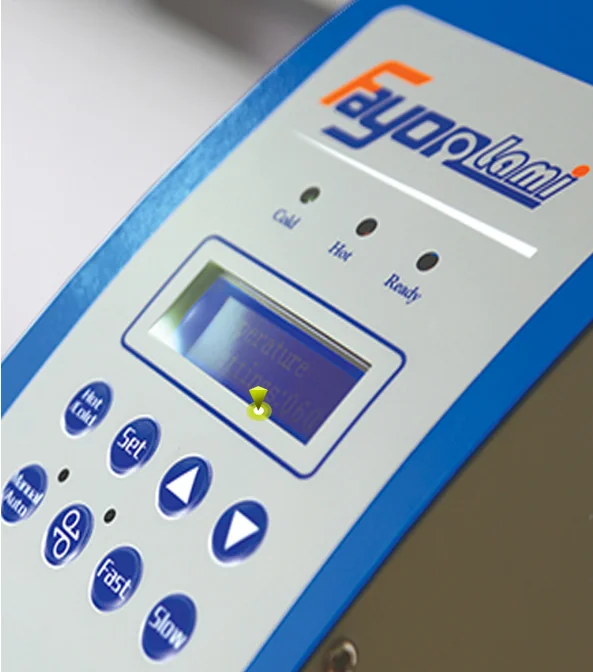

9.control panels---laminating temperature and speed(1~9 shift) control,hot/cold shifting
10.air pressure switch---upper silicon roller up and down
2.Emergency stop---buttons on the both sides,can use timely
3.Silicon roller---main material--two rollers laminating picture and film thing
4.platform---Working table--loading and unloading material smoothly
5.aluminum lever---holding pure picture or prints
6.foot wheel---Moving the whole laminator,working at anywhere what you want
7.roll lever---Support bottom paper film
8.aluminum lever---holding film with bottom paper,releasing film
9.control panels---laminating temperature and speed(1~9 shift) control,hot/cold shifting
10.air pressure switch---upper silicon roller up and down
Packing&Shipping
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in wooden case with foil bag inside.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 1 to 7 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to our request?
A: Yes, we can produce the machine according to your request.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A: Generally, we pack our goods in wooden case with foil bag inside.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 1 to 7 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to our request?
A: Yes, we can produce the machine according to your request.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
