Product Description

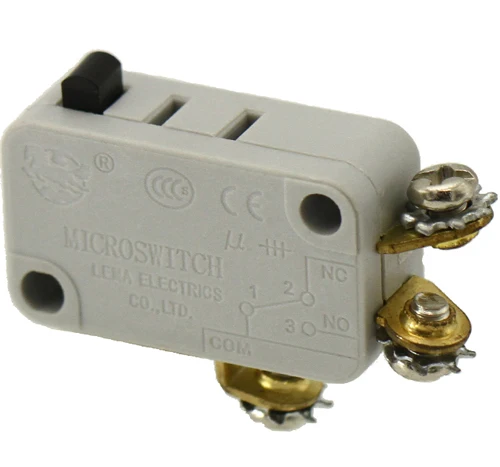

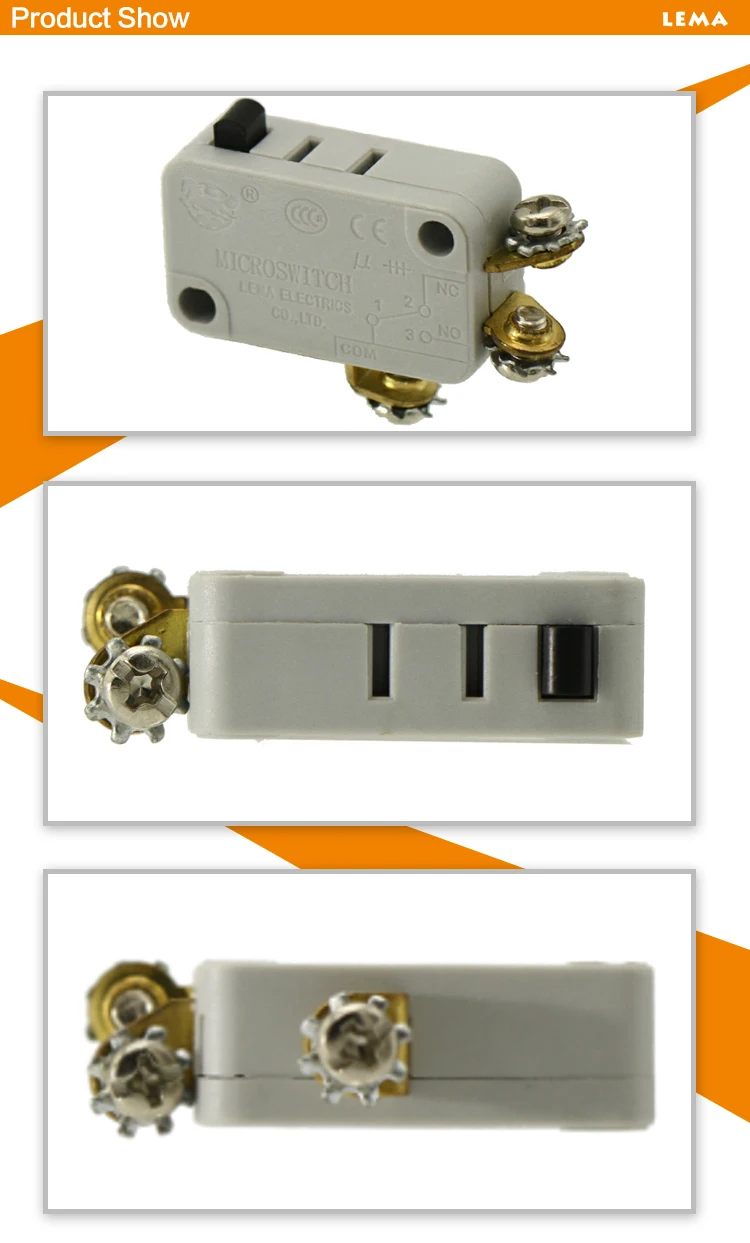

Lema grey KW7-0L1 screw terminal electrical sensitive micro switch 16a 250v microswitch
 | ||
 | ||
| Brands | LEMA | |
| Model | KW7-0L1 | |
| Voltage: | 250VAC | |
| Electric current: | 16 A | |
| Protection level: | Ip40 | |
| Contact form: | SPDT | |
| Package: | CARTON | |
| Size: | 27.8*10.3*15.9mm | |
| Certified: | CCC CE UL VDE | |
| Operating speed | 0.1mm-1m/s | |
| Operating frequency | Mechanical:60 times/min | |
| Electrical:25 times/min | ||
| Initial insulation resistance | 100MΩmin.(at 500VDC) | |
| Initial contact resistance | 25MΩmax. | |
| Dielectric strength | Between non-consecutive terminals | 1,000Vrms, 50/60Hz for 1 min |
| Between non-current carrying metal parts and each terminal | 1,500Vrms, 50/60Hz for 1 min | |
| Between ground and each terminal | 1,500Vrms, 50/60Hz for 1 min | |
| Vibration resistance | 10-55Hz,1.5mm double amplitude | |
| Shock resistance | Destruction | O.F.>0.5N:1000m/s2(Approx.100G)max. O.F.≤0.5N:400m/s2(Approx.40G)max. |
| Malfunction | O.F.>0.5N:200m/s2(Approx.20G)max. O.F.≤0.5N:100m/s2(Approx.10G)max. | |
| Operating life | Mechanical life | 1,000,000 operations min. |
| Electrical life | 50,000 operations min. | |
| Weight | Approx.6.2g (no lever) | |
About Us
Certifications
Transport
FAQ
 | |
| 1. How do you control the products’ quality? 100% Auto inspection machine and manual testing together before packing. |
2. What's your payment term? Samples cost can be paid by PayPal, Western Union. | |
| 3. Would you accept to use our logo? If you have good quantity, we can make OEM and ODM, customized specification. | |
| 4. Can I get a sample for reference? We are glad to send samples for your testing. Samples are free, but you may need to pay the express cost. | |
| 5. What is your delivery time? Usually it takes 15-20 working days for productions. | |
