1.Application:underground,plant room,etc,used for detecting water leakage.
2.Setup:on ground/wall with screw
3.Detection:Water leakage with LED lamp
4.Materials:Nylon fibre/Alluminium Alloy
5.Origin:China
6.MOQ;50pcs/box
Application | underground,plant room,etc,used for detecting water leakage. | |||
Origin | FAST SENSOR | |||
Product Name | Water Leakage Sensor=FLWS | |||

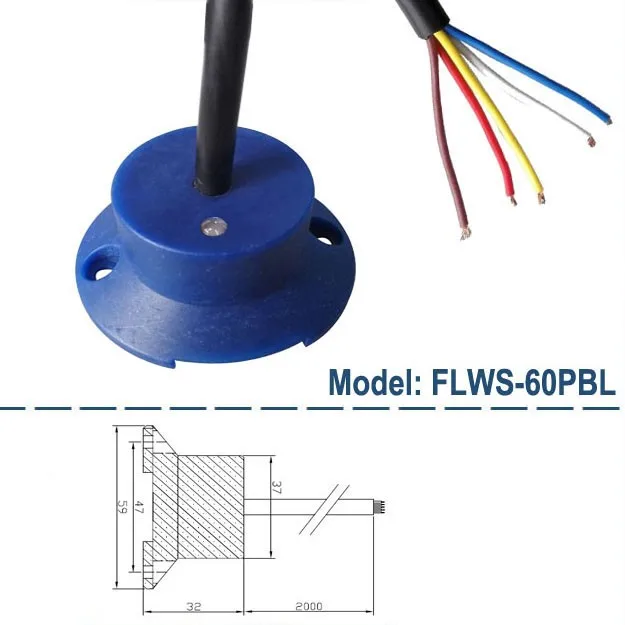

Sizes | 60=Dia. 60 mm | 47=Dia. 47mm | ||
Colors | B=Blue | R=Red | ||
Materials | P=Nylon Fibre S=Alluminium Alloy | S=Alluminium Alloy | ||
Installation | Mounting holes | No mounting holes | ||
Detector | L=With LED In condition of power supply, No alarm, the lamp is green; Give alarm, the lamp is red. | No L=Without LED | L=With LED In condition of power supply, No alarm, the lamp is green; Make alarm, the lamp is red. | No L=Without LED |
Electrical Data | 8=Supply 8~24VDC/AC 5=Only 5VDC Switch current: <50mA Quiescent current: <15mA Relay contact: 3A,250Vac/30Vdc Response speed: <50Millisecond Work temp.: -5~+60℃ No water, relay contact open For water, relay contact closed | 5=Supply Only 5VDC 8=8~24VDC/AC Switch current: <40mA Quiescent current: <10mA Relay contact: 3A,250Vac/30Vdc Response speed: <50Millisecond Work temp.: -5~+60℃ No water, relay contact open For water, relay contact closed | ||
Cable spec. | 2=2000mm cable (standard) 3=3000mm cable 5=5000mm cable Others | |||
Wiring Diagram | ---------------- Red Wire + --------------- Blue Wire N/C ---------------- Yellow Wire Common --------------- White Wire N/O ---------------- Brown Wire — | |||
Work Temp. | -40~+85 | |||
Order Information | For Example, FLWS-60BSL-8-2 | |||
Fast Leakage Water Sensor-Diameter 60mm Blue Alluminium Alloy with LED-8~24VDC/VAC-2 meters cable |
Underground Water Detector/ Water Leak Detector
1. Q: How To Order ?
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.
2 . Q: When will make delivery ?
A: Delivery Time
Sample Order: 1-3 days after receipt of the full payment.
Stock Order: 3-7days after receipt of the full payment
OEM Order: 12-20days after receipt of the deposit.
3. After-sales Service
A:1 year warranty for all kinds of products;
If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.
4.Q Do you support drop shipping?
A:Yes, your drop shipping is available.
